TS-FD

  • 7200 mcd highly efficient rear light
  • 240-degree wide visibility
  • 6V(5V ~ 16V) with a power consumption of 0.6 Watt
  • For bicycle’s rear fender
  • IP56- Protects against high pressure water or dust ingress
  • For 25km e-bike / EPAC
  • K-Mark & ISO-6742 compliance
SKU:
Specifications
Model Name TS-FD
Model No. TKSEFD
S/N B03
Light Output 7200mcd/ 20 lumens
Optical Technology LTi
Light Source LED *4
Input Voltage (DC) 6V(5V ~ 16V)
Power Consumption 0.6W
Cable Diameter ø3mm
Cable Length 1400mm
IP Rating IP56
Operating Temperature (°C) -25 ~ +70
Material Plastic
Weight (et. cable) 18g (without bracket)
Dimension (WxHxL) 38 x 18 x 24mm
Mounting Option Bicycle fender
Reflector (Optional) N/A
Compliance CE/ RoHS/ REACH/ Prop 65
Type of Approval StVZO-K & ISO 6742
Approval Number ~ K1693
Compliance

Built for safety and trust, our lights carry the K-Mark certification under Germany’s StVZO road regulations. They also meet key international standards, including ISO 6742, CE, RoHS, and REACH compliance, ensuring reliable performance and responsible manufacturing.

StVZO
ISO 6742
CE
RoHS
REACH

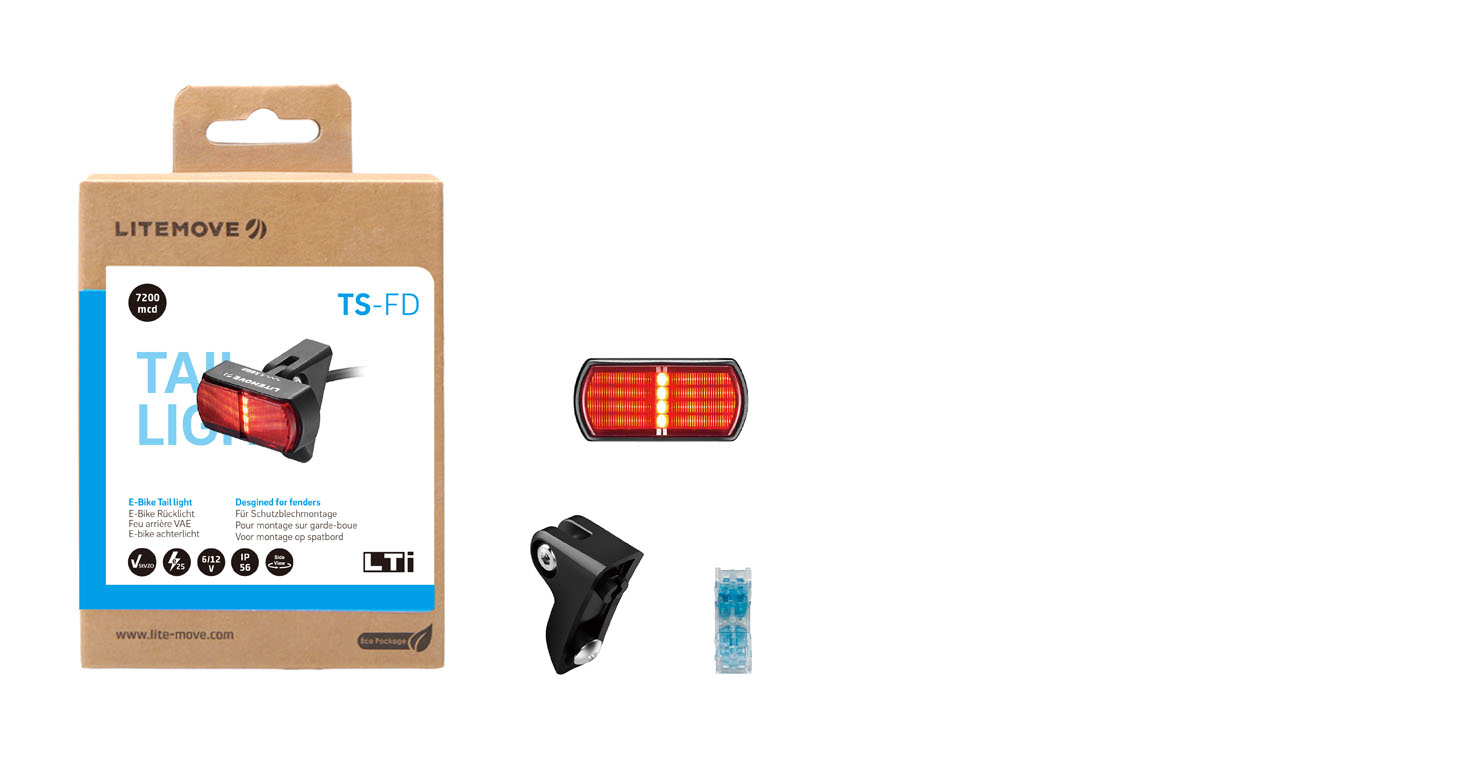

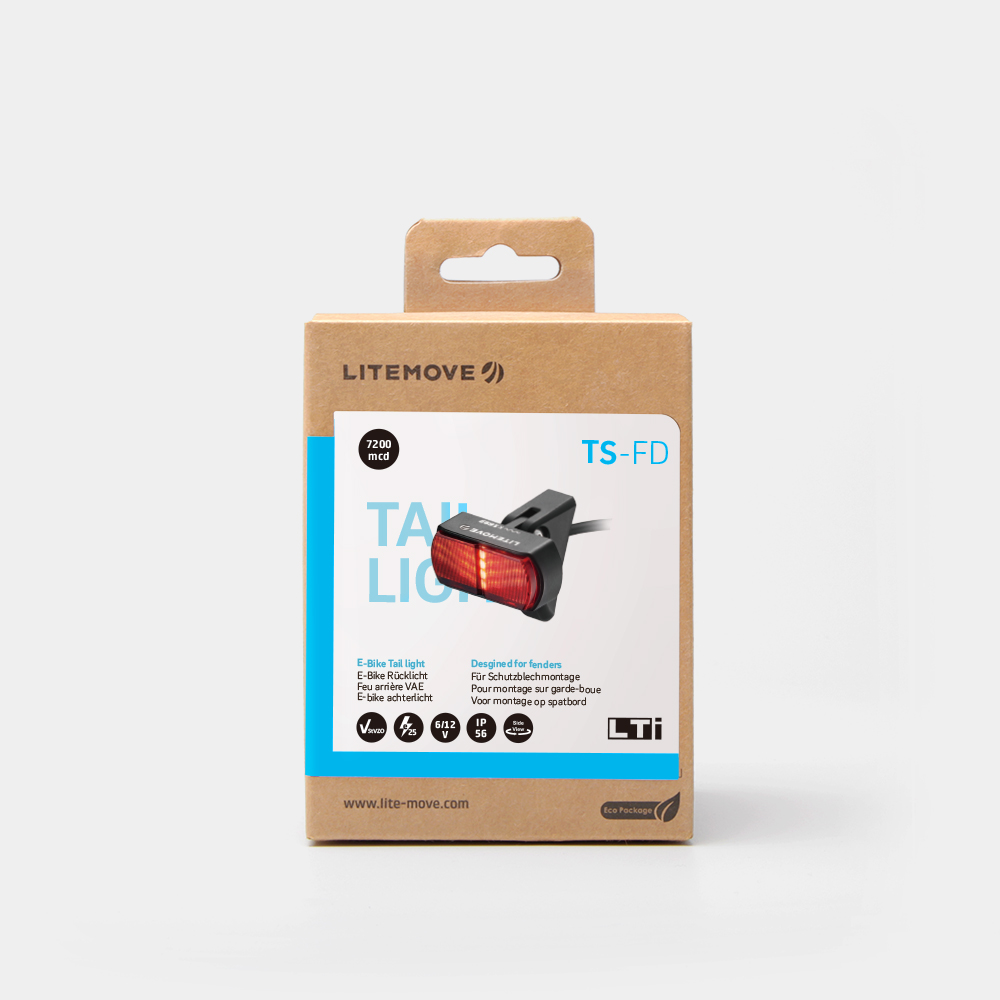

What’s in the box

TSFD

FAQ

Illuminate your path

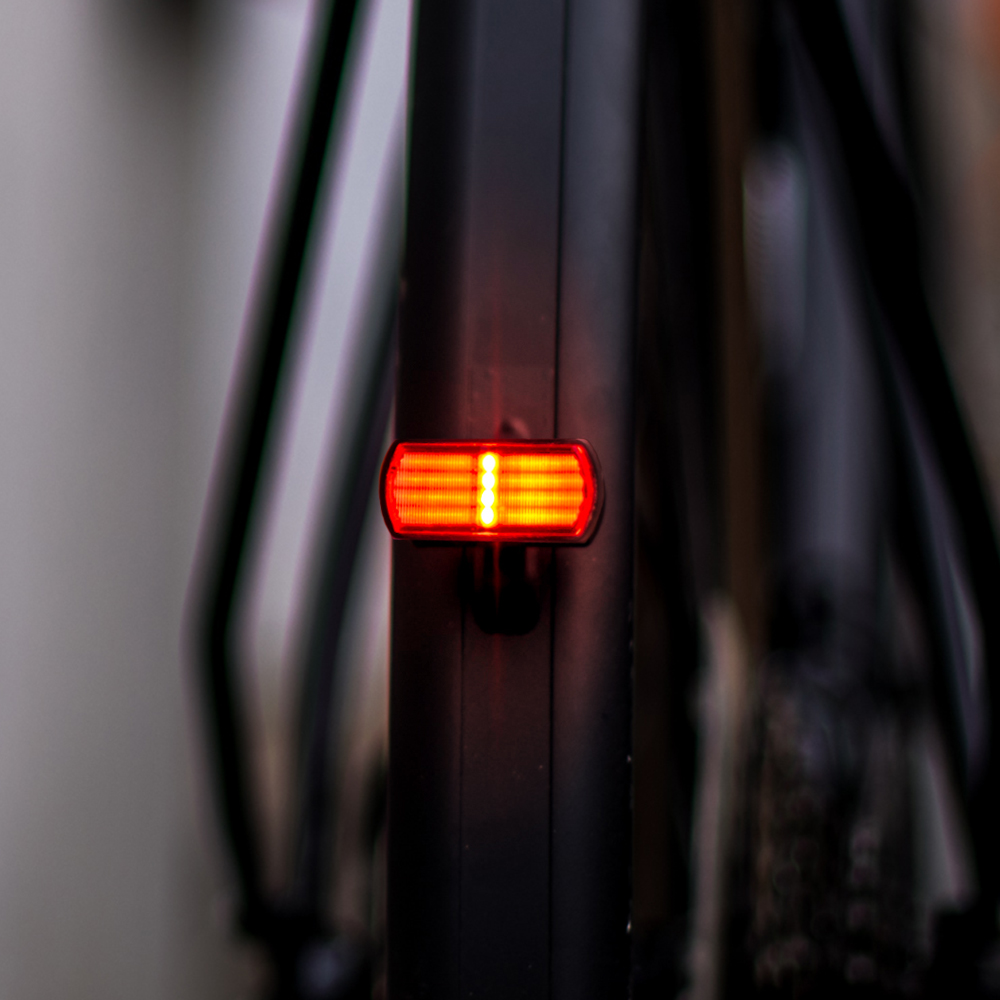

Litemove TSFD LTi

LTi 3D Signature

Crafted with modern high-tech LTi 3D optics, it delivers 7,200 mcd / 20 lm with a striking three-dimensional light effect. This innovative design enhances both visibility and aesthetics, setting a new standard in contemporary cycling illumination.

Wide‑Angle Visibility

Delivers 240‑degree illumination, ensuring maximum safety and awareness. The expansive coverage enhances rider visibility from multiple directions, reducing blind spots and improving protection in traffic and low‑light conditions.

240View fender 1

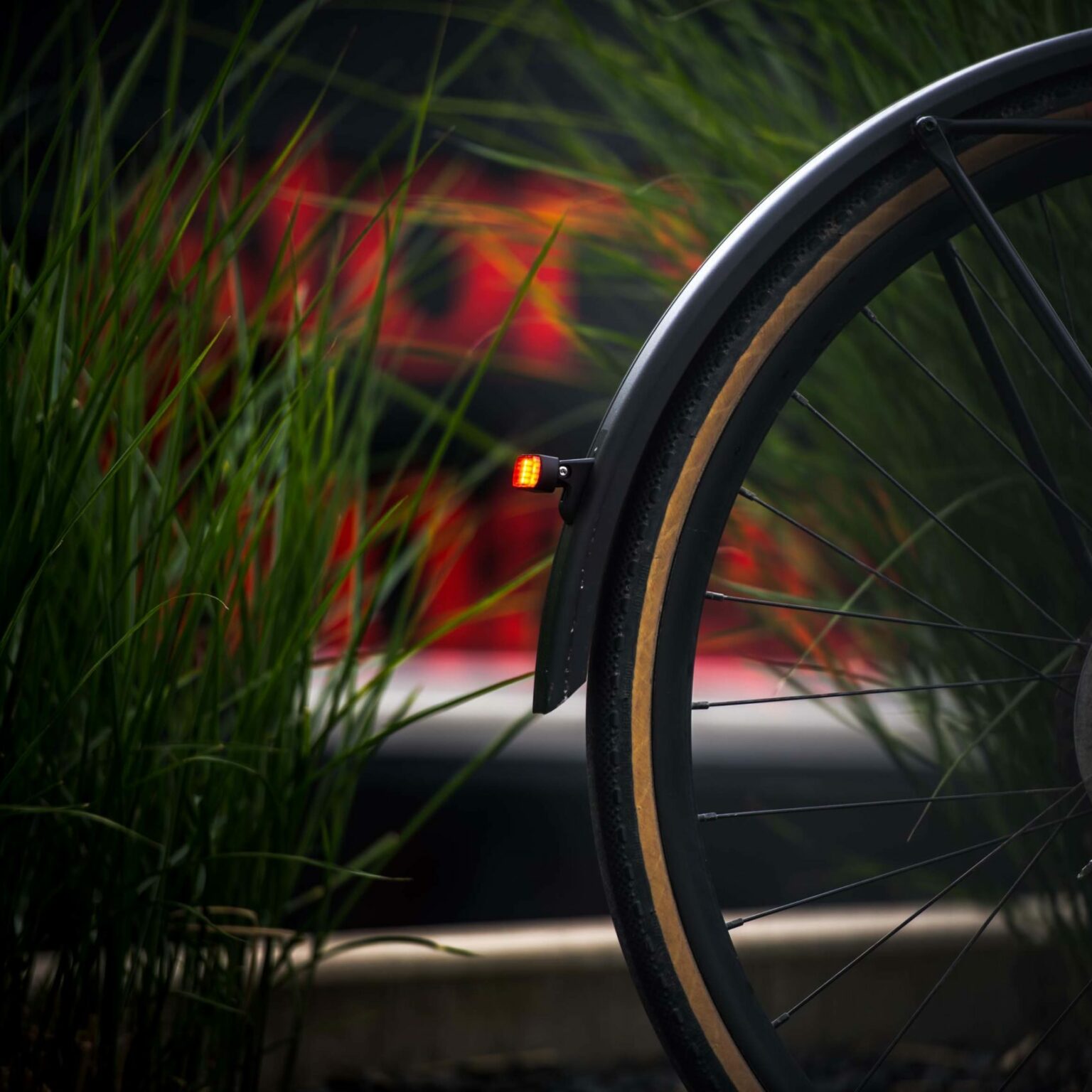

Litemove TSFD 4

Universal Fit

Engineered with a sleek, arched back cover, it seamlessly adapts to all mudguards. The universal fit ensures easy integration, combining style with functional compatibility across diverse bicycle setups.

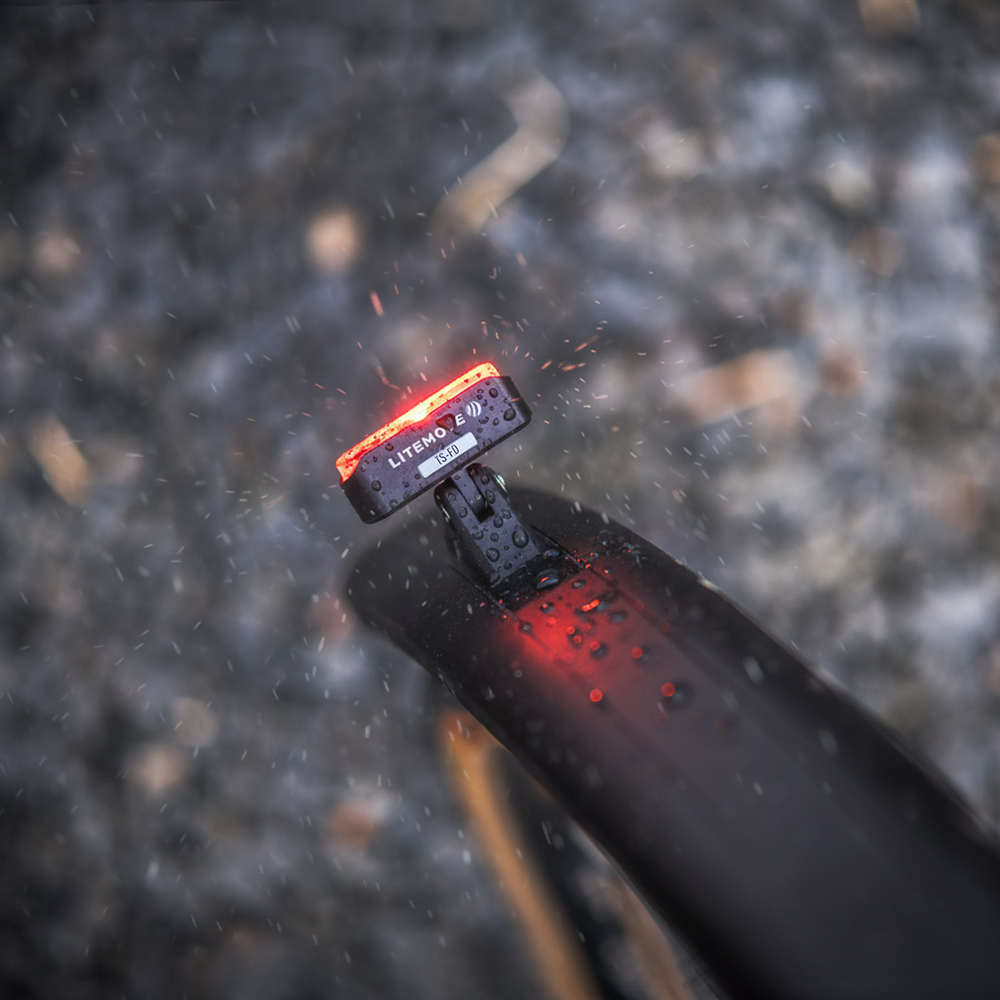

Durability & Protection

Crafted with premium, IP56 water-resistant materials and reinforced construction for reliable protection, durability, and consistent performance in demanding cycling environments.

TSFD IP56.png
0.6W LowPower

Energy‑Efficient Performance

Consumes only 0.6 W, delivering reliable illumination with minimal power draw. Designed for sustainability, it reduces energy usage while maintaining consistent visibility and safety.

Compatible with

Weight 0.25 kg
Dimensions 9 × 7.5 × 12 公分
Light Type

Tail Lights

Power source

E-Bike

Mounting

Rear Fender

Max. Light output

< 50 Lumens (Be Seen)

Mounting Position

Rear Fender

Riding scenario

City/ Urban Area, Rural Area

Compliance

CE, ISO-6742, RoHS/ REACH, StVZO-K

Power Cable

1400mm Open + Self-sealing connector

Mount / Bracket

Rear Fender Adapter for Tail Lights
