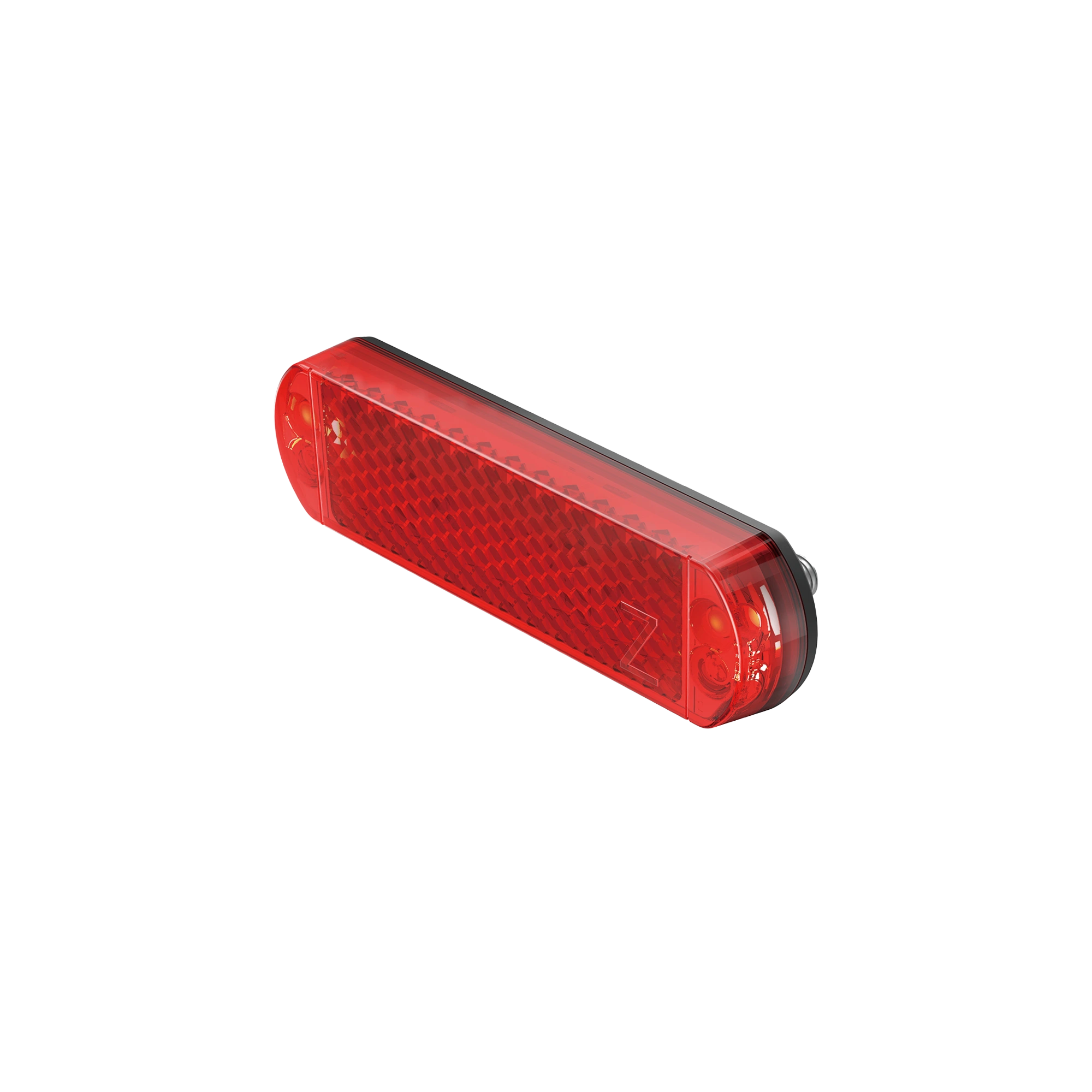

TZHB

  • The TZHB tail light combines sleek design with smart safety features. Its carrier-mounted form integrates a Z-mark retroreflector, meeting German StVZO standards.
    With a 50mm mounting option, it installs easily across a wide range of bicycles.
  • K-Mark certified and equipped with a brake warning function, the TZHB enhances visibility—ideal for urban riders and e-bike users who prioritize safety and style.
  • Compatible with 25km/h e-bikes (EPAC) and fully compliant with StVZO-K and ISO-6742 standards.
SKU:
Specifications



Model Name TZHB
Model No. TZHB
S/N 0042
Light Output Brake light: 55000mcd / 33 lumens

Rear light: 10000 mcd / 16 lumens

Light Source LED *4
Input Voltage (DC) 12V (6V ~ 16V)
Power Consumption Brake light 1.5W / Rear light: 0.6W
Cable Diameter ø3mm
Cable Length 1400mm
IP Rating IP56
Operating Temperature (°C) -25 ~ +50
Material Plastic
Weight (et. cable) 17g
Dimension (WxHxL) 70 x 21 x 14.7 mm
Mounting Option 50mm rack holder
Reflector Integrated Z-Reflector
Compliance CE/ RoHS/ REACH
Type of Approval StVZO-K & ISO 6742
Approval Number ~ K 2646
Compliance

Built for safety and trust, our lights carry the K-Mark certification under Germany’s StVZO road regulations. They also meet key international standards, including ISO 6742, CE, RoHS, and REACH compliance, ensuring reliable performance and responsible manufacturing.

StVZO
ISO 6742
CE
RoHS
REACH

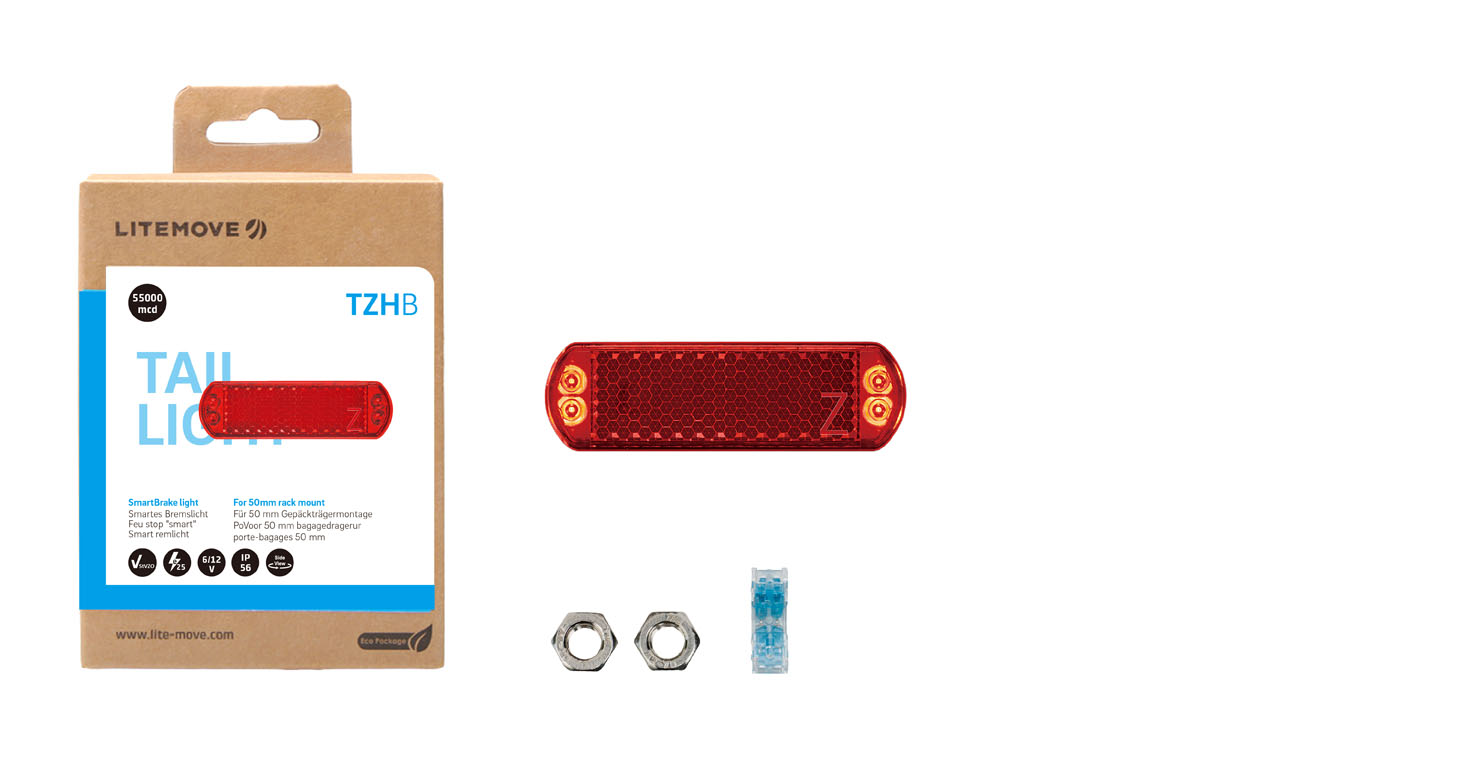

What’s in the box

TZHB01a

FAQ

Illuminate your path

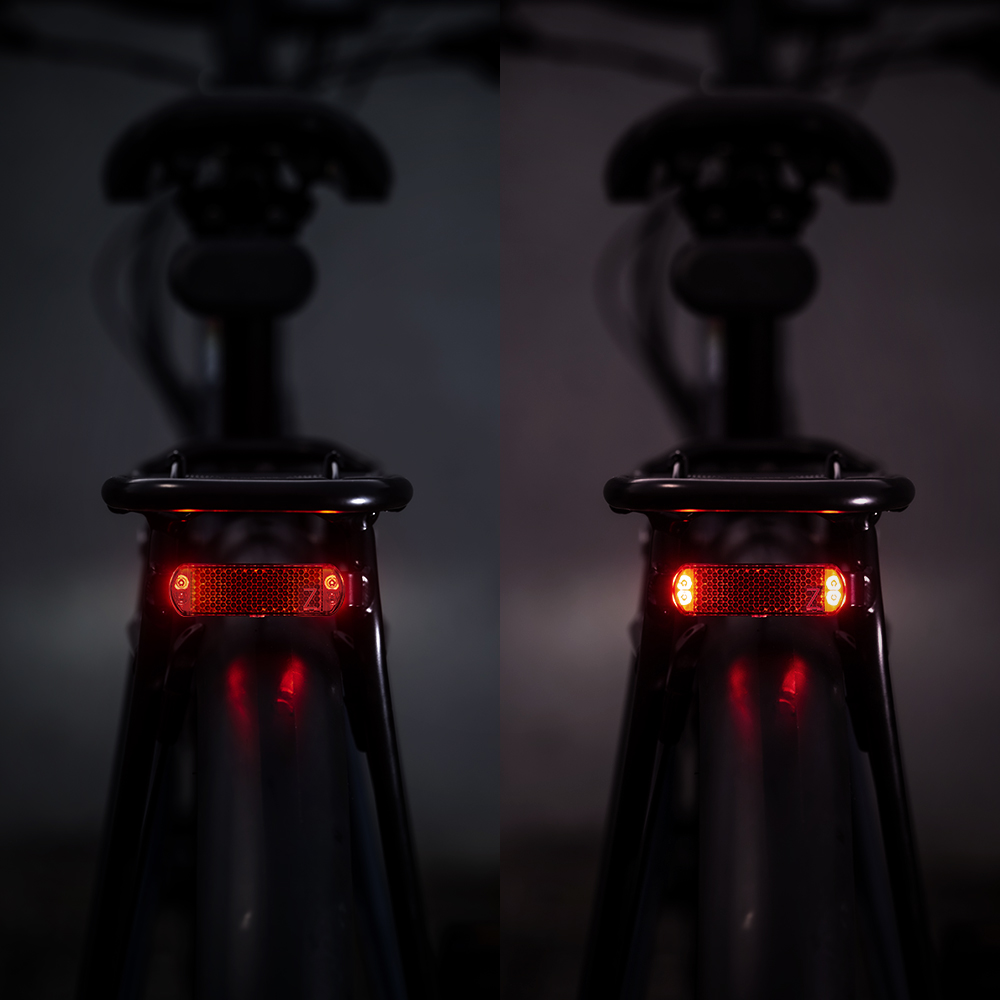

TZHB Brake 1

Smart Brake Detection

Equipped with an intelligent brake sensor, the system instantly activates warning signals during sudden stops or emergencies. This alerts other road users in real time, greatly enhancing rider safety.

Dual Functionality

Integrates active rear light and Z-mark reflector into a single unit—providing visibility even when the light is off, for an added layer of passive safety.

Litemove TZH 72dpi 04
240View rack

Wide‑Angle Visibility

Delivers 240‑degree illumination, ensuring maximum safety and awareness. The expansive coverage enhances rider visibility from multiple directions, reducing blind spots and improving protection in traffic and low‑light conditions.

Durability & Protection

Crafted with premium, IP56 water-resistant materials and reinforced construction for reliable protection, durability, and consistent performance in demanding cycling environments.

TZHB IP56
Litemove TZH 72dpi 05

Compact Design

Small, sleek, and space‑saving. Engineered to fit standard 50 mm mounting, it delivers powerful performance without compromising on size.

Energy‑Efficient Performance

Consumes only 0.6 W, delivering reliable illumination with minimal power draw. Designed for sustainability, it reduces energy usage while maintaining consistent visibility and safety.

TZHB LowPower

Compatible with

Weight 0.25 kg
Dimensions 9 × 7.5 × 12 公分
Light Type

Tail Lights

Power source

E-Bike

Beam Type

Brake Sensor

Mounting

Rear Carrier

Max. Light output

< 50 Lumens (Be Seen)

Riding scenario

City/ Urban Area, Rural Area

Compliance

CE, ISO-6742, RoHS/ REACH, StVZO-K

Mounting Position

Rear Rack Holder (50mm)

Mount / Bracket

Power Cable

1400mm Open + Self-sealing connector
