RLX-100H (High/Low Beam)

  • Equipped with the RX Plus optical technology featuring a dual-beam function
  • Offers a beam visibility spanning up to 6m in width with a beam throw reaching up to 200m.
  • Delivers brightness of up to 100 lux (high-beam)
  • Operates on 12V (compatible with 5V–16V) with a power consumption of 5.4 watts
  • Two-piece remote high-beam switch, designed for simple installation and easy maintenance.
  • Offers multiple mounting options for versatile installation
  • IP56-rated protection against high-pressure water and dust intrusion
  • Designed for 25km/h e-bikes and EPAC systems
  • Meets K-Mark and ISO-6742 compliance standards
SKU:
Specifications
Model name RLX100H
Model no. RLX100H
S/N 0038
Light output High beam : 100 lux / 320 lumens
Low beam : 60 lux / 180 lumens
Optical technology RX Plus
Light source  LED*2
Input voltage (DC) 12V(5V-16V)
Power consumption High beam : 5.4W
Low beam : 2.8W
Cable diameter Power : Ø 4mm
Switch : Ø 2.55mm
Cable length Power : 1400 mm
Switch : 300mm / 650mm
IP rating IP56
Operating temperature (°C) -25 ~ +50
Material Plastic
Weight (w/o cable) 45g
Dimension (WXHXL) 43.3 x 43.7 x 51.3 mm
Switch bracket / mount Ø 22.2mm
Reflector (optional) RFDT
Compliance CE / RoHS / REACH
Type of approval StVZO-K / ISO 6742
Approval number ~ K 2615



Compliance

Built for safety and trust, our lights carry the K-Mark certification under Germany’s StVZO road regulations. They also meet key international standards, including ISO 6742, CE, RoHS, and REACH compliance, ensuring reliable performance and responsible manufacturing.

StVZO
ISO 6742
CE
RoHS
REACH
What’s in the box

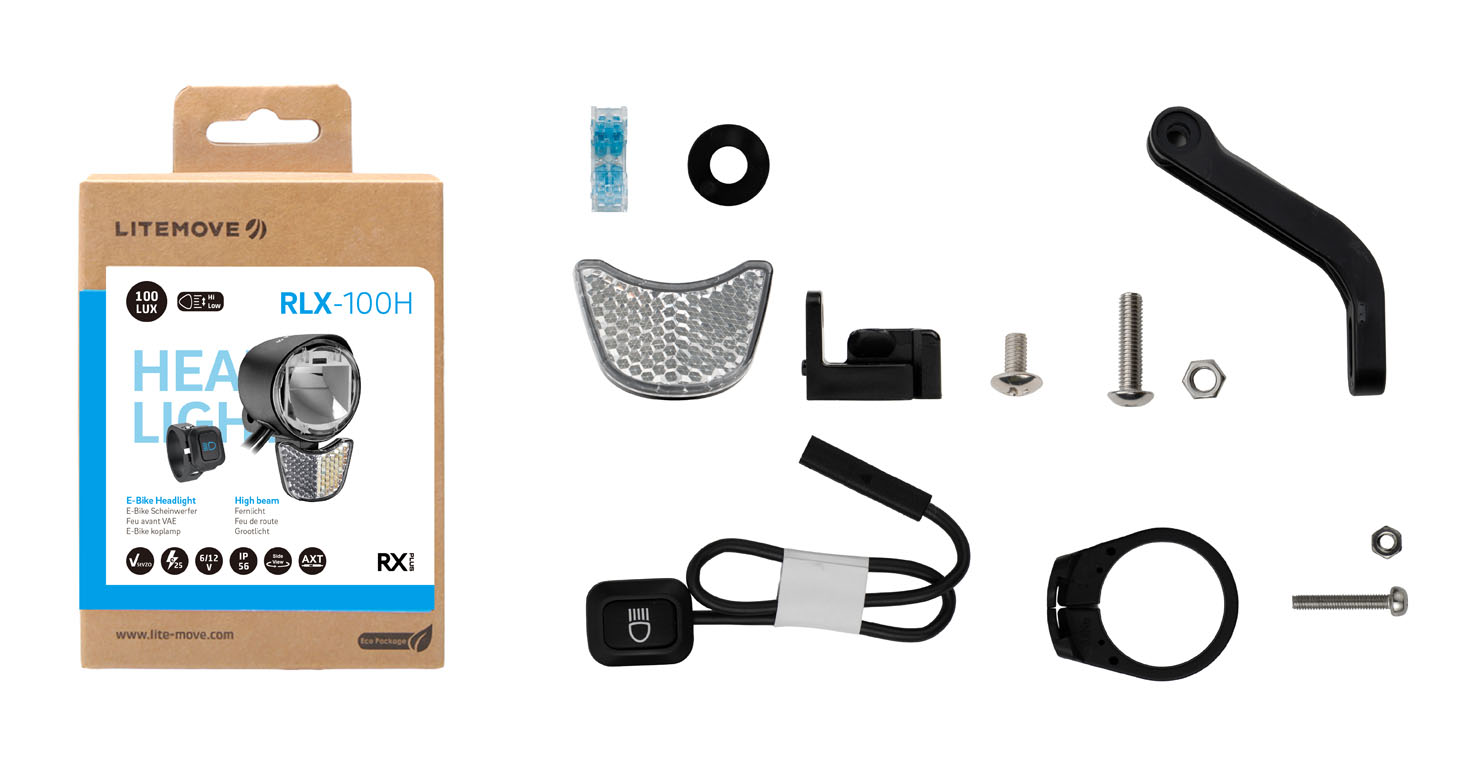

RLX-100H01

Lower Mount

Forkmount Package

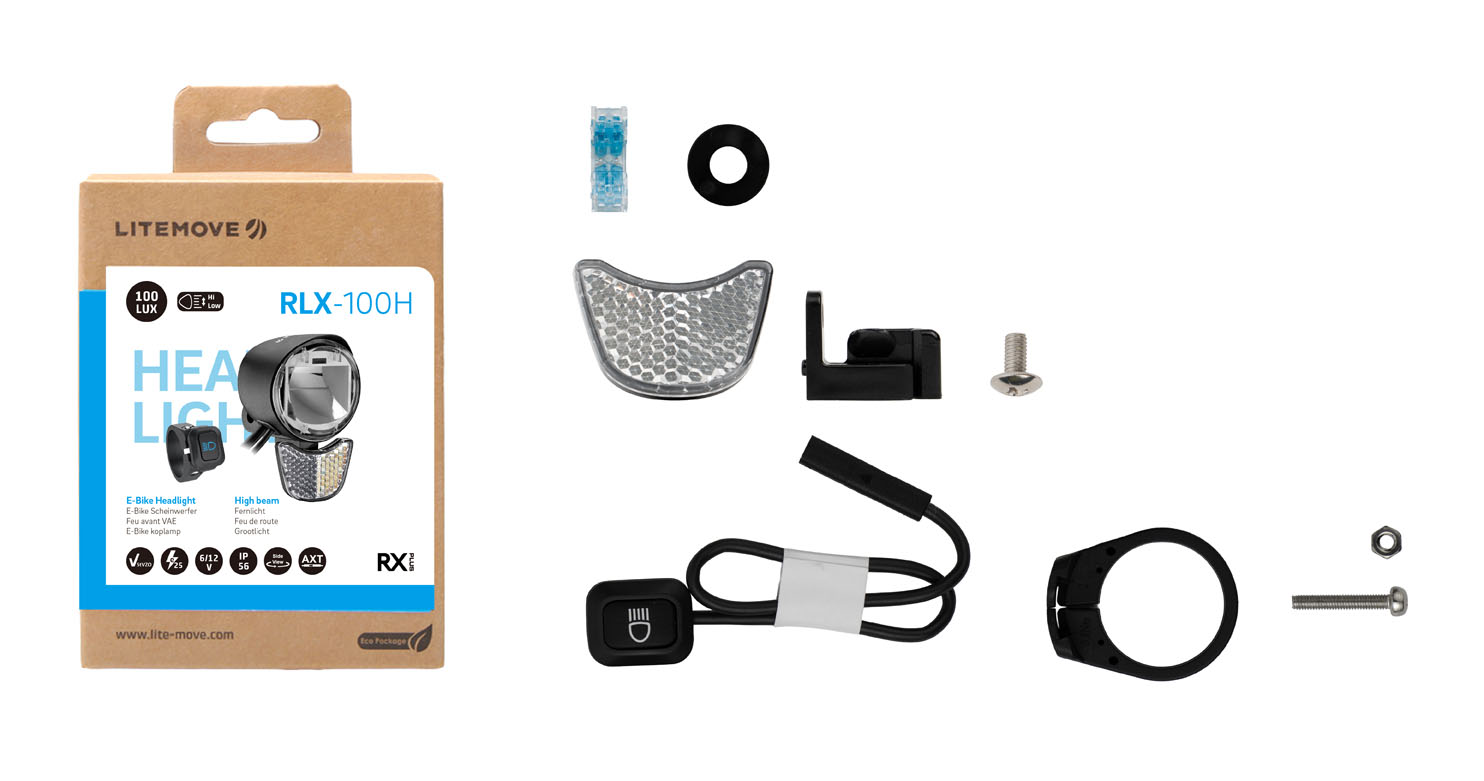

RLX-100H02

Lower Mount

Standard Package
FAQ

Illuminate your path

2900 Lumens for demanding mountain bikers

Litemove HighLowBeam test

Dual Beam (High/ Low)

Ideal for urban commuting, it delivers a wide, high beam at 320‑lumens and 100‑lux, fully compliant with strict StVZO standards. The glare‑free output adapts to riding conditions, ensuring optimized visibility, safety, and comfort while maintaining legal compliance across diverse environments.

Flex Bar Switch

Mounts on your left or right grip—and stacks over existing clamps like brake or shifter mounts if bar space is tight. Plug-in cable installs in minutes and disconnects fast for service.

Litemove Bar Switch

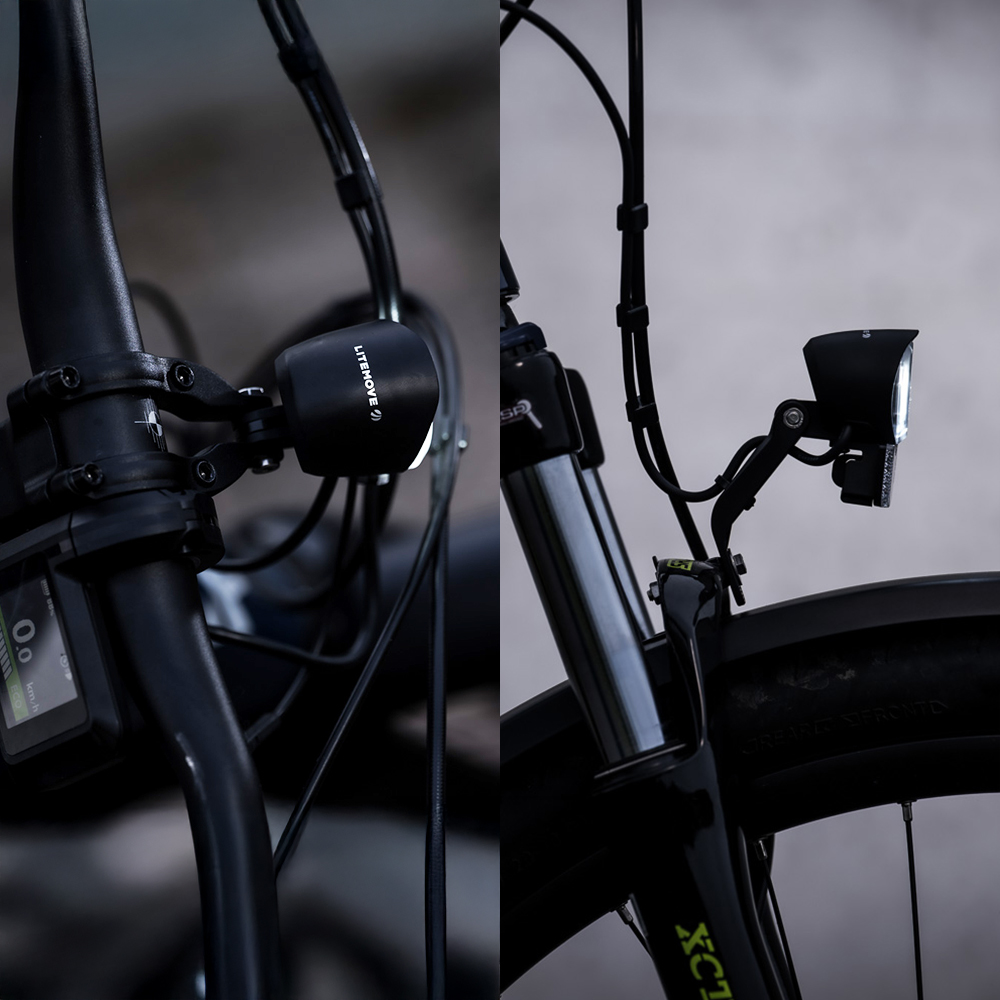

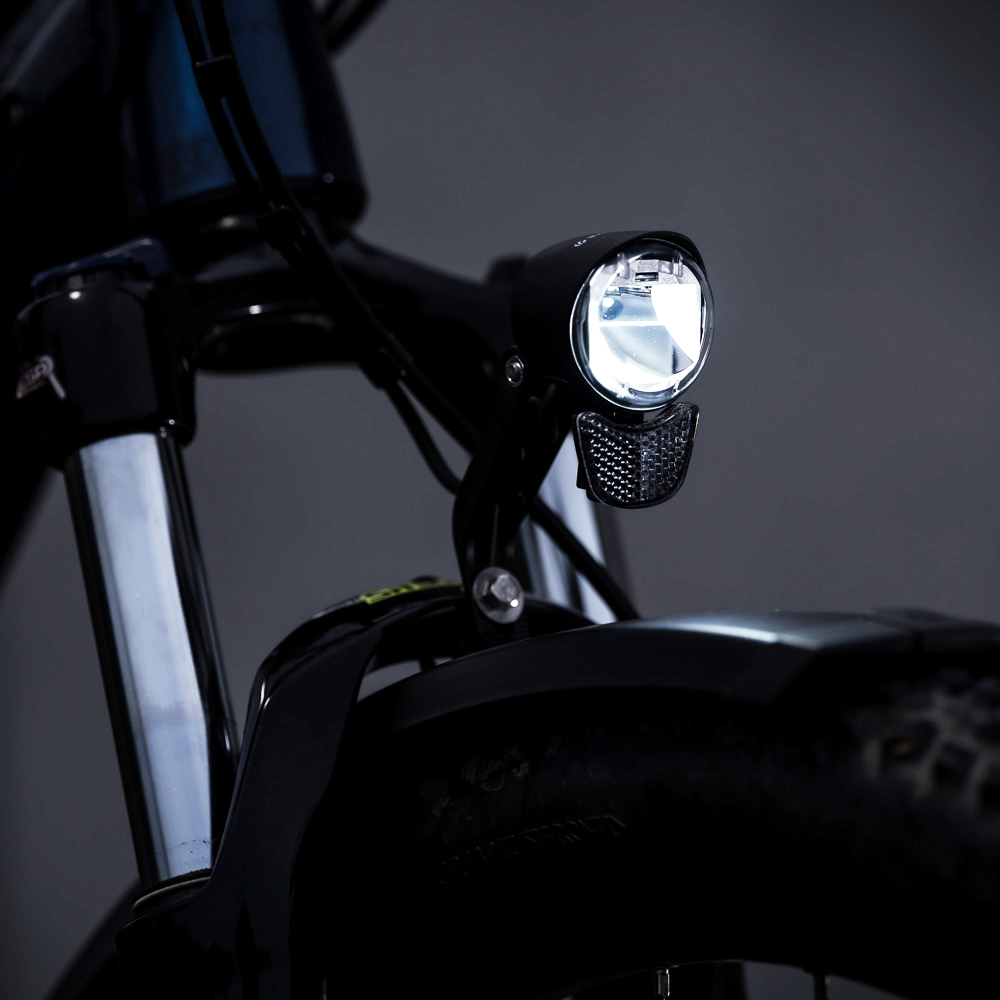

RLX 100H mounting

Multiple Mounting

Offers versatile mounting options with a secure GoPro®‑style interface. Designed for flexibility, it enables quick installation and adjustment, ensuring a clean, stable setup across diverse cycling applications

Durability & Protection

Crafted with premium, IP56 water-resistant materials and reinforced construction for reliable protection, durability, and consistent performance in demanding cycling environments.

RLX IP56
Litemove RLX cable 1

Environmentally Friendly Setup

Employs TPU toxic‑free cables, ensuring a sustainable and safe installation. Designed to reduce environmental impact while maintaining durability, reliability, and compliance for modern cycling applications.

Litemove RLX 100H LB
Litemove RLX 100H HB
High Beam Low Beam

Compatible with

Weight 0.25 kg
Dimensions 9 × 7.5 × 12 公分
Light Type

Headlights

Power source

E-Bike

Beam Type

High / Low Beam

Mounting

Cockpit, Fork

Max. Light output

51 – 500 Lumens (Commuting / Standard)

Riding scenario

City/ Urban Area, Rural Area

Compliance

CE, ISO-6742, RoHS/ REACH, StVZO-K

High Beam Switch Cable

650mm, 300mm

Holder Position

Low

Power Cable

1400mm Open + Self-sealing connector

Mount / Bracket

Universal Fork Mount, –

Reflector

K-Reflector with Adapter (w/self-tapping screw)
