RLX-60

  • Equipped with the RX optical reflector
  • Offers a beam visibility spanning up to 6m in width with a beam throw reaching up to 160m.
  • Delivers brightness of up to 60 lux
  • Operates on 6V & 12V (compatible with 5V–16V)
  • Offers multiple mounting options for versatile installation
  • IP56-rated protection against high-pressure water and dust intrusion
  • Designed for 25km/h e-bikes and EPAC systems
  • Meets K-Mark and ISO-6742 compliance standards
SKU:
Specifications
Model name RLX-60
Model no. RLX60
S/N 0037
Light output 60 lux / 180 lumens
Optical technology RX
Light source  LED*1
Input voltage (DC) 12V(5V-16V)
Power consumption 2.8W
Cable diameter Ø 4mm
Cable length Power : 1400 mm
IP rating IP56
Operating temperature (°C) -25 ~ +50
Material Plastic
Weight (w/o cable) 34g
Dimension (WXHXL) 43.3 x 43.7 x 51.3 mm
Switch bracket / mount n/a
Reflector (optional) RFDT
Compliance CE / RoHS / REACH
Type of approval StVZO-K / ISO 6742
Approval number ~ K 2615



Compliance

Built for safety and trust, our lights carry the K-Mark certification under Germany’s StVZO road regulations. They also meet key international standards, including ISO 6742, CE, RoHS, and REACH compliance, ensuring reliable performance and responsible manufacturing.

StVZO
ISO 6742
CE
RoHS
REACH

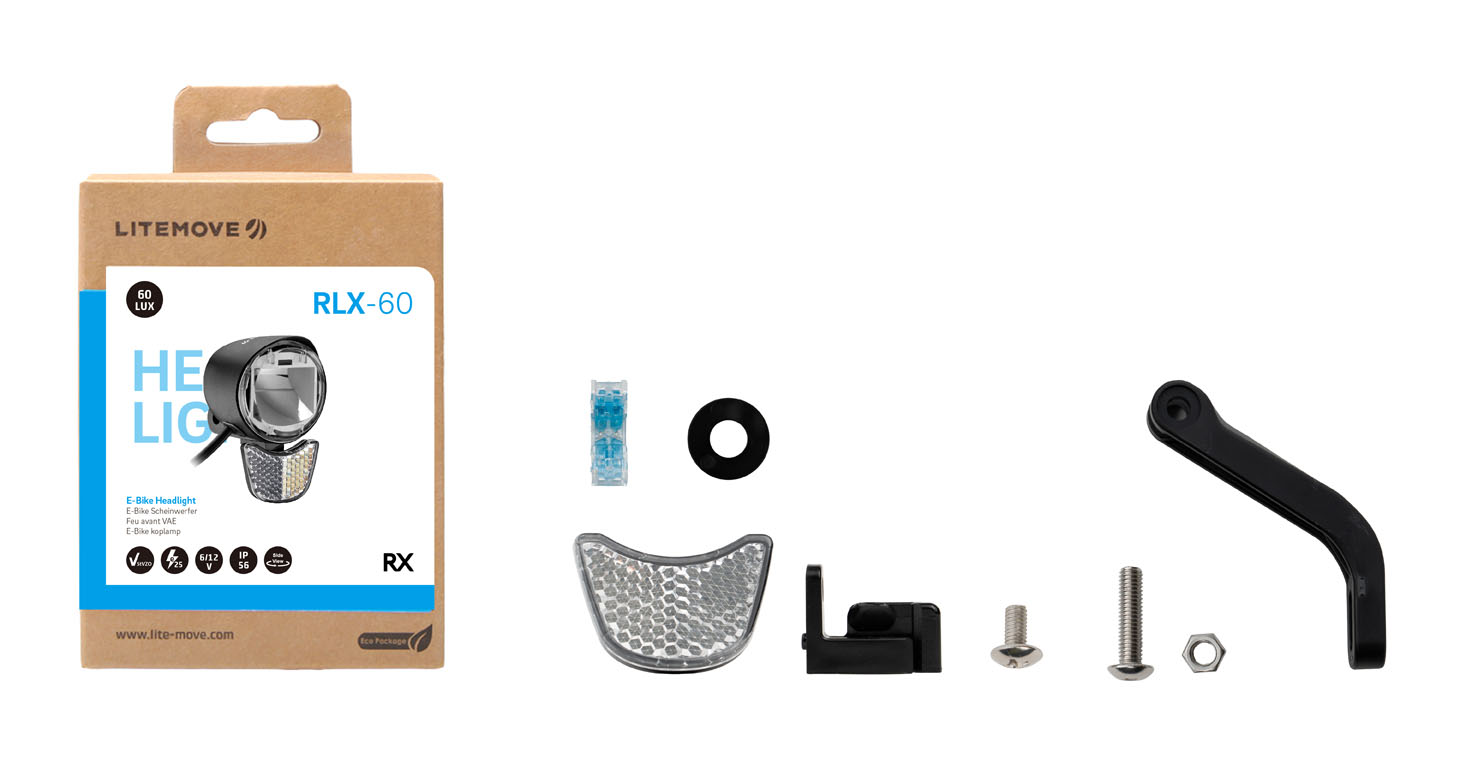

What’s in the box

RLX-601

Lower Mount

Forkmount Package
FAQ
Downloads

Illuminate your path

2900 Lumens for demanding mountain bikers

Litemove RX 72dpi 07

Wide Beam with Glare free

Powered by Litemove RX optical technology, it delivers 60 lux in a broad, evenly distributed beam with a sharp cut‑off line. This prevents glare for oncoming traffic while maximizing road illumination, making it ideal for city and suburban commuting where rider safety and legal compliance are critical.

Durability & Protection

Crafted with premium, IP56 water-resistant materials and reinforced construction for reliable protection, durability, and consistent performance in demanding cycling environments.

RLX IP56
Litemove RLX cable 1

Environmentally Friendly Setup

Employs TPU toxic‑free cables, ensuring a sustainable and safe installation. Designed to reduce environmental impact while maintaining durability, reliability, and compliance for modern cycling applications.

Litemove RLX 60

Compatible with

Weight 0.25 kg
Dimensions 9 × 7.5 × 12 公分
Light Type

Headlights
Power source

E-Bike
Beam Type

Low Beam
Mounting

Cockpit, Fork
Max. Light output

51 – 500 Lumens (Commuting / Standard)
Riding scenario

City/ Urban Area
Compliance

CE, ISO-6742, RoHS/ REACH, StVZO-K
Holder Position

Low
Power Cable

1400mm Open + Self-sealing connector
Mount / Bracket

Universal Fork Mount
Reflector

K-Reflector with Adapter (w/self-tapping screw)
