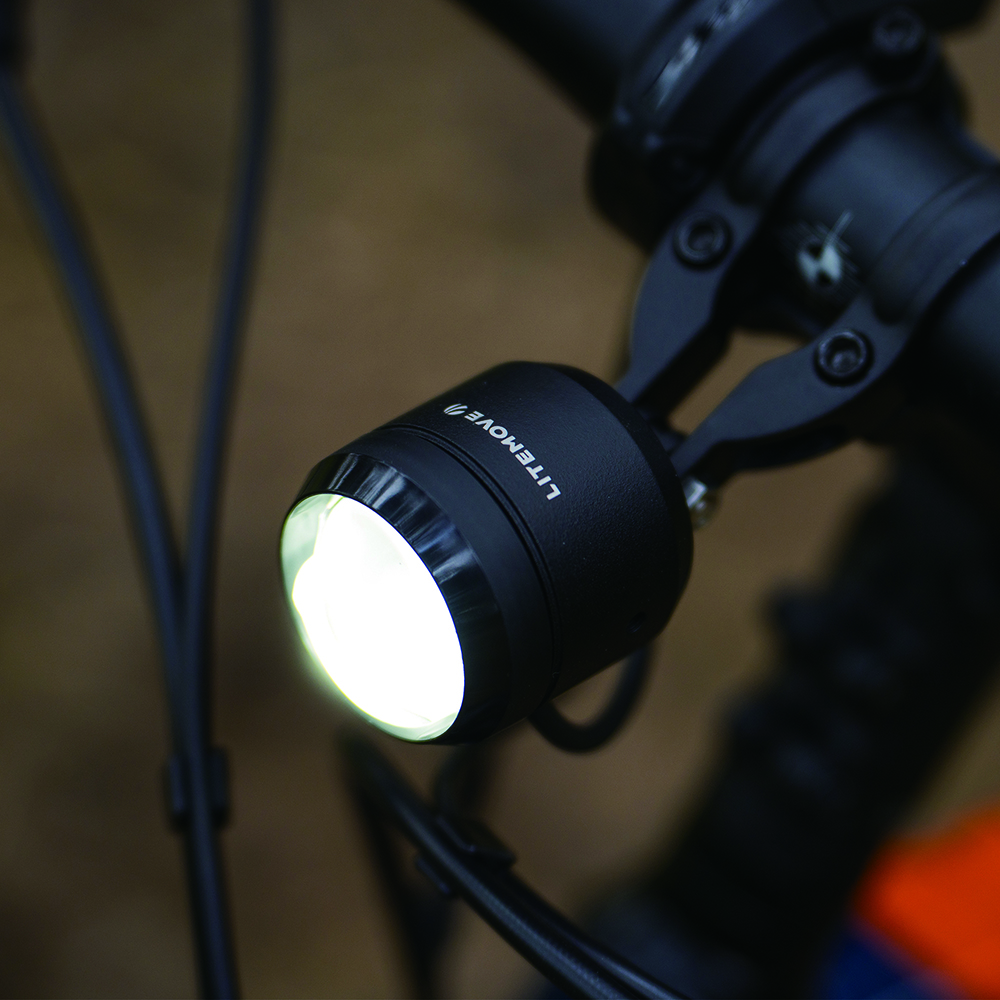

SEC-110

  • Embedded with new MTi system for standard cut-off line beam
  • 10m wide and up to 210m distance of beam visibility ahead
  • 110 lux
  • 12V(8V ~ 16V) with a power consumption of 8 Watt
  • Offers multiple mounting options for versatile installation
  • IP56- Protest against high pressure water or dust ingress
  • Aluminum & Plastic housing
  • For 25km e-bike / EPAC
  • K-Mark/ ISO-6742 compliance
SKU:
Specifications
Model Name SEC-110
Model No. SEC110D/SEC110S/SEC110U
S/N 10019
Light Output 110 lux/ 300 lumens
Optical Technology MTi
Light Source LED *2
Input Voltage (DC) 12V(8V ~ 16V)
Power Consumption 8W
Cable Diameter ø4mm
Cable Length 1400mm
IP Rating IP56
Operating Temperature (°C) -25 ~ +50
Material Aluminium / Plastic
Weight (et. cable) 85g
Dimension (WxHxL) ø43.5 x 46.9mm
Reflector (Optional) RF1 / RFD
Compliance CE/ RoSH/ REACH
Type of Approval StVZO-K/ ISO 6742
Approval Number ~ K2511
Compliance

Built for safety and trust, our lights carry the K-Mark certification under Germany’s StVZO road regulations. They also meet key international standards, including ISO 6742, CE, RoHS, and REACH compliance, ensuring reliable performance and responsible manufacturing.

StVZO
ISO 6742
CE
RoHS
REACH
What’s in the box

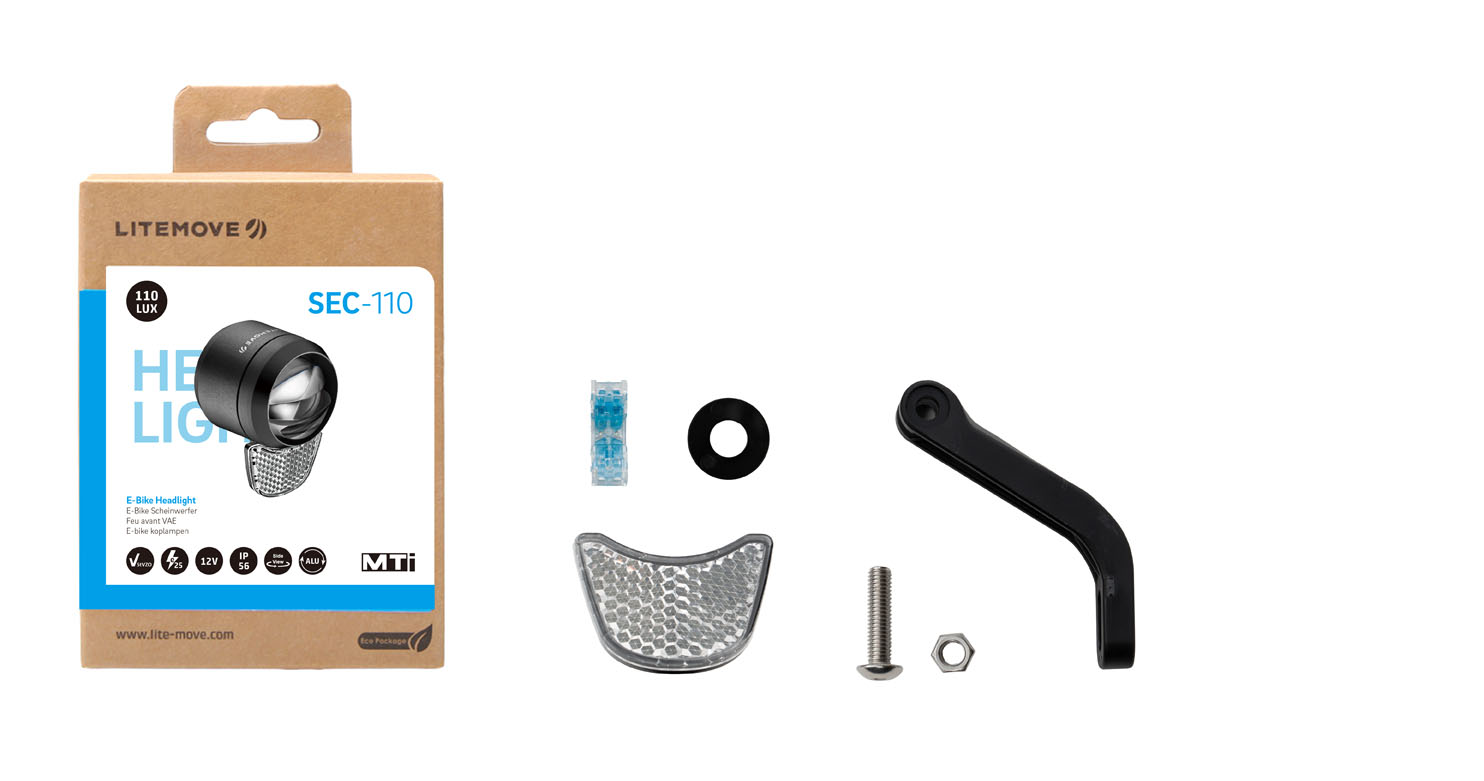

SEC1101

Under Mount

Forkmount Package

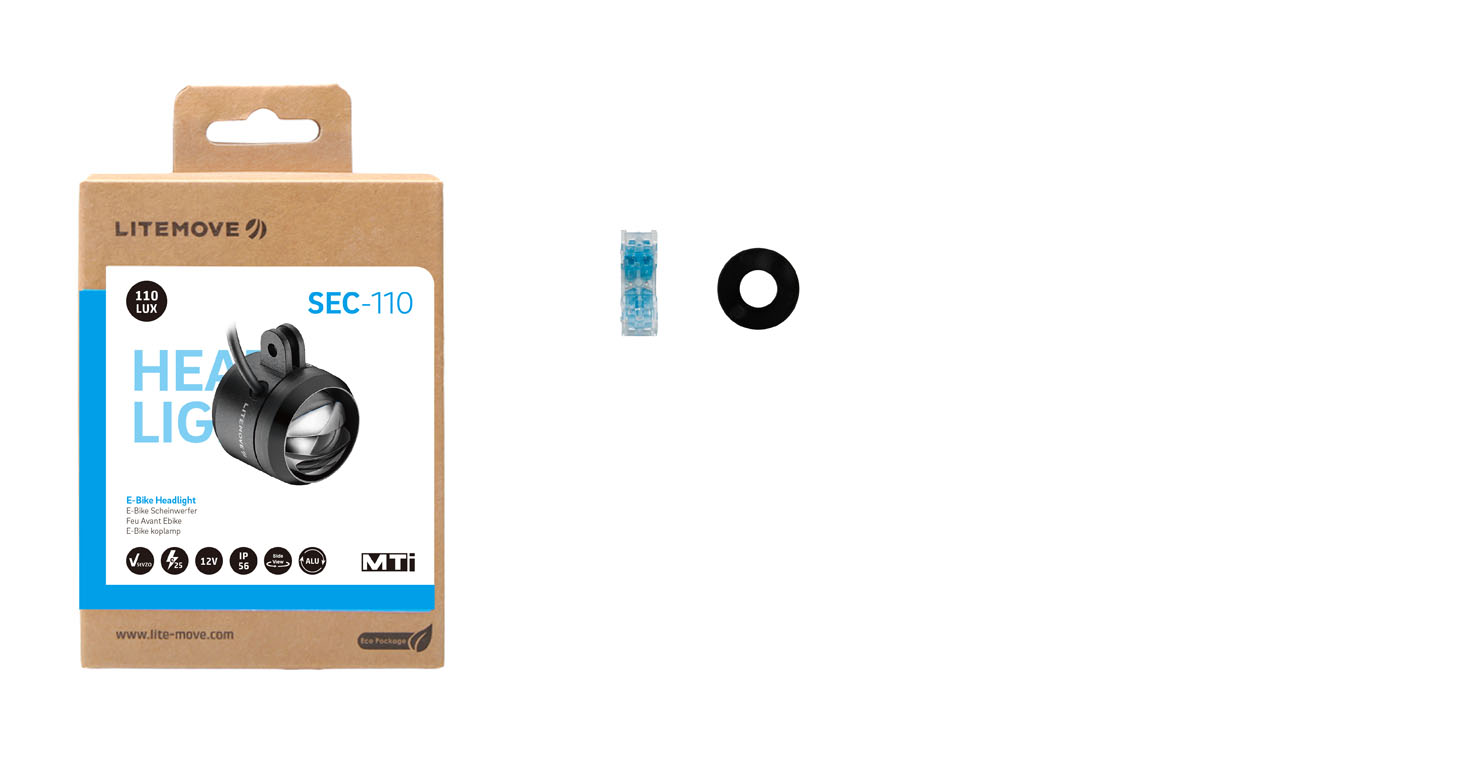

SEC1102

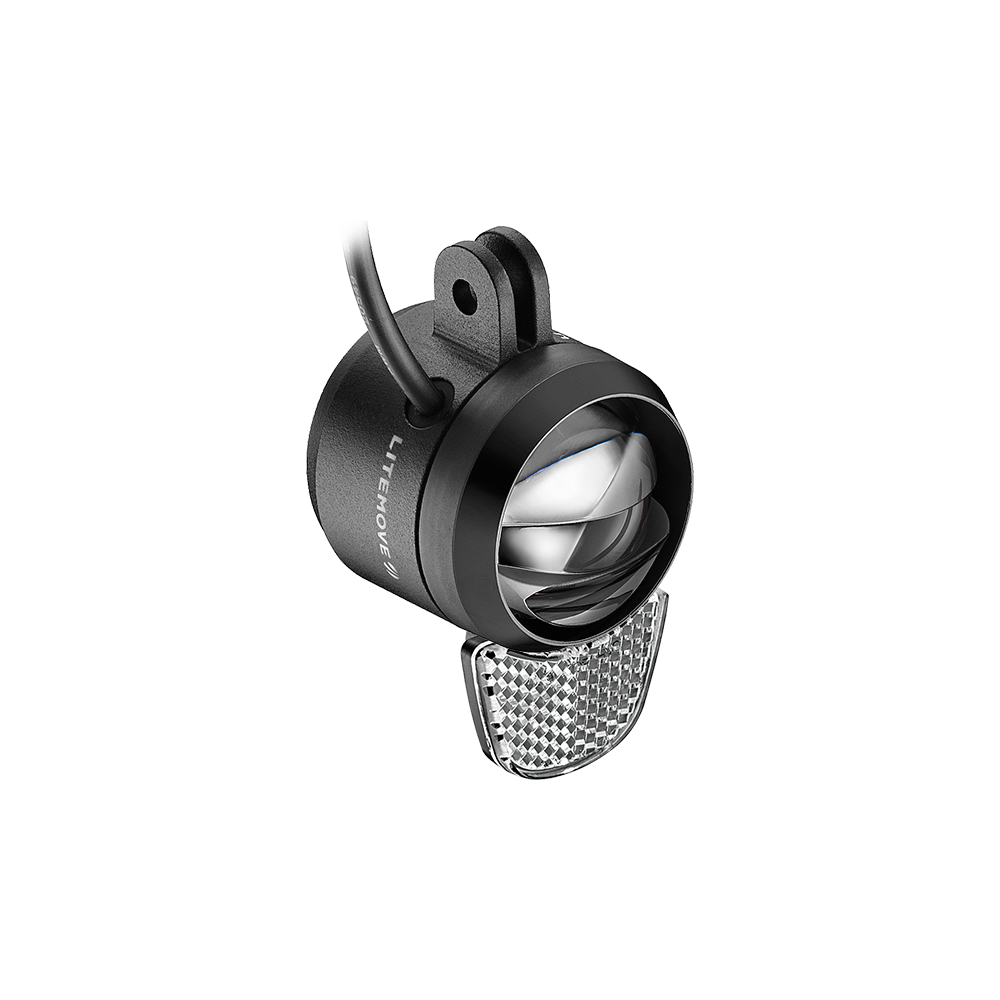

Top Mount

Standard Package

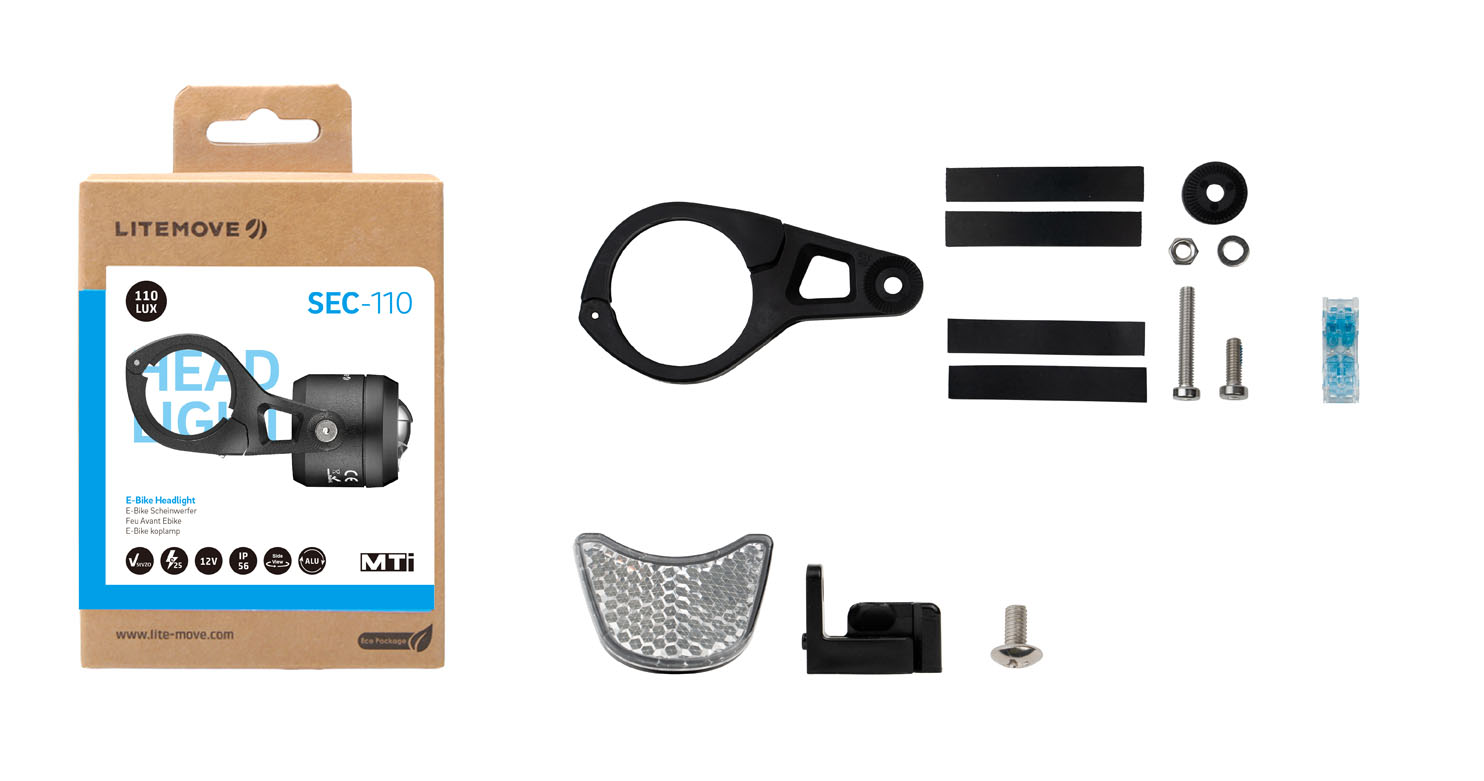

SEC1103

Side Mount

Handlebar Package
FAQ

Illuminate your path

2900 Lumens for demanding mountain bikers

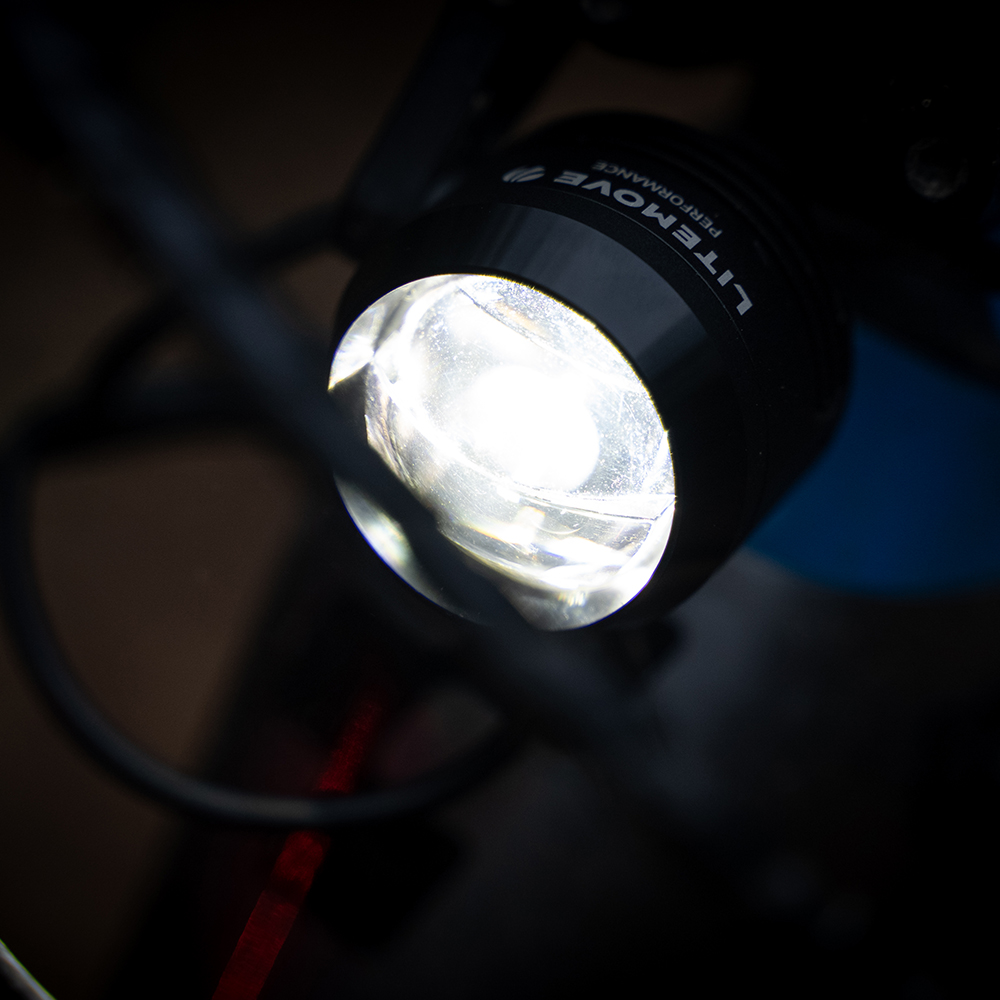

MTi

Intensive High Output

Powered by precision aspheric optics and Litemove MTi technology, it delivers a 110‑lux beam with even distribution and no dark zones—ensuring maximum brightness, reliable performance, and enhanced safety in demanding cycling conditions.

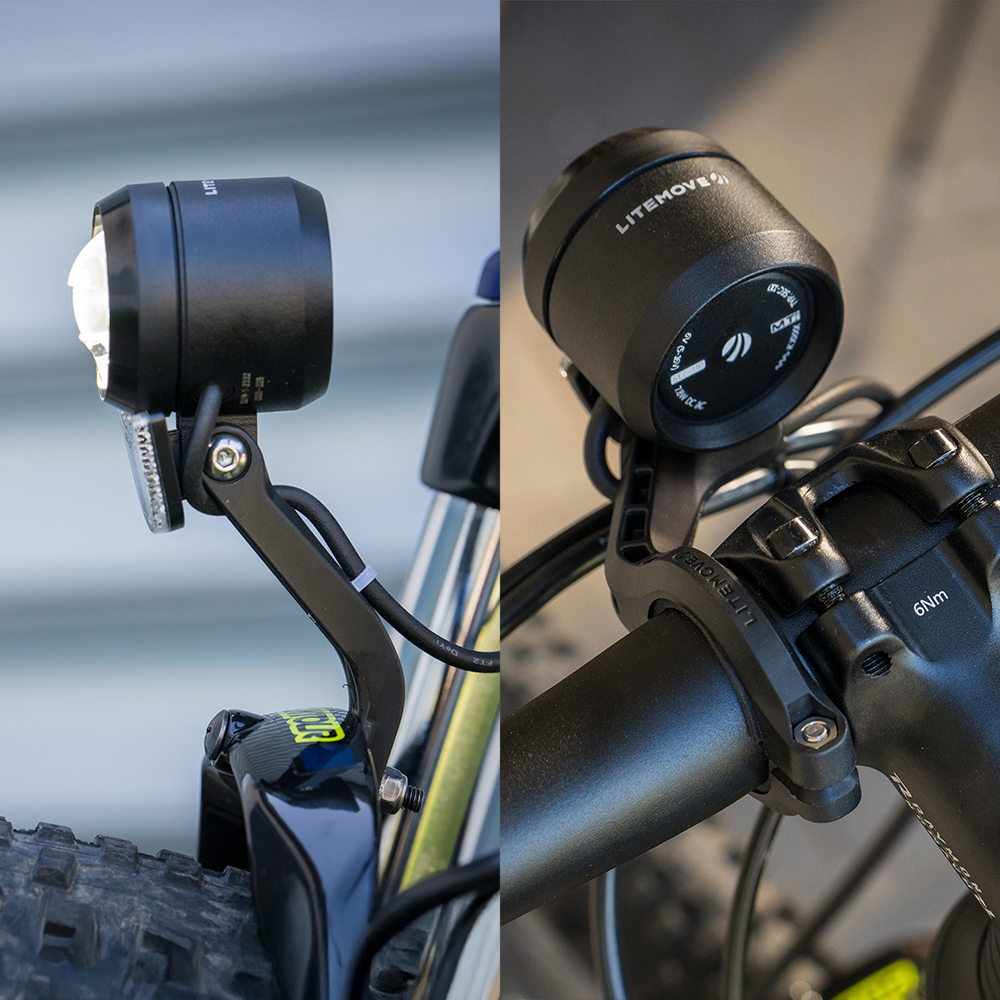

Multiple Mounting

Offers versatile mounting options with a secure GoPro®‑style interface. Designed for flexibility, it enables quick installation and adjustment, ensuring a clean, stable setup across diverse cycling applications

SEC150 mounting.2

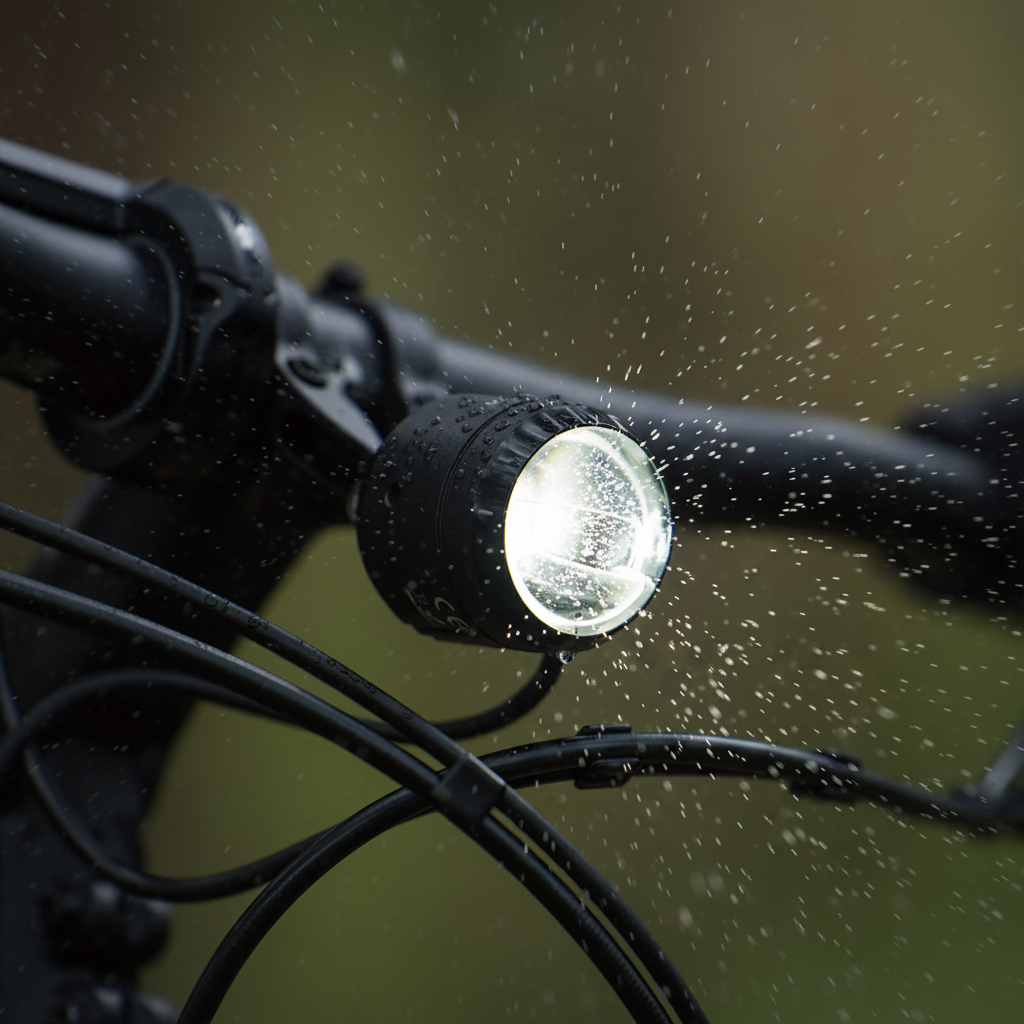

SEC110 IP56

Durability & Protection

Crafted with premium, IP56 water-resistant materials and reinforced construction for reliable protection, durability, and consistent performance in demanding cycling environments.

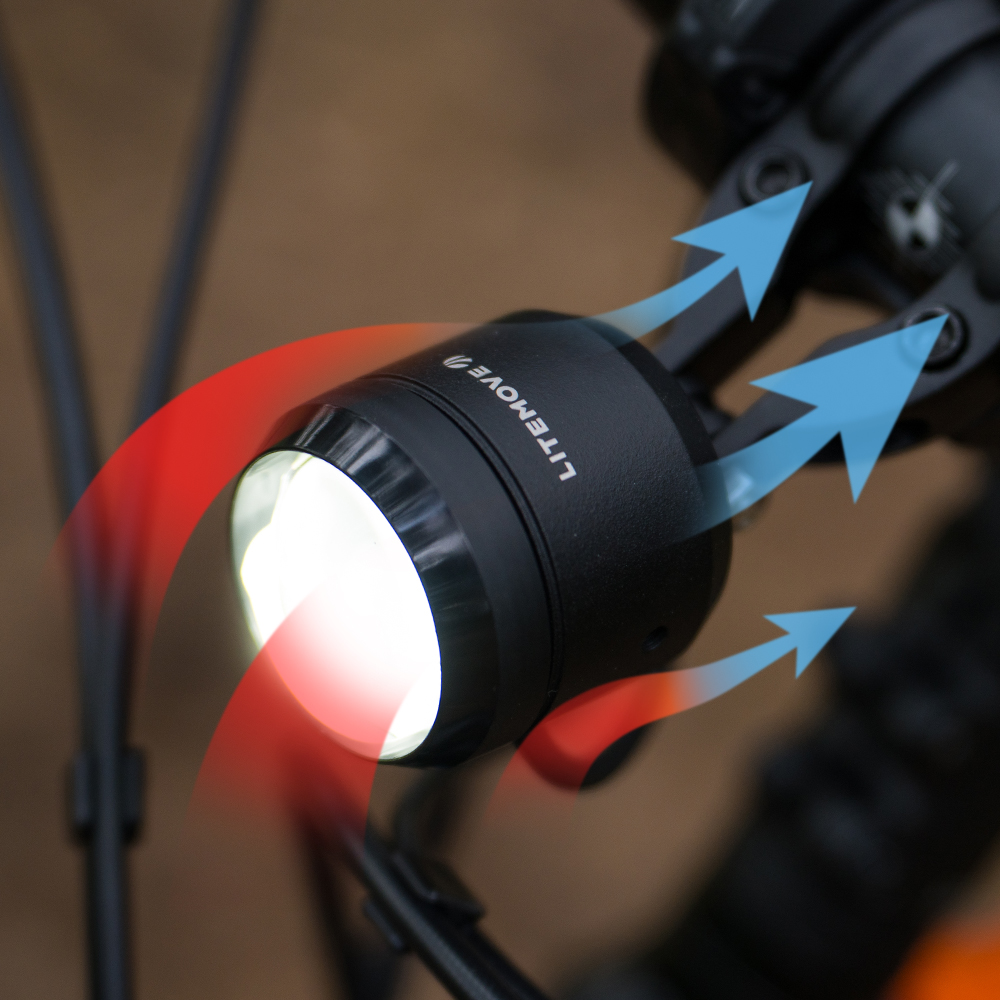

Thermal conductive

Advanced thermal management system regulates heat efficiently, preventing overheating and maintaining stable brightness output. Guarantees consistent performance and extended product lifespan under high-power operation.

Litemove SEC Thermal 1
Litemove SEC 110

Compatible with

Weight 0.25 kg
Dimensions 9 × 7.5 × 12 公分
Light Type

Headlights

Power source

E-Bike

Beam Type

Low Beam

Mounting

Cockpit, Fork

Max. Light output

51 – 500 Lumens (Commuting / Standard)

Riding scenario

City/ Urban Area, Rural Area

Compliance

CE, ISO-6742, RoHS/ REACH, StVZO-K

Holder Position

Down, Up, Side

Power Cable

1400mm Open + Self-sealing connector

Mount / Bracket

Universal Fork Mount, -, Handlebar Bracket / Mount (for ø31.8 & 35mm)

Reflector

K-Reflector (Front), -, K-Reflector with Adapter (w/machine screw)
