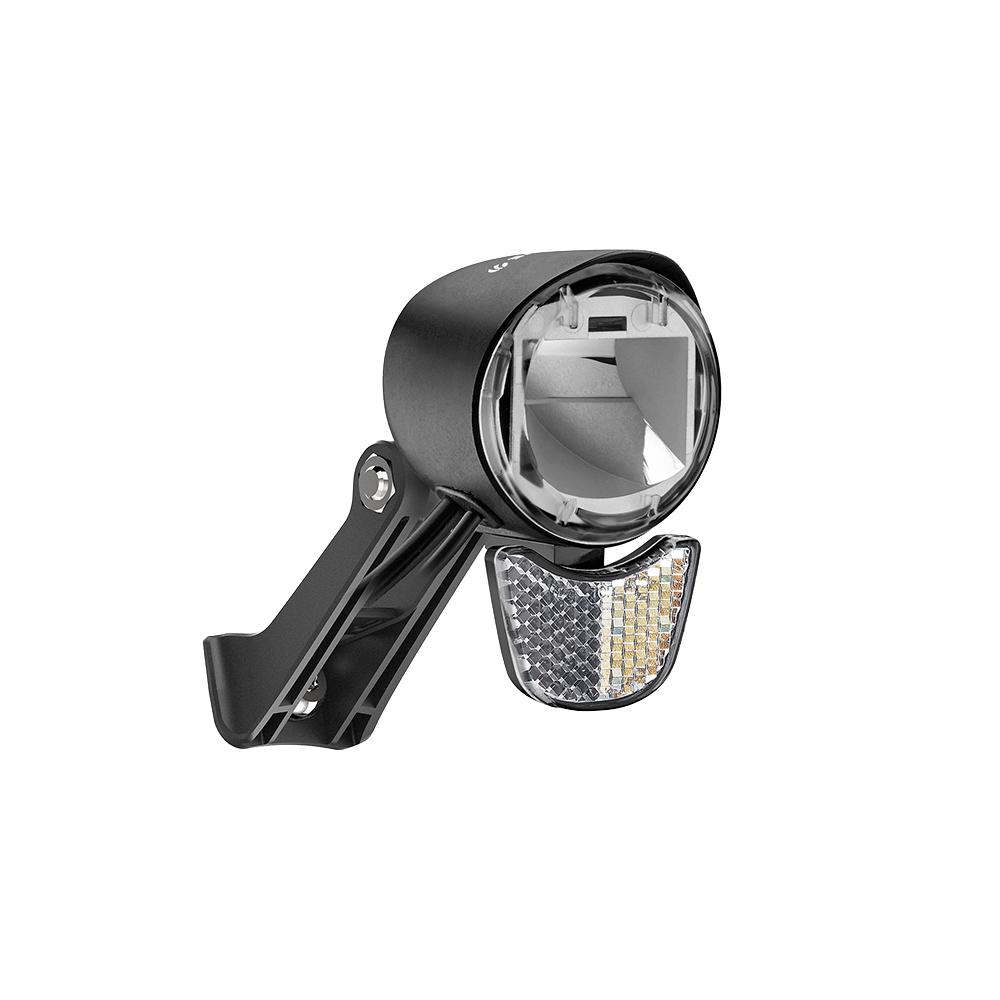

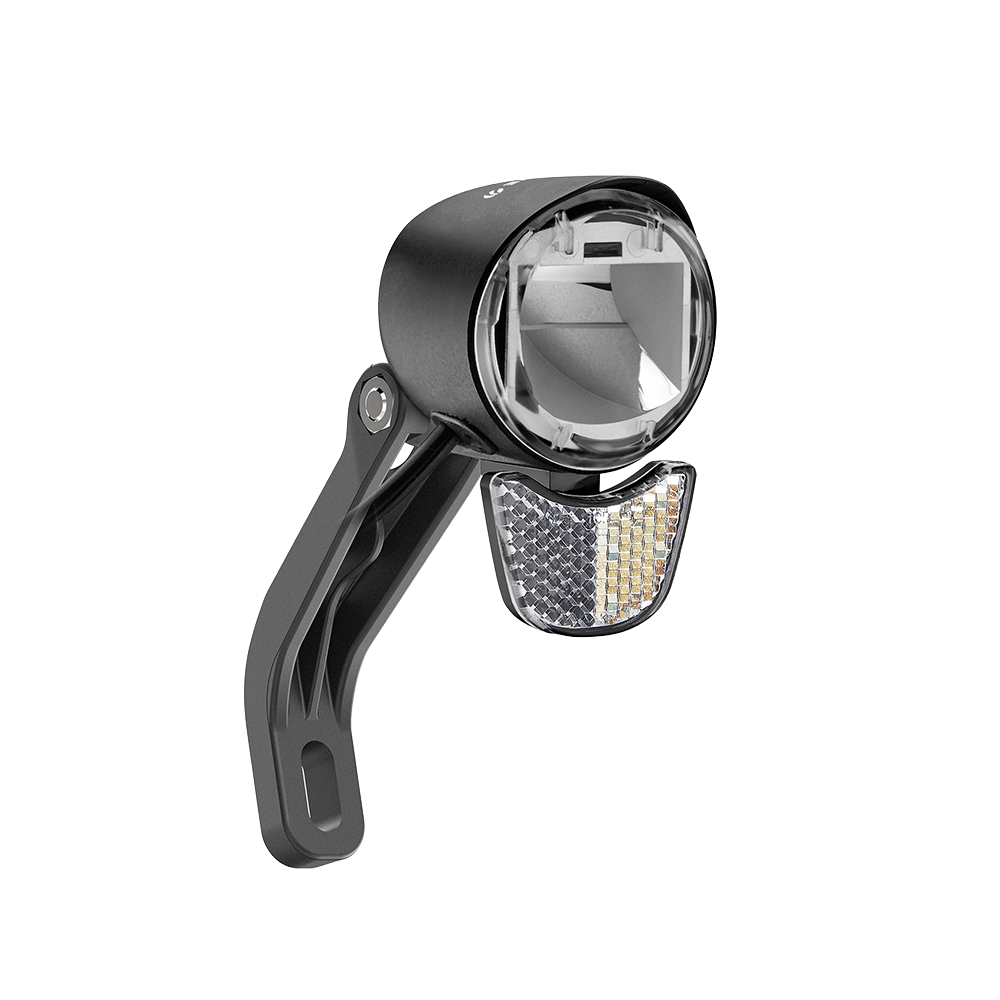

RLX-100

Equipped with the RX optical reflector
Offers a beam visibility spanning up to 7m in width with a beam throw reaching up to 200m.
Delivers brightness of up to 100 lux
Operates on 6V & 12V (compatible with 5V–16V)
Offers multiple mounting options for versatile installation
IP56-rated protection against high-pressure water and dust intrusion
Designed for 25km/h e-bikes and EPAC systems
Meets K-Mark and ISO-6742 compliance standards

Holder Position

Power Cable

Mount / Bracket

Reflector

Clear

SKU:

Specifications

Model name	RLX-100
Model no.	RLX100
S/N	0043
Light output	100 lux / 230 lumens
Optical technology	RX
Light source	LED*1
Input voltage (DC)	12V(5V-16V)
Power consumption	4.8W
Cable diameter	Ø 4mm
Cable length	Power : 1400 mm
IP rating	IP56
Operating temperature (°C)	-25 ~ +50
Material	Plastic
Weight (w/o cable)	34g
Dimension (WXHXL)	43.3 x 43.7 x 51.3 mm
Switch bracket / mount	N/A
Reflector (optional)	RFDT
Compliance	CE / RoHS / REACH
Type of approval	StVZO-K / ISO 6742
Approval number	~ K 2615

Compliance

Built for safety and trust, our lights carry the K-Mark certification under Germany’s StVZO road regulations. They also meet key international standards, including ISO 6742, CE, RoHS, and REACH compliance, ensuring reliable performance and responsible manufacturing.

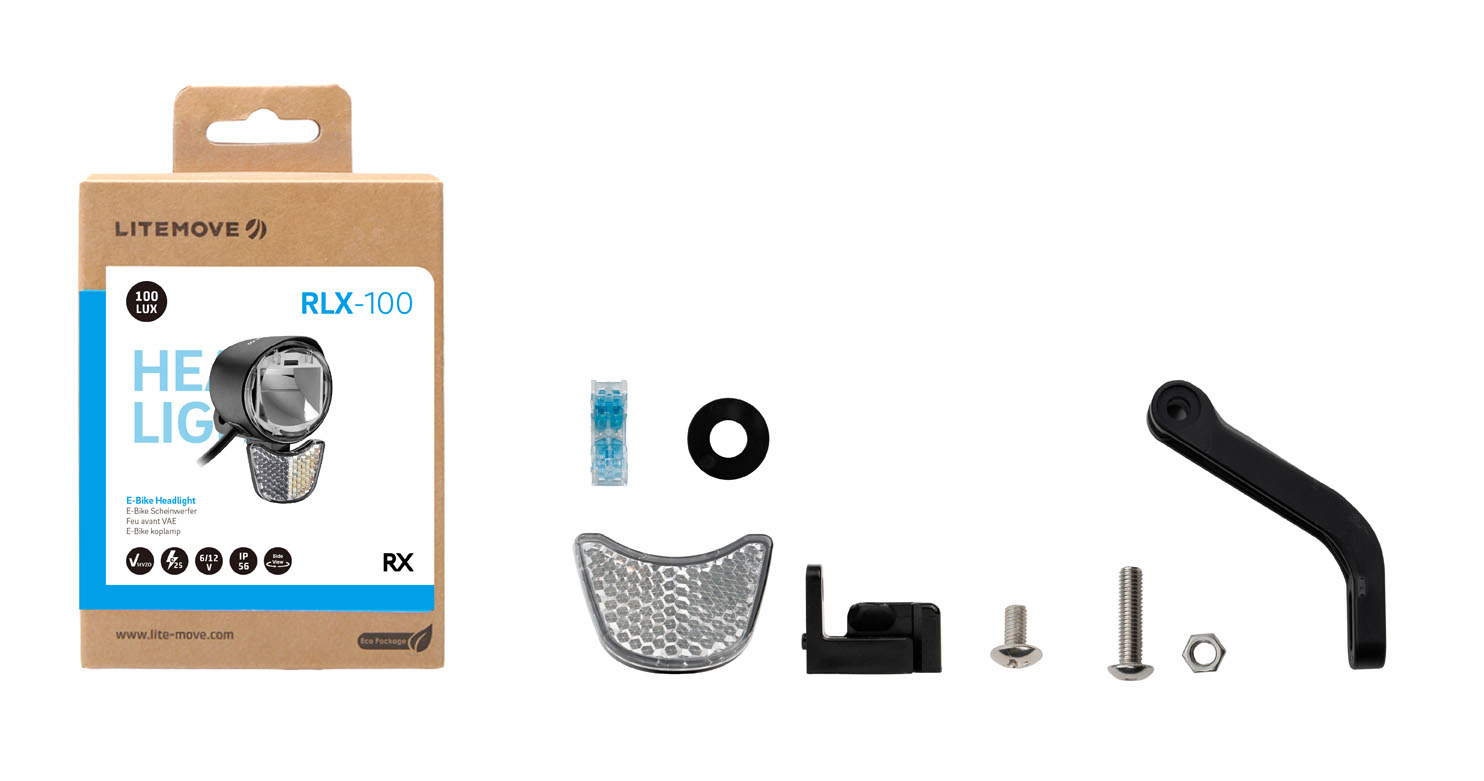

What’s in the box

RLX-1002

Lower Mount

Forkmount Package

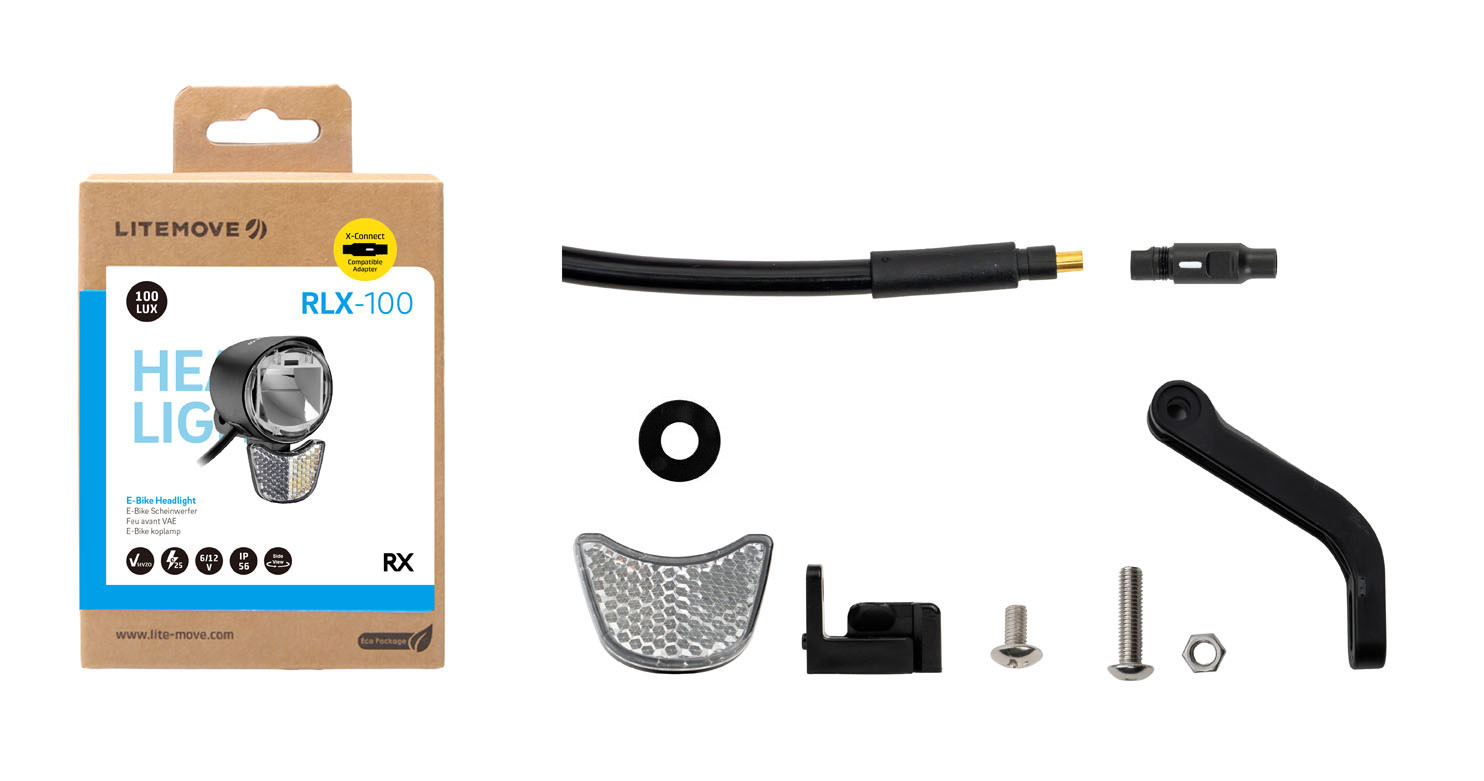

RLX-1003

Lower Mount

Forkmount Package + X-connect comp. Adapter

FAQ

Downloads

Description
Additional information

Illuminate your path

2900 Lumens for demanding mountain bikers

Wide Beam with Glare free

Uses precision optics to deliver 100 lux in a broad, evenly distributed beam with a sharp cut‑off line. This prevents glare for oncoming traffic while maximizing road illumination, making it ideal for city and suburban commuting where rider safety and legal compliance are critical.

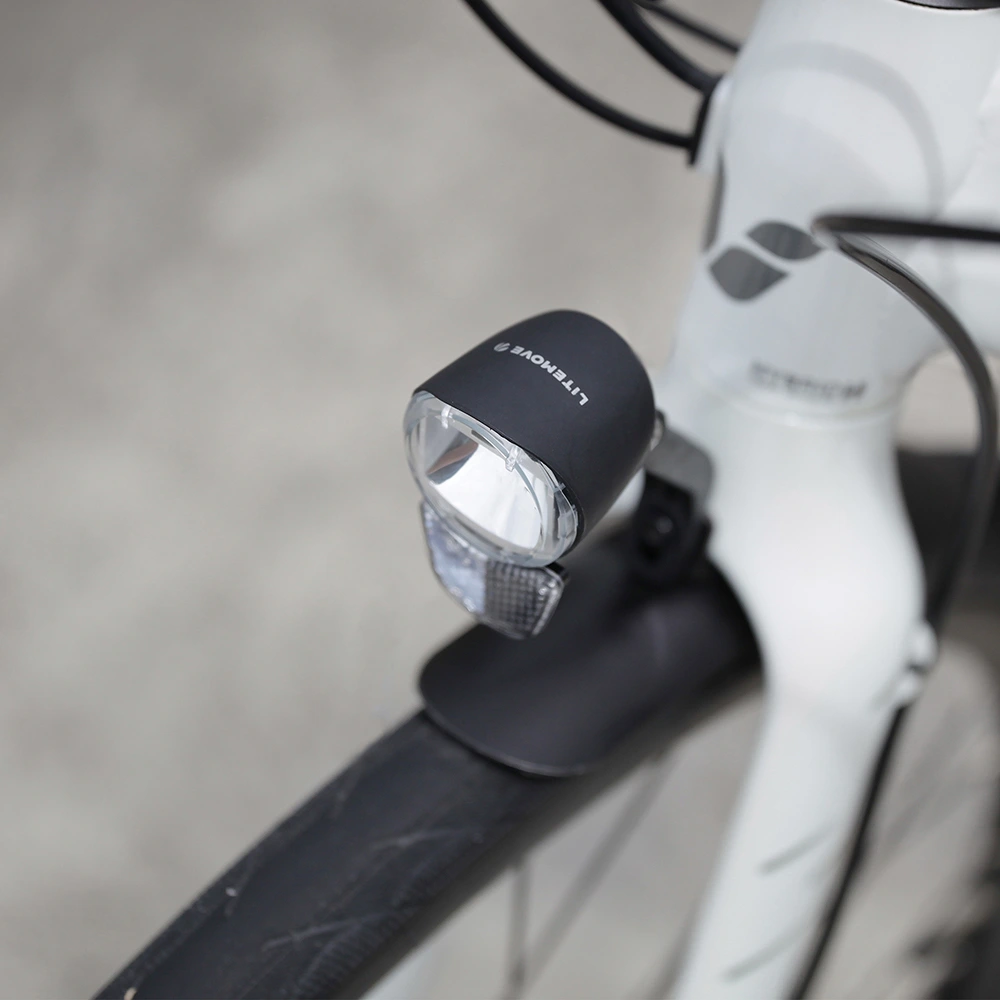

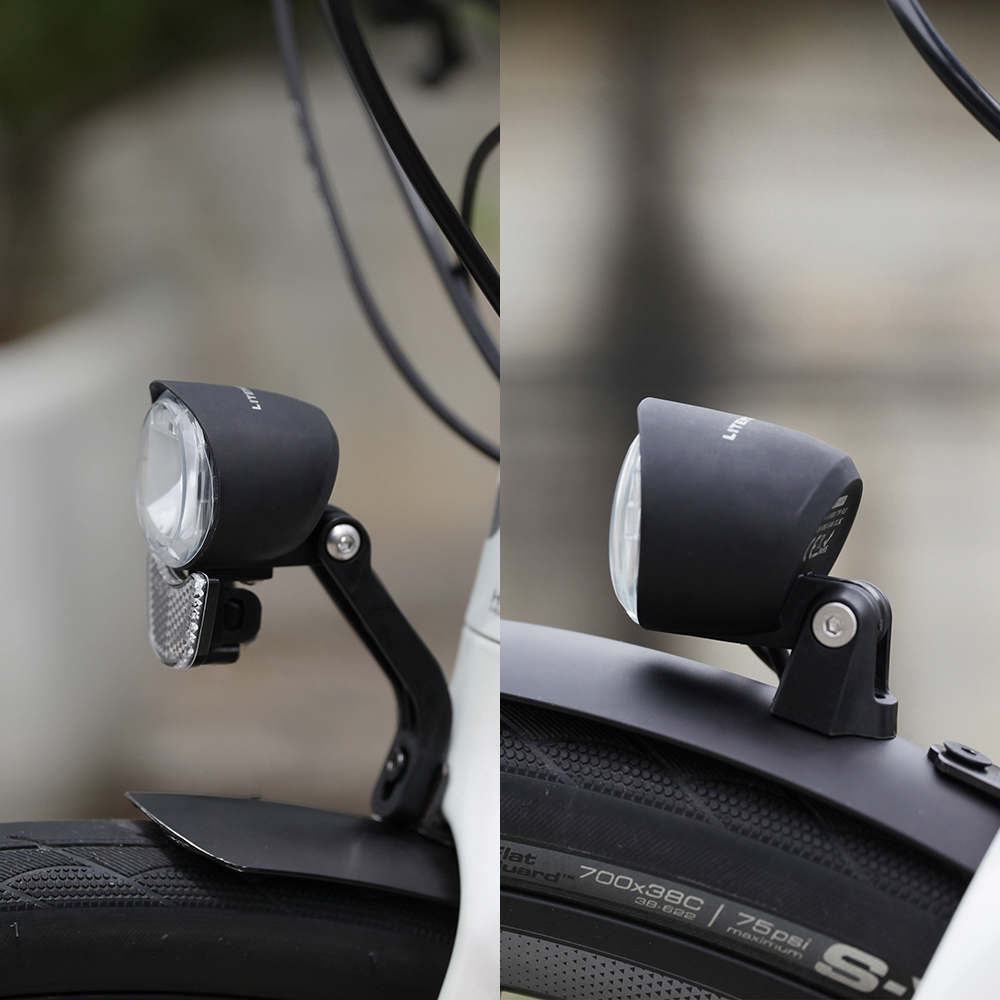

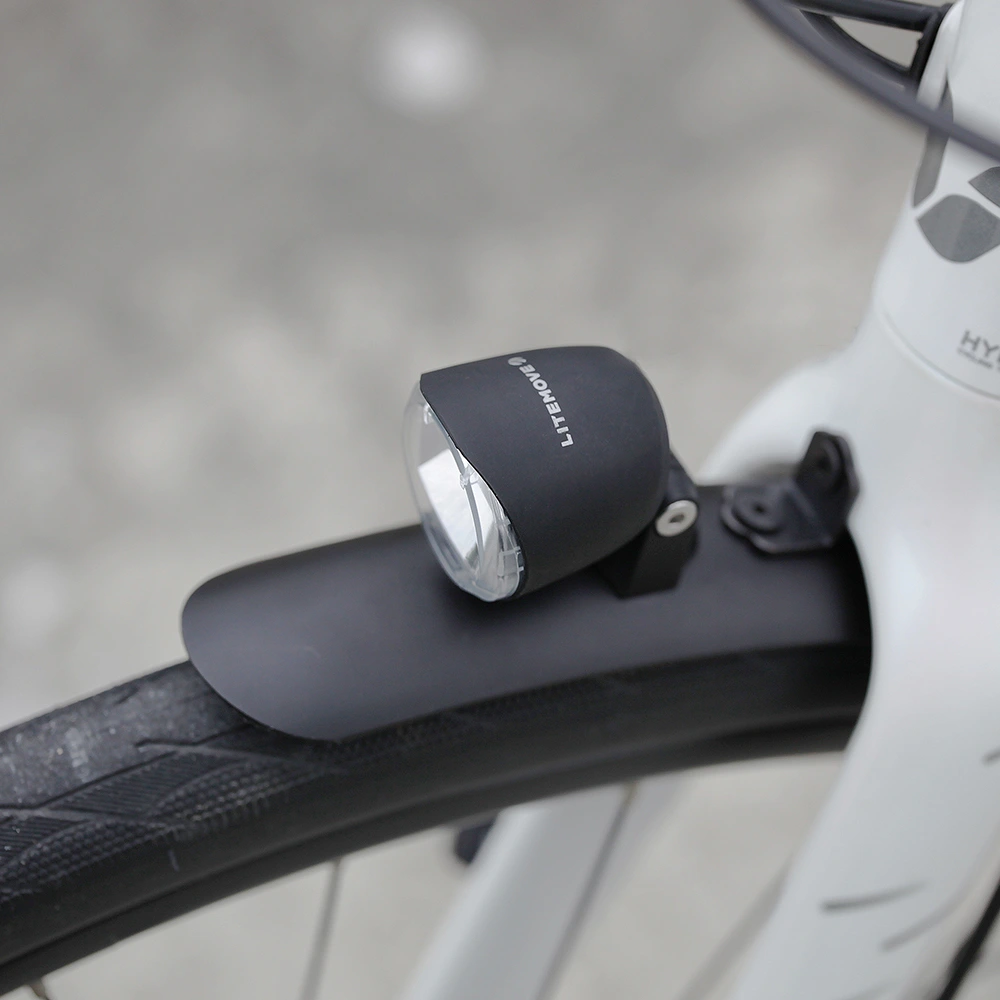

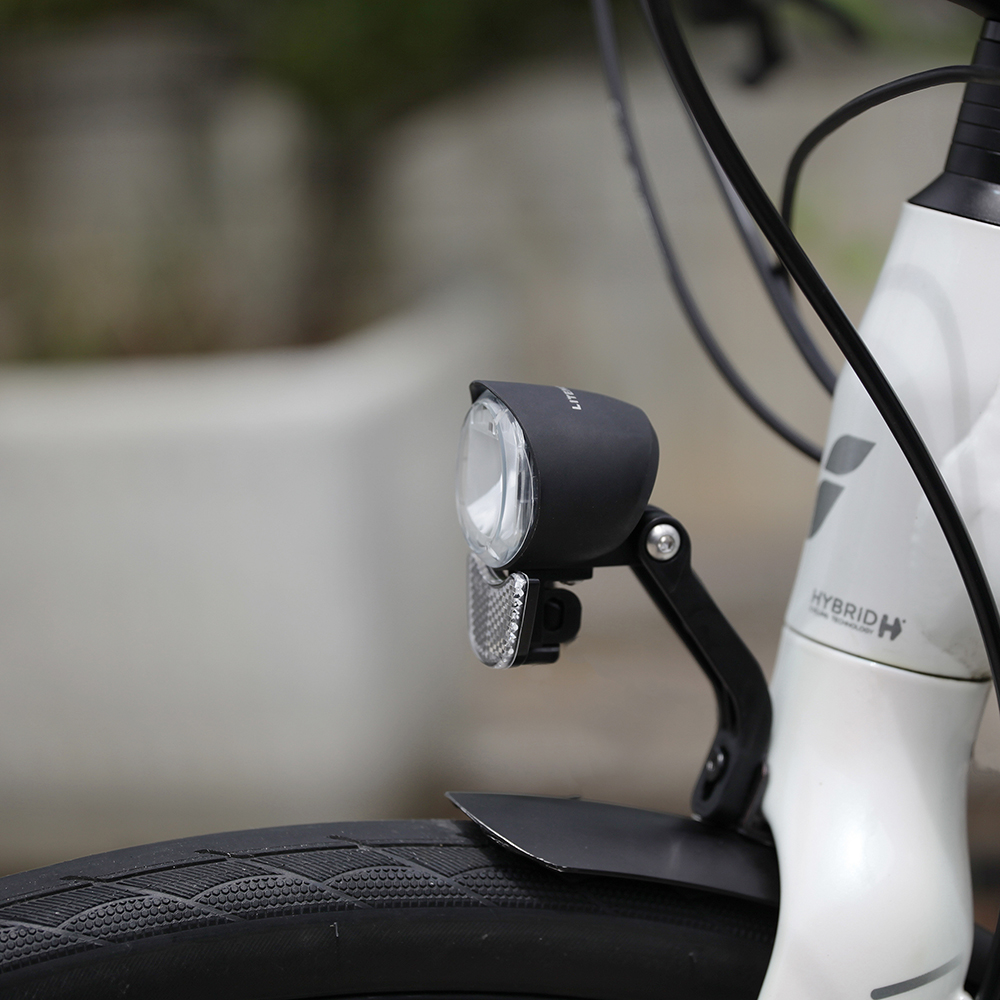

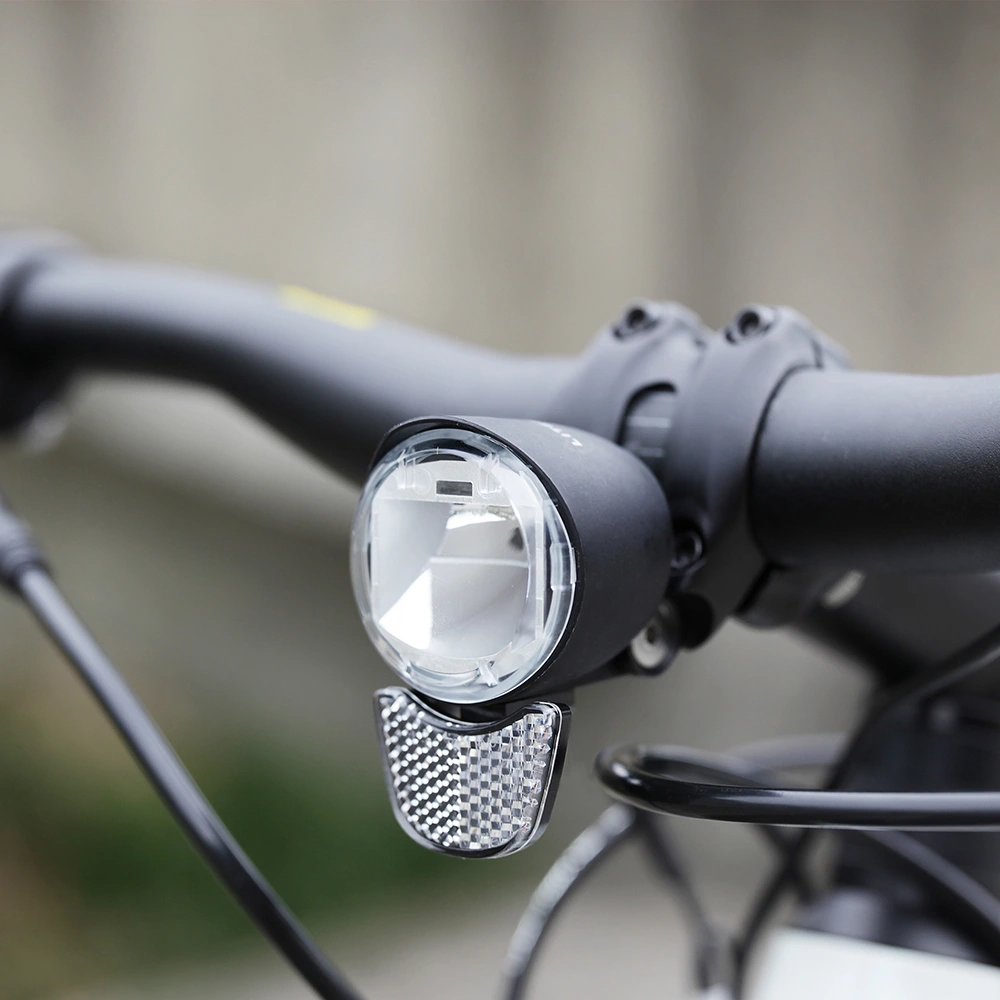

Multiple Mounting

Offers versatile mounting options with a secure GoPro®‑style interface. Designed for flexibility, it enables quick installation and adjustment, ensuring a clean, stable setup across diverse cycling applications

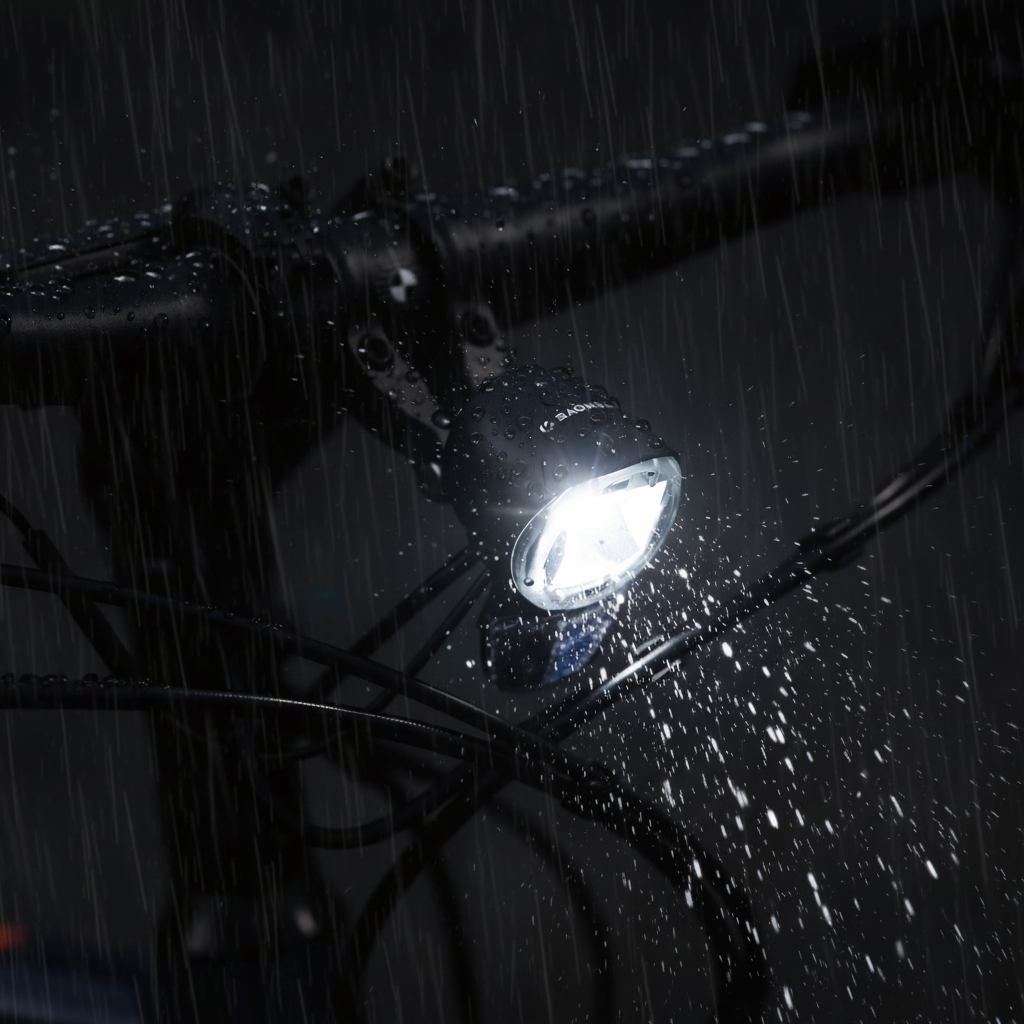

Durability & Protection

Crafted with premium, IP56 water-resistant materials and reinforced construction for reliable protection, durability, and consistent performance in demanding cycling environments.

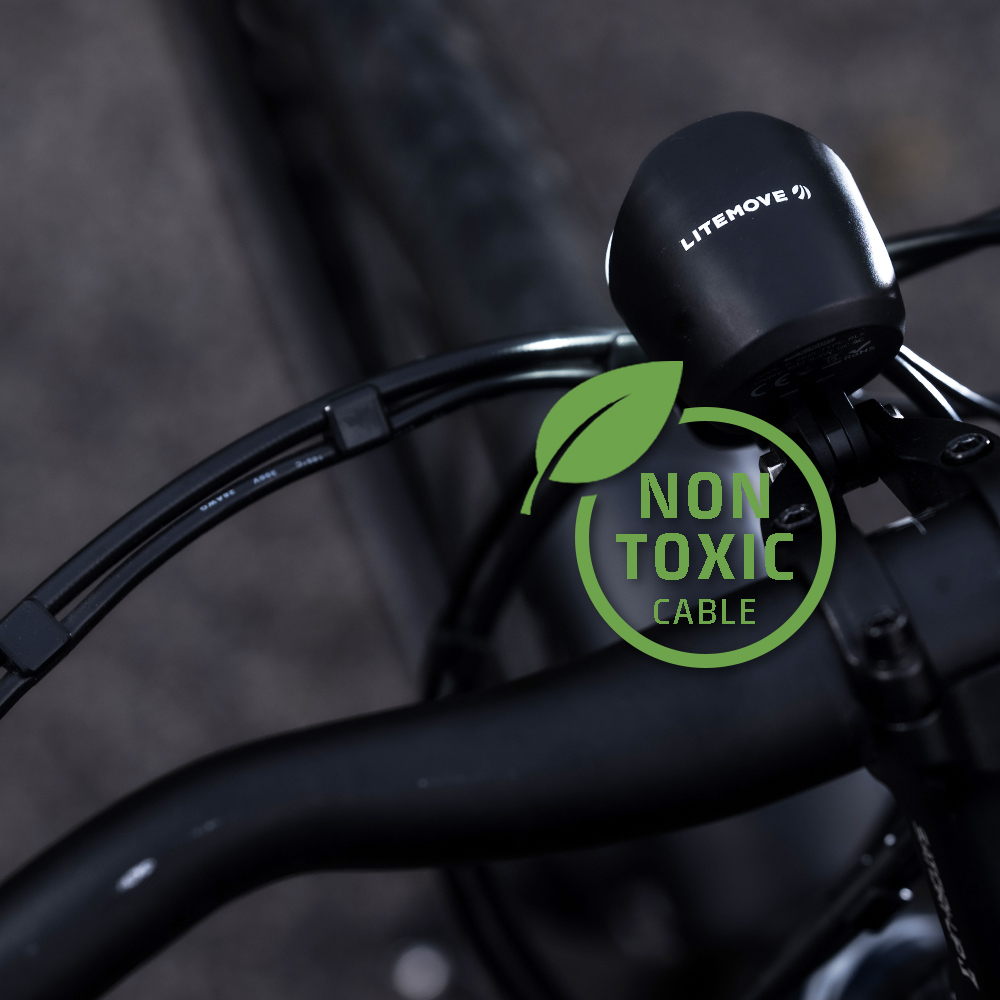

Environmentally Friendly Setup

Employs TPU toxic‑free cables, ensuring a sustainable and safe installation. Designed to reduce environmental impact while maintaining durability, reliability, and compliance for modern cycling applications.

Compatible with

Weight	0.25 kg
Dimensions	9 × 7.5 × 12 公分
Light Type	Headlights
Power source	E-Bike
Beam Type	Low Beam
Mounting	Cockpit, Fork
Max. Light output	51 – 500 Lumens (Commuting / Standard)
Riding scenario	City/ Urban Area
Compliance	CE, ISO-6742, RoHS/ REACH, StVZO-K
Holder Position	Low
Power Cable	1400mm Open + Self-sealing connector, 150mm CT1 Power connector
Mount / Bracket	Universal Fork Mount
Reflector	K-Reflector with Adapter (w/self-tapping screw)
