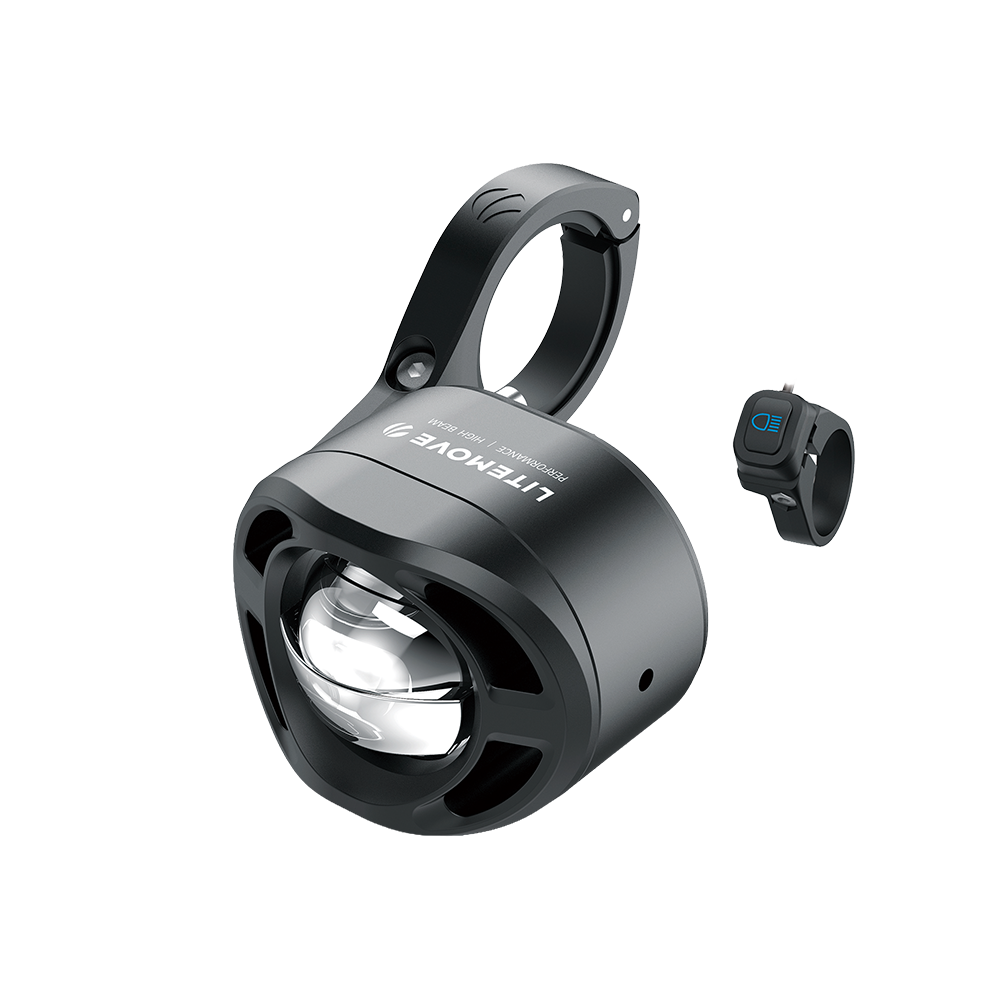

AEW-230 (High/Low Beam)

  • Installed with MTi Pro system, which provides wider visibility with dual- option (high/low-beam)
  • 10m wide and up to 300m distance of beam visibility ahead
  • Up to 230 lux/ 950 lumen
  • 12V(9V ~ 16V) with a power consumption of 15 Watt
  • Two-piece remote high-beam switch, designed for simple installation and easy maintenance.
  • A wide range of mounting brackets is available, allowing integrated installation on handlebars, stems, forks, and other bicycle components.
  • IP56- Protects against high pressure water or dust ingress
  • Aluminum Pre Casting & CNC housing
  • For 25km e-bike / EPAC
  • K-Mark & ISO-6742 compliance
SKU:
Specifications
Model Name AEW-230
Model No. HKAEW230
S/N E10
Light Output High beam: 230 lux/950 lumens
Low beam: 170 lux/550 lumens
Optical Technology MTi Pro
Light Source LED *4
Input Voltage (DC) 12V(9V ~ 16V)
Power Consumption High beam: 15W max.
Low beam: 7.3W
Cable Diameter Power: ø4mm
Switch: ø2.55mm
Cable Length Power: 1400mm
Switch: 300mm
IP Rating IP56
Operating Temperature (°C) -25 ~ +70
Material Aluminum
Weight (et. cable) 165g
Dimension (WxHxL) 63.1 x 49.9 x 52mm
Switch Bracket / Mount ø22.2mm
Reflector (Optional) RFD
Compliance CE/ ROHS/ REACH/ Prop 65
Type of Approval StVZO-K/ ISO-6742
Approval Number ~ K1973



Compliance

Built for safety and trust, our lights carry the K-Mark certification under Germany’s StVZO road regulations. They also meet key international standards, including ISO 6742, CE, RoHS, and REACH compliance, ensuring reliable performance and responsible manufacturing.

StVZO
ISO 6742
CE
RoHS
REACH

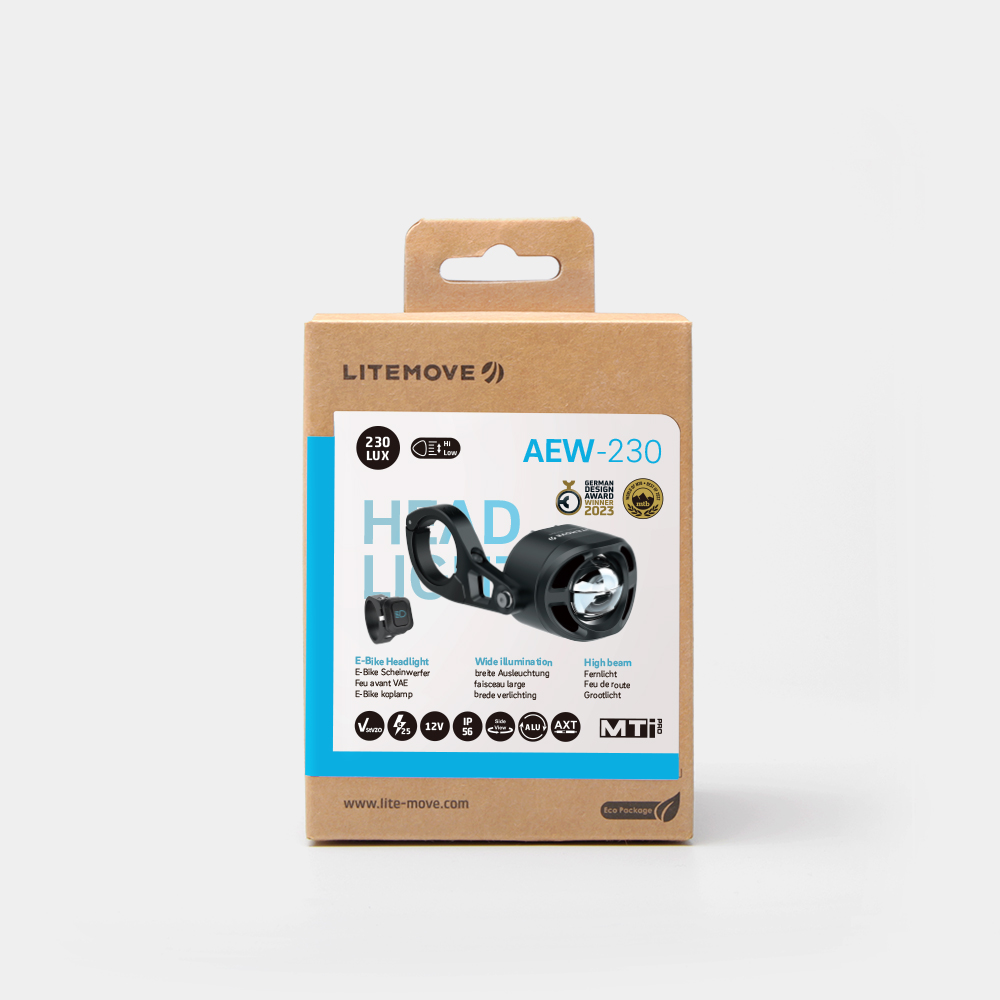

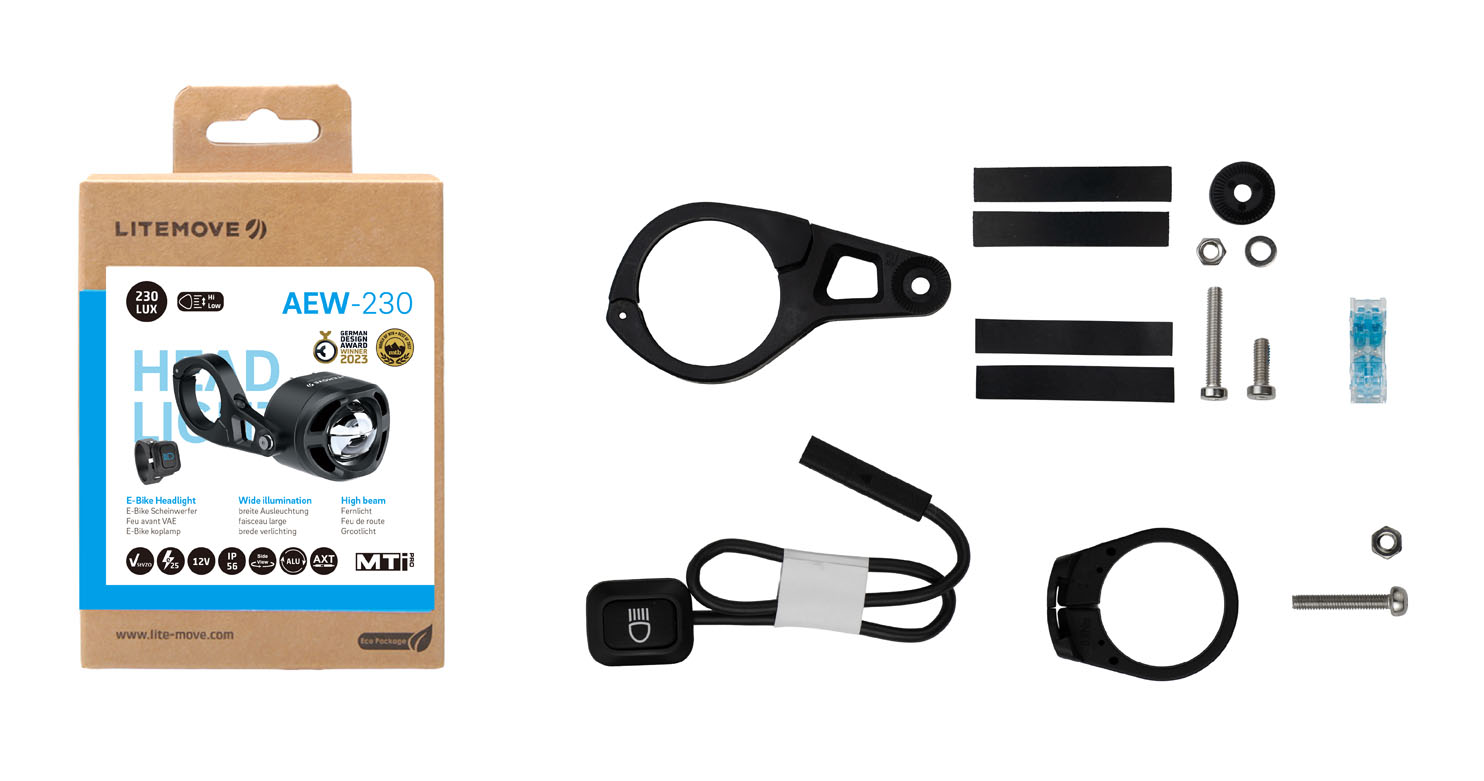

What’s in the box

AEW2302

Side Mount

Handlebar Package
FAQ

Illuminate your path

Performance Wide Beam Distribution

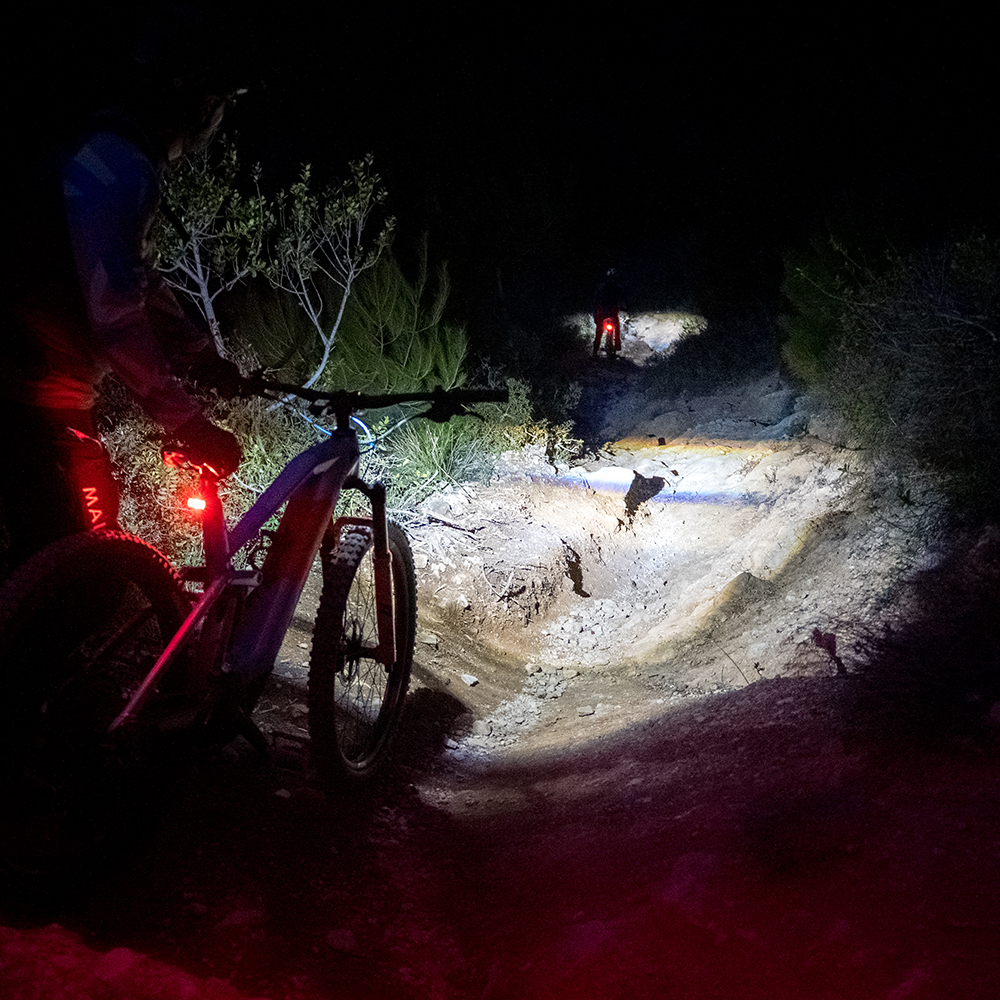

Litemove Finale Ligure®invisions.at 53

Light the Trail Ahead

Designed for off-road terrain, it delivers a wide, high beam fully compliant with strict StVZO standards. The glare-free output ensures optimized light distribution that adapts to riding conditions, providing both safety and comfort while maintaining legal compliance across diverse cycling environments.

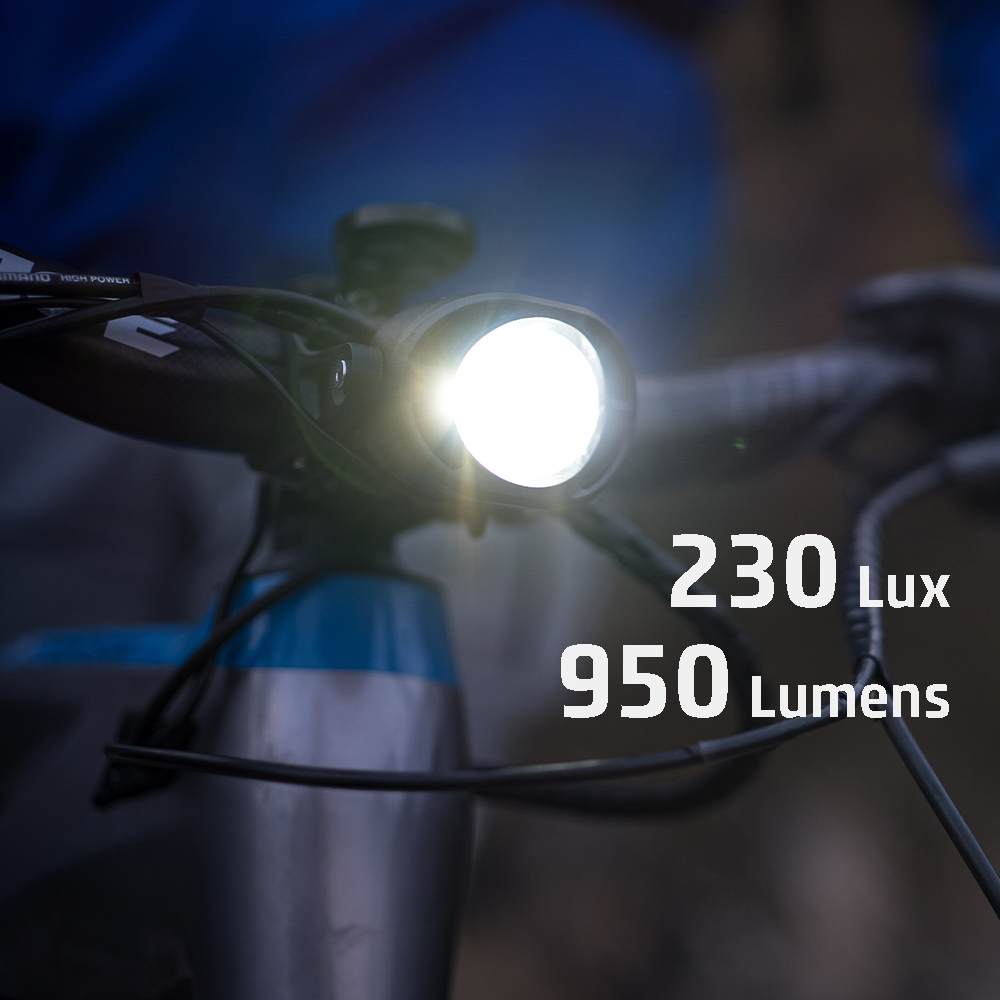

High Power Output

Supports high-voltage input (15W) for powerful illumination, delivering up to 230 lux / 950 lumens of brightness. Engineered for efficiency and reliability, ensuring stable performance throughout every ride.

Litemove AEW230 High Output 1
Litemove Bar Switch

Flex Bar Switch

Mounts on your left or right grip—and stacks over existing clamps like brake or shifter mounts if bar space is tight. Plug-in cable installs in minutes and disconnects fast for service.

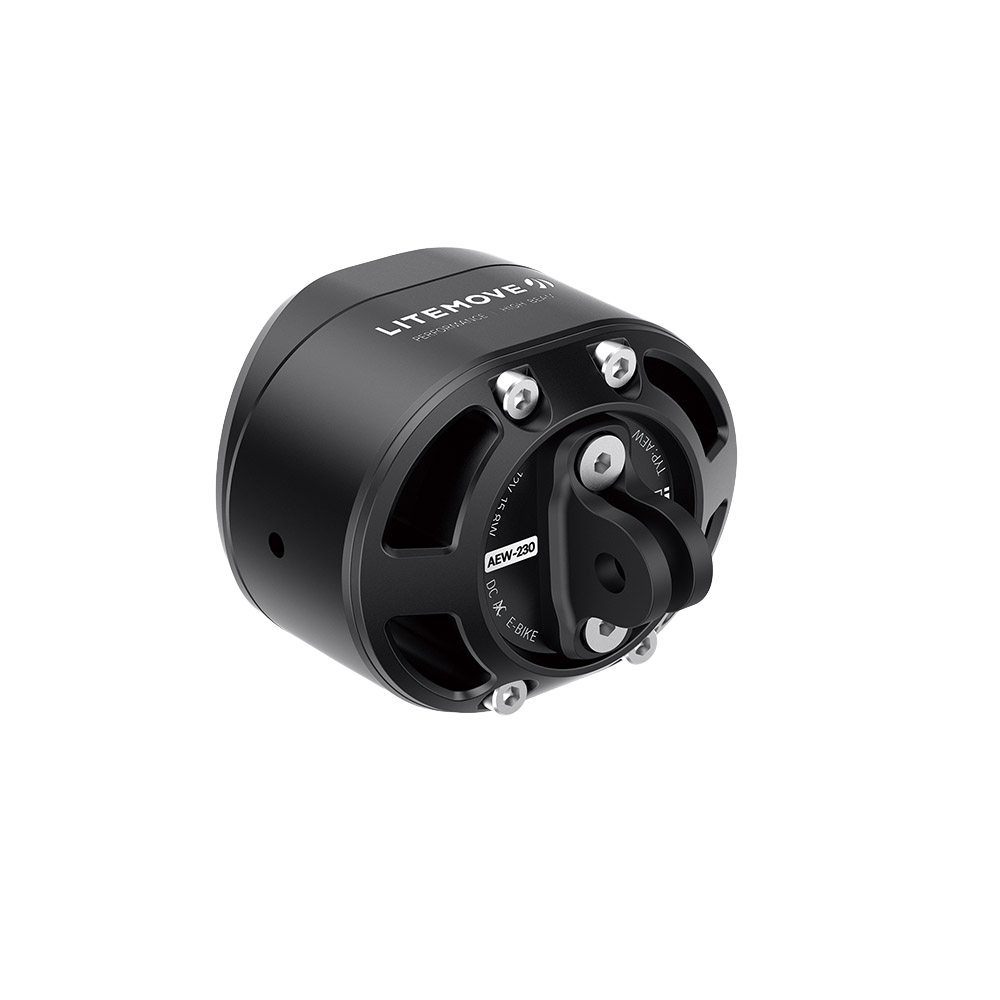

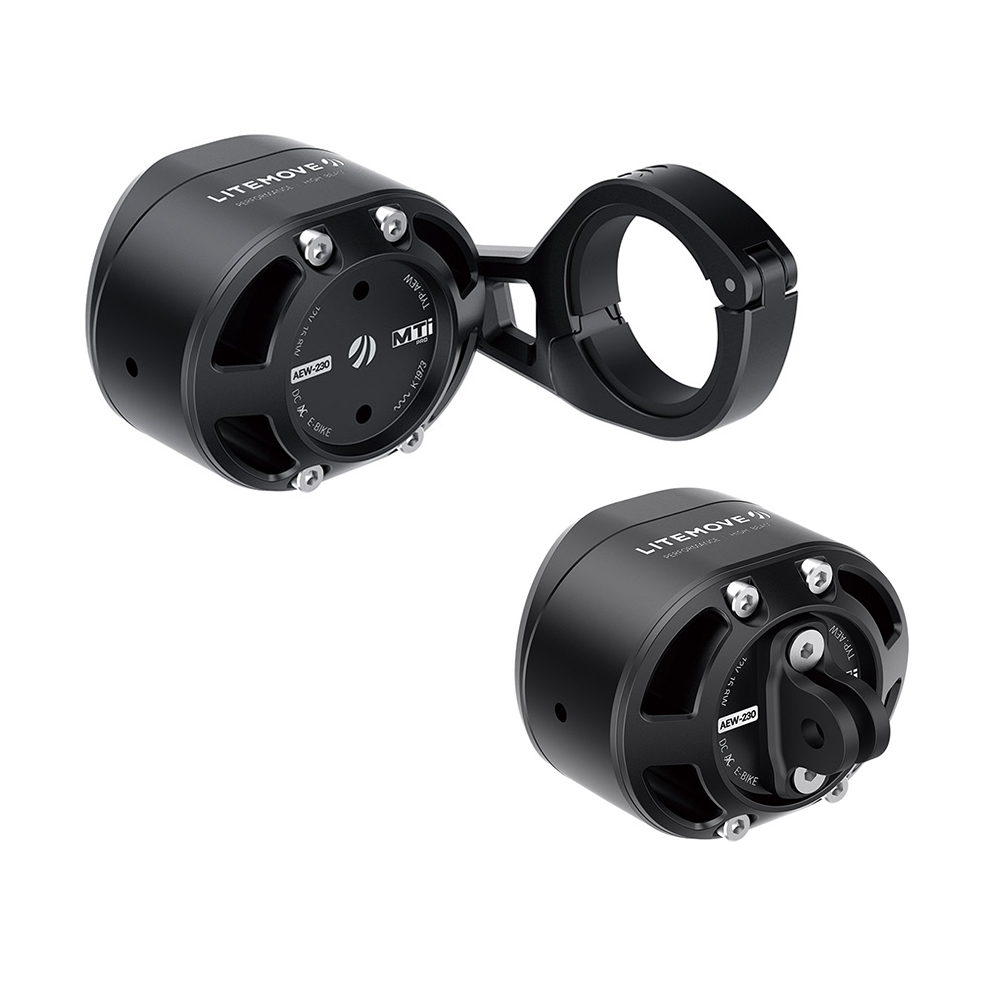

Multiple Mounting

Offers versatile mounting options with a secure GoPro®‑style interface. Designed for flexibility, it enables quick installation and adjustment, ensuring a clean, stable setup across diverse cycling applications

AEW230 mounting 1

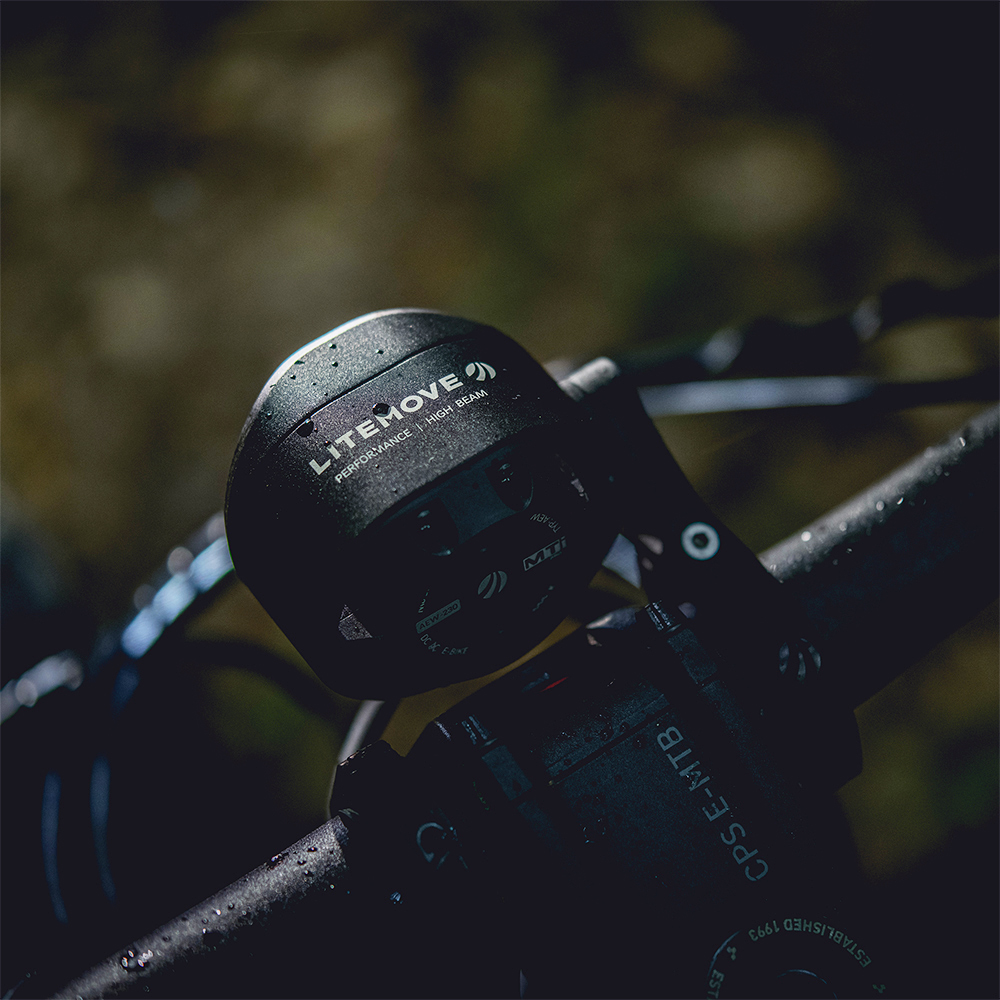

Litemove AEW230 72dpi 03

Durability & Protection

Crafted with premium, IP56 water-resistant materials and reinforced construction for reliable protection, durability, and consistent performance in demanding cycling environments.

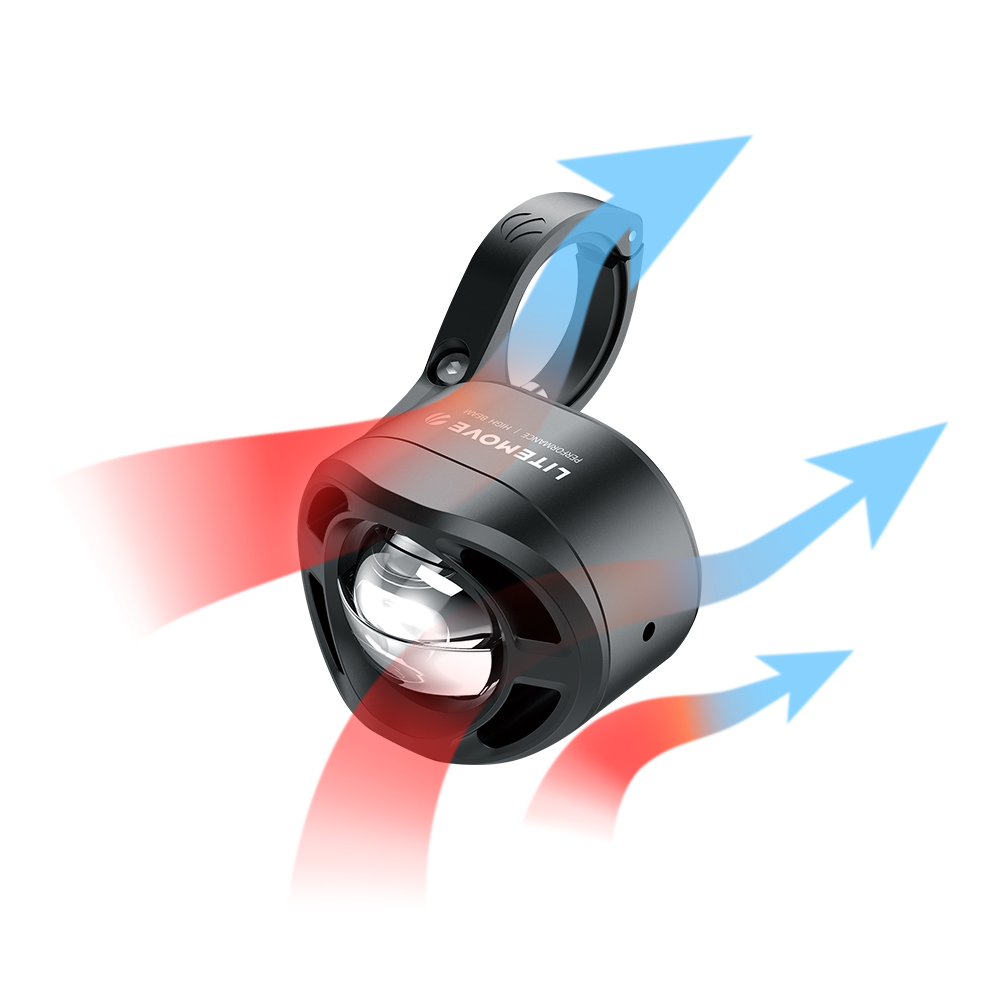

Thermal Control

Intelligent heat management optimizes temperature regulation to prevent overheating and sustain consistent brightness. This advanced system ensures reliable high-performance operation, extending durability and maintaining stability during prolonged high-power use.

Litemove AEW230 Thermal

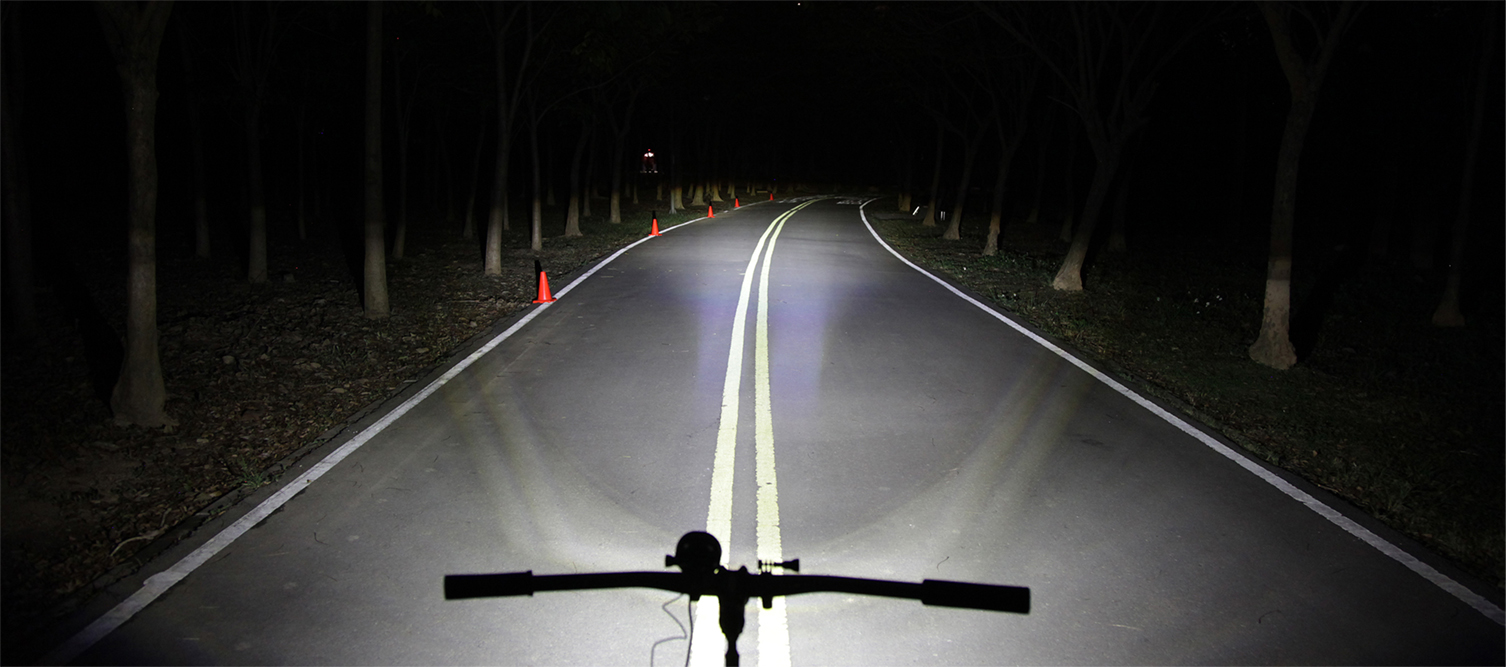

Litemove AEW 230 LB

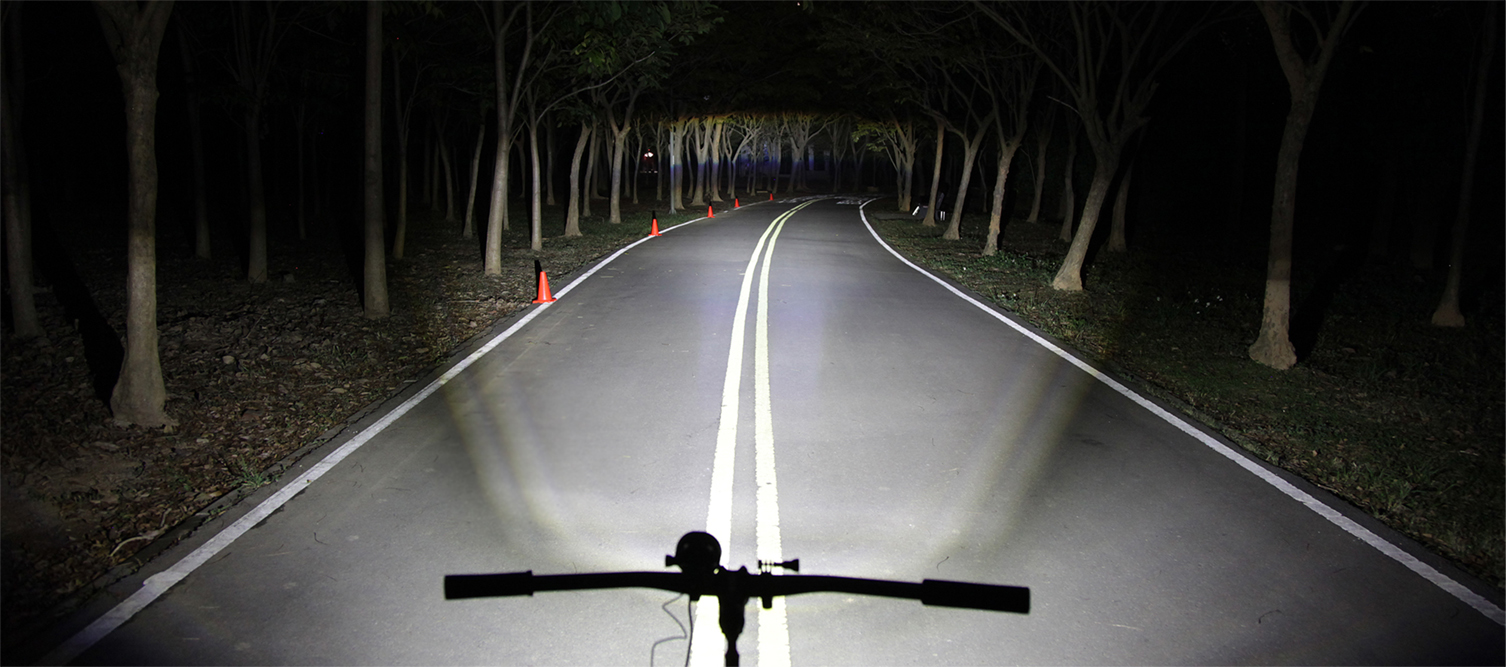

Litemove AEW 230 HB
High Beam Low Beam

Compatible with

Weight 0.5 kg
Dimensions 9 × 7.5 × 12 公分
Light Type

Headlights

Power source

E-Bike

Beam Type

High / Low Beam (Wide)

Mounting

Cockpit

Max. Light output

501 – 1000 Lumens (Performance)

Riding scenario

Mountain/ Trails, Rural Area

Compliance

CE, ISO-6742, RoHS/ REACH, StVZO-K

High Beam Switch Cable

300mm

Holder Position

Side

Power Cable

1400mm Open + Self-sealing connector

Mount / Bracket

Handlebar Bracket / Mount (for ø31.8 & 35mm)

Reflector
