AC-150 (High/Low Beam)

  • Use MTi Plus system, which includes dual-beam option (high/low-beam)
  • 8m wide and up to 230m distance of beam visibility ahead
  • Up to 150 lux
  • 12V(6V ~ 16V) with a power consumption up to 13 Watt
  • Two-piece remote high-beam switch, designed for simple installation and easy maintenance.
  • A wide range of mounting brackets is available, allowing integrated installation on handlebars, stems, forks, and other bicycle components.
  • IP56- Protects against high pressure water or dust ingress
  • Aluminum housing
  • For 25km e-bike / EPAC
  • K-Mark & ISO-6742 compliance
SKU:
Specifications
Model Name AC-150
Model No. AC150D/AC150S/AC150U
S/N 0023
Light Output High beam: 150 lux/ 600 lumens
Low beam: 90 lux/ 380 lumens
Optical Technology MTi Plus
Light Source LED *4
Input Voltage (DC) 12V(6V ~ 16V)
Power Consumption High beam: 13W max.
Low beam: 6W
Cable Diameter Power: ø4mm
Switch: ø2.55mm
Cable Length Power: 1400mm
Switch: 300mm/650mm
IP Rating IP56
Operating Temperature (°C) -25 ~ +50
Material Aluminum
Weight (et. cable) 128g
Dimension (WxHxL) ø46 x 52mm
Switch bracket / mount ø22.2mm
Reflector (Optional) RF1 / RFD
Compliance CE/ ROHS/ REACH
Type of Approval StVZO-K/ ISO-6742
Approval Number ~ K 1837
Compliance

Built for safety and trust, our lights carry the K-Mark certification under Germany’s StVZO road regulations. They also meet key international standards, including ISO 6742, CE, RoHS, and REACH compliance, ensuring reliable performance and responsible manufacturing.

StVZO
ISO 6742
CE
RoHS
REACH
What’s in the box

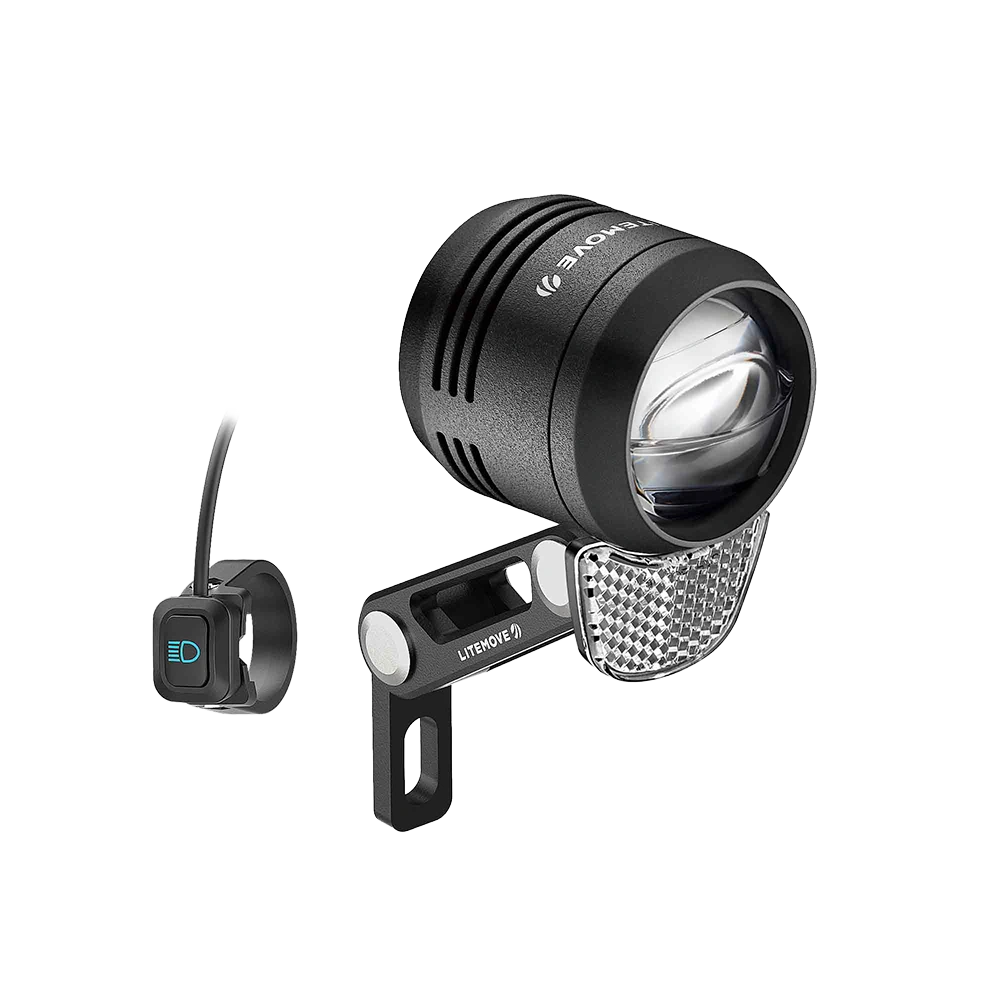

AC1501

Under Mount

Standard Package

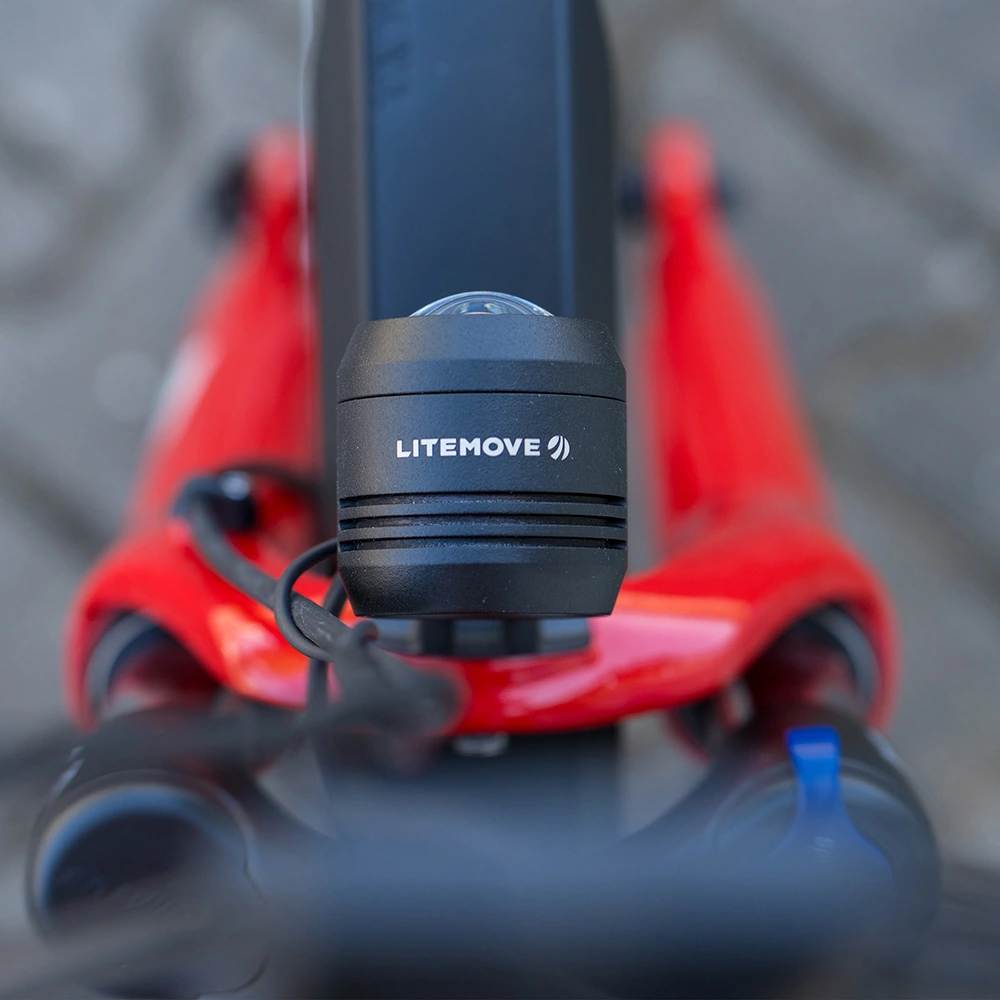

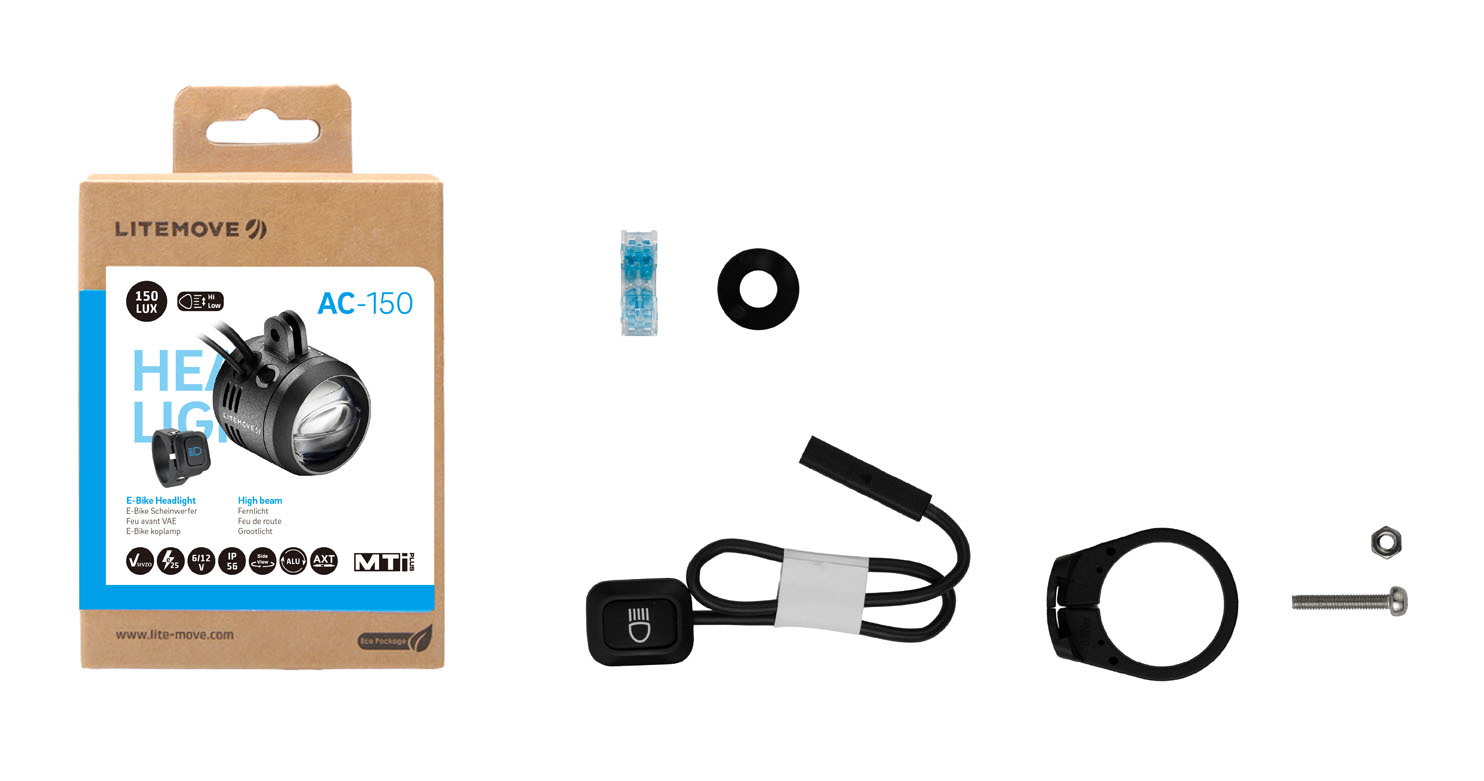

AC1502

Top Mount

Standard Package

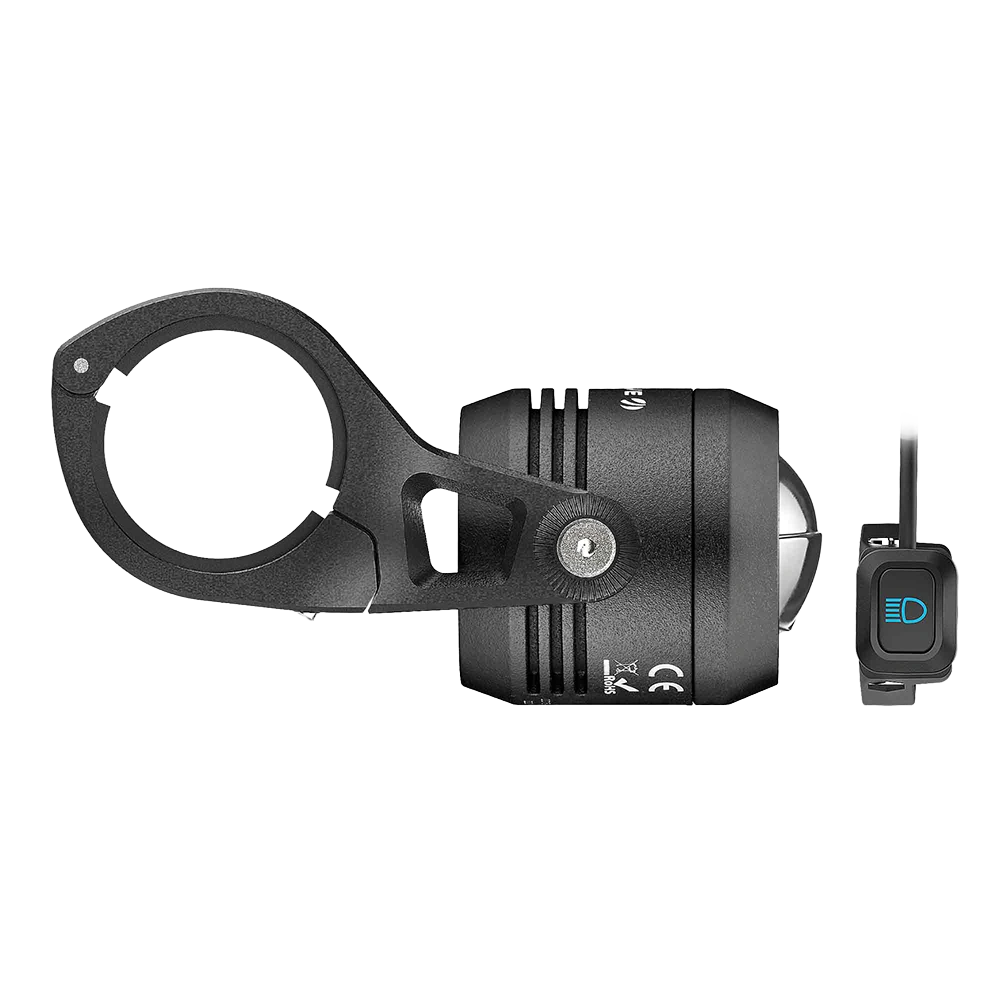

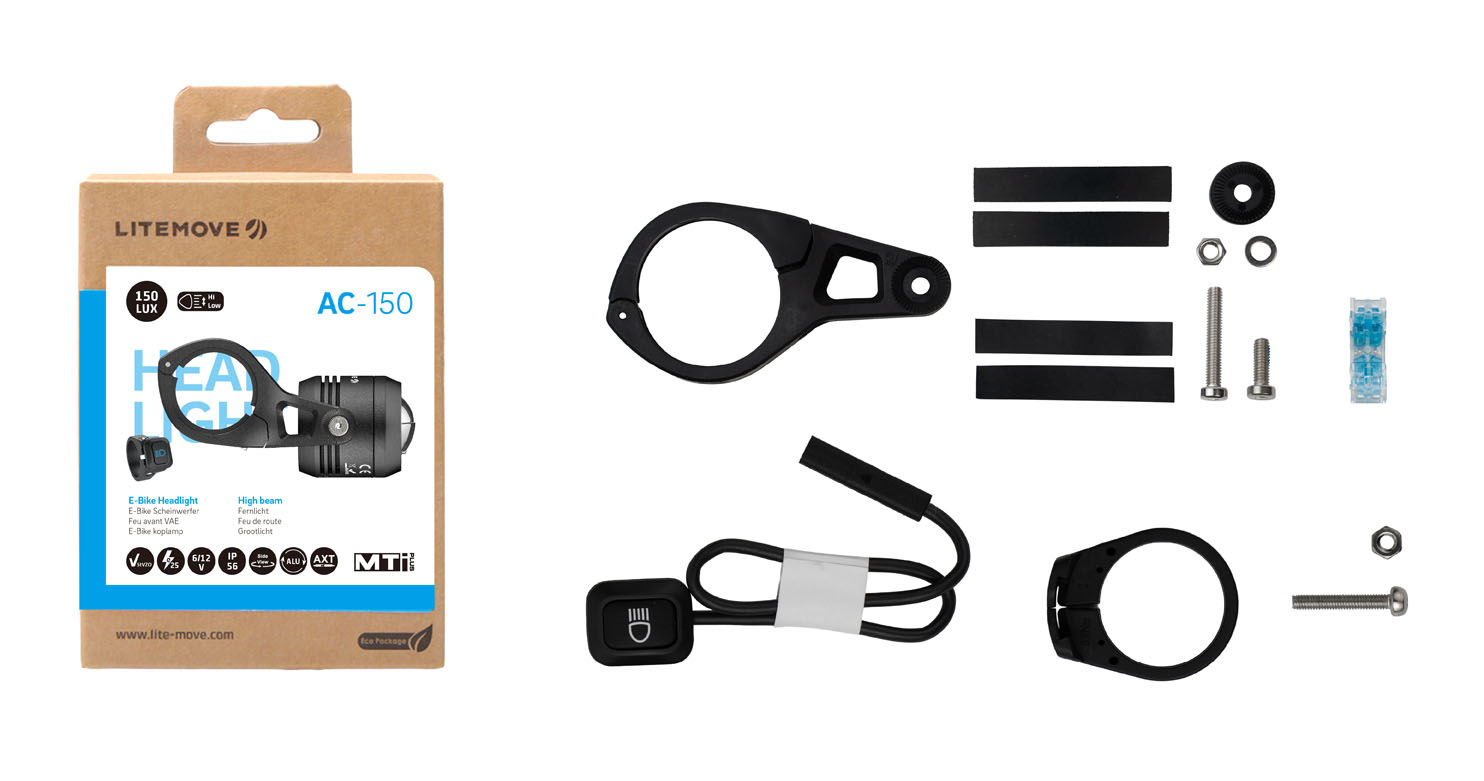

AC1503

Side Mount

Handlebar Package
FAQ

Illuminate your path

2900 Lumens for demanding mountain bikers

Litemove HighLowBeam test

Dual Beam (High/ Low)

Engineered for all‑terrain riding, it projects a powerful 600 lumen, 150 lux wide high beam with glare‑free visibility—ideal for weekday commuting and weekend recreation, while ensuring strict legal compliance.

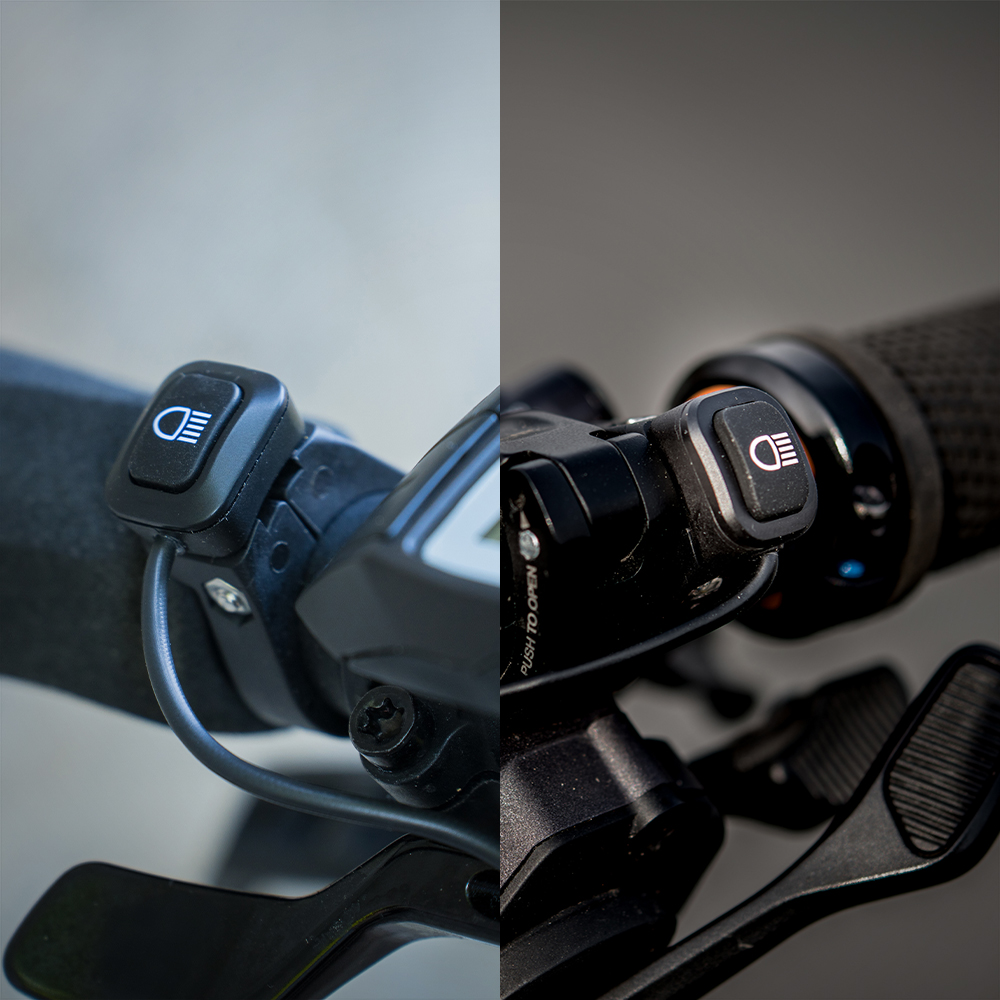

Flex Bar Switch

Mounts on your left or right grip—and stacks over existing clamps like brake or shifter mounts if bar space is tight. Plug-in cable installs in minutes and disconnects fast for service.

Litemove Bar Switch

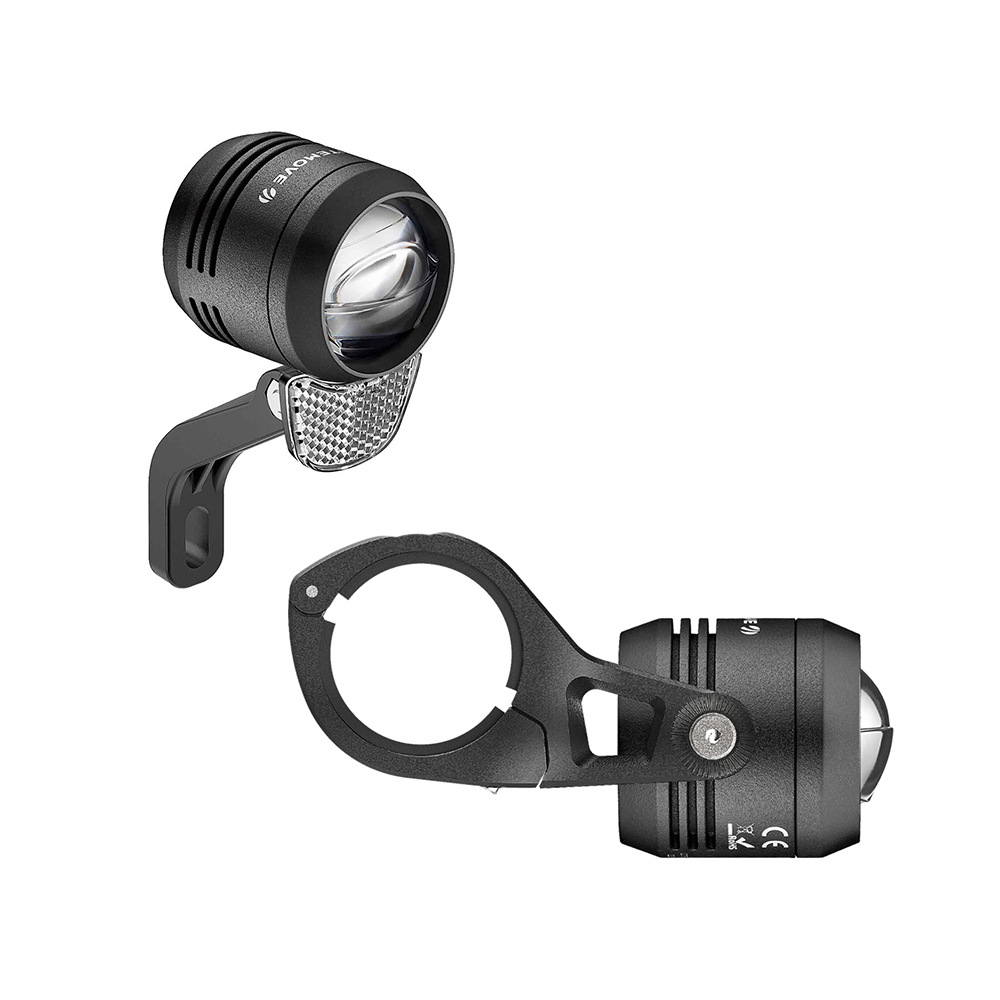

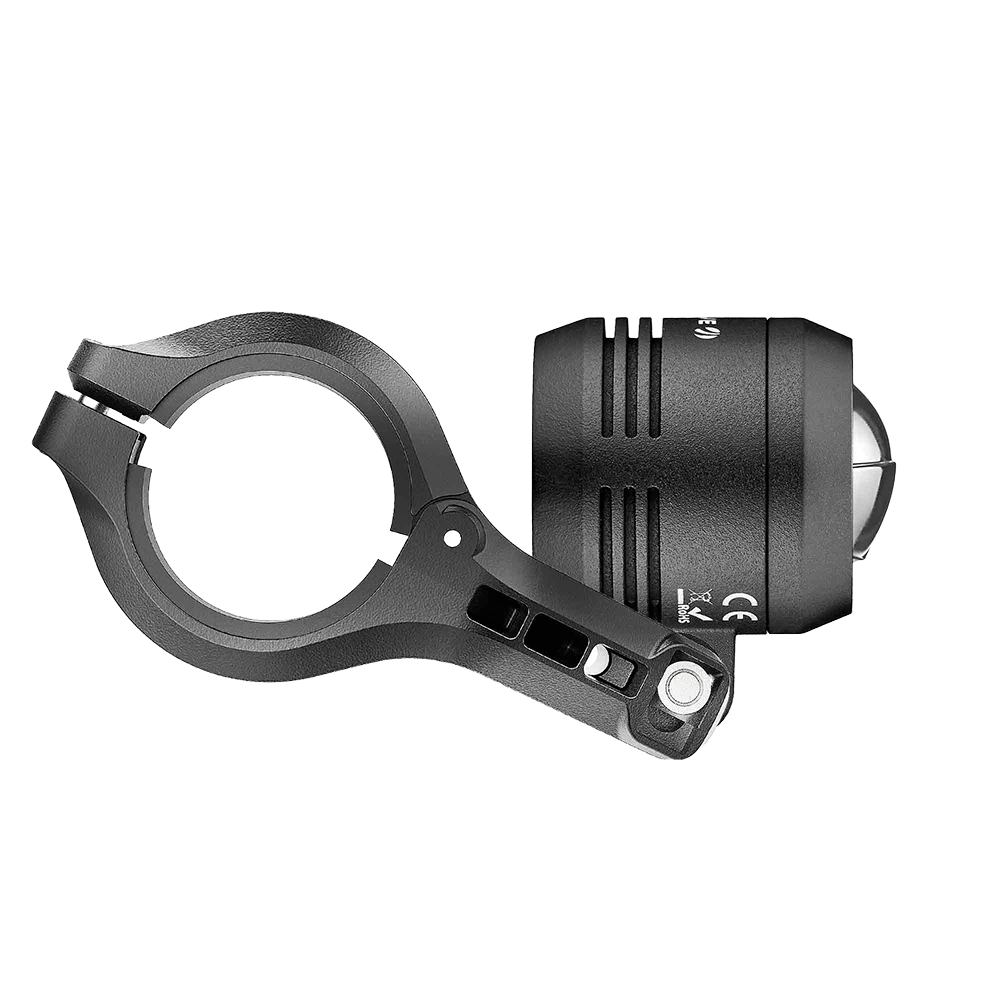

AC150 mounting

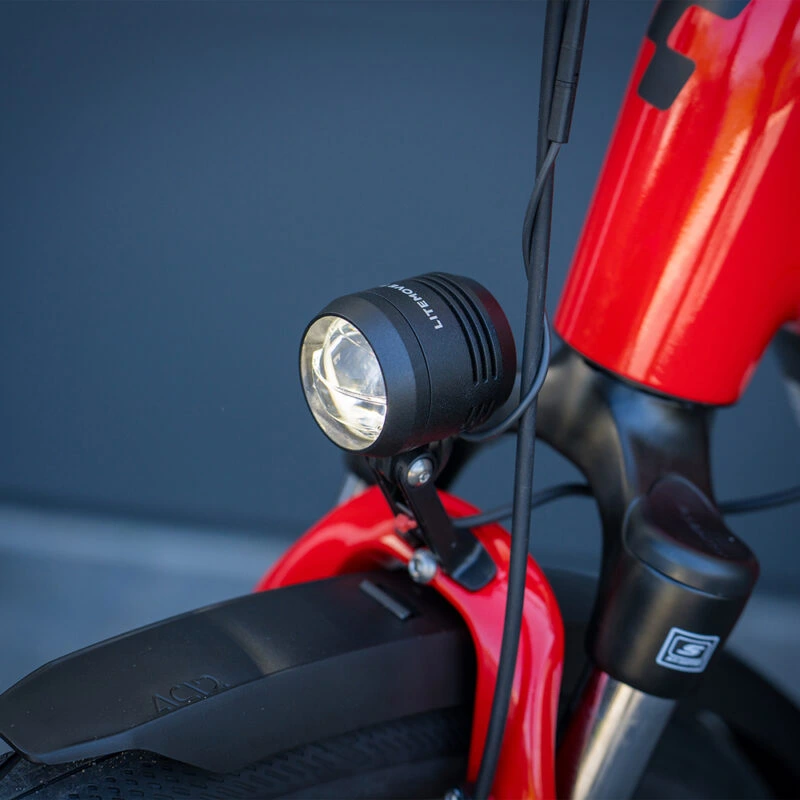

Multiple Mounting

Offers versatile mounting options with a secure GoPro®‑style interface. Designed for flexibility, it enables quick installation and adjustment, ensuring a clean, stable setup across diverse cycling applications

Durability & Protection

Crafted with premium, IP56 water-resistant materials and reinforced construction for reliable protection, durability, and consistent performance in demanding cycling environments.

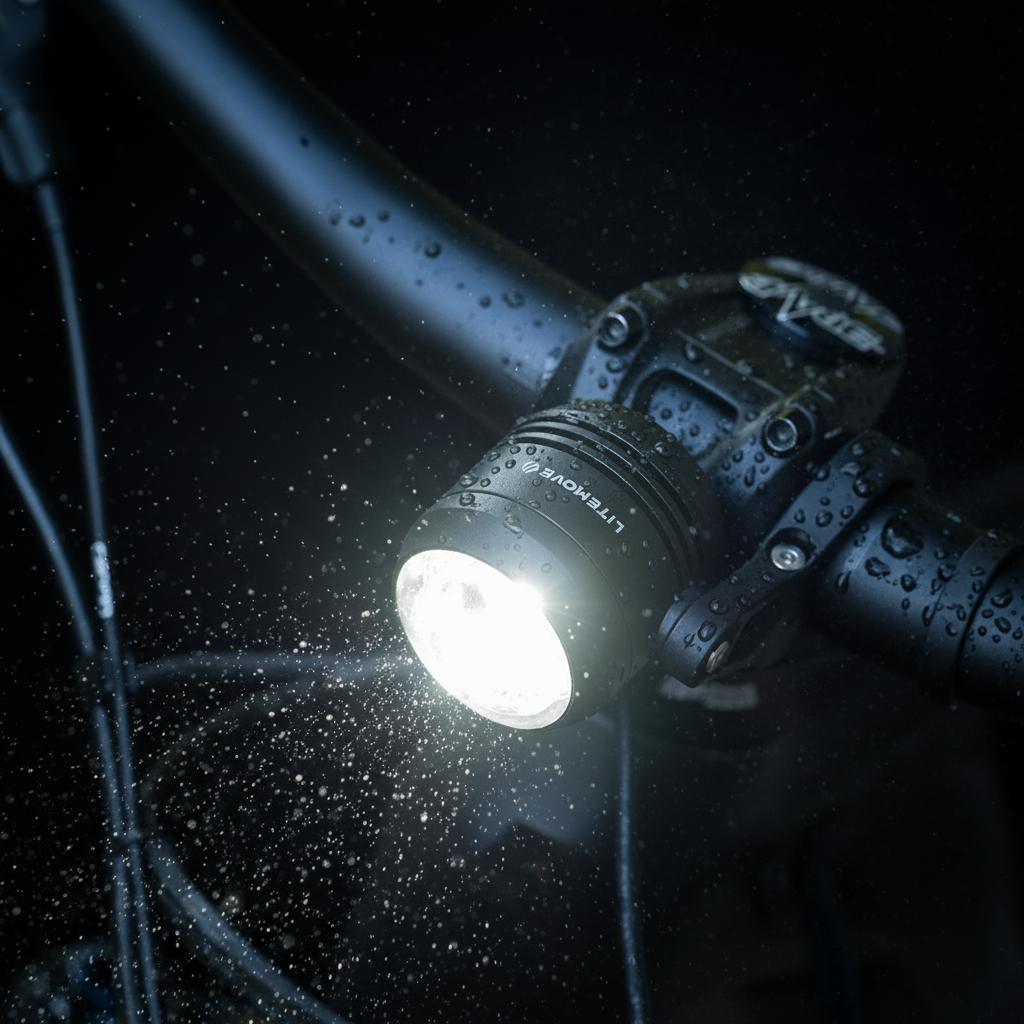

AC210 IP56

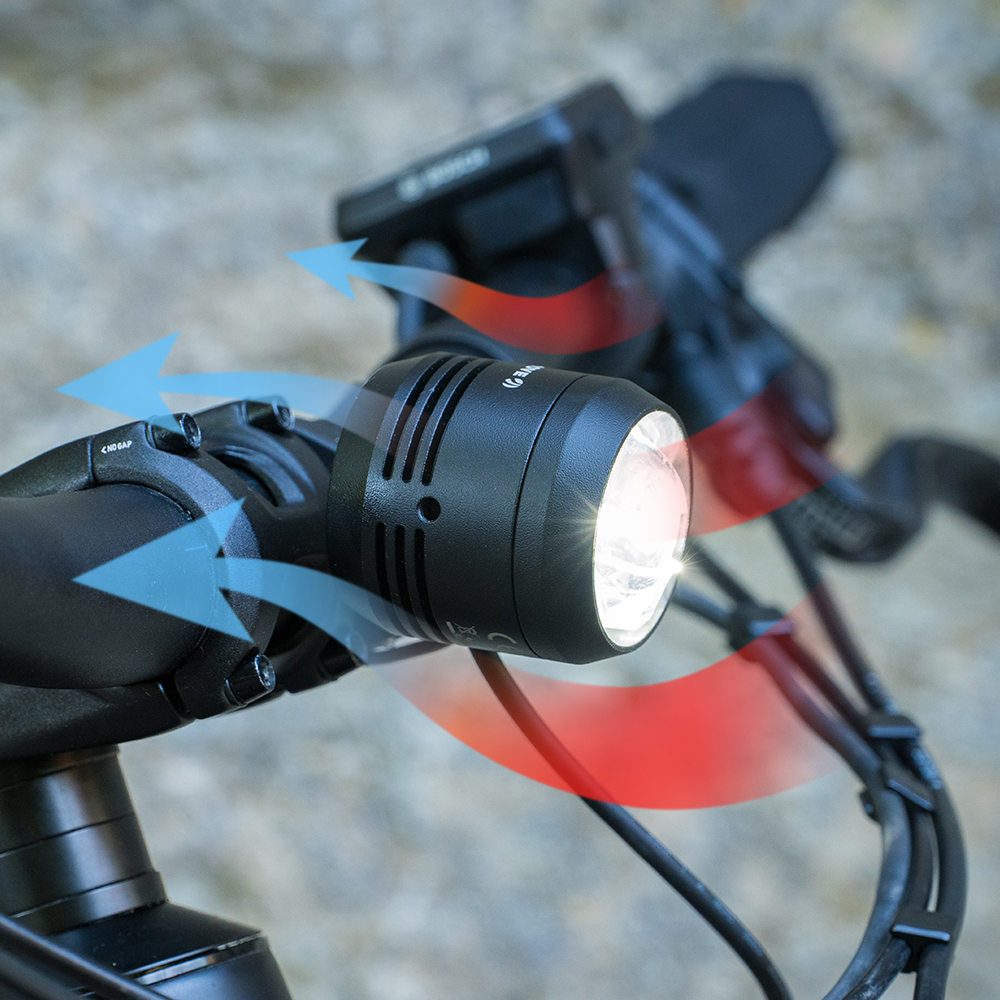

Litemove AC Thermal

Thermal conductive

Advanced thermal management system regulates heat efficiently, preventing overheating and maintaining stable brightness output. Guarantees consistent performance and extended product lifespan under high-power operation.

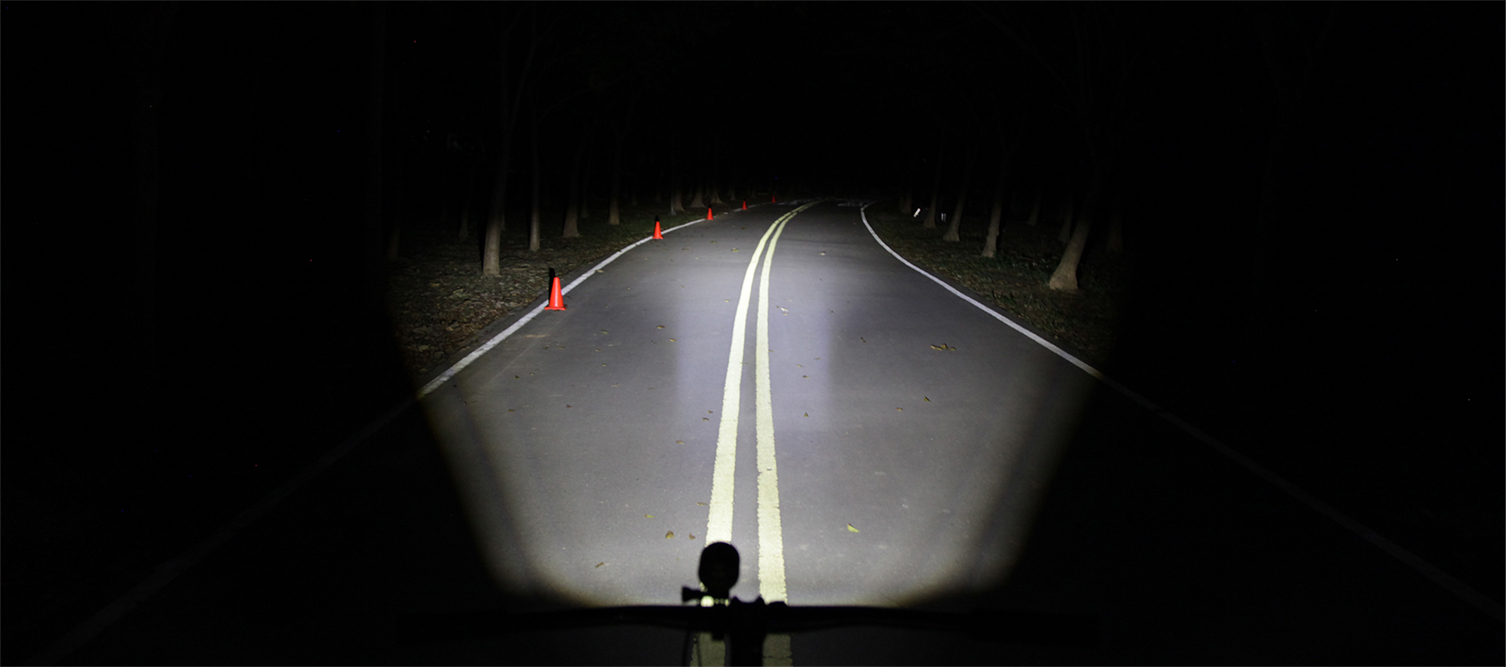

Litemove AC 150 LB
Litemove AC 150 HB
High Beam Low Beam

Compatible with

Weight 0.25 kg
Dimensions 9 × 7.5 × 12 公分
Light Type

Headlights

Power source

E-Bike

Beam Type

High / Low Beam

Mounting

Cockpit, Fork

Max. Light output

51 – 500 Lumens (Commuting / Standard)

Riding scenario

City/ Urban Area, Rural Area

Compliance

CE, ISO-6742, RoHS/ REACH, StVZO-K

High Beam Switch Cable

650mm, 300mm

Holder Position

Down, Up, Side

Power Cable

1400mm Open + Self-sealing connector

Mount / Bracket

Handlebar Bracket / Mount (for ø31.8 & 35mm), –

Reflector
