AC-210 (High/Low Beam)

  • Use Gen4 MTi Plus system, which includes dual-beam option (high/low-beam)
  • 10.5m wide and up to 300m distance of beam visibility ahead
  • Up to 210 lux
  • DC 12V (11V ~ 16V) with a power consumption up to 16 Watt
  • Two-piece remote high-beam switch, designed for simple installation and easy maintenance.
  • A wide range of mounting brackets is available, allowing integrated installation on handlebars, stems, forks, and other bicycle components.
  • IP56- Protects against high pressure water or dust ingress
  • Aluminum housing
  • For 25km e-bike / EPAC
  • Compliant with StVZO-K/ ISO-6742
SKU:
Specifications
Model Name AC-210
Model No. AC210D/AC210S/AC210U
S/N 10015
Light Output High beam: 210 lux/ 700 lumens
Low beam: 140 lux/ 460 lumens
Optical Technology MTi Plus
Light Source LED *6
Input Voltage (DC) 12V(11V ~ 16V)
Power Consumption High beam: 16W max.
Low beam: 10W
Cable Diameter Power: ø4mm
Switch: ø2.55mm
Cable Length Power: 1400mm
Switch: 300mm/650mm
IP Rating IP56
Operating Temperature (°C) -25 ~ +50
Material Aluminum
Weight (et. cable) 128g
Dimension (WxHxL) ø46 x 52mm
Switch bracket / mount ø22.2mm
Reflector (Optional) RF1 / RFD
Compliance CE/ ROHS/ REACH
Type of Approval StVZO-K/ ISO-6742
Approval Number ~ K2510



Compliance

Built for safety and trust, our lights carry the K-Mark certification under Germany’s StVZO road regulations. They also meet key international standards, including ISO 6742, CE, RoHS, and REACH compliance, ensuring reliable performance and responsible manufacturing.

StVZO
ISO 6742
CE
RoHS
REACH
What’s in the box

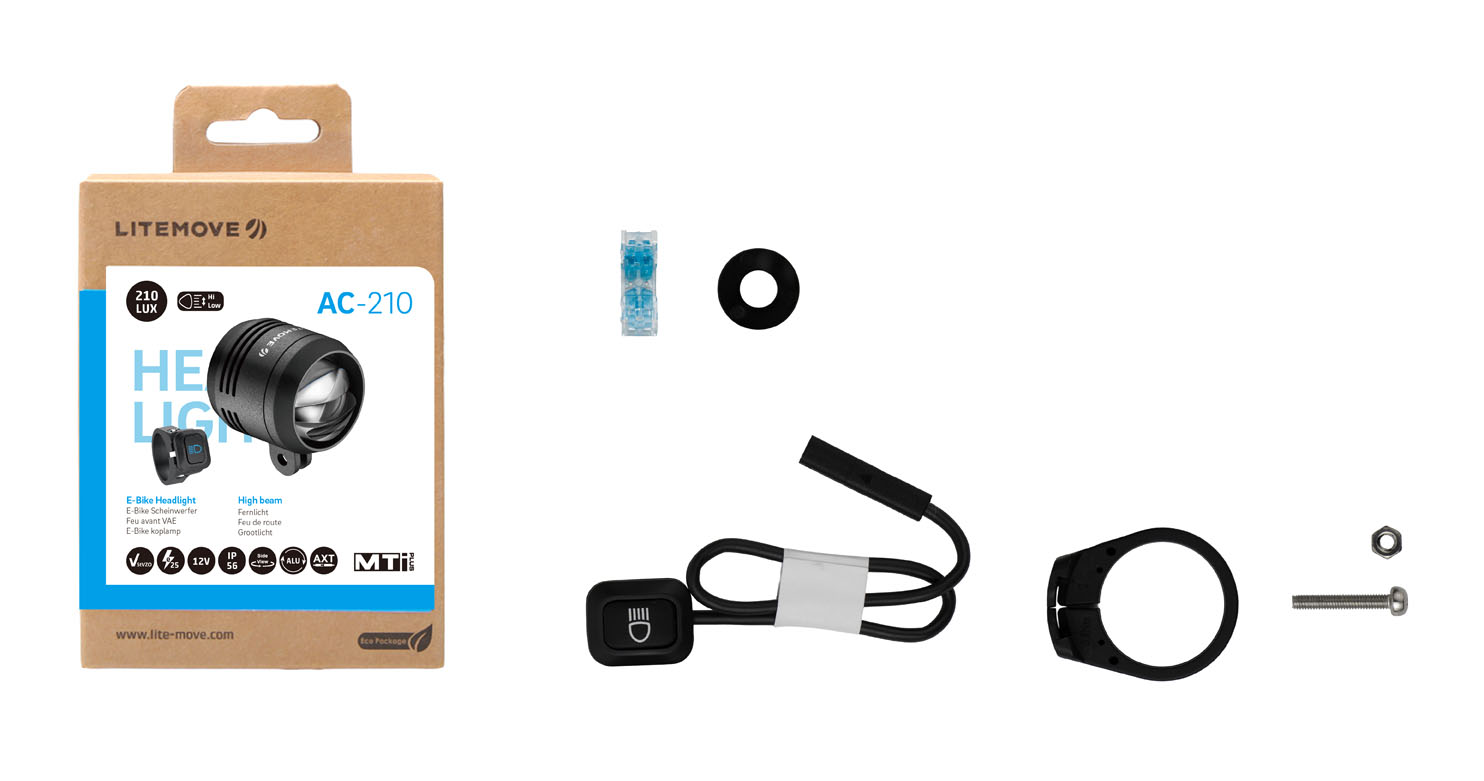

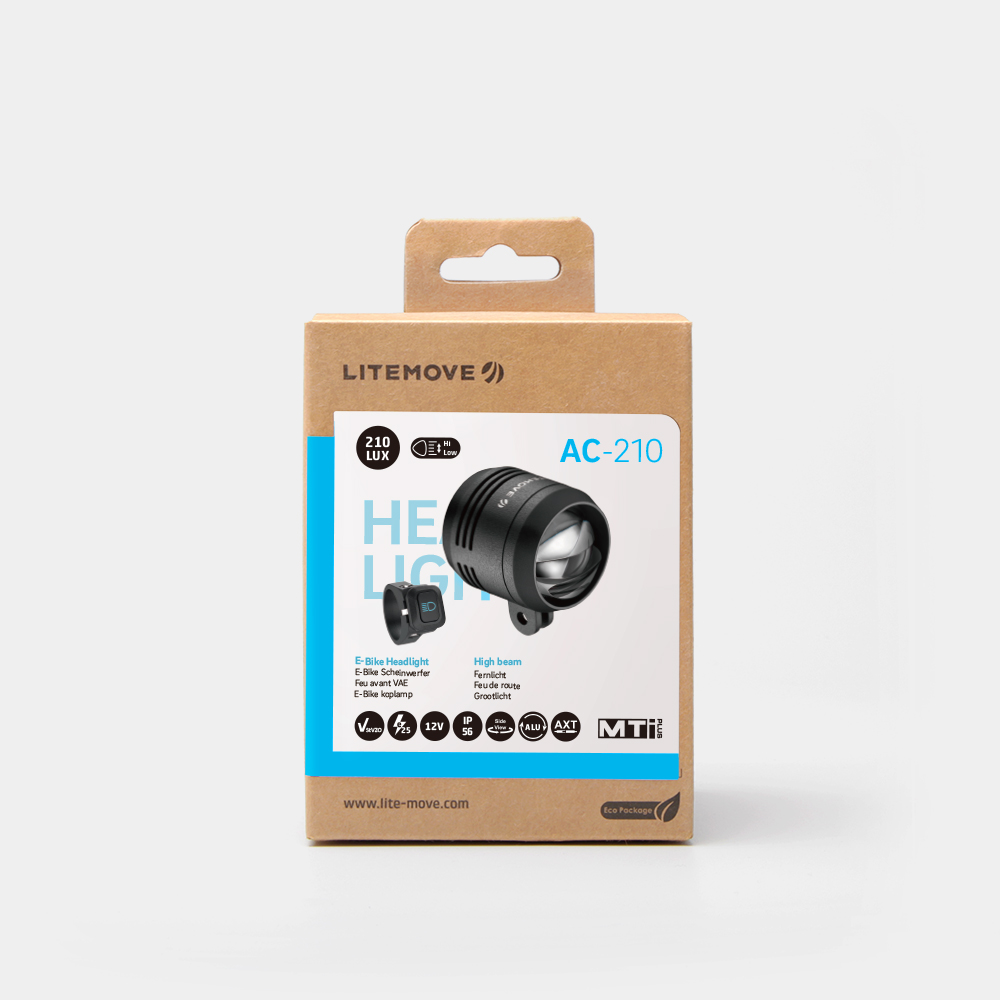

AC2101

Under Mount

Standard Package

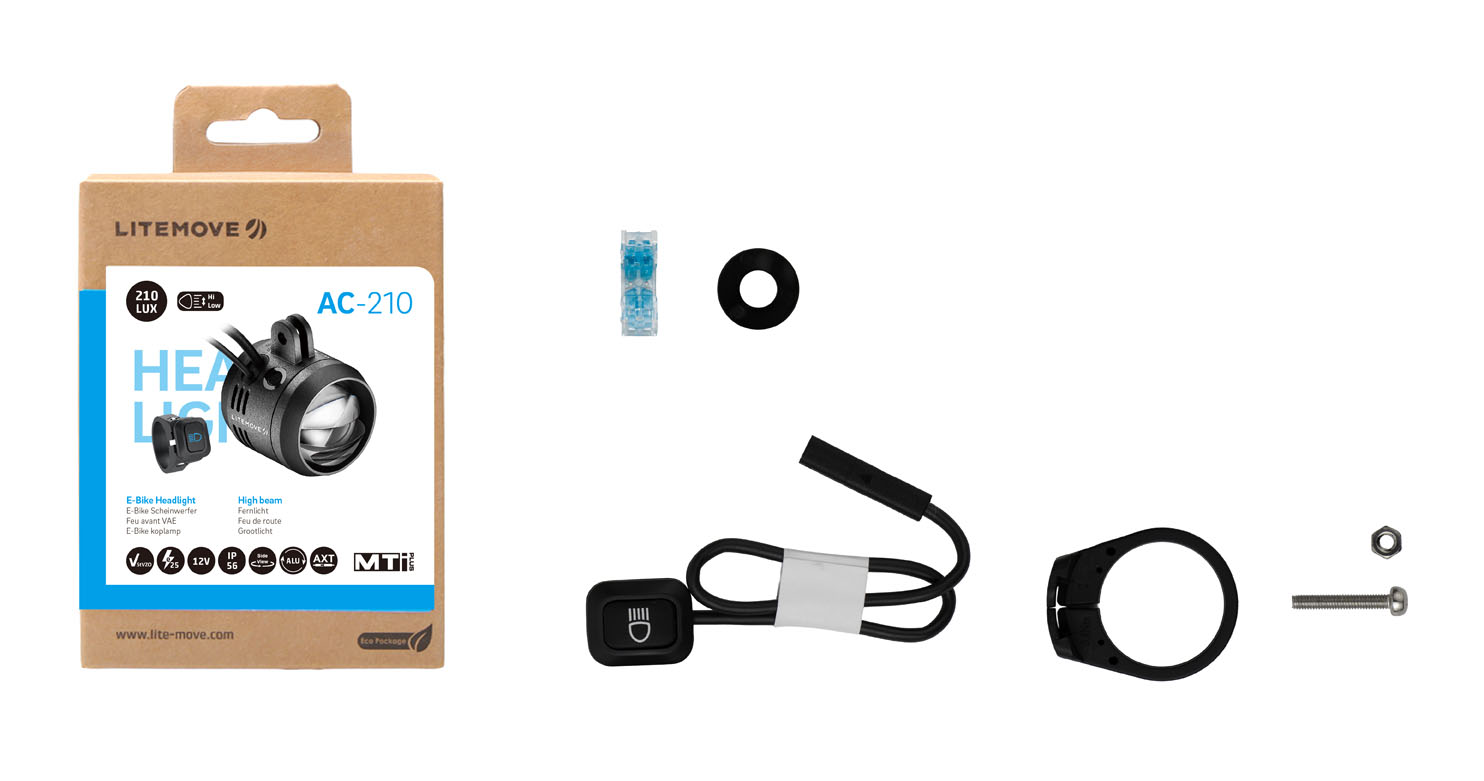

AC2102

Top Mount

Standard Package

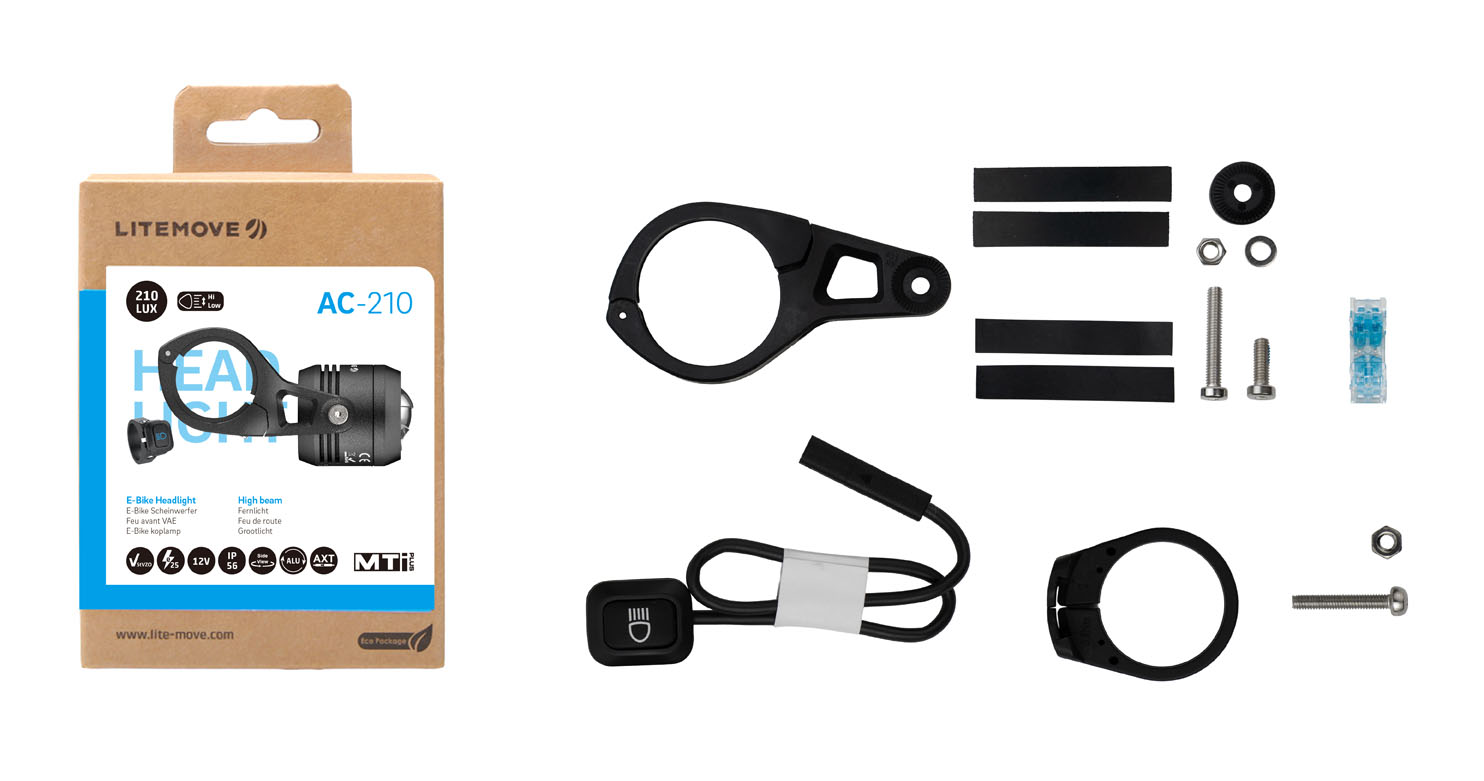

AC2103

Side Mount

Handlebar Package

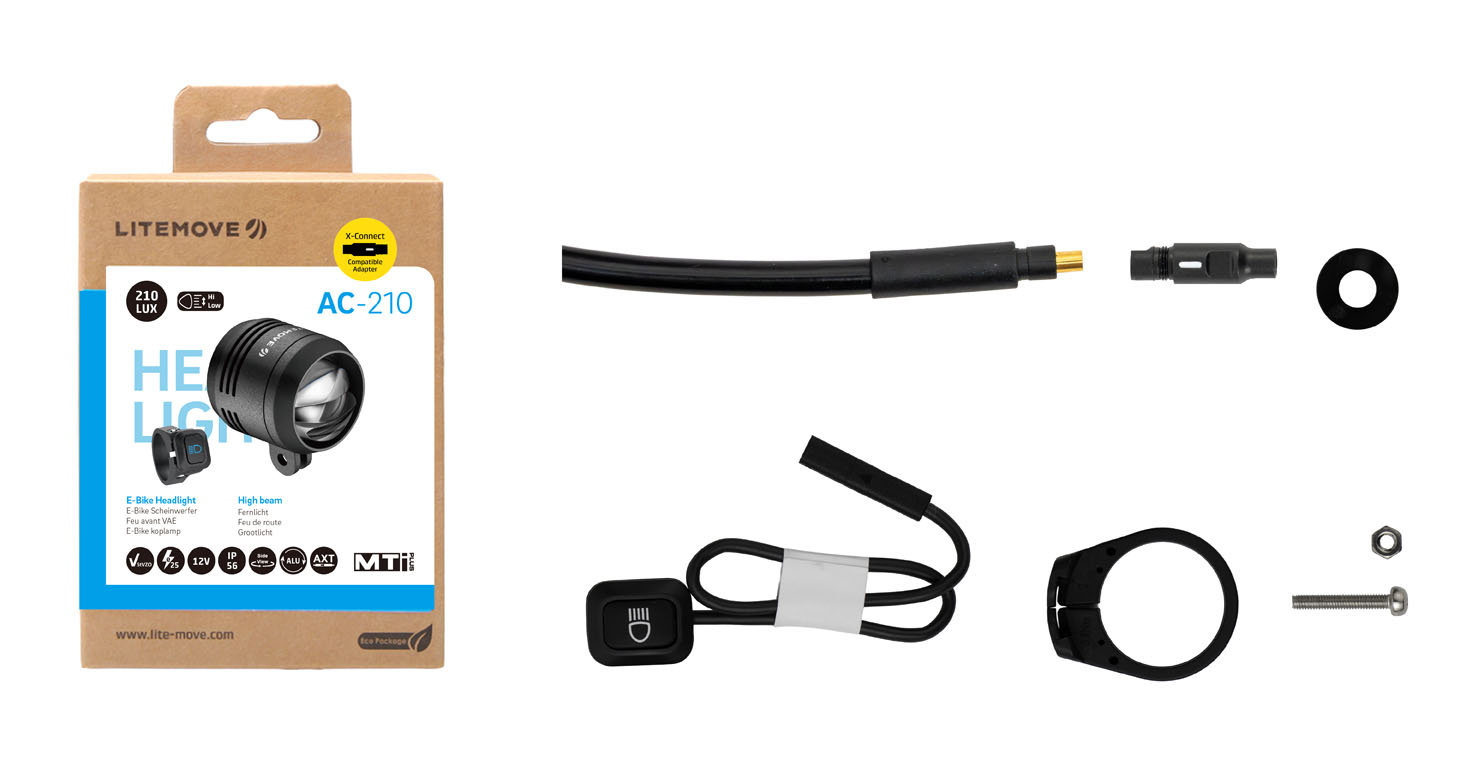

AC2104

Under Mount

Standard Package + X-connect comp. Adapter

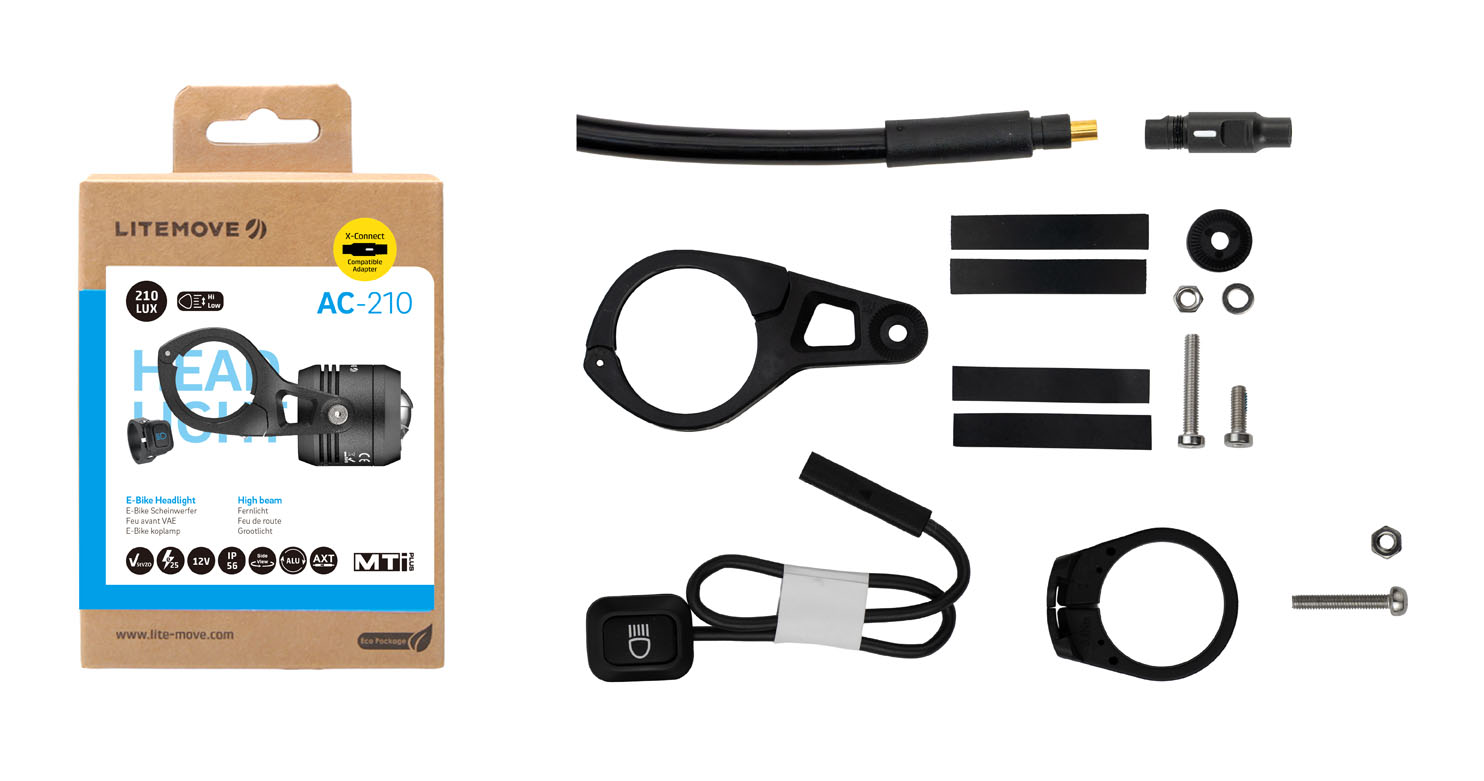

AC2105

Side Mount

Handlebar Package + X-connect comp. Adapter
FAQ

Illuminate your path

2900 Lumens for demanding mountain bikers

Litemove HighLowBeam test

Dual Beam (High/ Low)

Designed for all-terrain use, it delivers 210 lux / 700 lm on high beam with a 10.5m-wide spread and 300m reach, with glare-free visibility—ideal for weekday commuting and weekend recreation, while ensuring strict legal compliance.

Flex Bar Switch

Mounts on your left or right grip—and stacks over existing clamps like brake or shifter mounts if bar space is tight. One press for high beam, one press back for traffic. Plug-in cable installs in minutes and disconnects fast for service.

Litemove Bar Switch

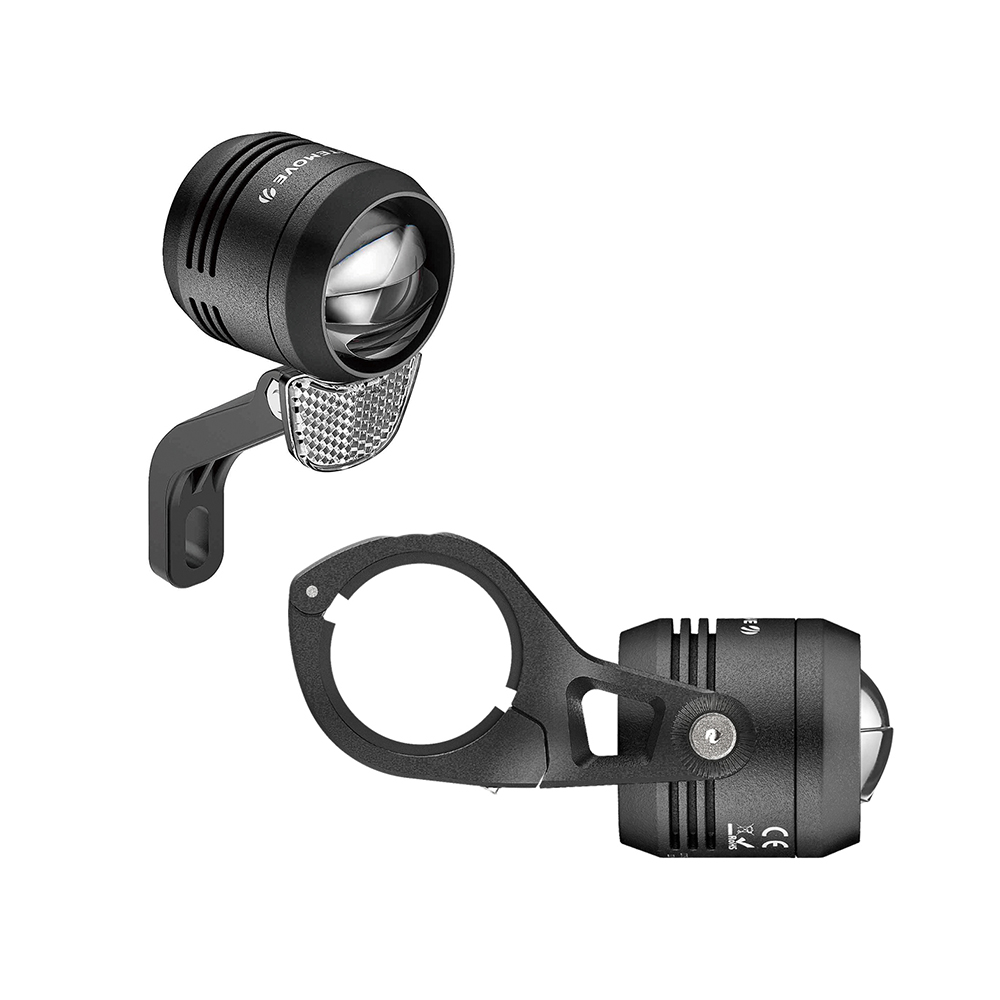

AC210 mounting.2

Multiple Mounting

Offers versatile mounting options with a secure GoPro®‑style interface. Designed for flexibility, it enables quick installation and adjustment, ensuring a clean, stable setup across diverse cycling applications

Durability & Protection

Crafted with premium, IP56 water-resistant materials and reinforced construction for reliable protection, durability, and consistent performance in demanding cycling environments.

AC210 IP56
Litemove AC Thermal

Thermal conductive

Advanced thermal management system regulates heat efficiently, preventing overheating and maintaining stable brightness output. Guarantees consistent performance and extended product lifespan under high-power operation.

Litemove AC 210 LB
Litemove AC 210 HB
High Beam Low Beam

Compatible with

Weight N/A
Dimensions N/A
Light Type

Headlights

Power source

E-Bike

Beam Type

High / Low Beam

Mounting

Cockpit, Fork

Max. Light output

51 – 500 Lumens (Commuting / Standard)

Riding scenario

City/ Urban Area, Rural Area

Compliance

CE, ISO-6742, RoHS/ REACH, StVZO-K

High Beam Switch Cable

650mm, 300mm

Holder Position

Down, Up, Side

Power Cable

1400mm Open + Self-sealing connector, 150mm CT1 Power connector

Mount / Bracket

Handlebar Bracket / Mount (for ø31.8 & 35mm), –

Reflector
