| Model Name | TS-RK |
| Model No. | TKSE-RR800 TKSE-RR500 |
| S/N | B02(RR800) B01(RR500) |
| Light Output | 7200mcd/ 20 lumens |
| Optical Technology | LTi |
| Light Source | LED *4 |
| Input Voltage (DC) | 6V(5V ~ 16V) |
| Power Consumption | 0.6W |
| Cable Diameter | ø3mm |
| Cable Length | 1400mm |
| IP Rating | IP56 |
| Operating Temperature (°C) | -25 ~ +70 |
| Material | Plastic |
| Weight (ext. cable) | TKSE-RR800: 23g TKSE-RR500: 20g |
| Dimension (WxHxL) | TKSE-RR800: 96 x 18 x 17mm TKSE-RR500: 65 x 18 x 17mm |

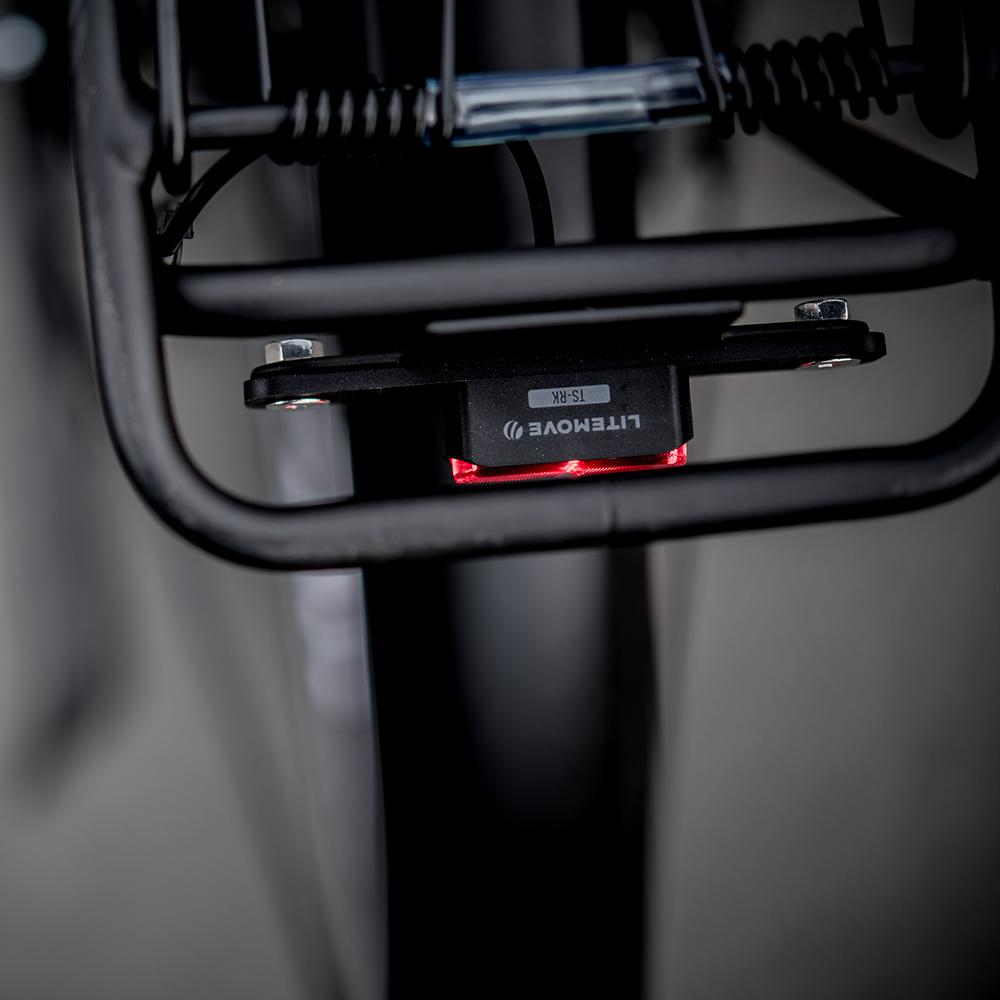

| Mounting Option | TKSE-RR800: 80mm rack holder TKSE-RR500: 50mm rack holder |
| Reflector (Optional) | RF2 |
| Compliance | CE/RoHS/ REACH/ Prop 65 |
| Type of Approval | StVZO-K & ISO 6742 |
| Approval Number | ~ K1693 |
Built for safety and trust, our lights carry the K-Mark certification under Germany’s StVZO road regulations. They also meet key international standards, including ISO 6742, CE, RoHS, and REACH compliance, ensuring reliable performance and responsible manufacturing.

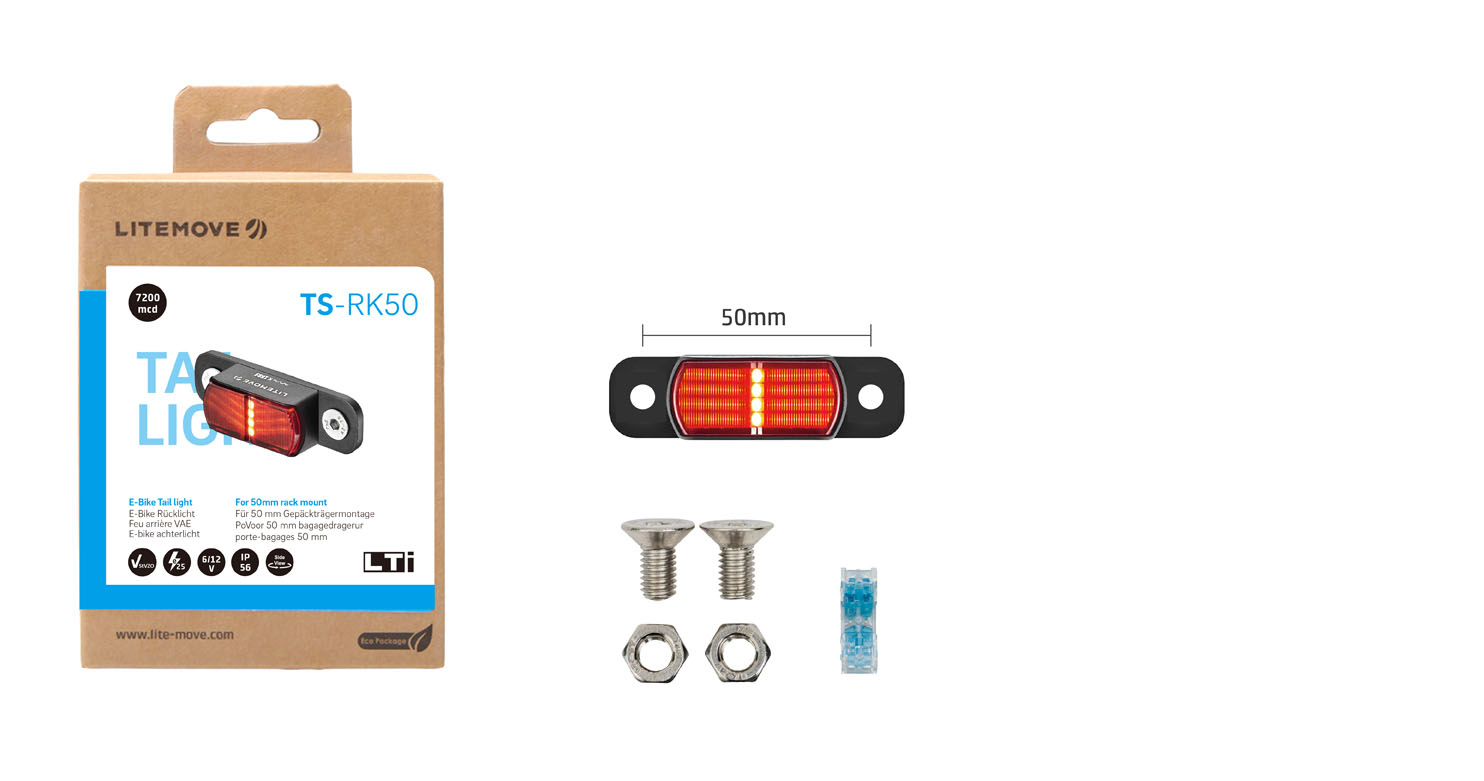

50mm

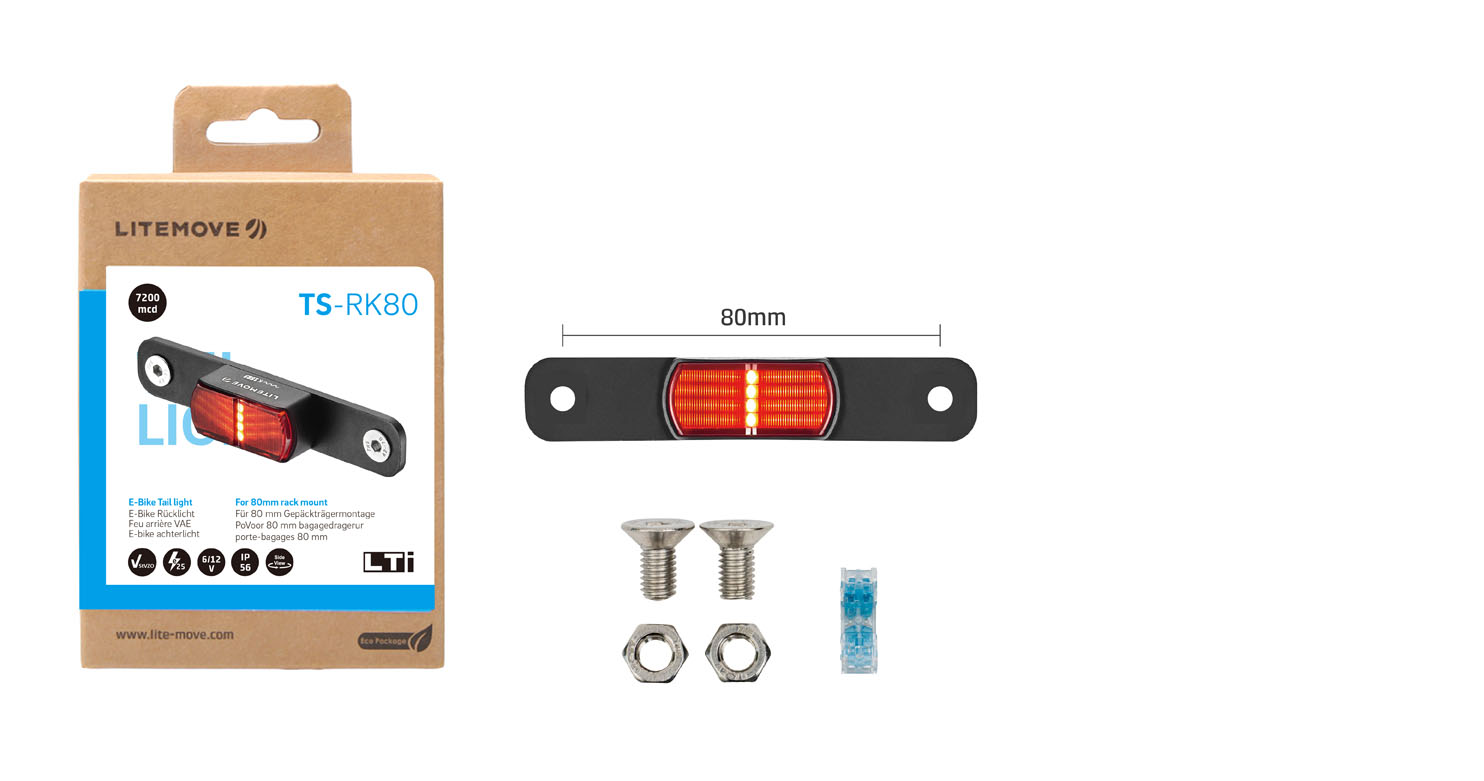

80mm

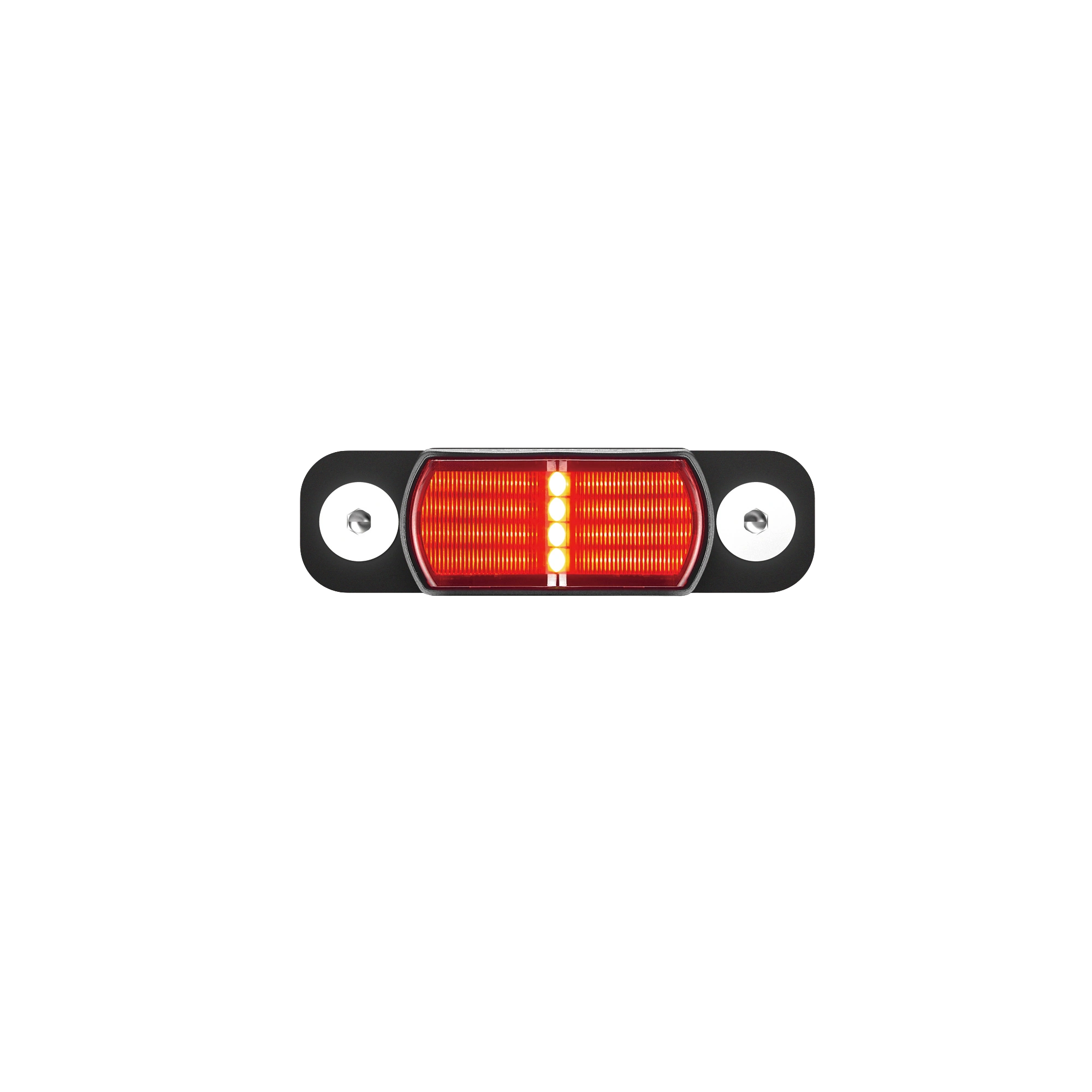

Crafted with modern high-tech LTi 3D optics, it delivers 7,200 mcd / 20 lm with a striking three-dimensional light effect. This innovative design enhances both visibility and aesthetics, setting a new standard in contemporary cycling illumination.
Delivers 240‑degree illumination, ensuring maximum safety and awareness. The expansive coverage enhances rider visibility from multiple directions, reducing blind spots and improving protection in traffic and low‑light conditions.

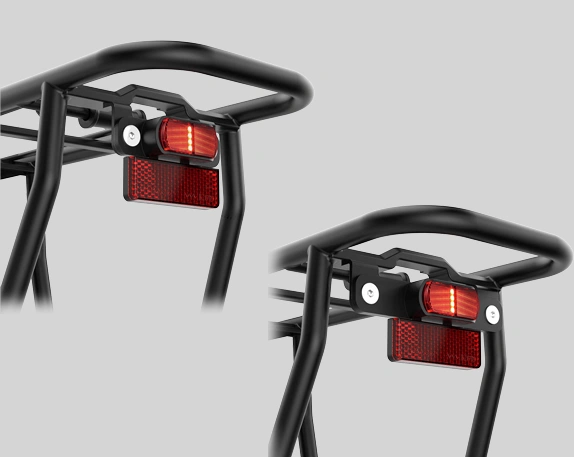

Available in both 50 mm and 80 mm mounting standards, offering flexible installation across diverse setups. Supports external reflector add‑on for enhanced safety and compliance.

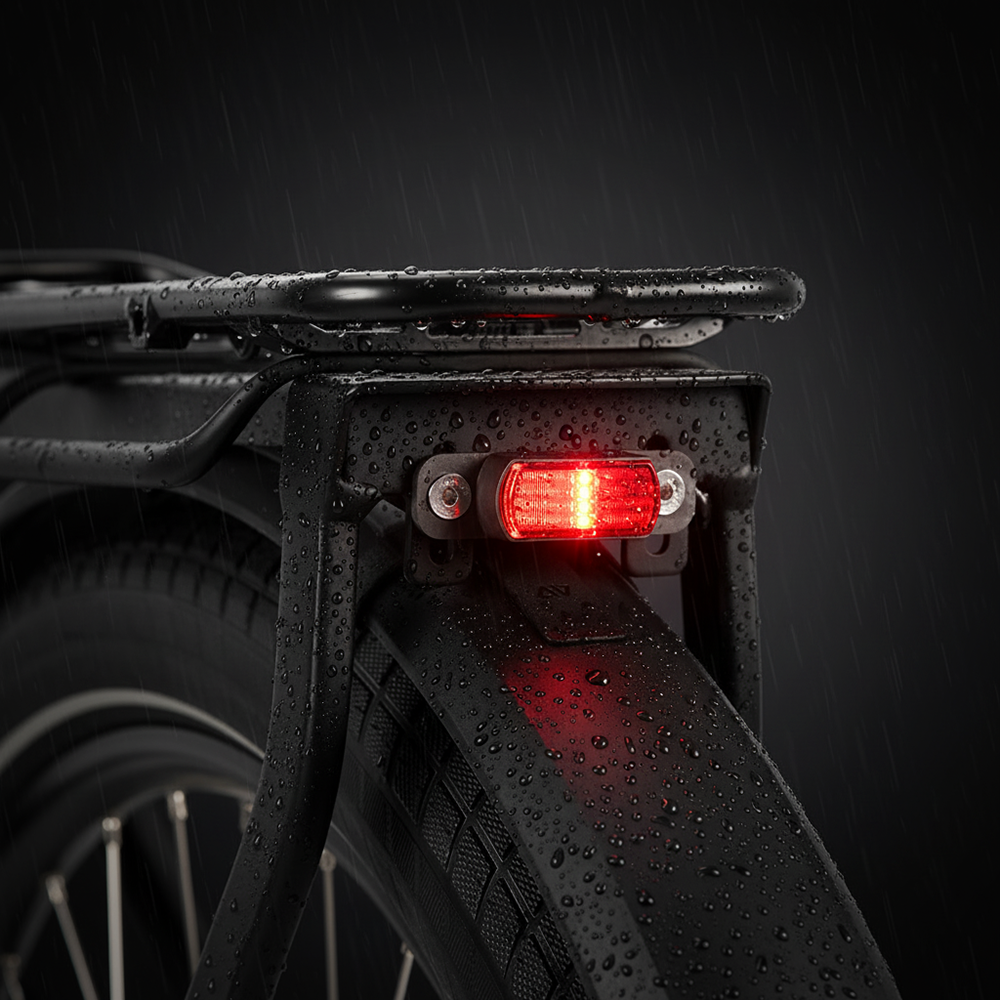

Crafted with premium, IP56 water-resistant materials and reinforced construction for reliable protection, durability, and consistent performance in demanding cycling environments.
Consumes only 0.6 W, delivering reliable illumination with minimal power draw. Designed for sustainability, it reduces energy usage while maintaining consistent visibility and safety.
| Weight | 0.25 kg |
|---|---|
| Dimensions | 9 × 7.5 × 12 公分 |
| Light Type | Tail Lights |
| Power source | E-Bike |
| Mounting | Rear Carrier |
| Max. Light output | < 50 Lumens (Be Seen) |
| Riding scenario | City/ Urban Area, Rural Area |
| Compliance | CE, ISO-6742, RoHS/ REACH, StVZO-K |
| Mounting Position | Rear Rack Holder (50mm), Rear Rack Holder (80mm) |
| Power Cable | 1400mm Open + Self-sealing connector |
| Mount / Bracket | – |
