SC-160

  • Apply with the most modern ATIR optical technology
  • 12m wide and up to 250m distance of beam visibility ahead
  • 160 lux high brightness and 600 lumens output
  • 12V(11V ~ 16V) with a power consumption of 11 Watt
  • A wide range of mounting brackets is available, allowing integrated installation on handlebars, stems, forks, and other bicycle components.
  • IP56- Protects against high pressure water or dust ingress
  • Aluminum housing
  • For 25km e-bike / EPAC
  • K-Mark & EN-15194-CE compliance
SKU:
Specifications
Model Name SC-160
Model No. SC160D/SC160S/SC160U
S/N 0020
Light Output 160 lux / 600 lumens
Optical Technology ATIR
Light Source LED *3
Input Voltage (DC) 12V(11V ~ 16V)
Power Consumption 11W
Cable Diameter ø4mm
Cable Length 1400mm
IP Rating IP56
Operating Temperature (°C) -25 ~ +50
Material Aluminum
Weight (et. cable) 115g
Dimension (WxHxL) ø46 x 40.8mm
Reflector (Optional) RF1 / RFD
Compliance CE/ RoHS/ REACH
Type of Approval StVZO-K/ ISO-6742
Approval Number ~ K 2581
Compliance

Built for safety and trust, our lights carry the K-Mark certification under Germany’s StVZO road regulations. They also meet key international standards, including ISO 6742, CE, RoHS, and REACH compliance, ensuring reliable performance and responsible manufacturing.

StVZO
ISO 6742
CE
RoHS
REACH

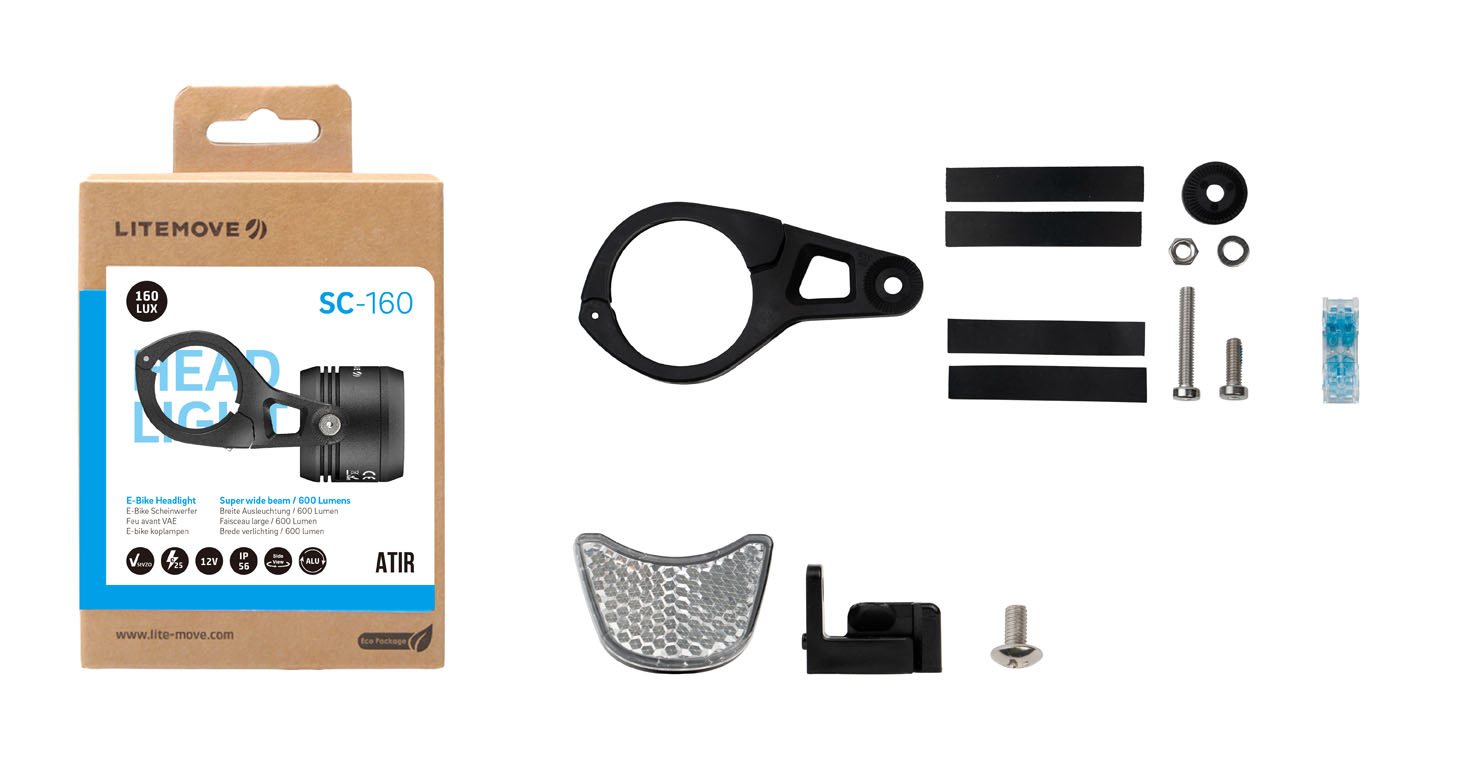

What’s in the box

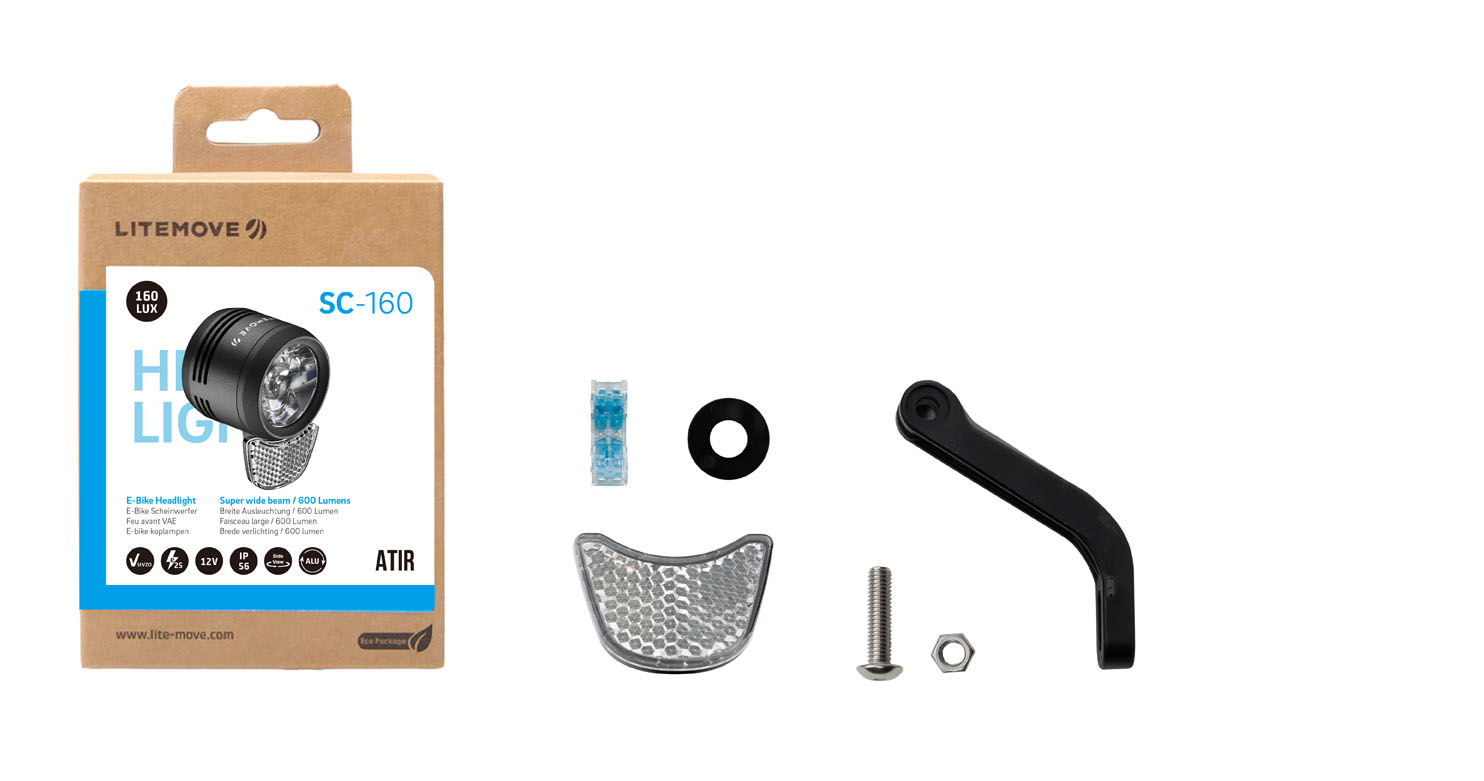

SC1601

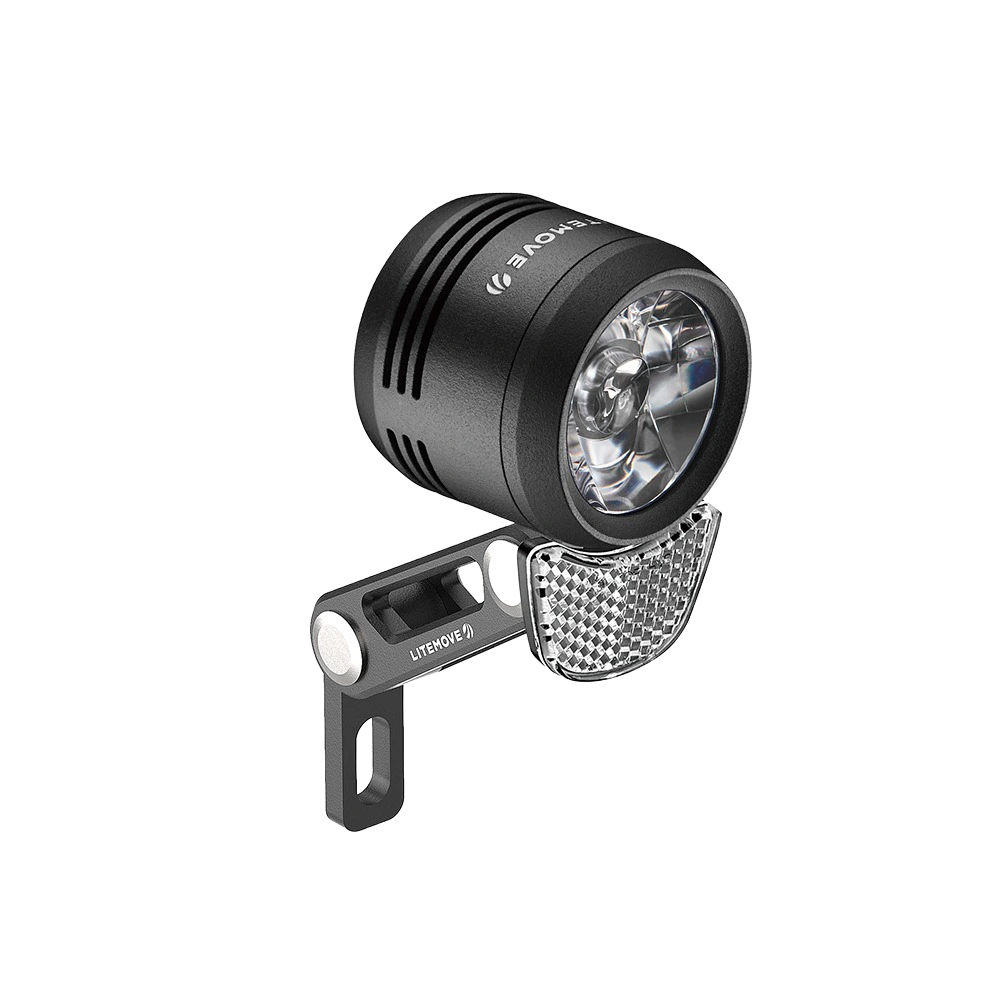

Under Mount

Forkmount Package

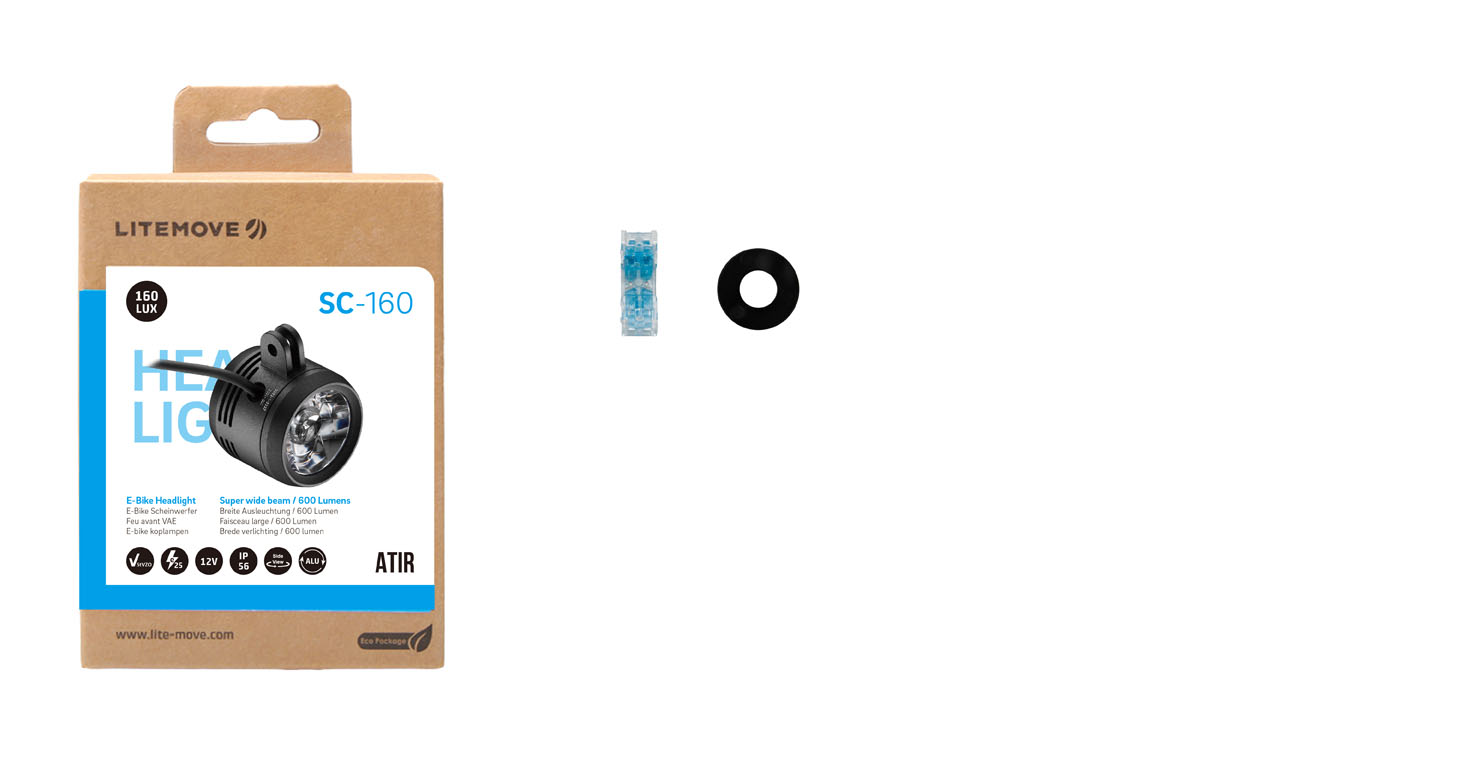

SC1602

Top Mount

Standard Package

SC1603

Side Mount

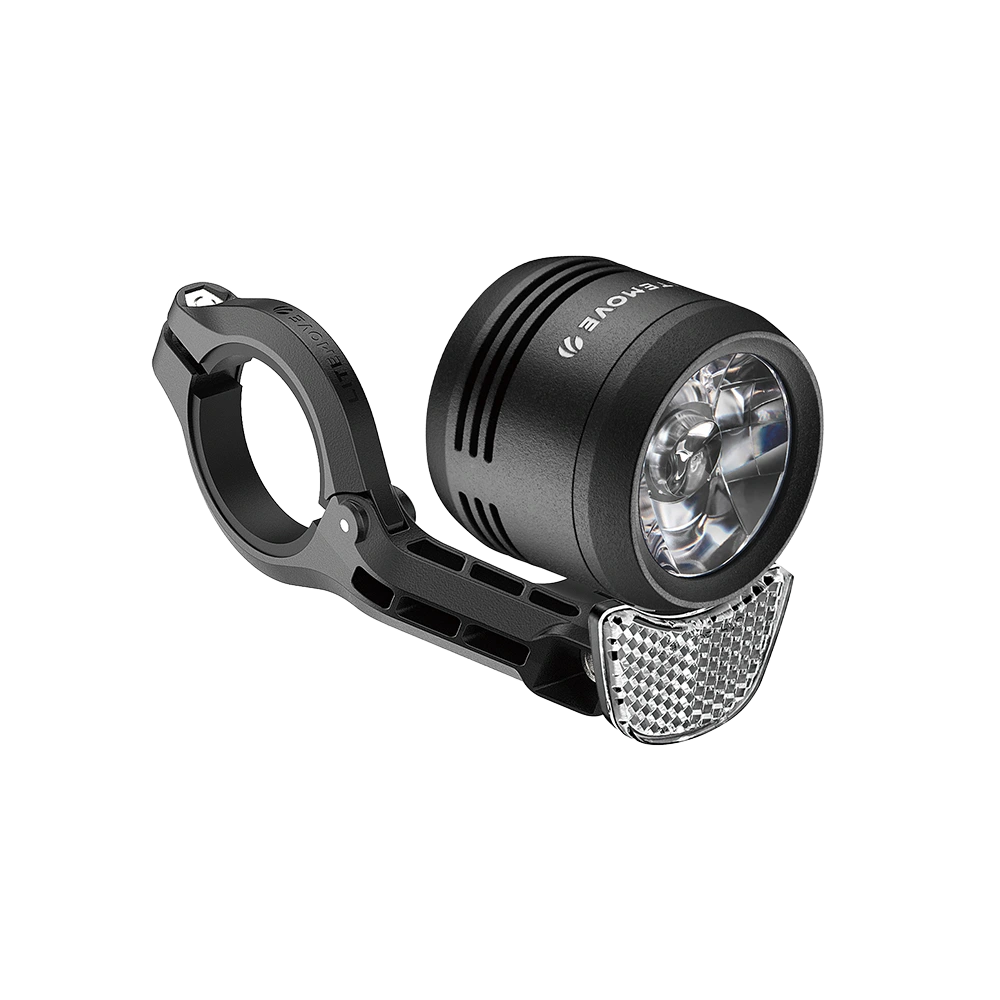

Handlebar Package

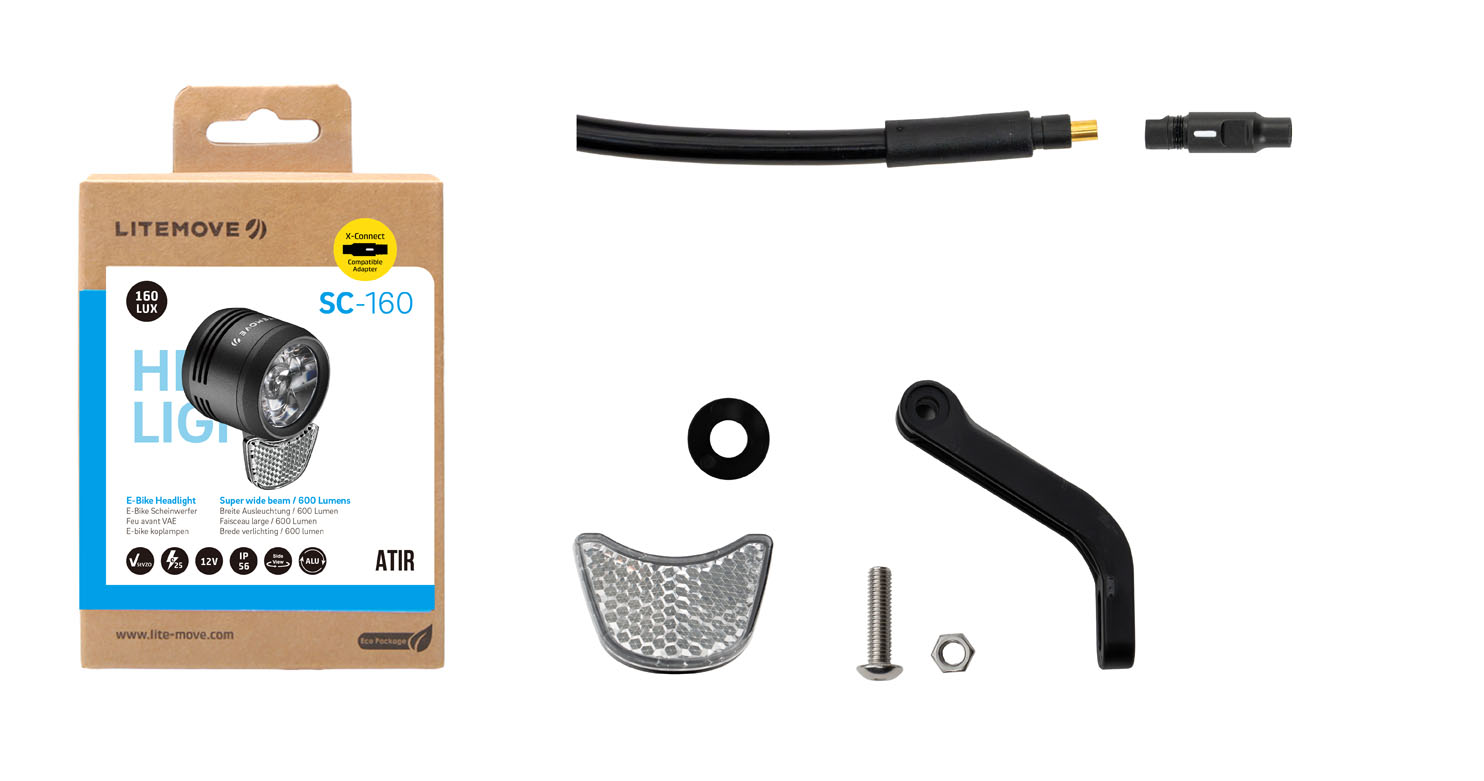

SC1604

Under Mount

Forkmount Package + X-connect comp. Adapter

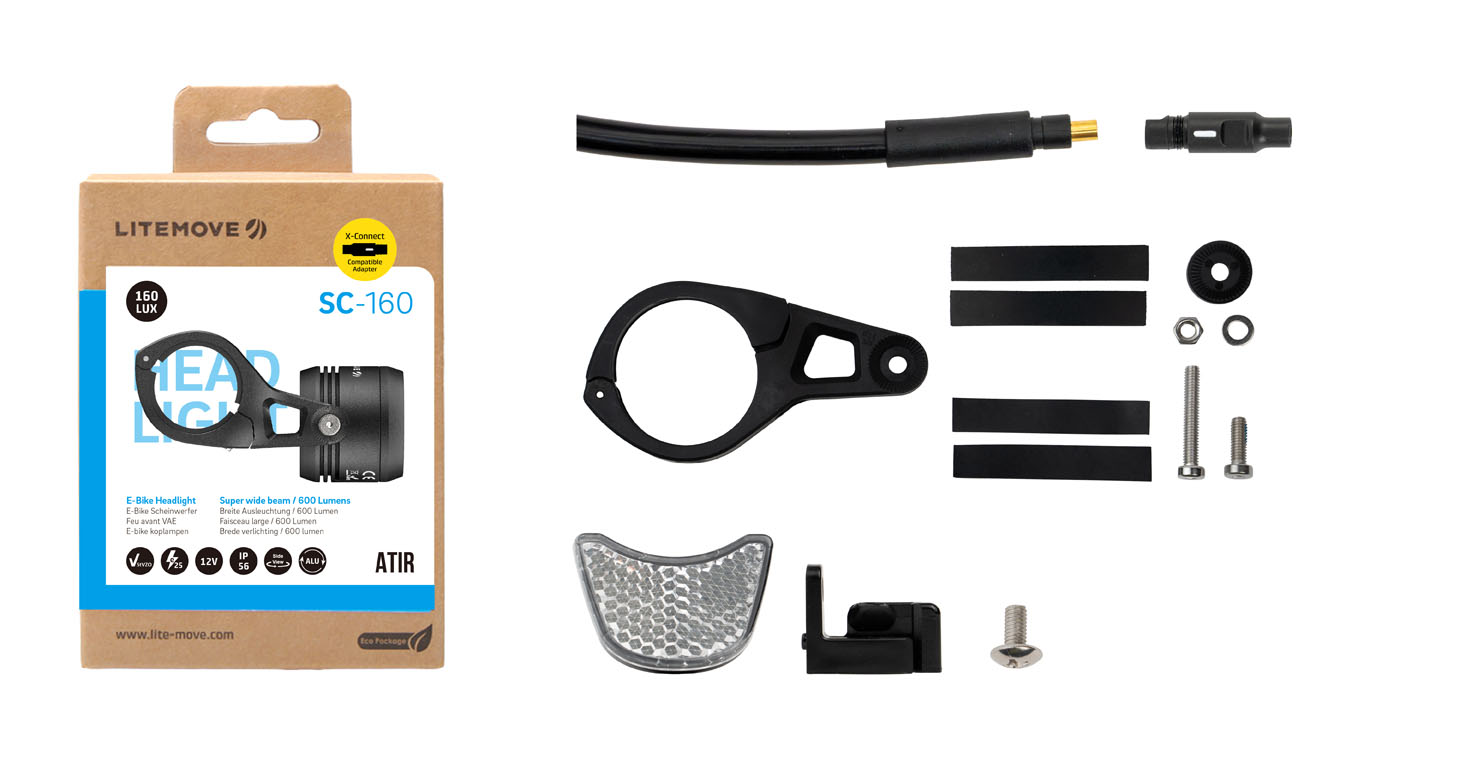

SC1605

Side Mount

Handlebar Package + X-connect comp. Adapter
FAQ
Downloads

Illuminate your path

2900 Lumens for demanding mountain bikers

Litemove AEW230®invisions.at 13

Precision Wide Beam

Utilizes automotive-grade ATIR (Advanced Total Internal Reflection) optical construction to deliver 160 lux / 600 lm with a 12m-wide spread. Designed for city and suburban riding, it ensures secure visibility and rider safety with reliable, high-standard performance.

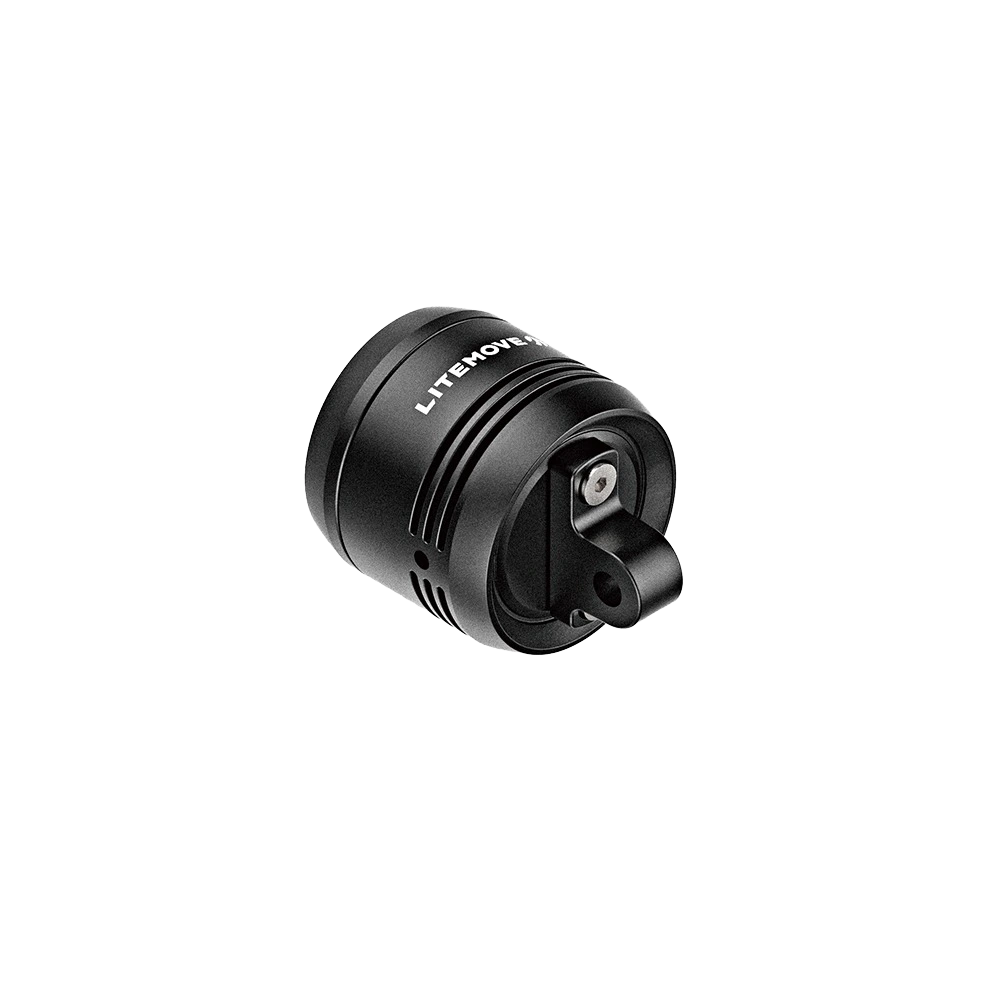

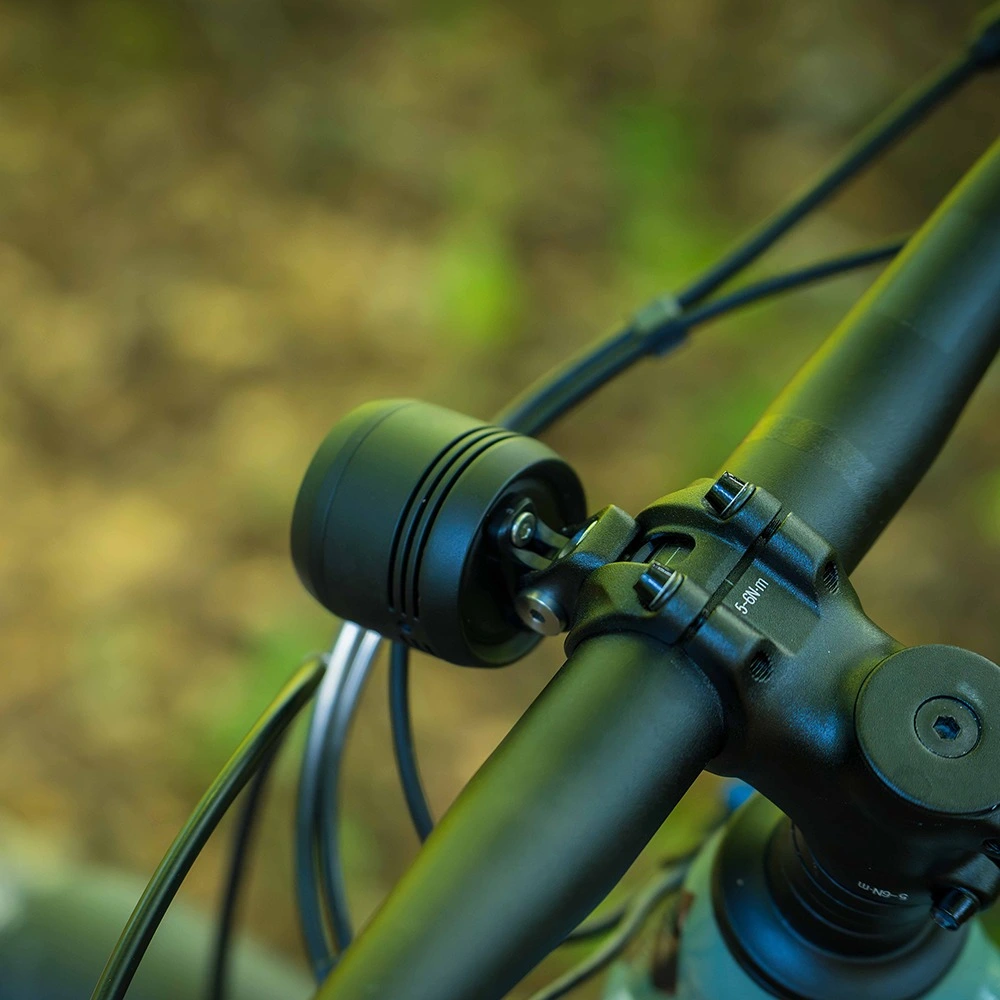

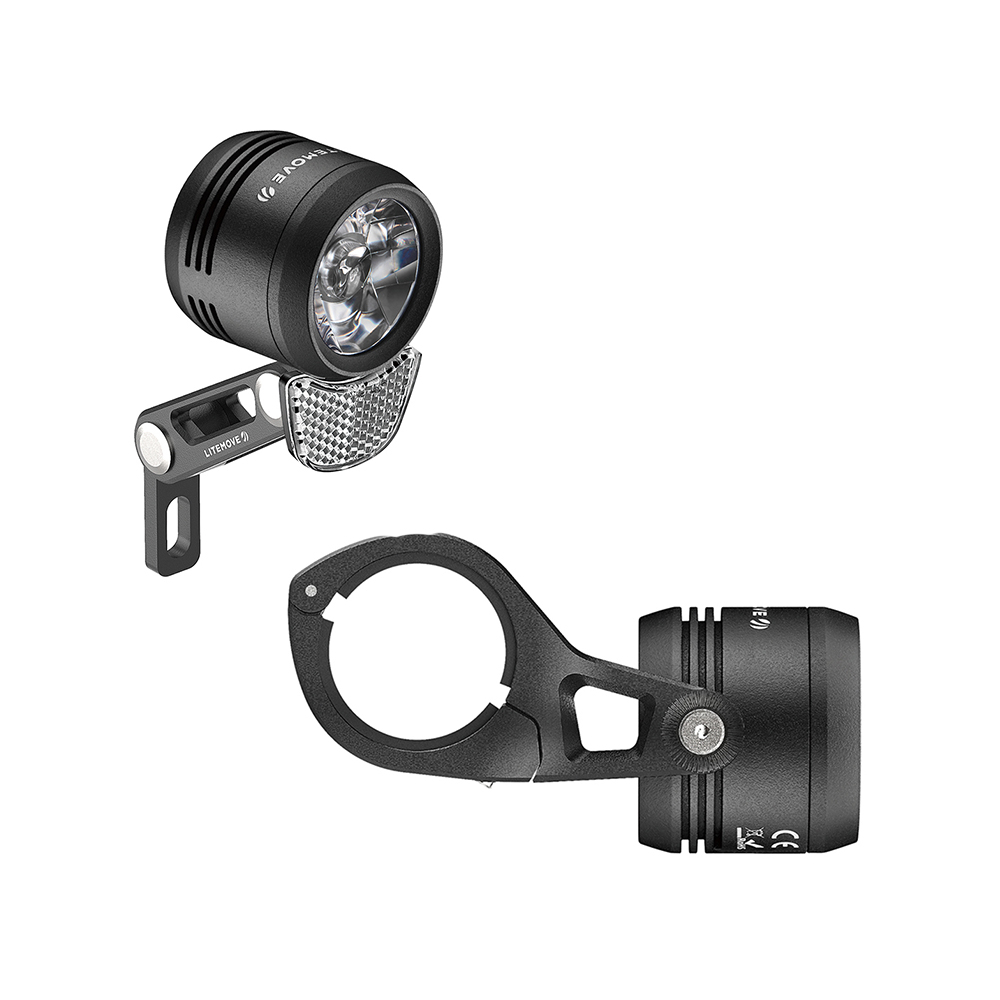

Multiple Mounting

Offers versatile mounting options with a secure GoPro®‑style interface. Designed for flexibility, it enables quick installation and adjustment, ensuring a clean, stable setup across diverse cycling applications

SC160 mounting
SC160 IP56

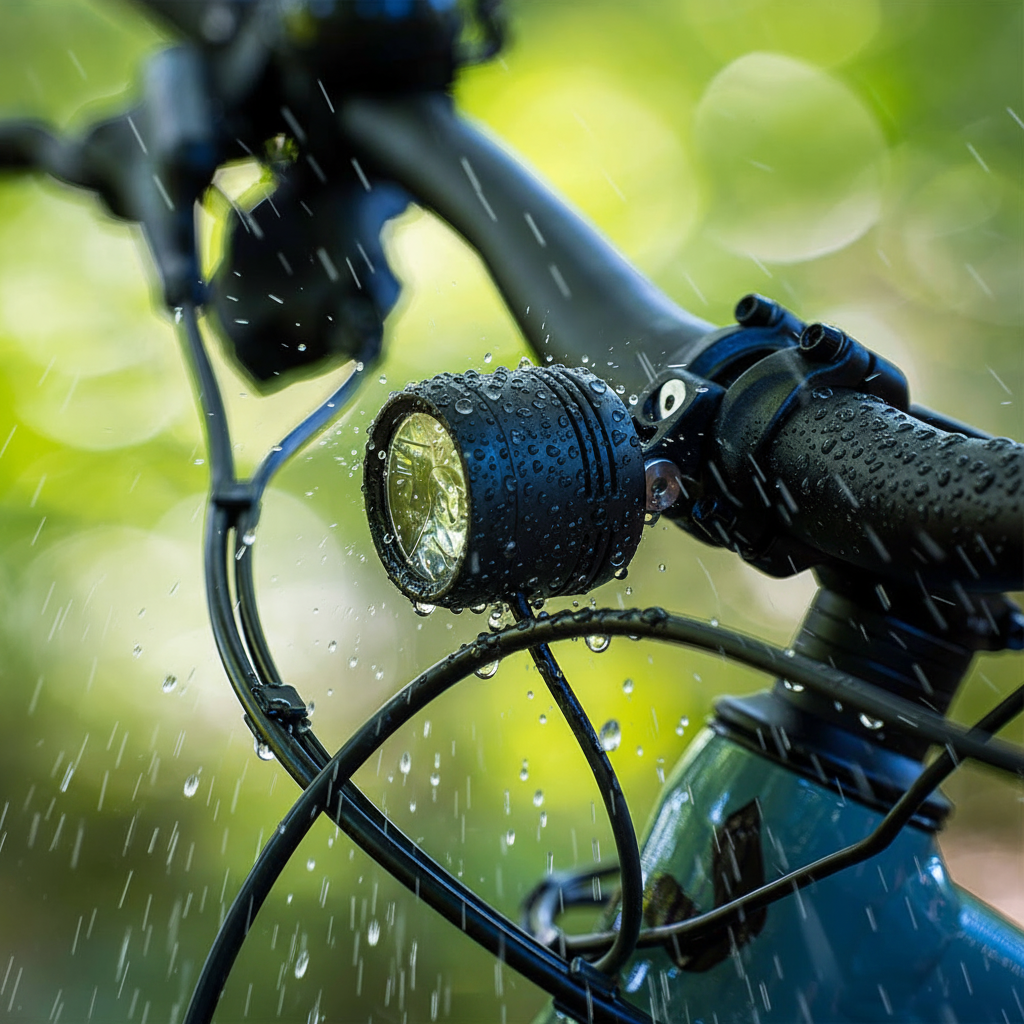

Durability & Protection

Crafted with premium, IP56 water-resistant materials and reinforced construction for reliable protection, durability, and consistent performance in demanding cycling environments.

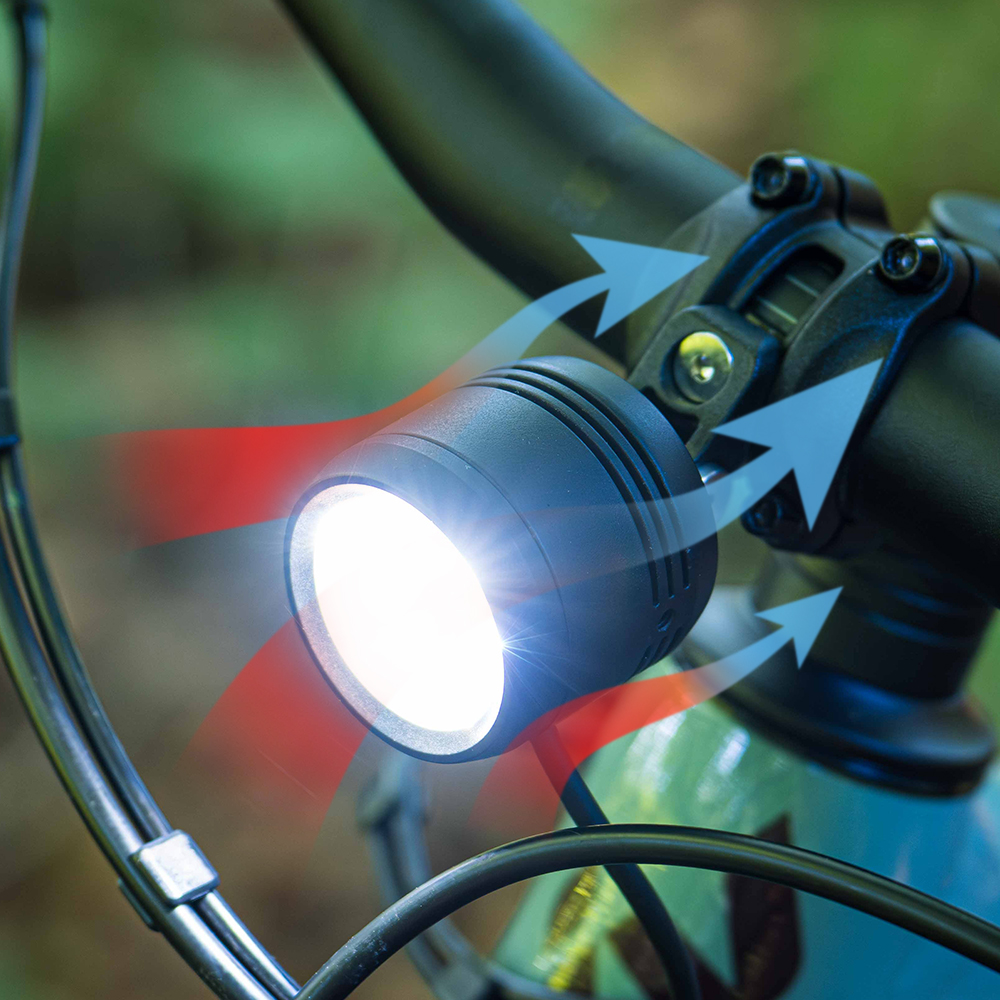

Thermal conductive

Advanced thermal management system regulates heat efficiently, preventing overheating and maintaining stable brightness output. Guarantees consistent performance and extended product lifespan under high-power operation.

Litemove SC Thermal
Litemove SC 160

Compatible with

Weight 0.25 kg
Dimensions 9 × 7.5 × 12 公分
Light Type

Headlights
Power source

E-Bike
Beam Type

Low Beam (Wide)
Mounting

Cockpit, Fork
Max. Light output

51 – 500 Lumens (Commuting / Standard)
Riding scenario

City/ Urban Area, Rural Area
Compliance

CE, ISO-6742, RoHS/ REACH, StVZO-K
Holder Position

Down, Up, Side
Power Cable

1400mm Open + Self-sealing connector, 150mm CT1 Power connector
Mount / Bracket

Universal Fork Mount, Handlebar Bracket / Mount (for ø31.8 & 35mm), –
Reflector

K-Reflector (Front), K-Reflector with Adapter (w/machine screw), –
