TZV

  • The TZV is a sleek, fender-integrated tail light solution.
  • Designed for optimal visibility and seamless integration.
  • Featuring a built-in Z-reflector and a 30-degree mounting
    angle, it blends effortlessly with the fender’s shape, creating
    a streamlined and efficient lighting setup for bicycles.
  • IP56- Protects against high pressure water or dust ingress
  • For 25km e-bike / EPAC
  • StVZO-K & ISO-6742 compliance

This product is currently out of stock and unavailable.

SKU:
Specifications
Model Name TZV
Model No. TZV
S/N 0041-1
Light Output 4000mcd / 13 lumens
Light Source LED *2
Input Voltage (DC) 12V (6V ~ 16V)
Power Consumption 0.6W
Cable Diameter ø3mm
Cable Length 1400mm
IP Rating IP56
Operating Temperature (°C) -25 ~ +50
Material Plastic
Weight (et. cable) 17g
Dimension (WxHxL) 26.7 x 75 x 13 mm
Mounting Option Bicycle fender
Reflector Integrated Z-Reflector
Compliance CE/ RoHS/ REACH
Type of Approval StVZO-K & ISO 6742
Approval Number ~ K 2647



Compliance

Built for safety and trust, our lights carry the K-Mark certification under Germany’s StVZO road regulations. They also meet key international standards, including ISO 6742, CE, RoHS, and REACH compliance, ensuring reliable performance and responsible manufacturing.

StVZO
ISO 6742
CE
RoHS
REACH

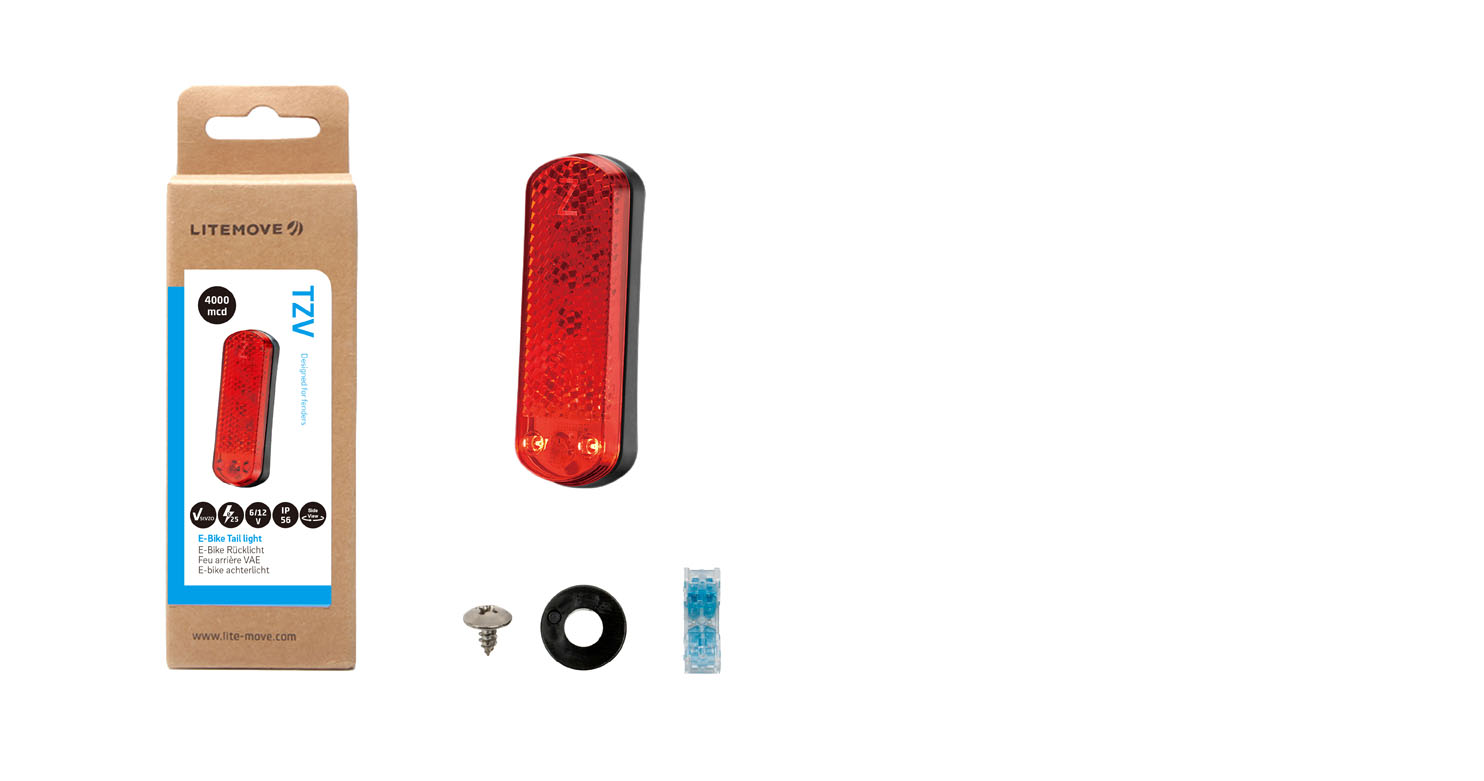

What’s in the box

TZV01a

FAQ

Illuminate your path

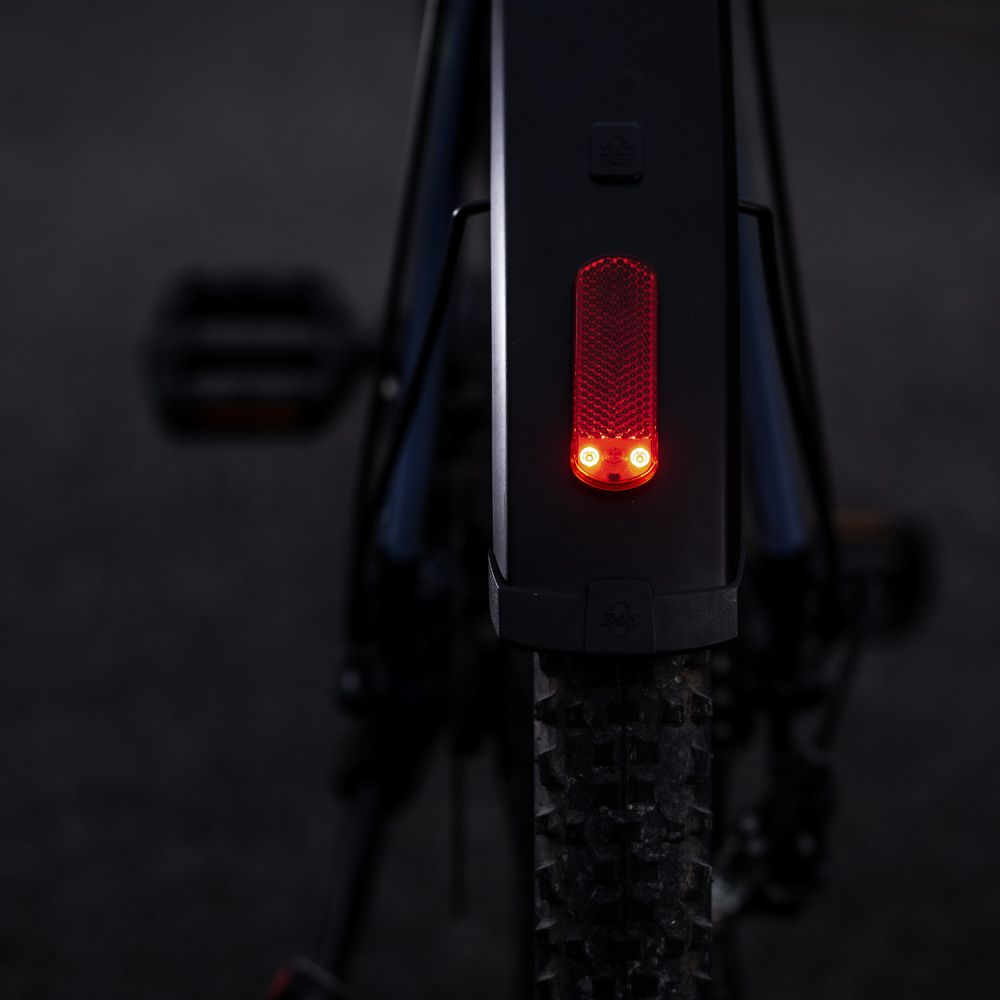

Litemove TZV 72dpi 03

Dual Functionality

Integrates active rear light and Z-mark reflector into a single unit—providing visibility even when the light is off, for an added layer of passive safety.

Wide‑Angle Visibility

Delivers 240‑degree illumination, ensuring maximum safety and awareness. The expansive coverage enhances rider visibility from multiple directions, reducing blind spots and improving protection in traffic and low‑light conditions.

240View fender 1
Litemove TZV 72dpi 04

Universal Fit

Engineered with a sleek, arched back cover, it seamlessly adapts to all mudguards. The universal fit ensures easy integration, combining style with functional compatibility across diverse bicycle setups.

Durability & Protection

Crafted with premium, IP56 water-resistant materials and reinforced construction for reliable protection, durability, and consistent performance in demanding cycling environments.

TZV IP56
0.6W LowPower

Energy‑Efficient Performance

Consumes only 0.6 W, delivering reliable illumination with minimal power draw. Designed for sustainability, it reduces energy usage while maintaining consistent visibility and safety.

Compatible with

Weight 0.12 kg
Dimensions 5 × 3.5 × 12 公分
Light Type

Tail Lights

Power source

E-Bike

Mounting

Rear Fender

Max. Light output

< 50 Lumens (Be Seen)

Mounting Position

Rear Fender

Riding scenario

City/ Urban Area, Rural Area

Compliance

CE, ISO-6742, RoHS/ REACH, StVZO-K

Power Cable

1400mm Open + Self-sealing connector

Mount / Bracket
