| Model Name | RXW-2900 |
| Model No. | RXW2900 |
| S/N | 0025 |
| Light Output | High beam: 200 Lux / 2900 Lumens (28W); 170 Lux/ 2425 Lumens (22W); 140 Lux/ 1970 lumens (17W) Low beam: 140 Lux/ 1665 lumens Day light: 60 Lux/ 650 lumens |
| Optical Technology | RX Pro |
| Light Source | LED *12 |
| Input Voltage (DC) | 12V(11V ~ 16V) |
| Power Consumption | High beam: 28W/ 22W/ 17W Low beam: 13.5W Day light: 5.5W |
| Cable Diameter | Power: ø4mm/ Switch: ø2.55mm |
| Cable Length | Power: 1400mm/ Switch: 300mm |
| IP Rating | IP56 |
| Operating Temperature (°C) | -25 ~ +50 |
| Material | Aluminum |
| Weight (et. cable) | 155g |
| Dimension (WxHxL) | 83 x 50.8 x 52mm |
| Switch Bracket / Mount | for ø22.2mm |
| Reflector (Optional) | |
| Compliance | CE/ROHS/ REACH |
| Type of Approval | StVZO-K/ ISO-6742 |
| Approval Number | ~ K2509 |
Built for safety and trust, our lights carry the K-Mark certification under Germany’s StVZO road regulations. They also meet key international standards, including ISO 6742, CE, RoHS, and REACH compliance, ensuring reliable performance and responsible manufacturing.

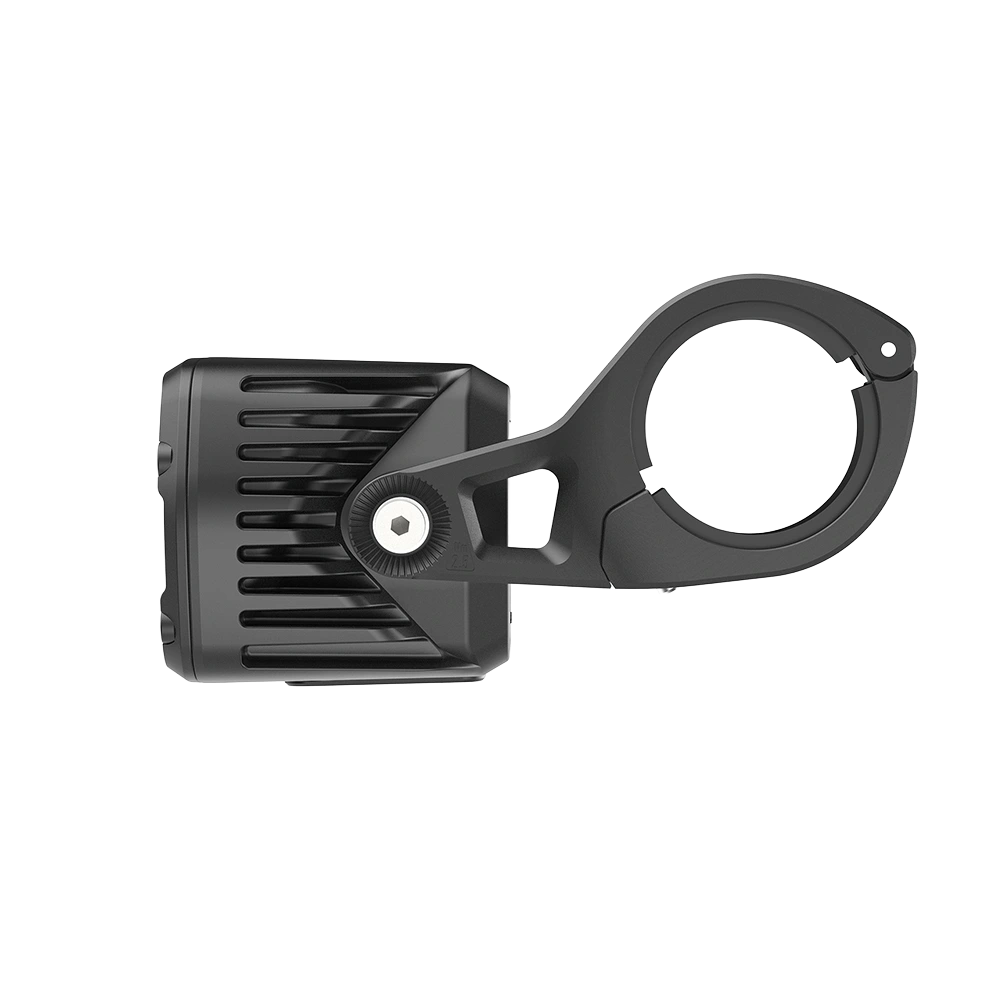

Side Mount

Q: What power supply does the RXW-2900 require?
A: The RXW-2900 is designed for a 12V DC power supply (11V–16V DC). The available power from the e-bike system determines the maximum High Beam output and may affect the required wiring configuration.
Q: Does the RXW-2900 support different power levels?
A: Yes. The High Beam can be configured for 17W, 22W or 28W, corresponding to different maximum light outputs. The appropriate setting depends on the available power from the e-bike system.
Q: How do I determine the correct wiring configuration for my e-bike?
A: The wiring configuration depends on the e-bike system’s available voltage and power output. Please refer to the RXW-2900 Setting Instruction for the appropriate wiring configuration.
Q: What happens if the e-bike system cannot provide enough power?
A: The available power may limit the maximum High Beam output. Select the appropriate power setting according to the e-bike system’s available power and follow the recommended wiring configuration in the RXW-2900 Setting Instruction.
2900 Lumens for demanding mountain bikers
Supports high-voltage input (17W-28W) for powerful illumination, delivering maximum brightness (200 lux/ 2900 lumens) when needed. Designed for efficiency and reliability, ensuring stable performance even under demanding electrical loads.
Best for off-road mountain trails. Delivers precise illumination with adaptive beam shaping and is fully compliant with StVZO standards. Enhances rider safety and comfort by reducing glare while maintaining optimal visibility across diverse riding environments.

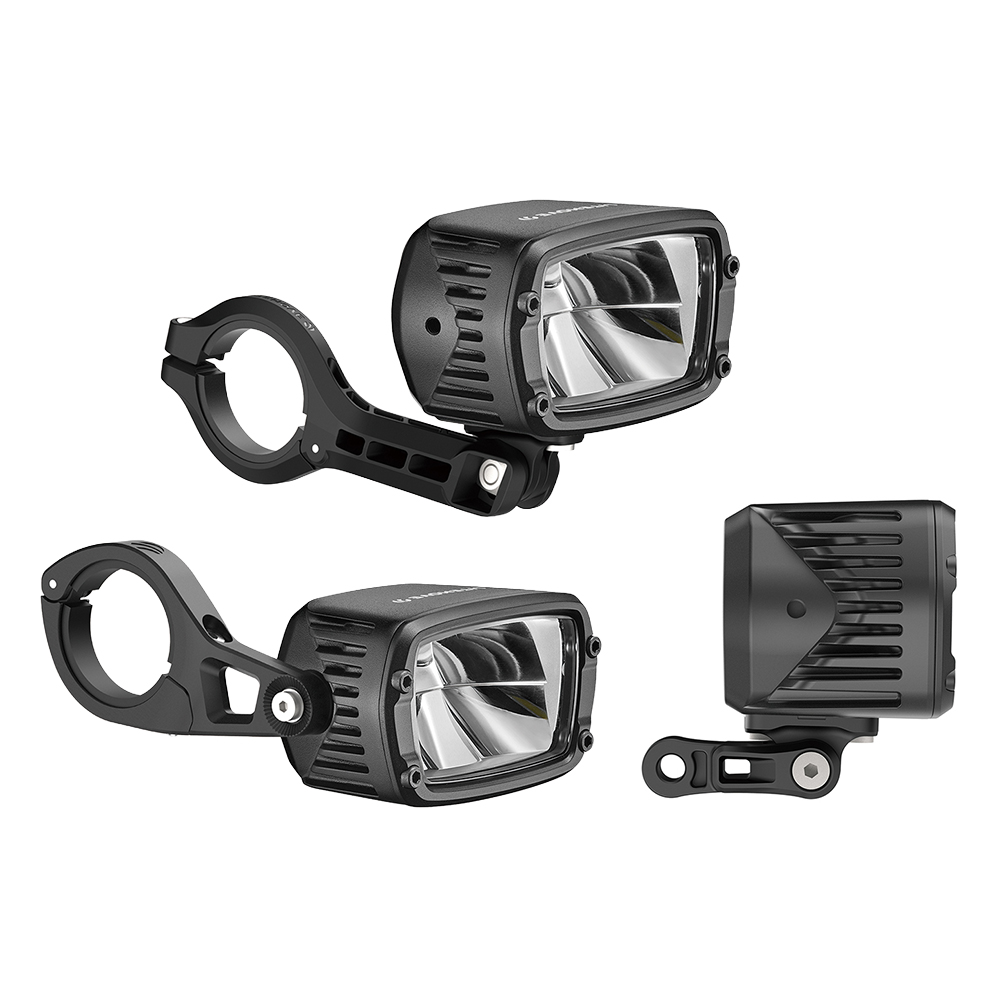

Mounts on your left or right grip—and stacks over existing clamps like brake or shifter mounts if bar space is tight. Plug-in cable installs in minutes and disconnects fast for service.

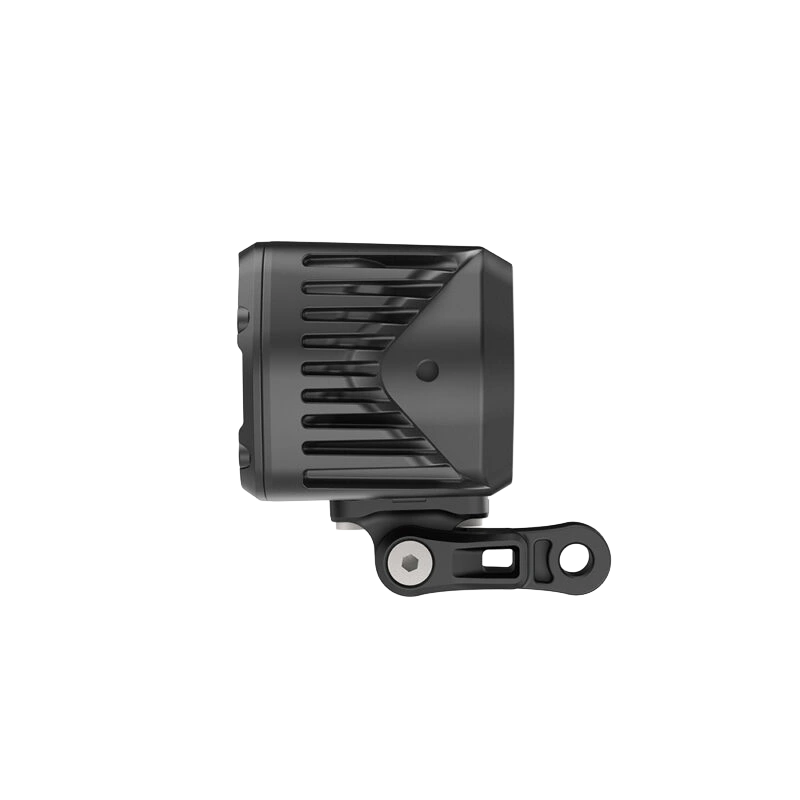

Offers versatile mounting options with a secure GoPro®‑style interface. Designed for flexibility, it enables quick installation and adjustment, ensuring a clean, stable setup across diverse cycling applications

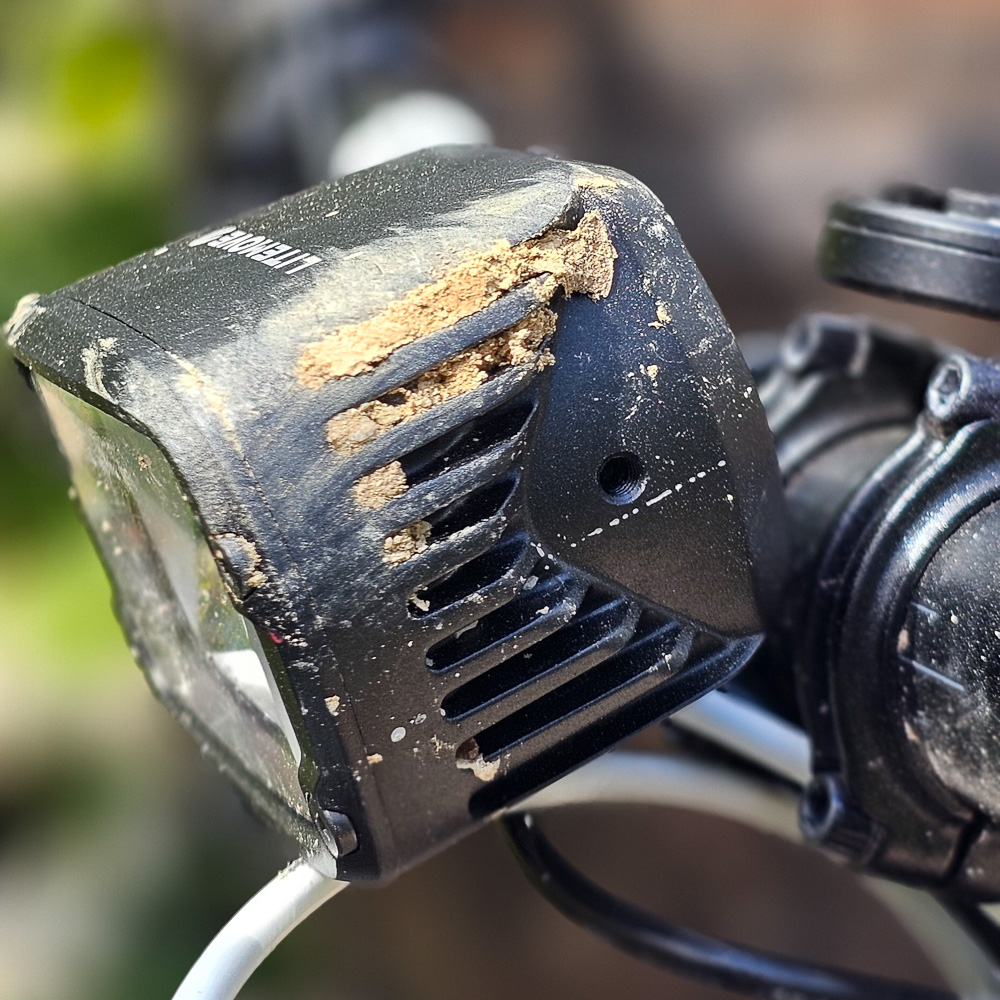

Built with reinforced, IP56-rated weather-sealed materials for lasting durability and reliable performance against shocks, scratches, rain, dust, and demanding cycling conditions.

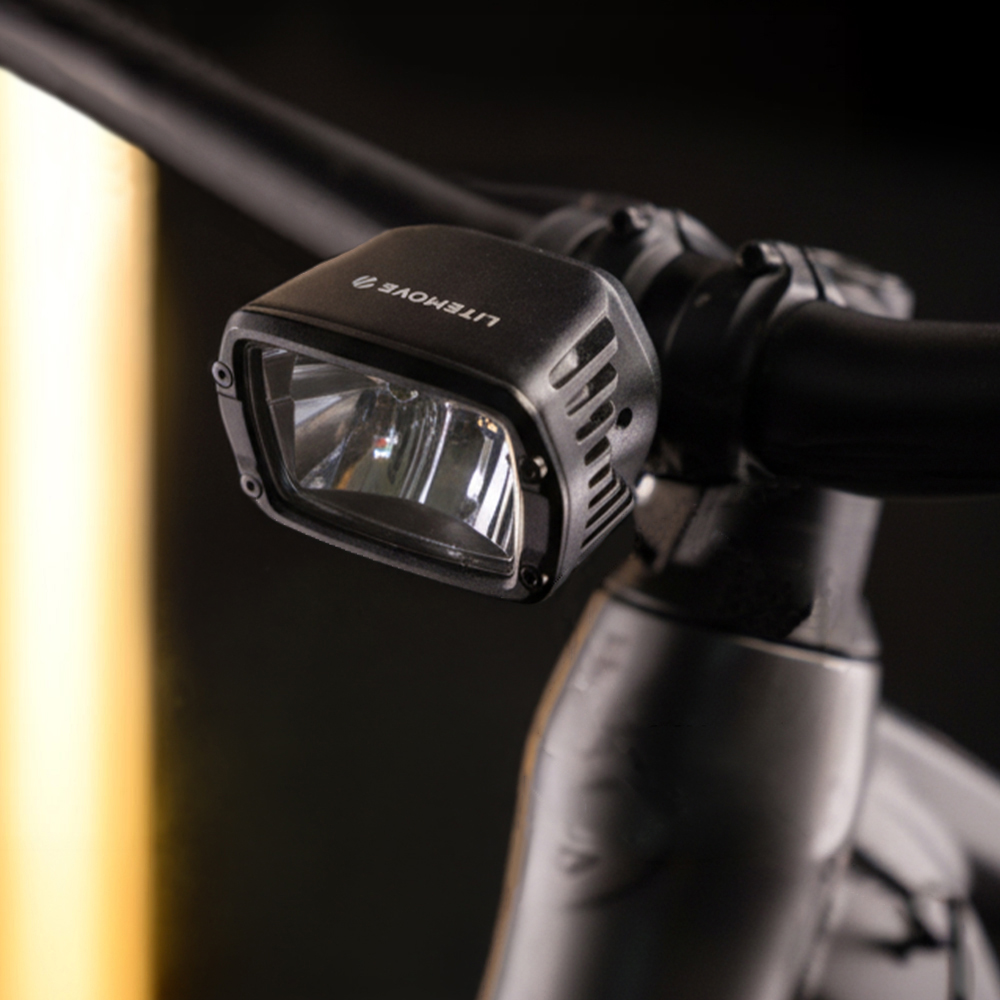

Compact, streamlined design enables easy installation and integration with modern bicycles. Offers a clutter-free appearance while ensuring secure mounting and compatibility with multiple accessories.

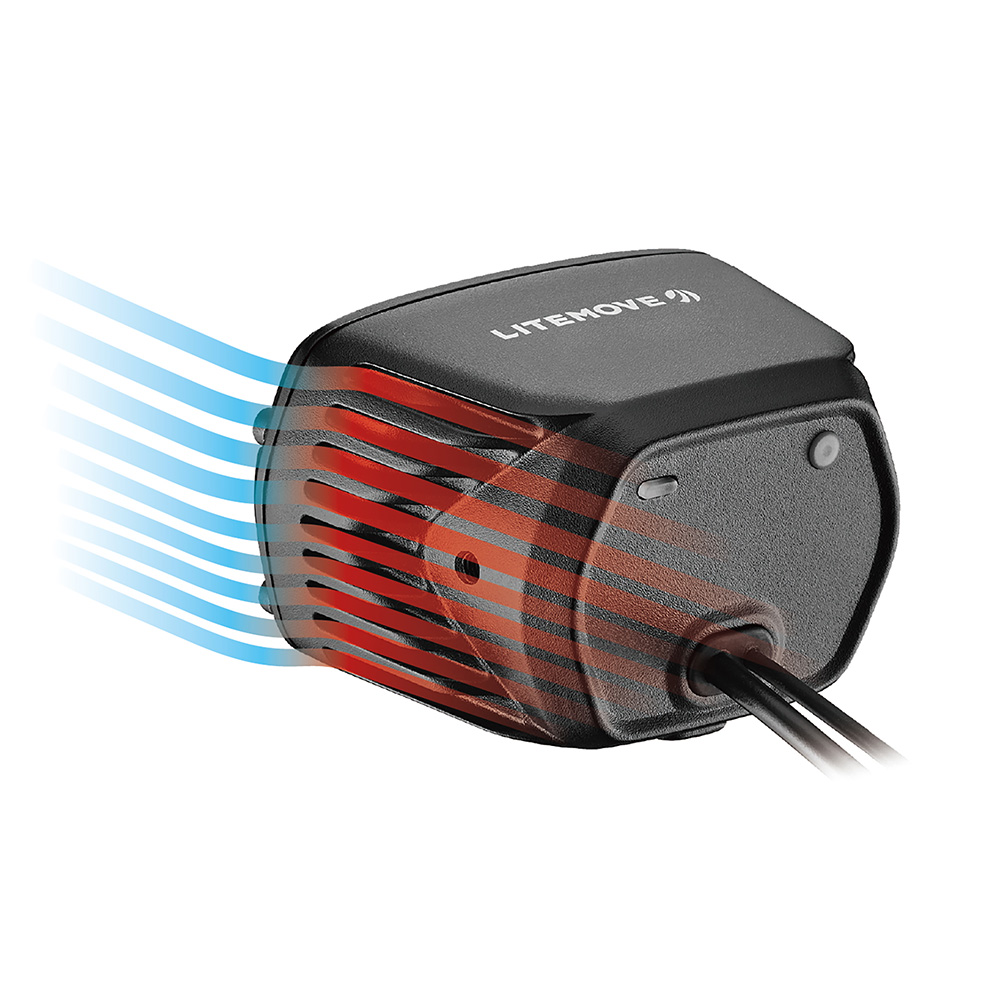

Advanced thermal management system regulates heat efficiently, preventing overheating and maintaining stable brightness output. Guarantees consistent performance and extended product lifespan under high-power operation.
| Weight | 0.5 kg |
|---|---|
| Dimensions | 12.5 × 7.5 × 9.5 公分 |
| Light Type | Headlights |
| Power source | E-Bike |
| Beam Type | High / Low Beam (Wide) |
| Mounting | Cockpit |
| Max. Light output | > 1000 Lumens (High Power / Off-Road) |
| Riding scenario | Mountain/ Trails, Rural Area |
| Compliance | CE, ISO-6742, RoHS/ REACH, StVZO-K |
| Holder Position | Side |
| Power Cable | 1400mm Open + Self-sealing connector (Y Cable) |
| High Beam Switch Cable | 300mm |
| Mount / Bracket | Handlebar Bracket / Mount (for ø31.8 & 35mm) |
| Reflector | – |
