TZVB

  • Engineered for safety and style, the TZVB is a K-Mark certified taillight featuring an integrated brake warning function for enhanced visibility in all conditions.
  • Its sleek, fender-mounted design ensures seamless integration with your bike’s frame, while the built-in Z-reflector and 30° mounting angle deliver optimal rear illumination.
  • Rated IP56 for protection against high-pressure water and dust, it’s built to perform in any environment.
  • Compatible with 25km/h e-bikes (EPAC) and fully compliant with StVZO-K and ISO-6742 standards.

This product is currently out of stock and unavailable.

SKU:
Specifications
Model Name TZVB
Model No. TZVB
S/N 0041
Light Output Brake light: 45000mcd/ 25 lumens

Rear light: 4000mcd/ 13 lumens

Light Source LED *3
Input Voltage (DC) 12V (6V ~ 16V)
Power Consumption Brake light : 1.5W
Rear light : 0.6W
Cable Diameter ø3mm
Cable Length 1400mm
IP Rating IP56
Operating Temperature (°C) -25 ~ +50
Material Plastic
Weight (et. cable) 17g
Dimension (WxHxL) 26.7 x 75 x 13 mm
Mounting Option Bicycle fender

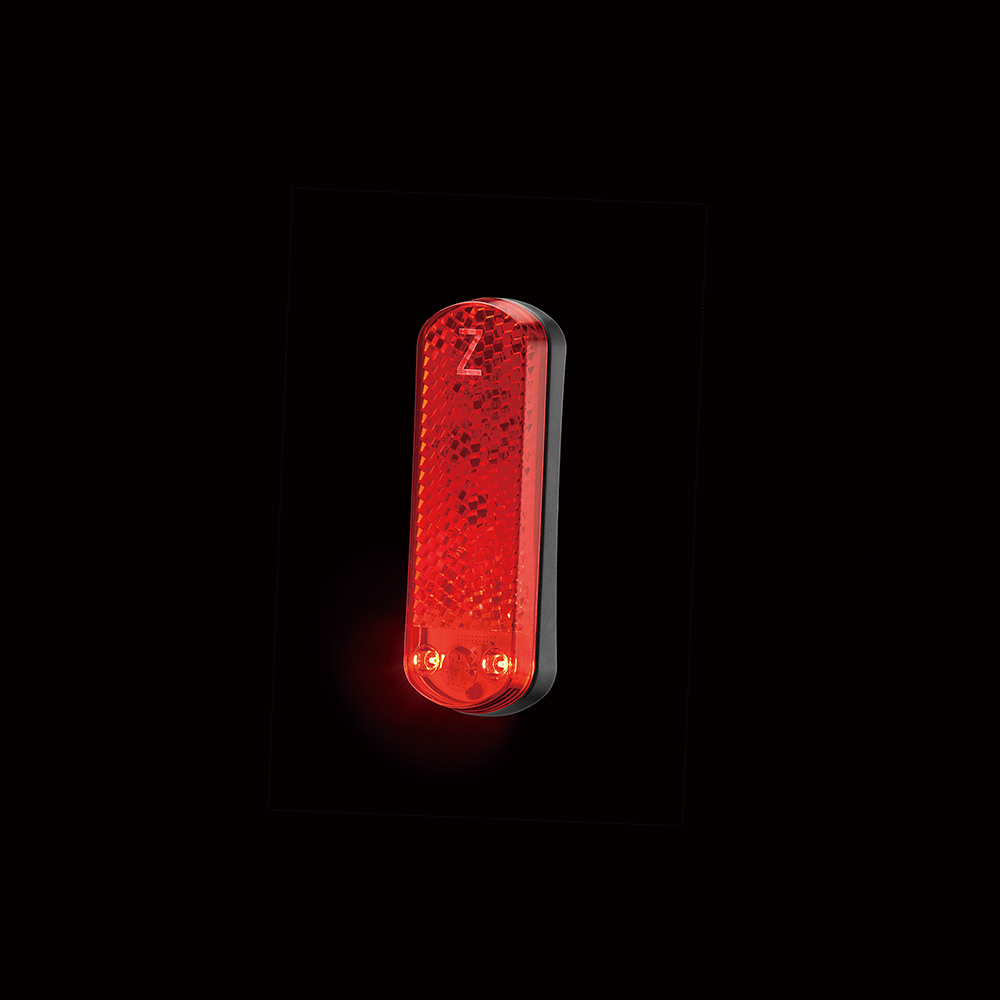

Reflector Integrated Z-Reflector
Compliance CE/ RoHS/ REACH
Type of Approval StVZO-K & ISO 6742
Approval Number ~ K 2647



Compliance

Built for safety and trust, our lights carry the K-Mark certification under Germany’s StVZO road regulations. They also meet key international standards, including ISO 6742, CE, RoHS, and REACH compliance, ensuring reliable performance and responsible manufacturing.

StVZO
ISO 6742
CE
RoHS
REACH

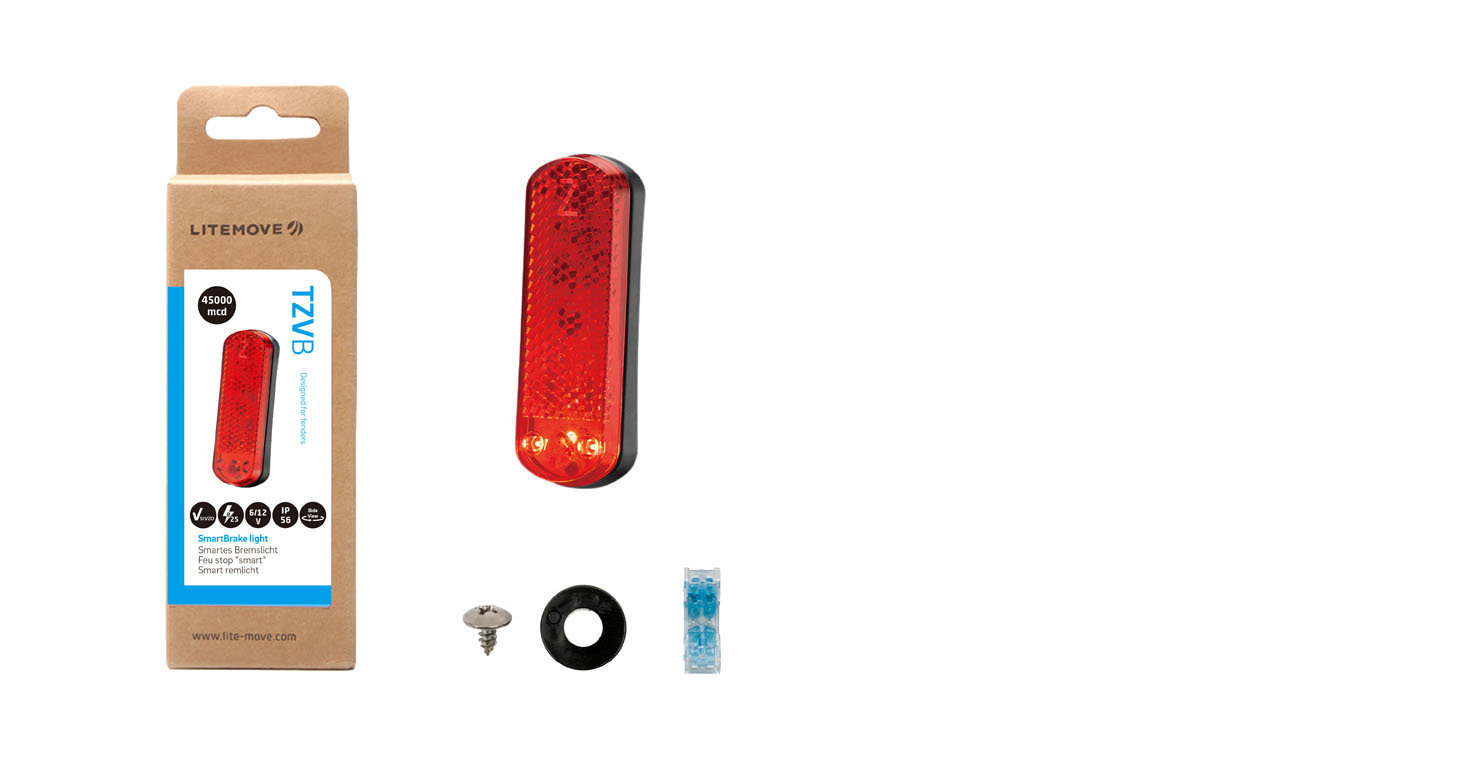

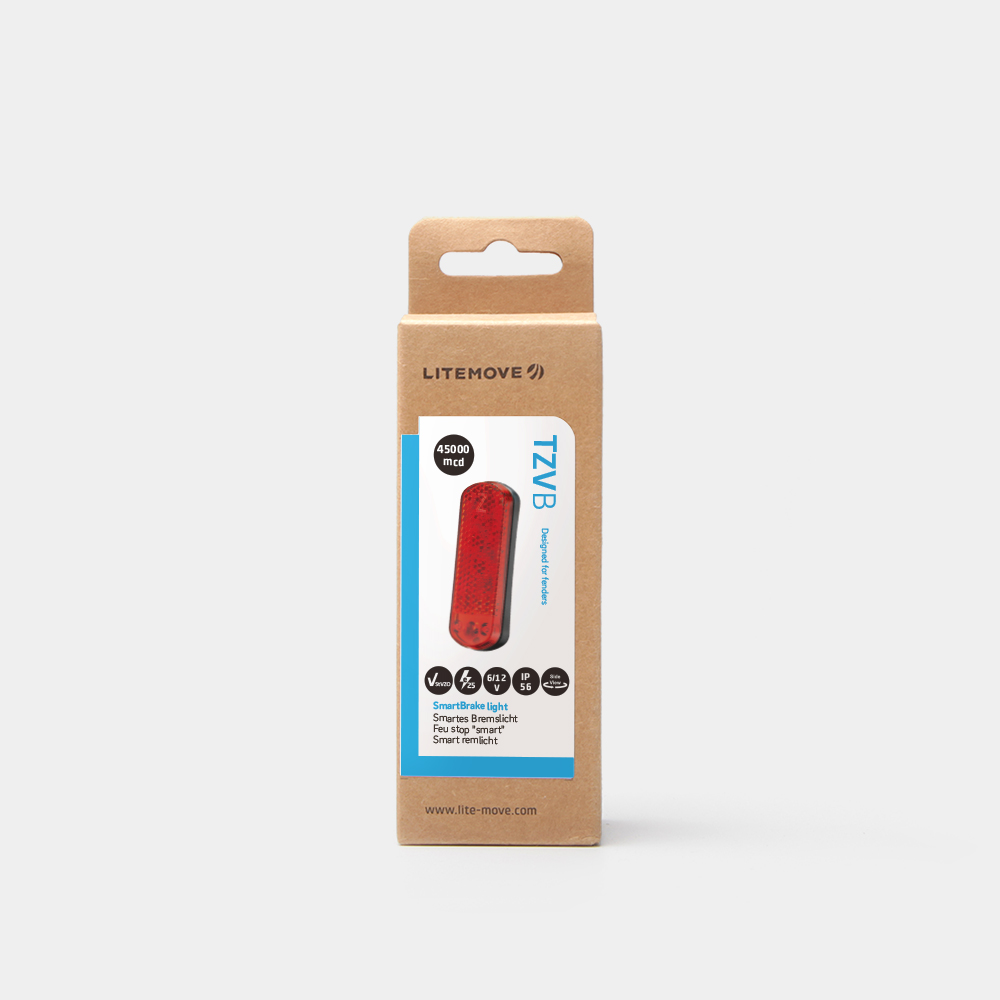

What’s in the box

TZVB01a

FAQ

Illuminate your path

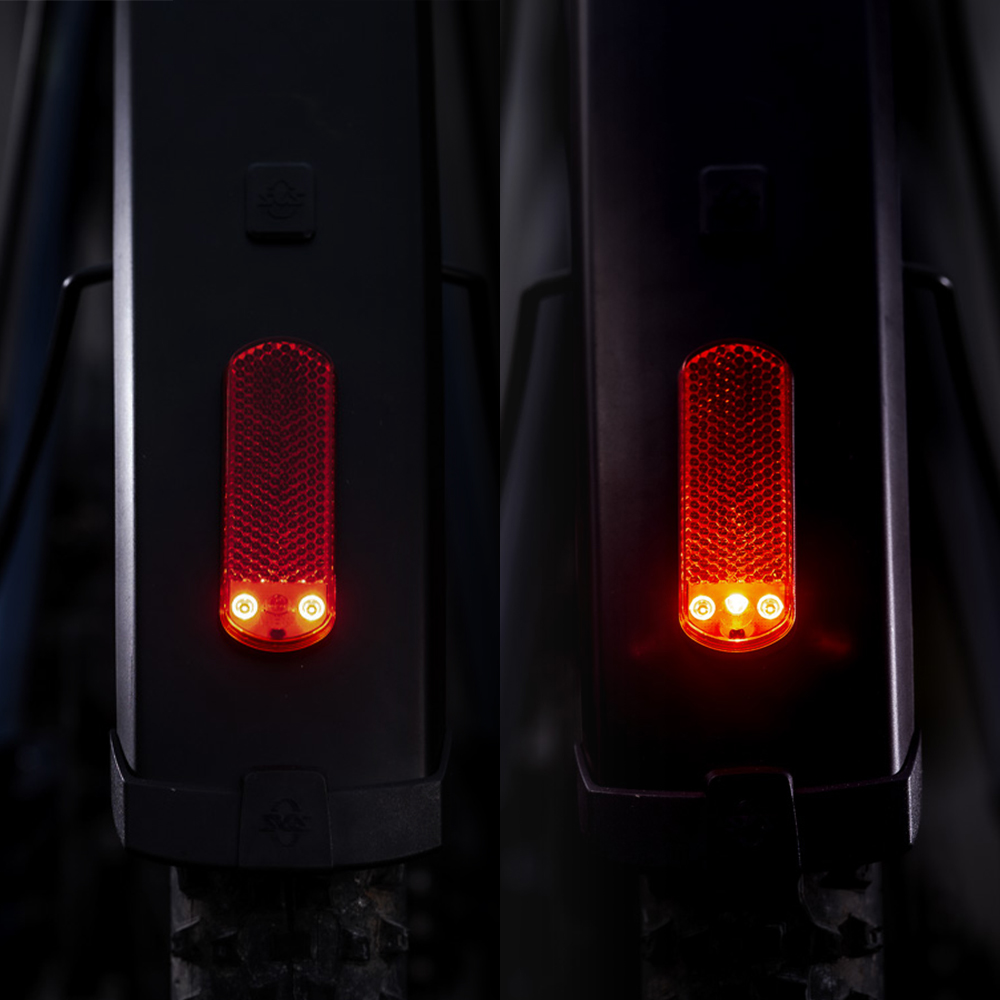

TZVB Brake

Smart Brake Detection

Equipped with an intelligent brake sensor, the system instantly activates warning signals during sudden stops or emergencies. This alerts other road users in real time, greatly enhancing rider safety.

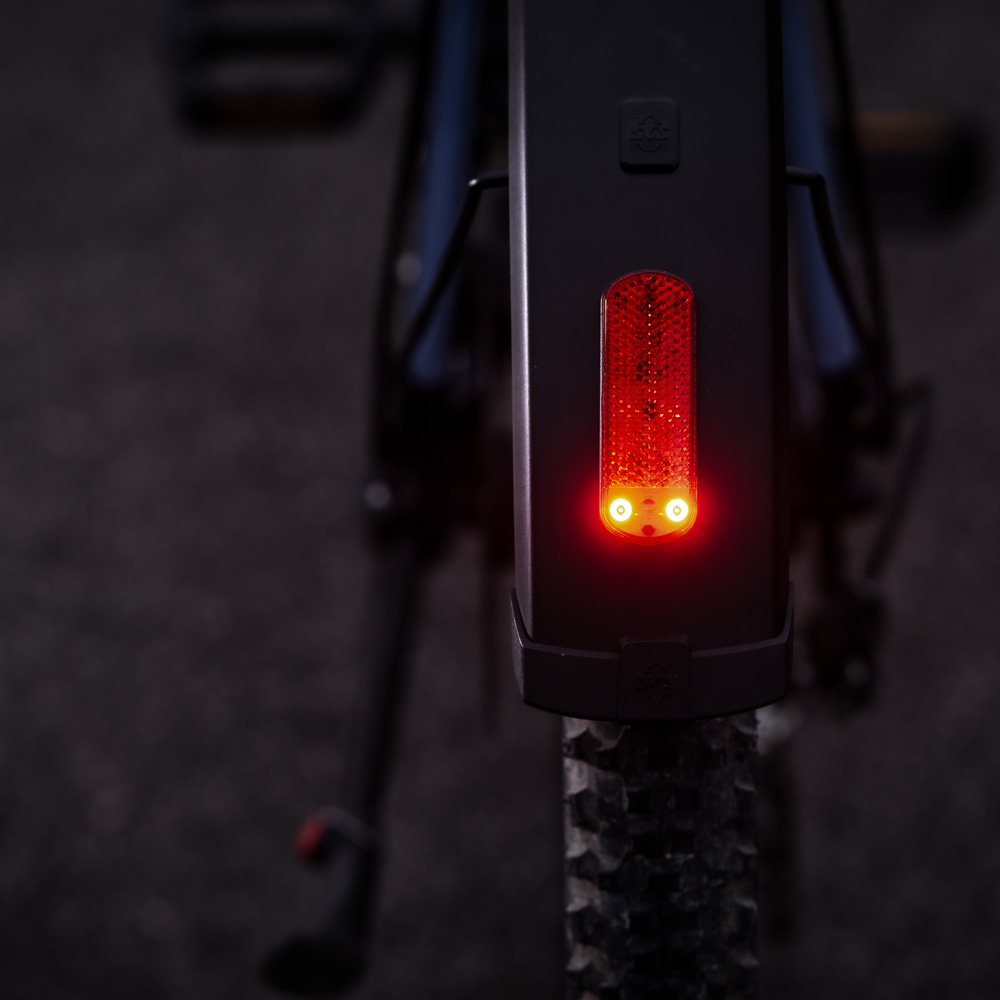

Dual Functionality

Integrates active rear light and Z-mark reflector into a single unit—providing visibility even when the light is off, for an added layer of passive safety.

Litemove TZV 72dpi 05
240View fender 1

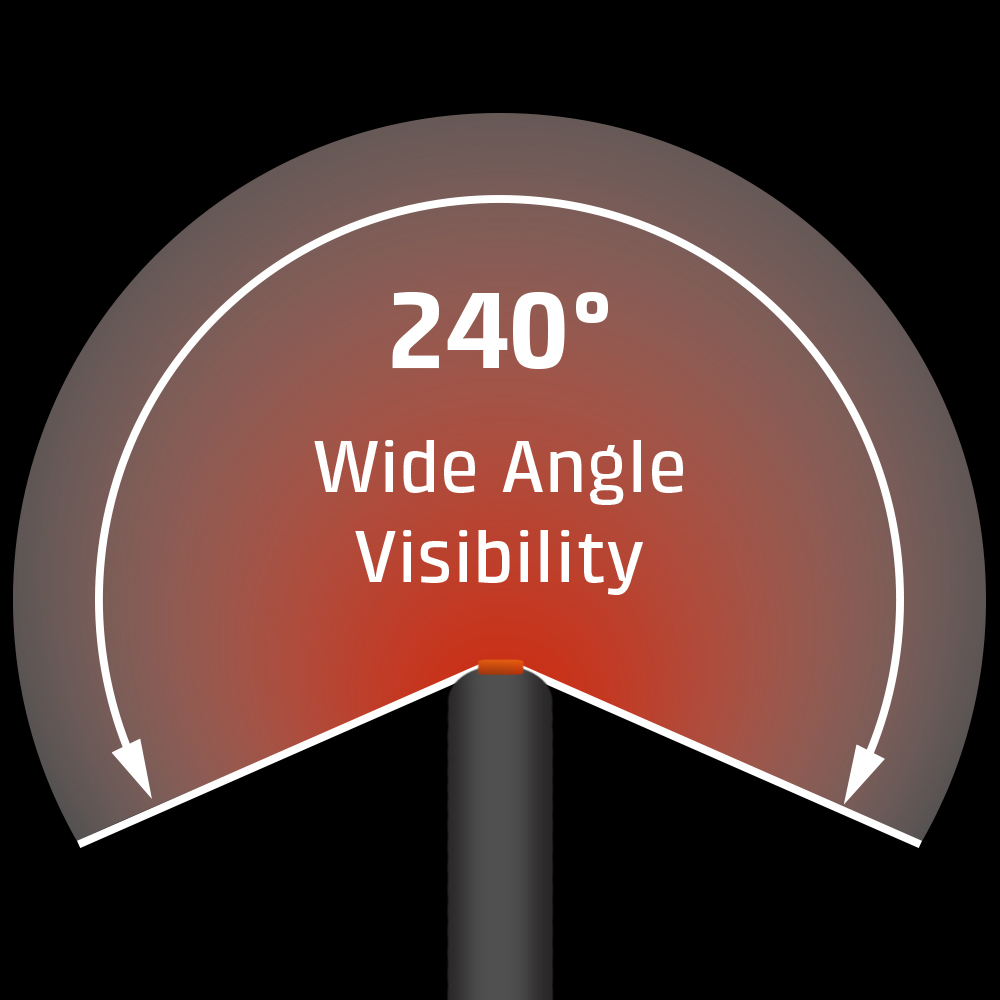

Wide‑Angle Visibility

Delivers 240‑degree illumination, ensuring maximum safety and awareness. The expansive coverage enhances rider visibility from multiple directions, reducing blind spots and improving protection in traffic and low‑light conditions.

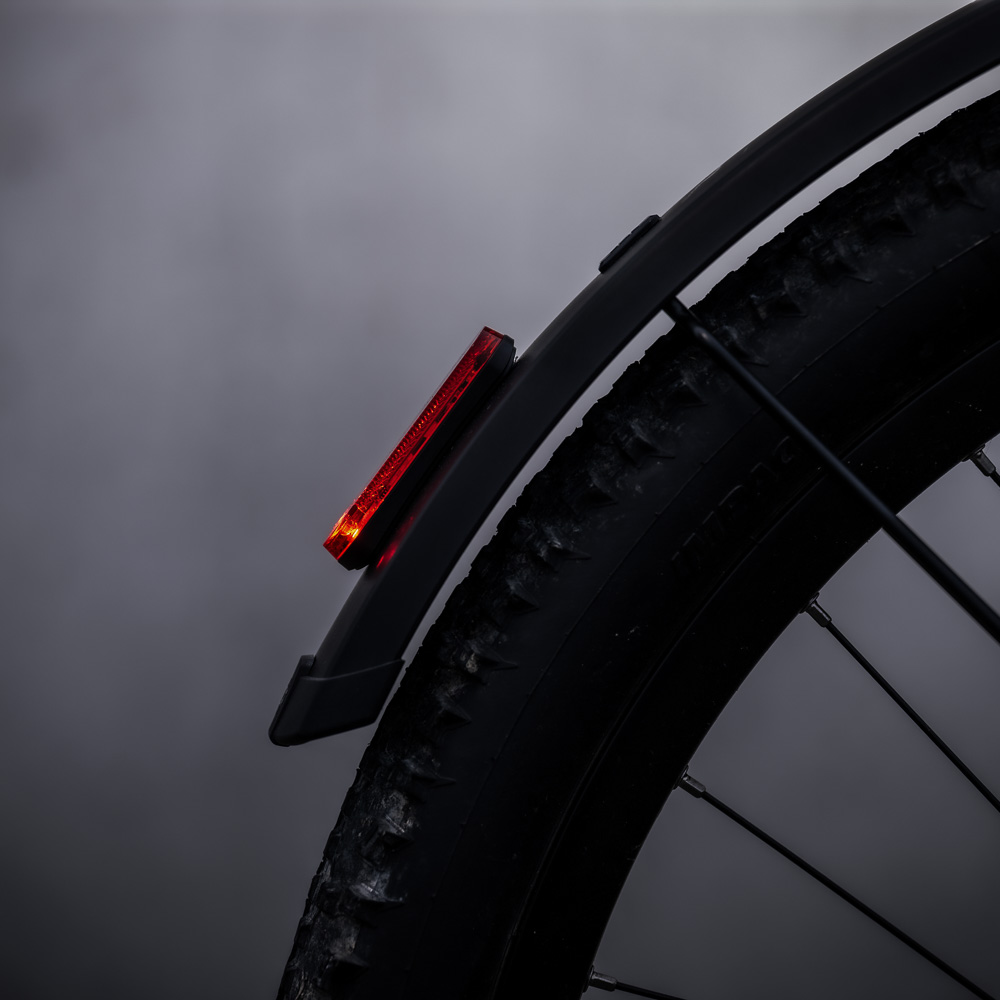

Universal Fit

Engineered with a sleek, arched back cover, it seamlessly adapts to all mudguards. The universal fit ensures easy integration, combining style with functional compatibility across diverse bicycle setups.

Litemove TZV 72dpi 04

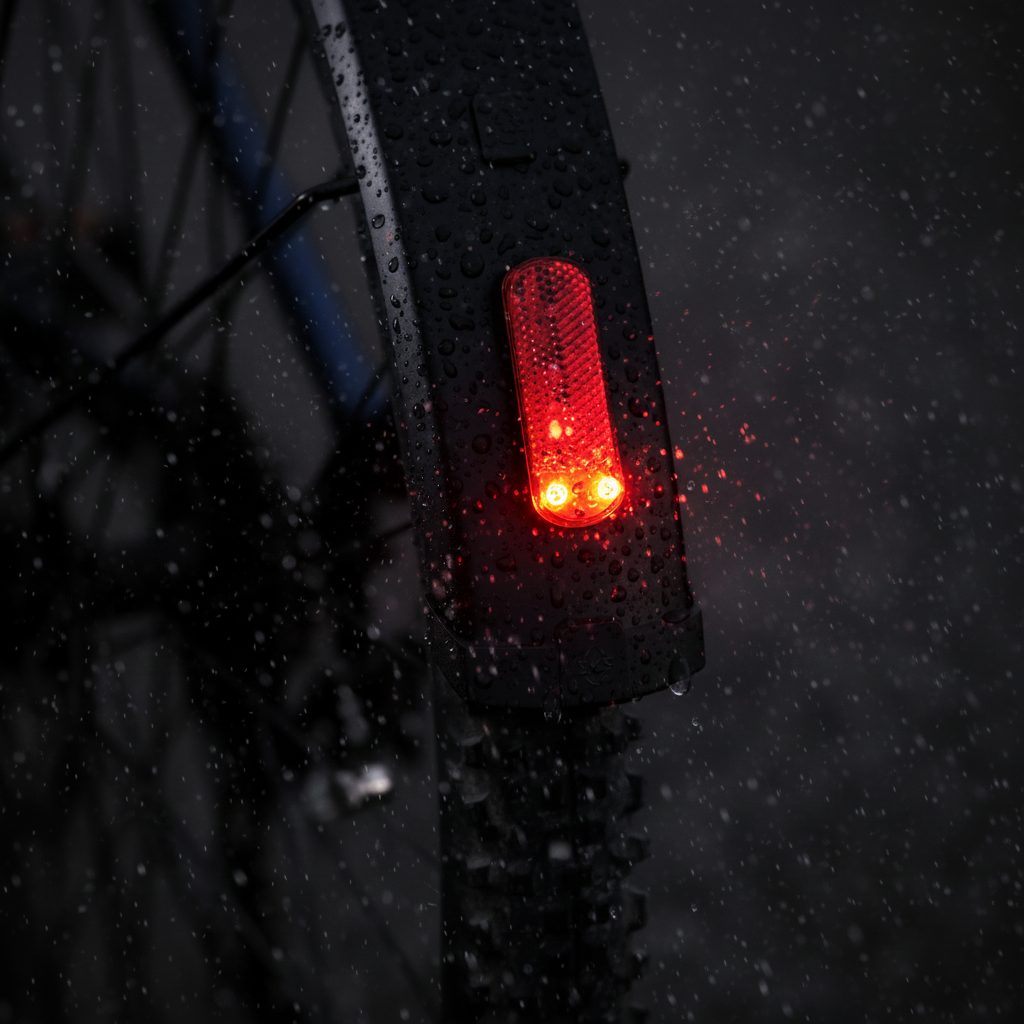

TZV IP56

Durability & Protection

Crafted with premium, IP56 water-resistant materials and reinforced construction for reliable protection, durability, and consistent performance in demanding cycling environments.

Energy‑Efficient Performance

Consumes only 0.6 W, delivering reliable illumination with minimal power draw. Designed for sustainability, it reduces energy usage while maintaining consistent visibility and safety.

TZHB LowPower

Compatible with

Weight 0.12 kg
Dimensions 5 × 3.5 × 12 公分
Light Type

Tail Lights

Power source

E-Bike

Beam Type

Brake Sensor

Mounting

Rear Fender

Max. Light output

< 50 Lumens (Be Seen)

Riding scenario

City/ Urban Area, Rural Area

Compliance

CE, ISO-6742, RoHS/ REACH, StVZO-K

Mounting Position

Rear Fender

Mount / Bracket

Power Cable

1400mm Open + Self-sealing connector
