| Model Name | TA-KA |
| Model No. | TKACE |
| S/N | B06 |
| Light Output | Brake light: 45000mcd/ 30 lumens Rear light: 8000mcd/ 15 lumens |
| Optical Technology | LTi |
| Light Source | LED *2 |
| Input Voltage (DC) | 12V(6V ~ 16V) |
| Power Consumption | Brake light: 4.3W Rear light: 0.5W |
| Cable Diameter | ø3mm/1-3 pins |
| Cable Length | 1700mm |
| IP Rating | IP56 |
| Operating Temperature (°C) | -25 ~ +70 |
| Material | Plastic |
| Weight (excl. cable) | 31g |
| Dimension (WxHxL) | 125 x 13.5 x 21mm |
| Mounting Option | 50mm & 80mm rack holder |
| Reflector (Optional) | N/A |
| Compliance | CE/ RoHS/ REACH/ Prop 65 |
| Type of Approval | StVZO-K & ISO 6742 |
| Approval Number | ~ K 1929 |
Built for safety and trust, our lights carry the K-Mark certification under Germany’s StVZO road regulations. They also meet key international standards, including ISO 6742, CE, RoHS, and REACH compliance, ensuring reliable performance and responsible manufacturing.

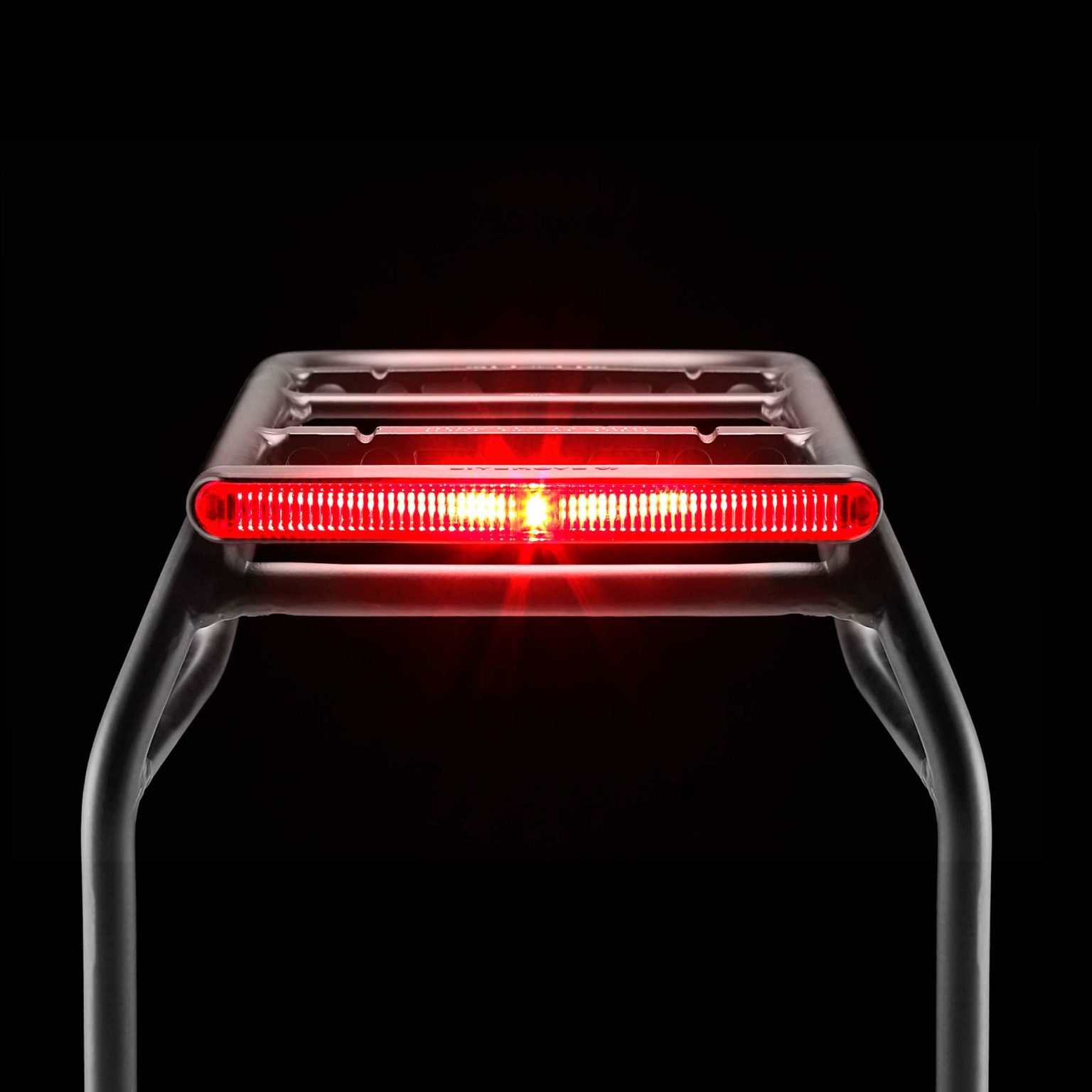

Crafted with modern high‑tech 3D optics, it delivers a striking three‑dimensional light effect. This innovative design enhances both visibility and aesthetics, setting a new standard in contemporary cycling illumination.
Designed with a reliable wired brake system, it ensures precise signal transmission and consistent performance. This setup enhances safety by providing immediate response and stable operation under all riding conditions.
Delivers 240‑degree illumination, ensuring maximum safety and awareness. The expansive coverage enhances rider visibility from multiple directions, reducing blind spots and improving protection in traffic and low‑light conditions.

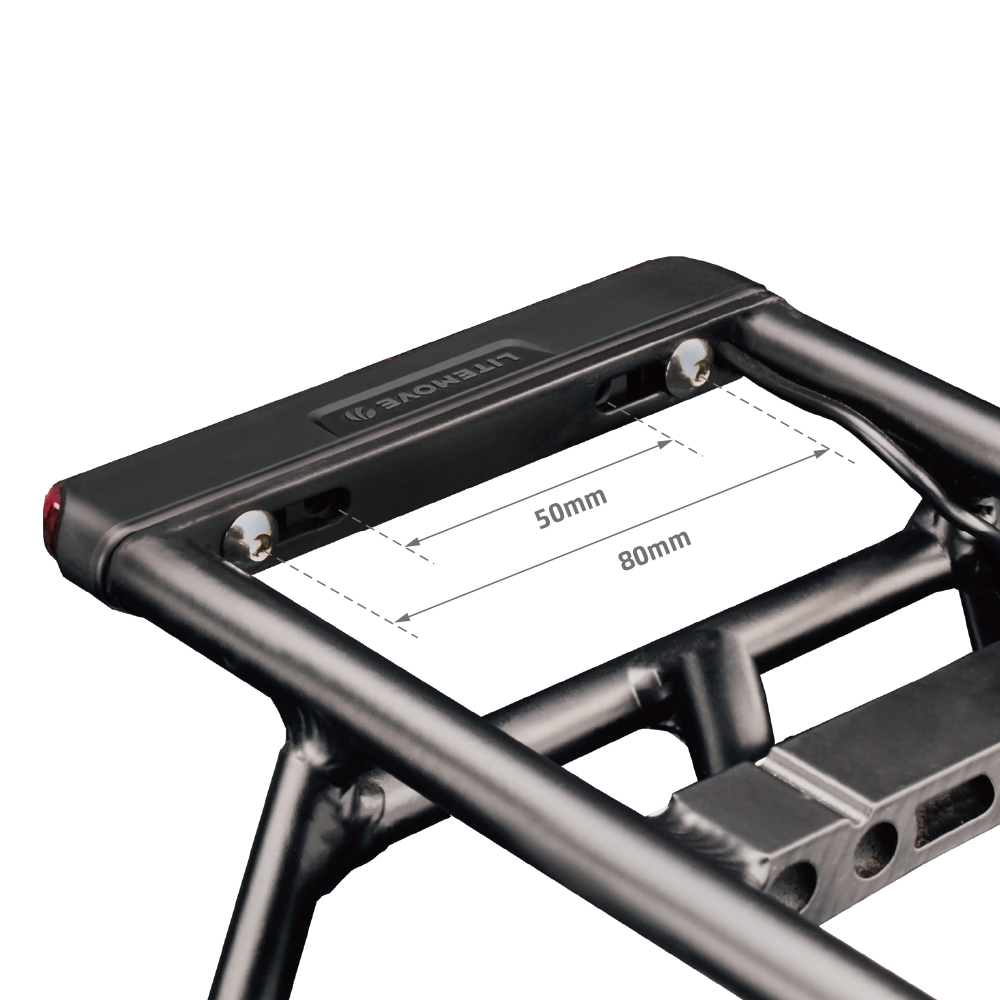

Available in both 50 mm and 80 mm mounting standards, offering flexible installation across diverse setups. Supports external reflector add‑on for enhanced safety and compliance.

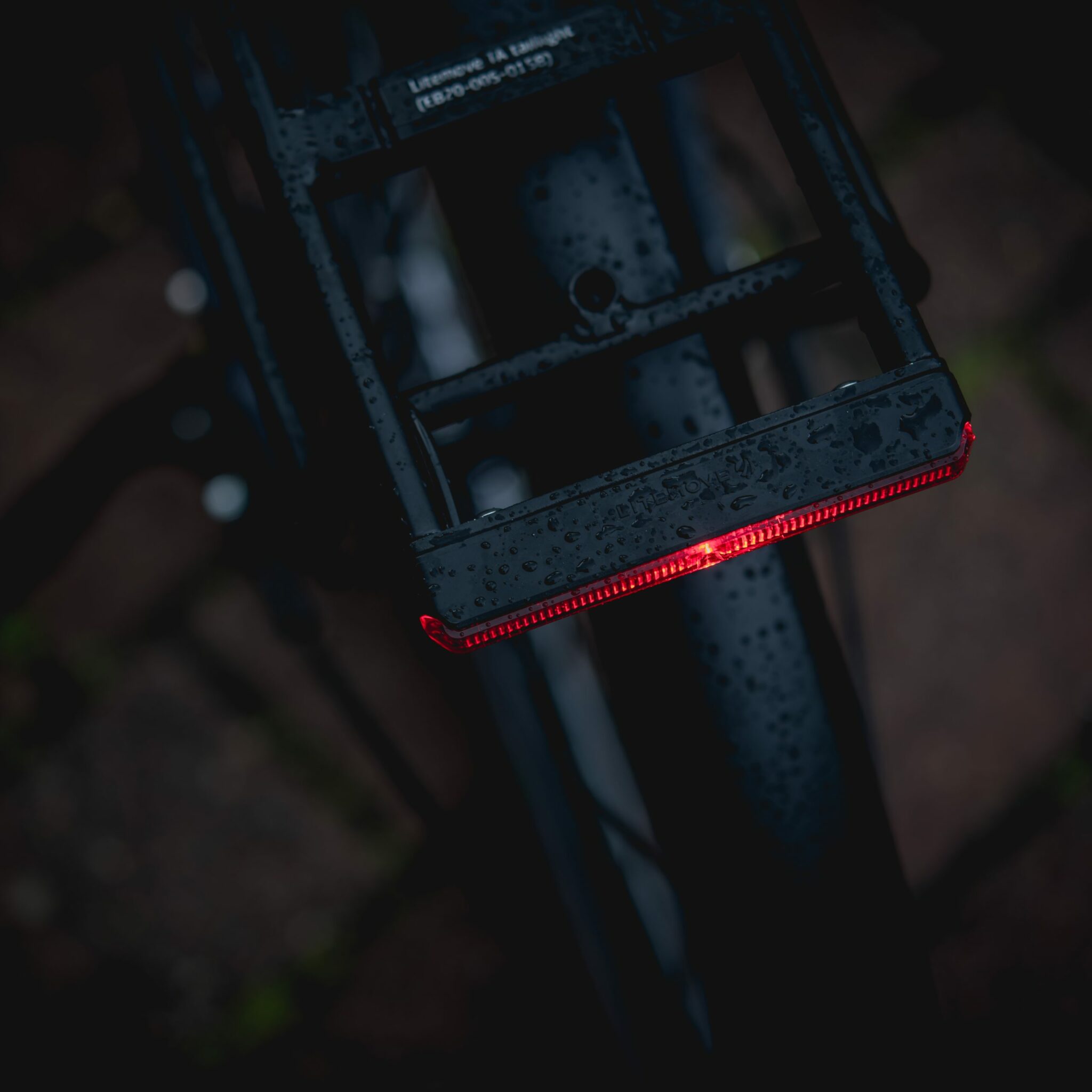

Crafted with premium, IP56 water-resistant materials and reinforced construction for reliable protection, durability, and consistent performance in demanding cycling environments.
| Mounting Position | 50mm & 80mm Rack Holder |
|---|---|
| Item Description | Tail light |
| Light Type | Tail Lights |
| Mounting | Rear Carrier |
| Power source | E-Bike |
| Riding scenario | City/ Urban Area, Rural Area |
| Compliance | CE, ISO-6742, RoHS/ REACH, StVZO-K |
