TL-FD

  • 20 lumens highly efficient rear light
  • 6V(5V ~ 16V) with a power consumption of 0.6 Watt
  • Fit with most type of bicycle’s rear fender
  • IP56- Protects against high pressure water or dust ingress
  • For 25km e-bike / EPAC
  • StVZO-K & ISO-6742 compliance
SKU:
Specifications



Model Name TL-FD
Model No. TLFD
S/N 0005
Light Output  7200mcd/ 20 lumens
Optical Technology TL-K
Light Source LED *16
Input Voltage (DC) 6V(5V ~ 16V)
Power Consumption 0.6W
Cable Diameter ø3mm
Cable Length 1400mm
IP Rating IP56
Operating Temperature (°C) -25 ~ +50
Material Plastic
Weight (et. cable) 11g
Dimension (WxHxL) 16.3 x 89.6 x 12.9 mm (w/o bracket)
Mounting Option Bicycle fender
Reflector (Optional) N/A
Compliance CE/ RoHS/ REACH
Type of Approval StVZO-K & ISO 6742
Type of Approval ~ K 2149
Compliance

Built for safety and trust, our lights carry the K-Mark certification under Germany’s StVZO road regulations. They also meet key international standards, including ISO 6742, CE, RoHS, and REACH compliance, ensuring reliable performance and responsible manufacturing.

StVZO
ISO 6742
CE
RoHS
REACH

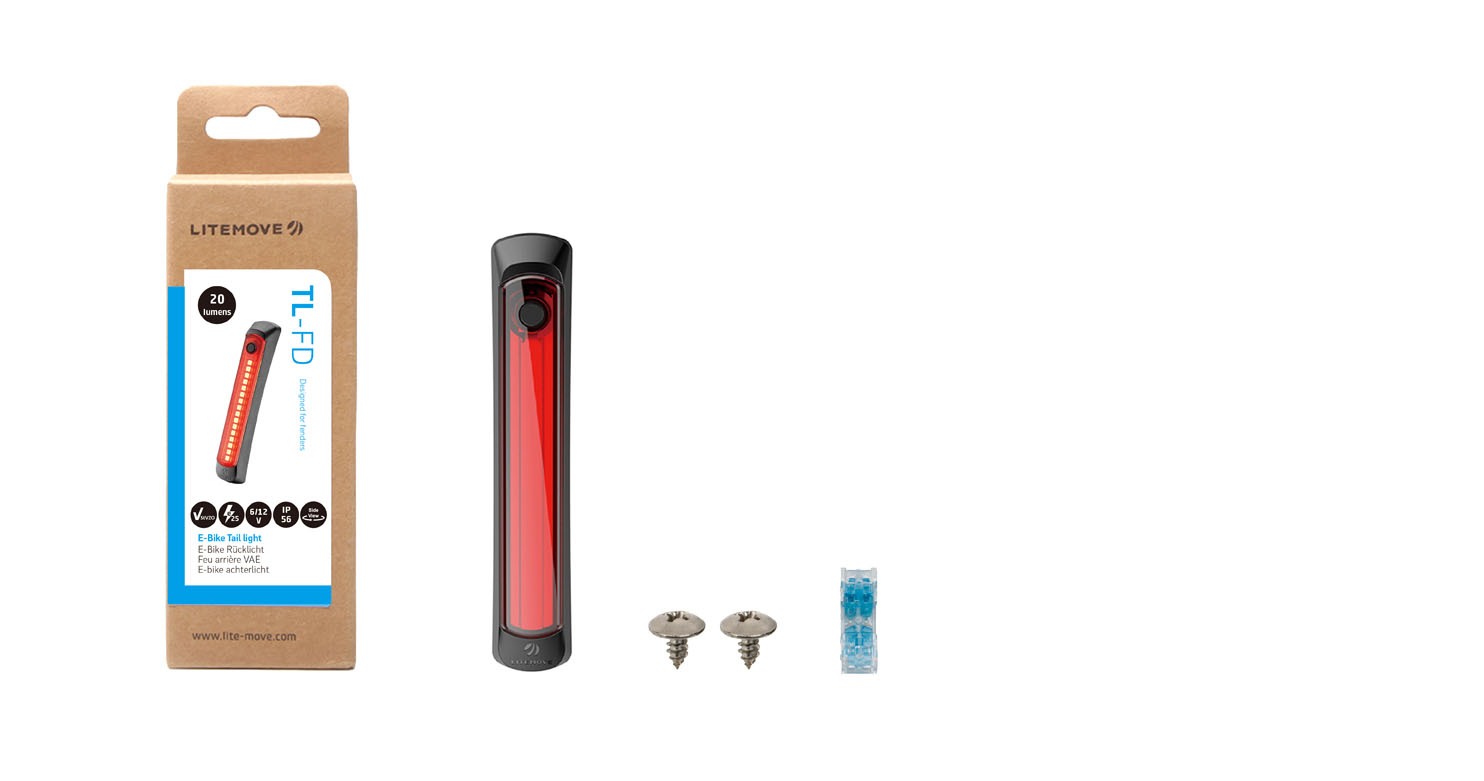

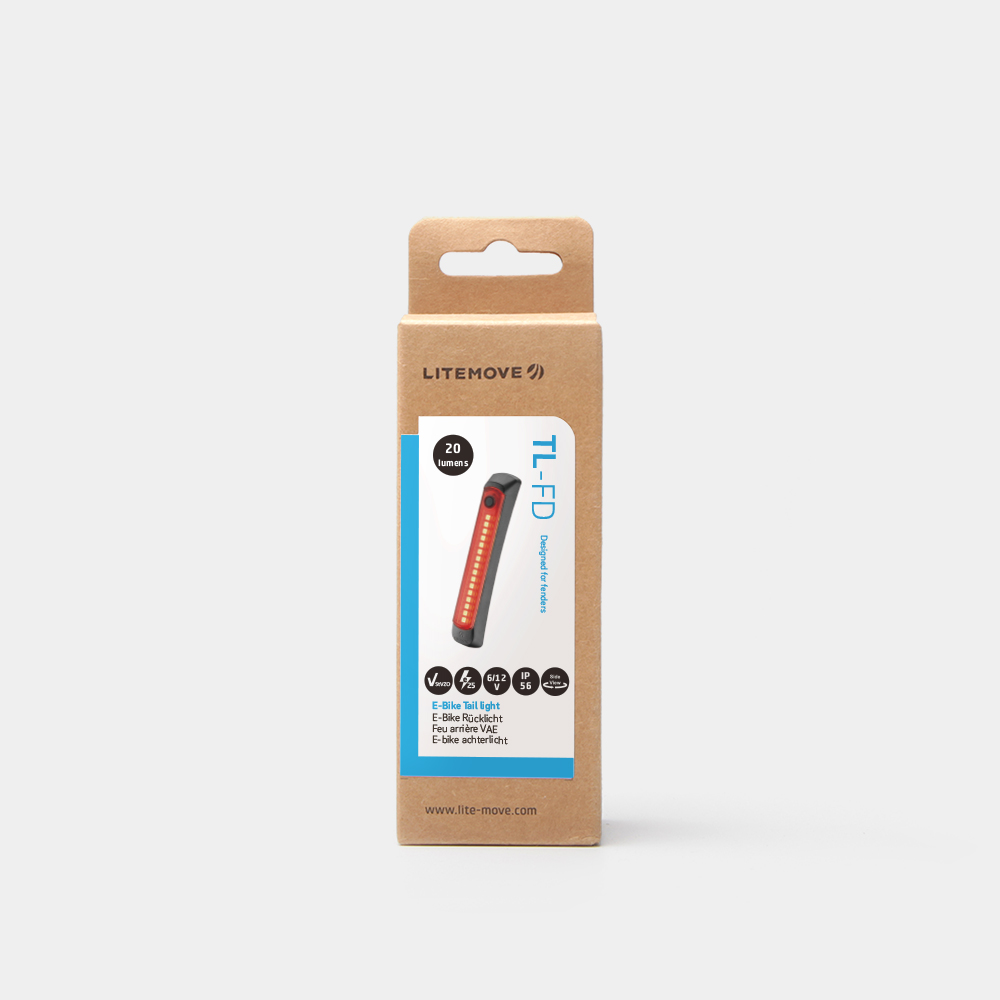

What’s in the box

TLFD

FAQ

Illuminate your path

240View fender 1

Wide‑Angle Visibility

Delivers 7,200 mcd / 20 lm across 240° illumination, visible up to 270m from behind, ensuring maximum safety and awareness. The expansive coverage enhances rider visibility from multiple directions, reducing blind spots and improving protection in traffic and low-light conditions.

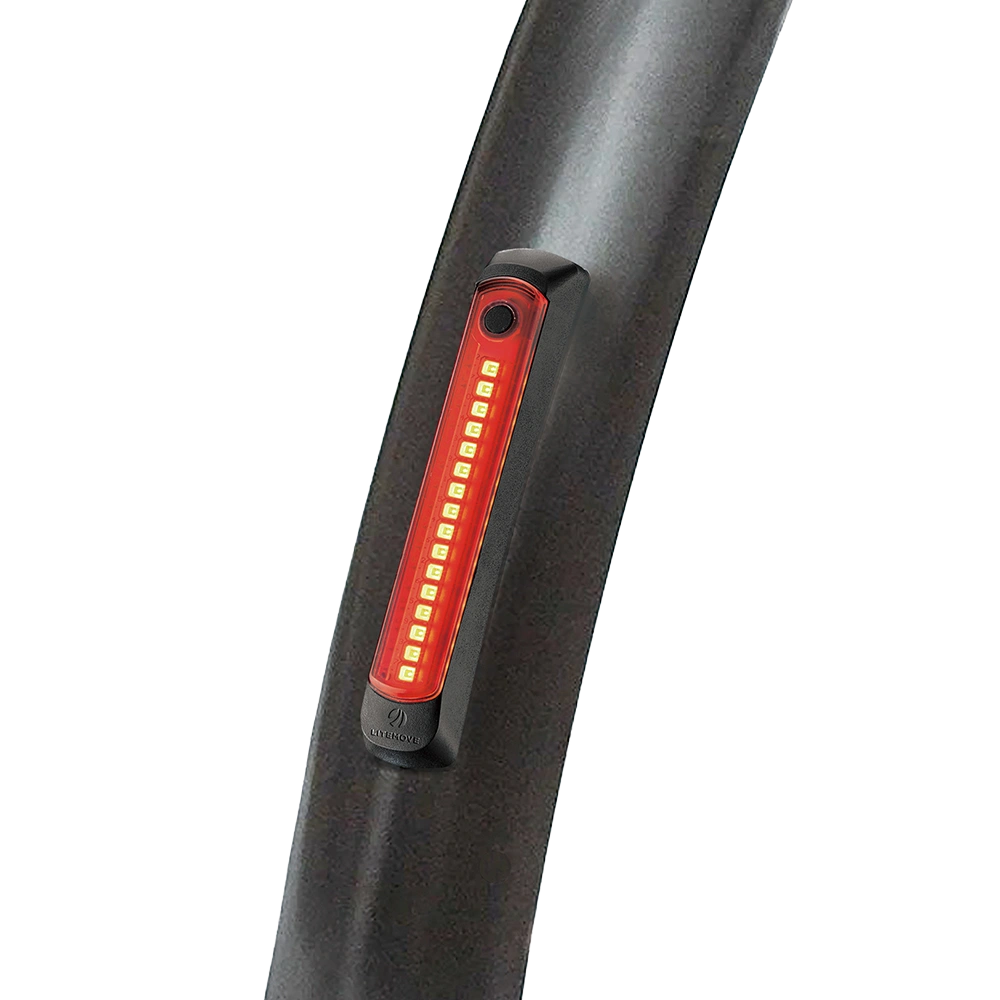

Universal Fit

Engineered with a sleek, arched back cover, it seamlessly adapts to all mudguards. The universal fit ensures easy integration, combining style with functional compatibility across diverse bicycle setups.

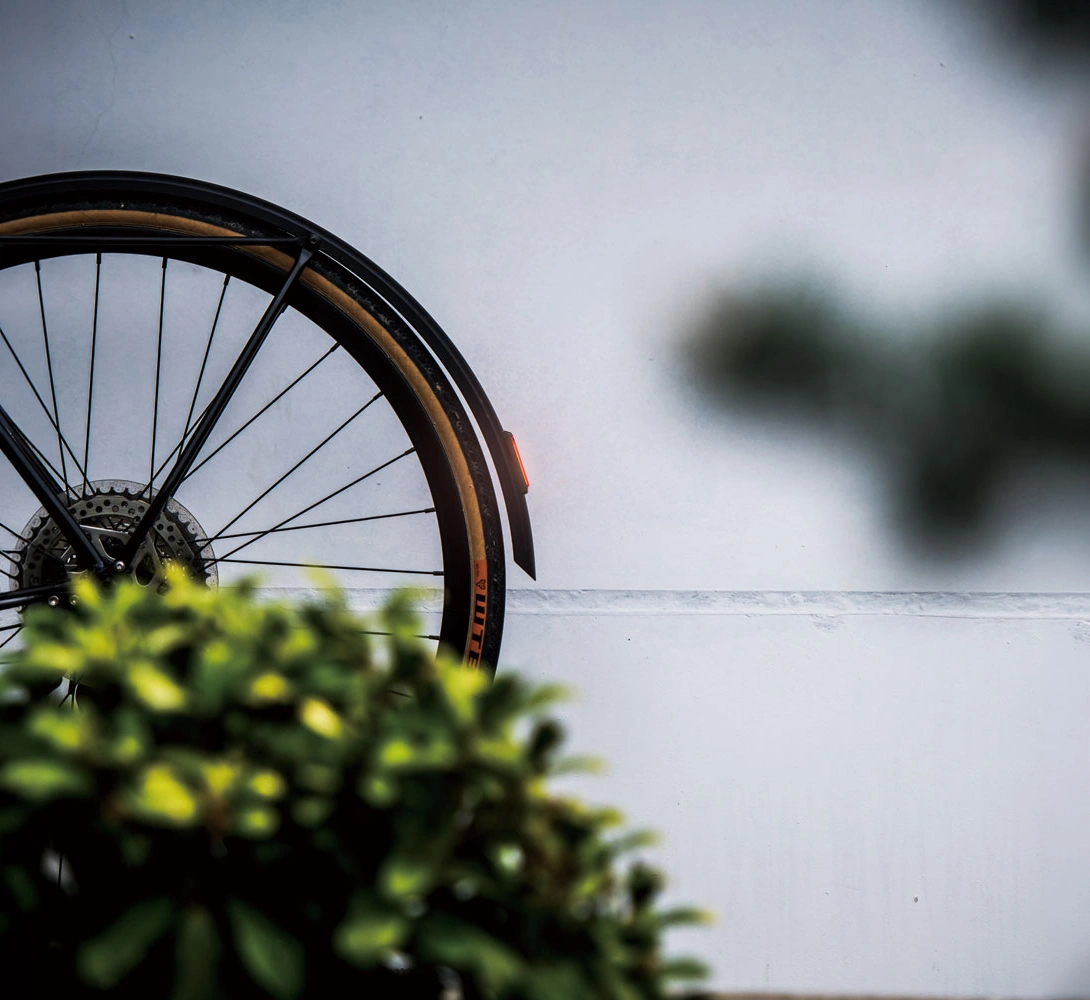

TLFD 240° View

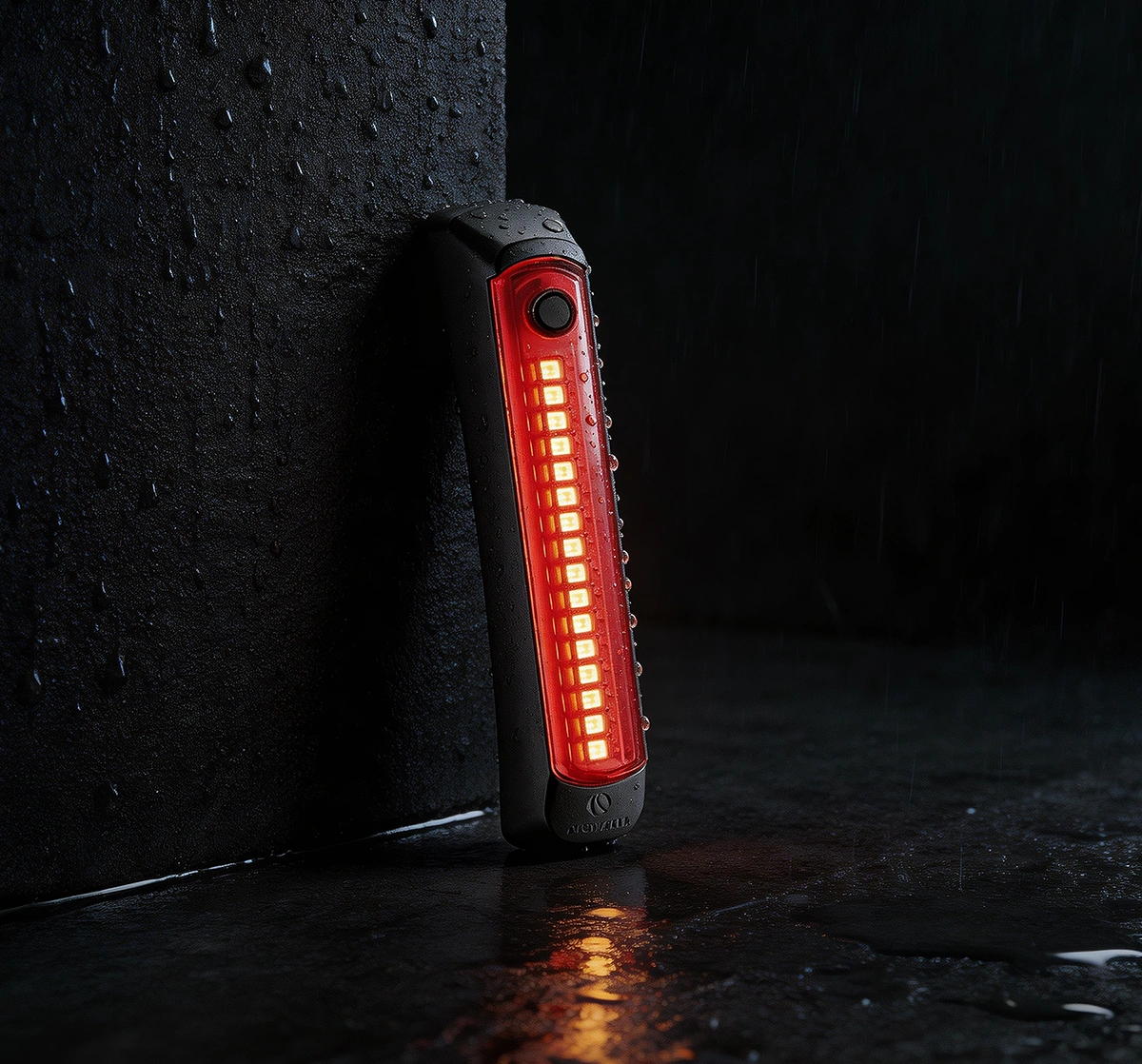

TLFD Weather Ready

Durability & Protection

Crafted with premium, IP56 water-resistant materials and reinforced construction for reliable protection, durability, and consistent performance in demanding cycling environments.

Energy‑Efficient Performance

Consumes only 0.6 W, delivering reliable illumination with minimal power draw. Designed for sustainability, it reduces energy usage while maintaining consistent visibility and safety.

0.6W LowPower

Compatible with

Weight 0.12 kg
Dimensions 5 × 3.5 × 12 公分
Light Type

Tail Lights

Power source

E-Bike

Mounting

Rear Fender

Max. Light output

< 50 Lumens (Be Seen)

Riding scenario

City/ Urban Area, Rural Area

Compliance

CE, ISO-6742, RoHS/ REACH, StVZO-K

Mounting Position

Rear Fender

Power Cable

1400mm Open + Self-sealing connector

Mount / Bracket
