| Model Name | TX3 |
| Model No. | TX301 |
| S/N | 0014 |
| Light Output | Brake light: 80000mcd/ 30 lumens Rear light: 2600mcd/ 12 lumens |
| Optical Technology | TX3 |
| Light Source | LED *48 |
| Input Voltage (DC) | 12V(6V ~ 16V) |
| Power Consumption | Brake light: 2W Rear light: 0.6W |
| Cable Diameter | ø3mm |
| Cable Length | 1400mm |
| IP Rating | IP56 |
| Operating Temperature (°C) | -25 ~ +50 |
| Material | Plastic |
| Weight (et. cable) | 36g |
| Dimension (WxHxL) | 124.4 x 20.4 x 16.8mm |
| Mounting Option | TX3-compatible rack |
| Reflector (Optional) | RF2 |
| Compliance | CE/ RoHS/ REACH |
| Type of Approval | StVZO-K & ISO 6742 |
| Approval number | ~ K 2450 |
Built for safety and trust, our lights carry the K-Mark certification under Germany’s StVZO road regulations. They also meet key international standards, including ISO 6742, CE, RoHS, and REACH compliance, ensuring reliable performance and responsible manufacturing.
Equipped with an intelligent brake sensor, the system instantly activates warning signals during sudden stops or emergencies. This alerts other road users in real time, greatly enhancing rider safety.

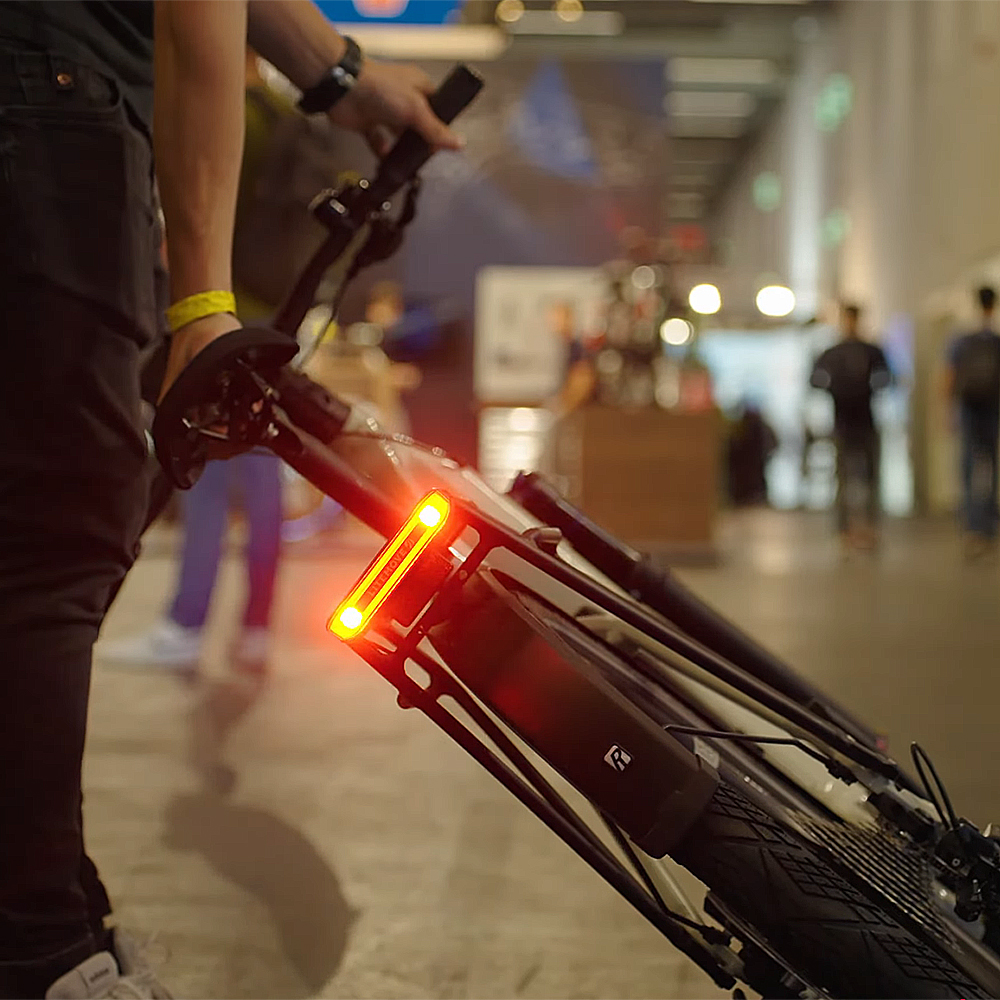

it automatically triggers warning signals when the bicycle tips over or crashes. This safety function alerts surrounding road users, providing added protection in unexpected situations.

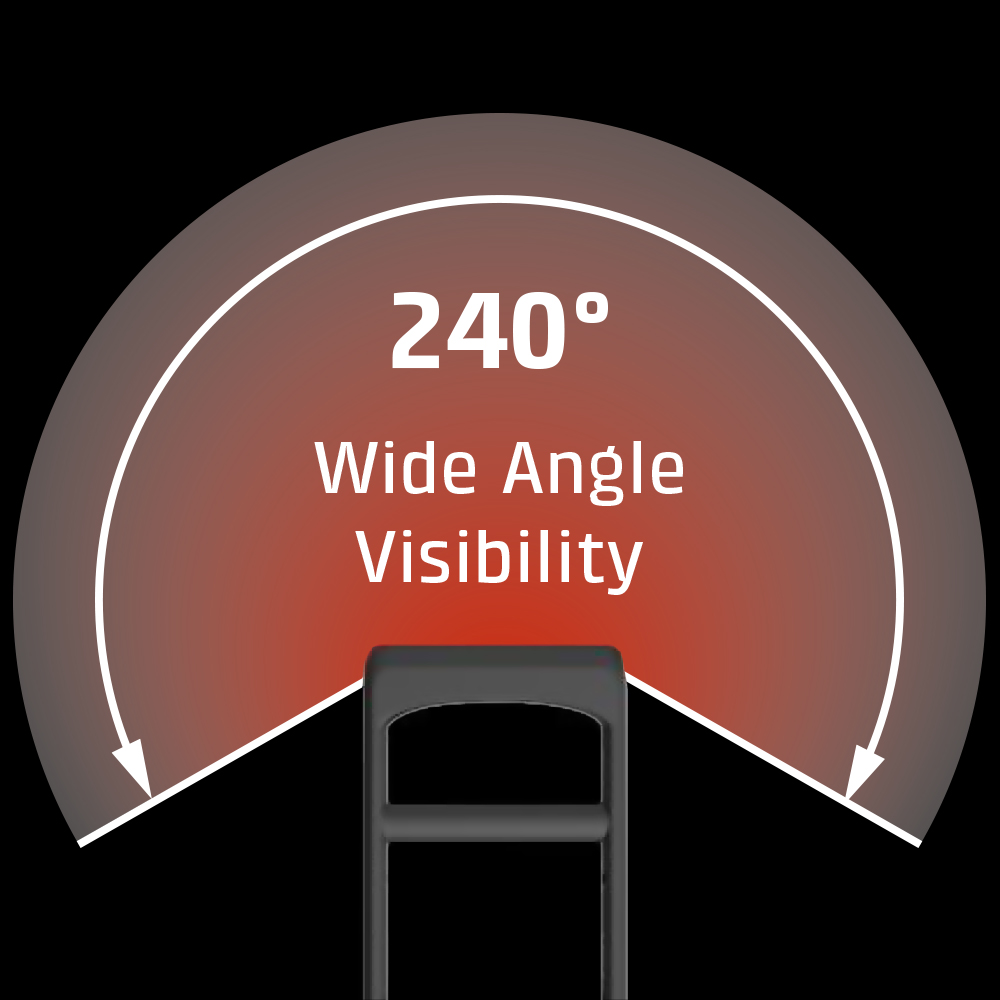

Delivers 240‑degree illumination, ensuring maximum safety and awareness. The expansive coverage enhances rider visibility from multiple directions, reducing blind spots and improving protection in traffic and low‑light conditions.

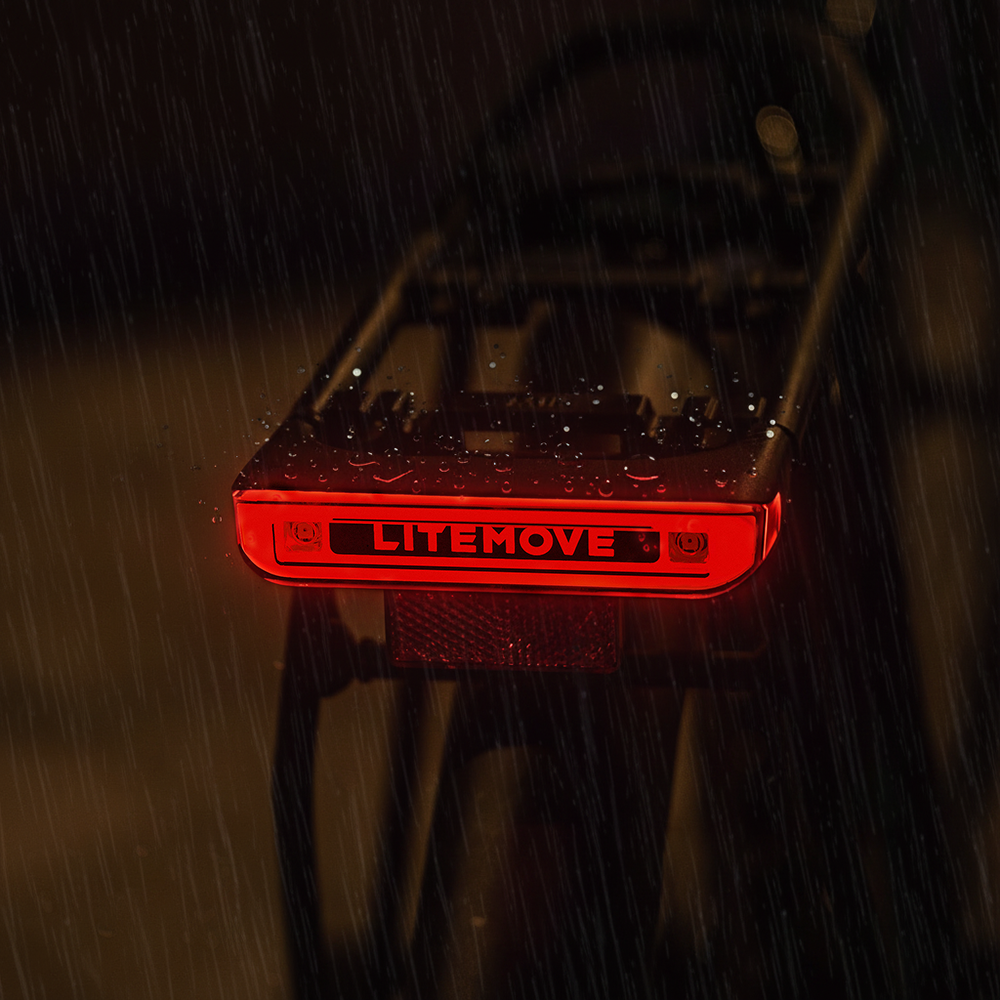

Crafted with premium, IP56 water-resistant materials and reinforced construction for reliable protection, durability, and consistent performance in demanding cycling environments.

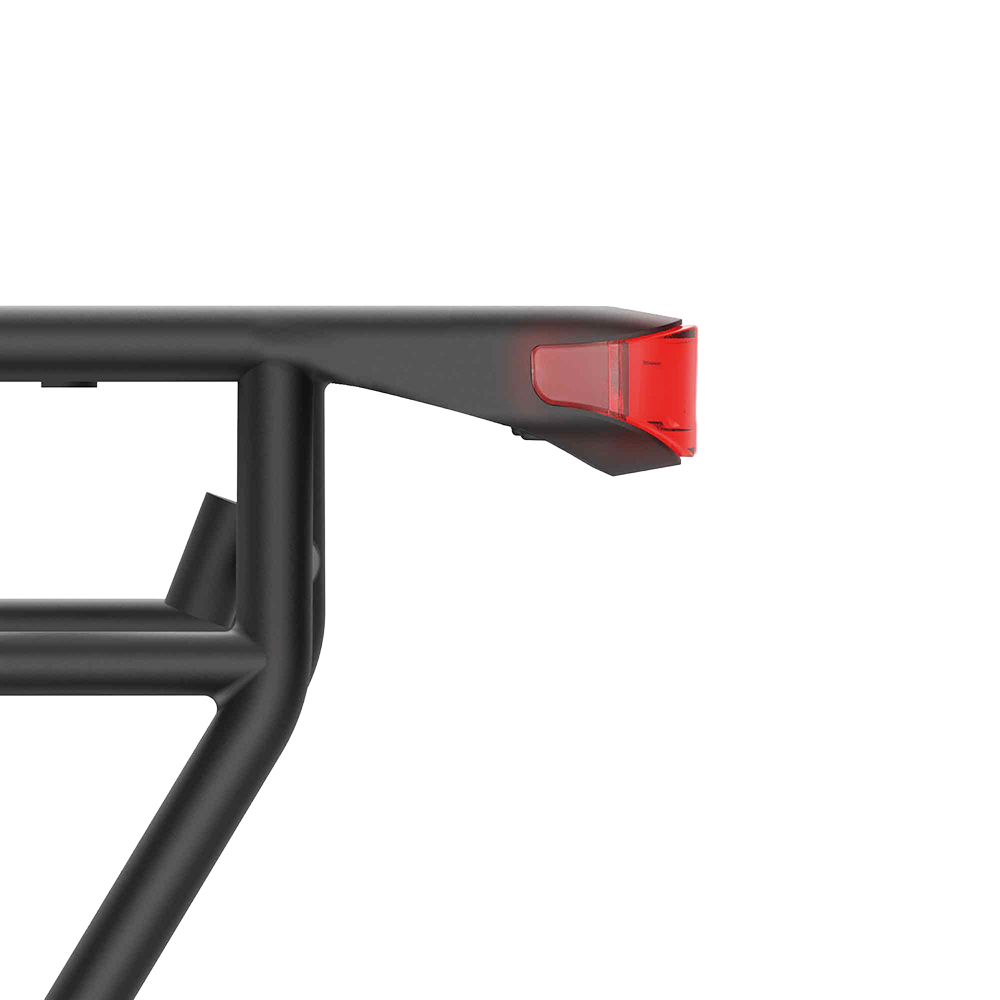

Seamlessly built into the bicycle rack, this design offers a clean, modern aesthetic while maximizing stability and space efficiency. The integration ensures a sleek profile and enhanced durability compared to add‑on solutions.

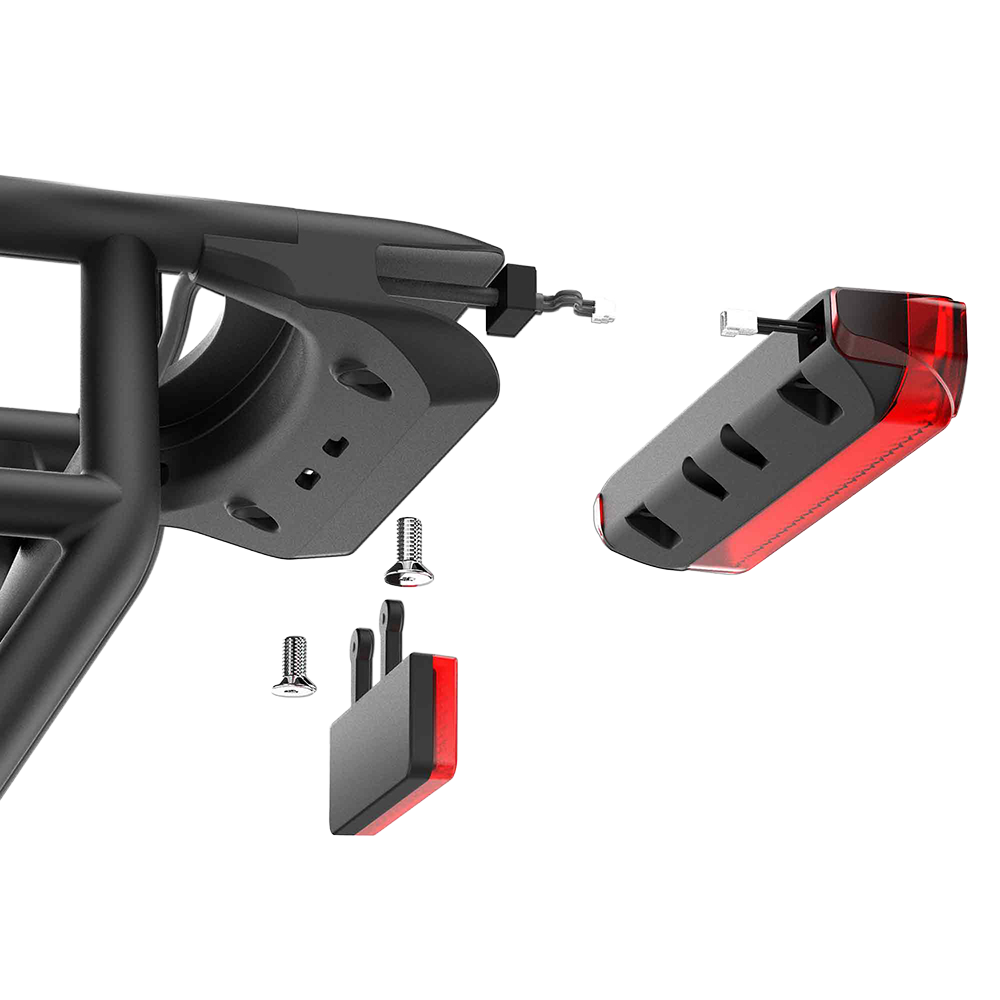

Designed for convenience, the plug‑in cable allows quick installation and effortless maintenance. This user‑friendly setup reduces downtime, ensuring reliable performance with minimal effort.
| Tail light | TX3-compatible rack |
|---|---|
| Item Description | Tail light |
| Beam Type | Brake Sensor |
| Mounting | Rear Carrier |
| Product Catagory | Tail Light |
| Compliance | CE, ISO-6742, RoHS/ REACH, StVZO-K |
| Light Type | Tail Lights |
| Mounting Position | Rear Carrier |
| Power source | E-Bike |
