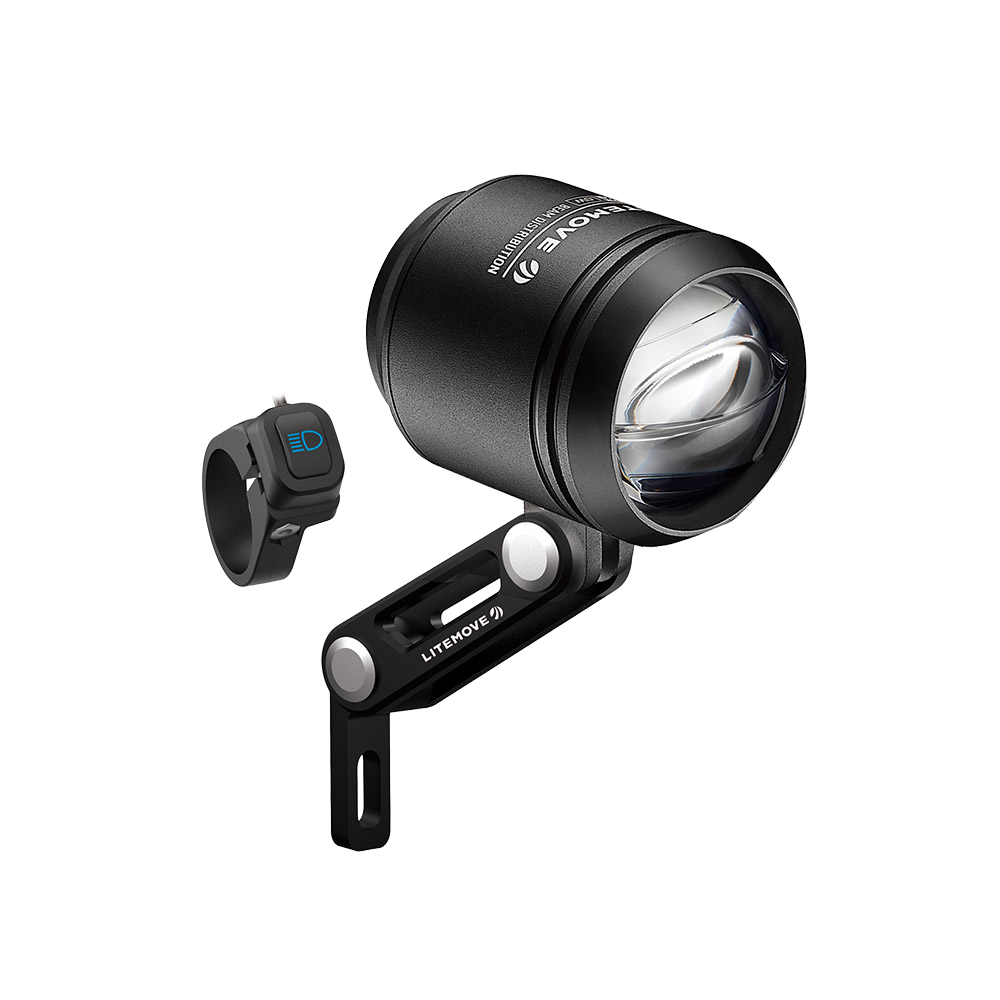

AE-200

  • Included MTi Plus system, which includes dual-beam option (high/low-beam)
  • 8m wide and up to 280m distance of beam visibility ahead
  • Up to 600 lumens
  • 12V(9V ~ 16V)with a power consumption up to 13 Watt
  • 2-piece control switch for high-beam function
  • A wide range of mounting brackets is available, allowing integrated installation on handlebars, stems, forks, and other bicycle components.
  • IP56- Protects against high pressure water or dust ingress
  • Aluminum CNC housing
  • For 45km e-bike / Speed Pedelec
  • E-Mark UNECE R113  Class-B compliance
SKU:
Specifications
Model Name AE-200
Model No. HEAE200D/ HEAE200U
HEAE200R
S/N AE200
Light Output High beam (Driving beam): 600 Lumens
Low beam (Passing beam): 500 Lumens
Optical Technology MTi Plus
Light Source LED *4
Input Voltage (DC) 12V(9V ~ 16V)
Power Consumption High beam: 13W max.
Low beam: 9.6W
Cable Diameter Power: ø4mm
Switch: ø2.55mm
Cable Length Power: 1400mm
Switch: 300mm/650mm
IP Rating IP56
Operating Temperature (°C) -25 ~ +70
Material Aluminum
Weight (et. cable) 120g
Dimension (WxHxL) ø46 x 59.5mm
Switch Bracket / Mount ø22.2mm
Reflector (Optional) RF1/RFD
Compliance CE/ RoHS/ REACH/ Prop 65
Type of Approval UNECE R113 Class-B & ISO 6742
Approval Number E9 16897



Compliance

Built for safety and reliability, the AE-200 is designed for 45 km/h speed pedelecs and is E-Mark certified. It also complies with key international standards, including ISO 6742, CE, RoHS, and REACH, ensuring dependable performance, regulatory compliance, and responsible manufacturing.

StVZO
ISO 6742
CE
RoHS
REACH
What’s in the box

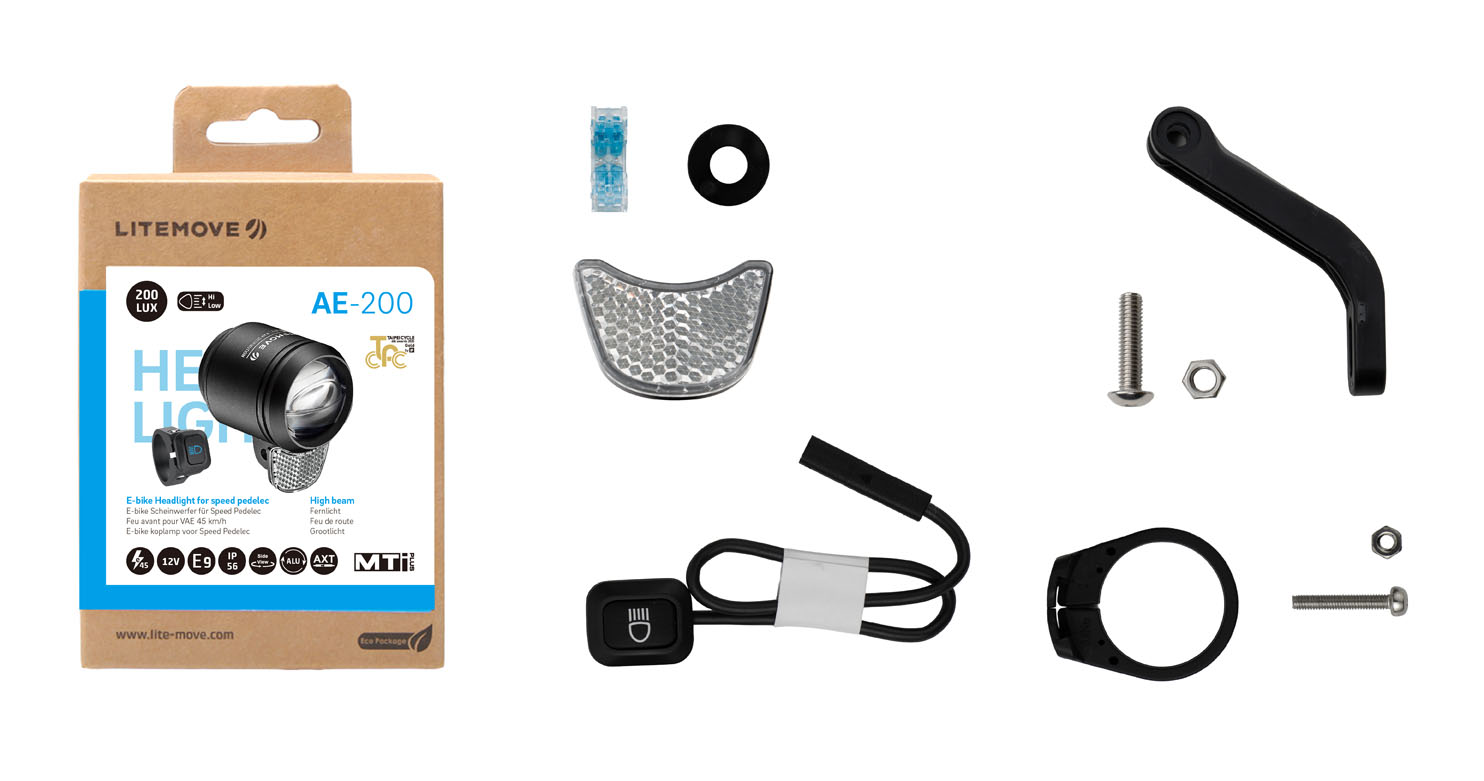

AE2001

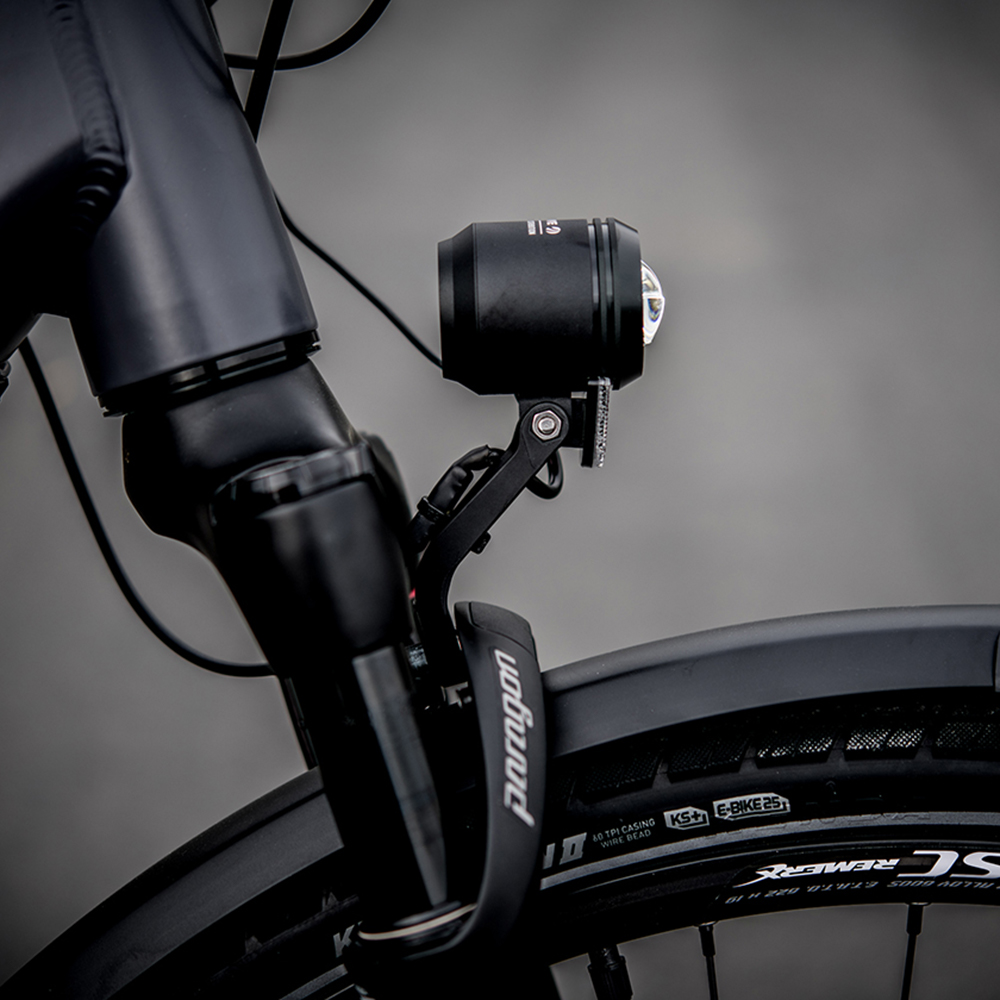

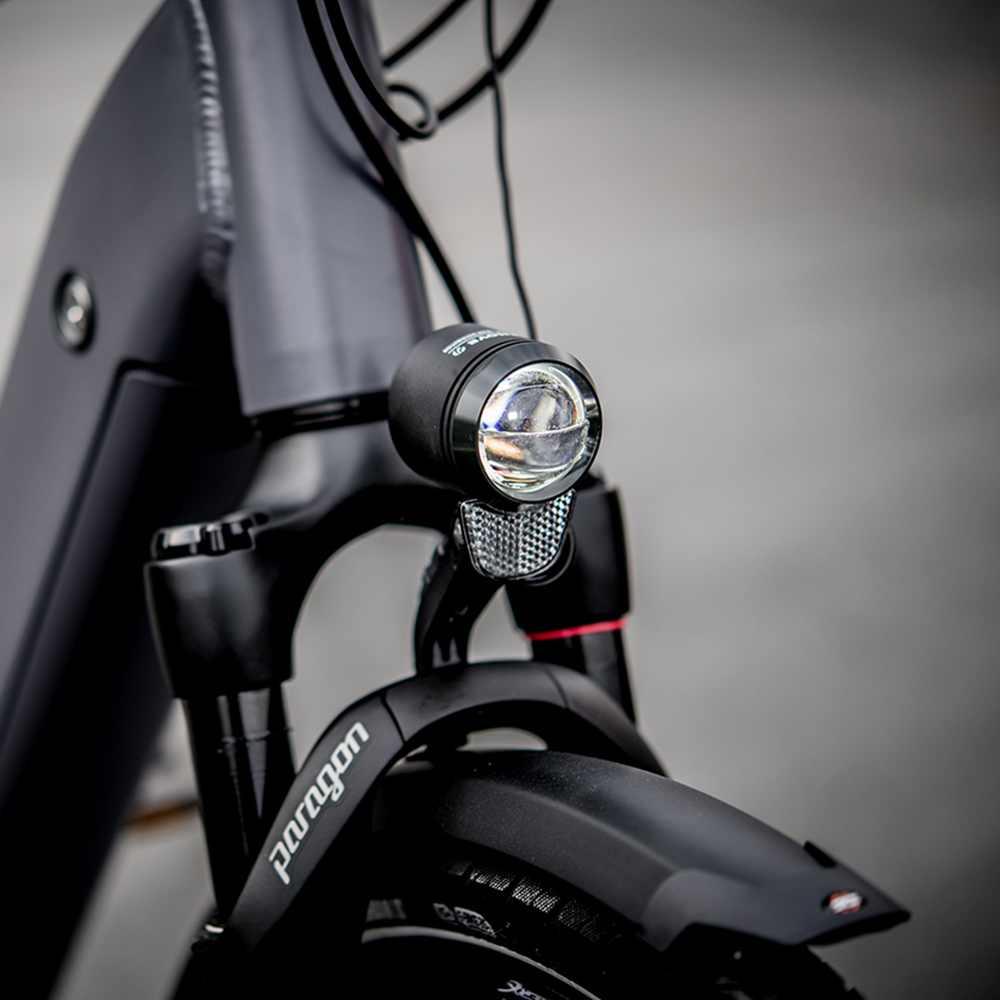

Under Mount

Forkmount Package

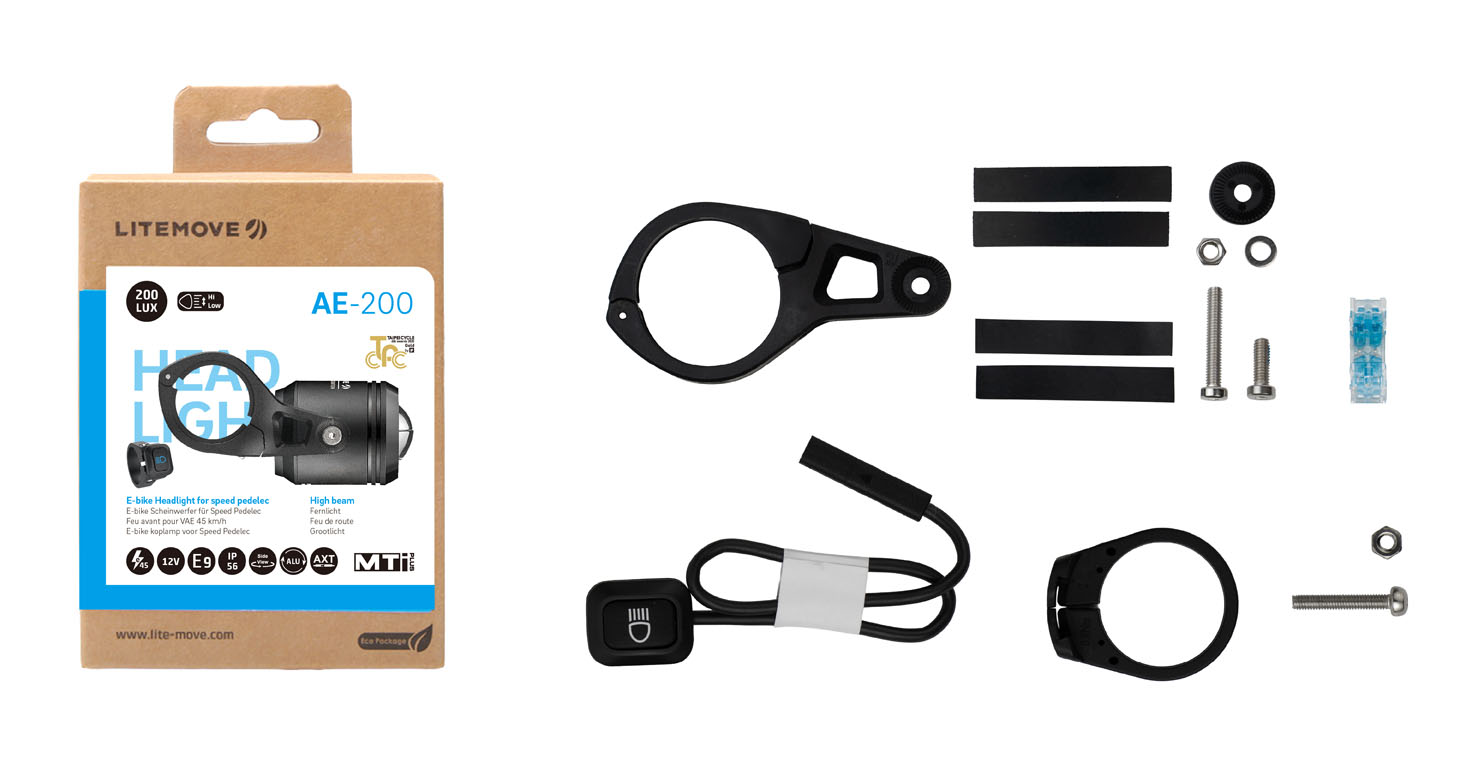

AE2003

Side Mount

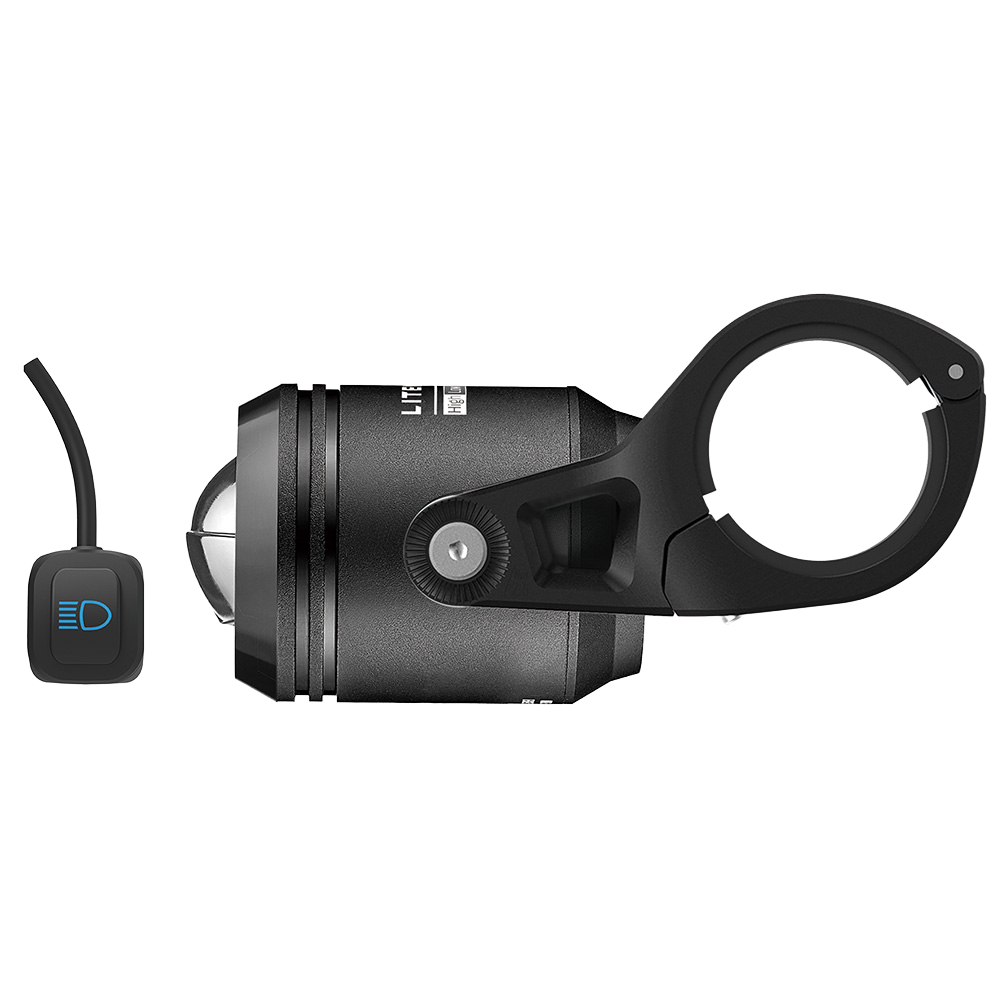

Handlebar Package
FAQ

Illuminate your path

2900 Lumens for demanding mountain bikers

Photo by Rico Haase DSC 7250 72dpi

UNECE (E‑Mark) Compliant High‑Power Light

Designed for speed pedelecs, it delivers 600 lm on high beam with an 8m-wide spread and 280m reach. Ideal for higher-speed riding, it ensures glare-free output for weekday commuting and weekend recreation, while maintaining strict legal compliance across diverse cycling environments.

Flex Bar Switch

Mounts on your left or right grip—and stacks over existing clamps like brake or shifter mounts if bar space is tight. Plug-in cable installs in minutes and disconnects fast for service.

Litemove Bar Switch

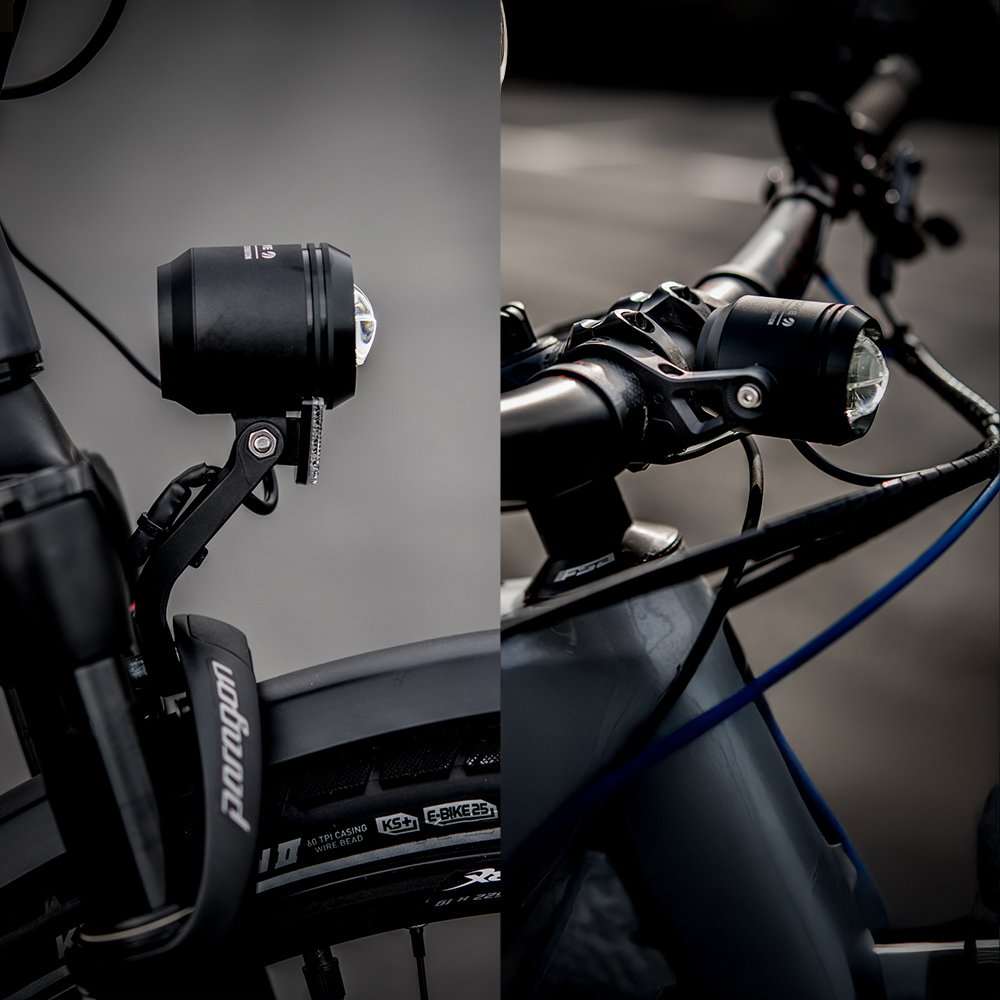

AE200 Flexible Mount

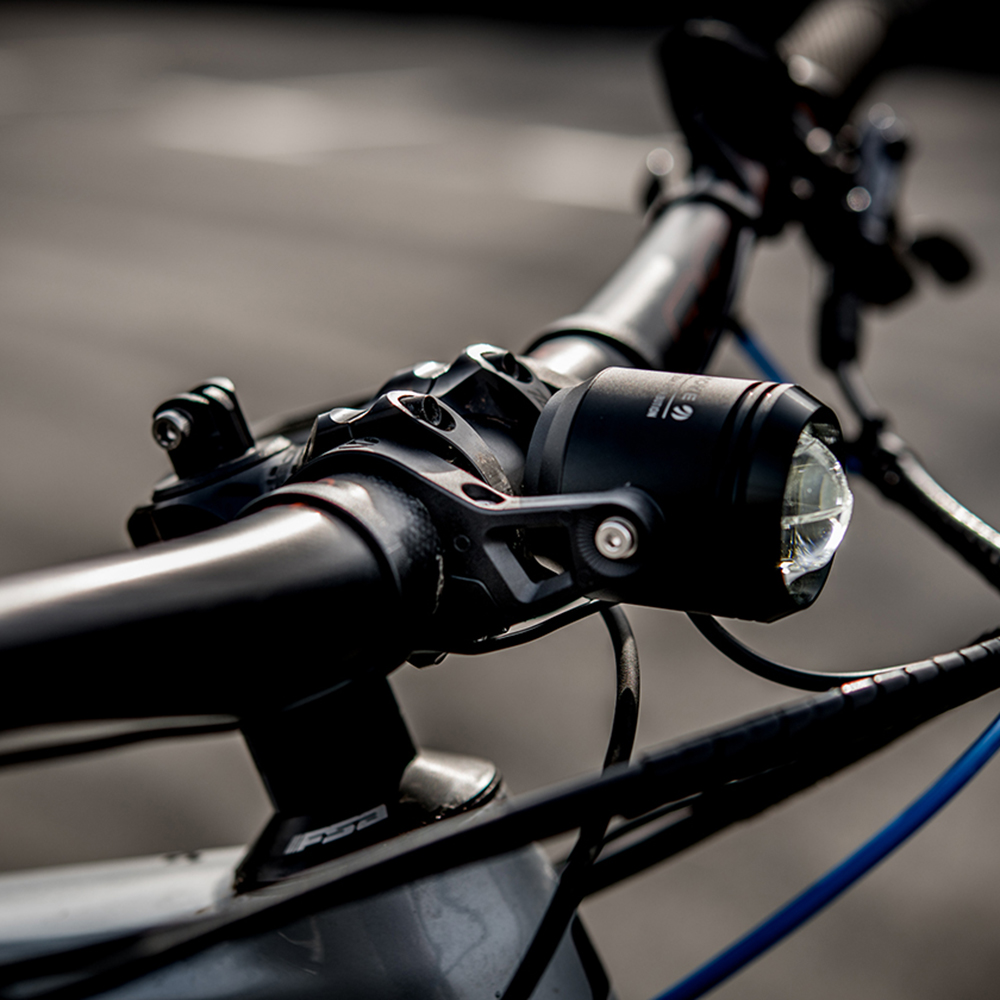

Multiple Mounting

Offers versatile mounting options with a secure GoPro®‑style interface. Designed for flexibility, it enables quick installation and adjustment, ensuring a clean, stable setup across diverse cycling applications

Durability & Protection

Crafted with premium, IP56 water-resistant materials and reinforced construction for reliable protection, durability, and consistent performance in demanding cycling environments.

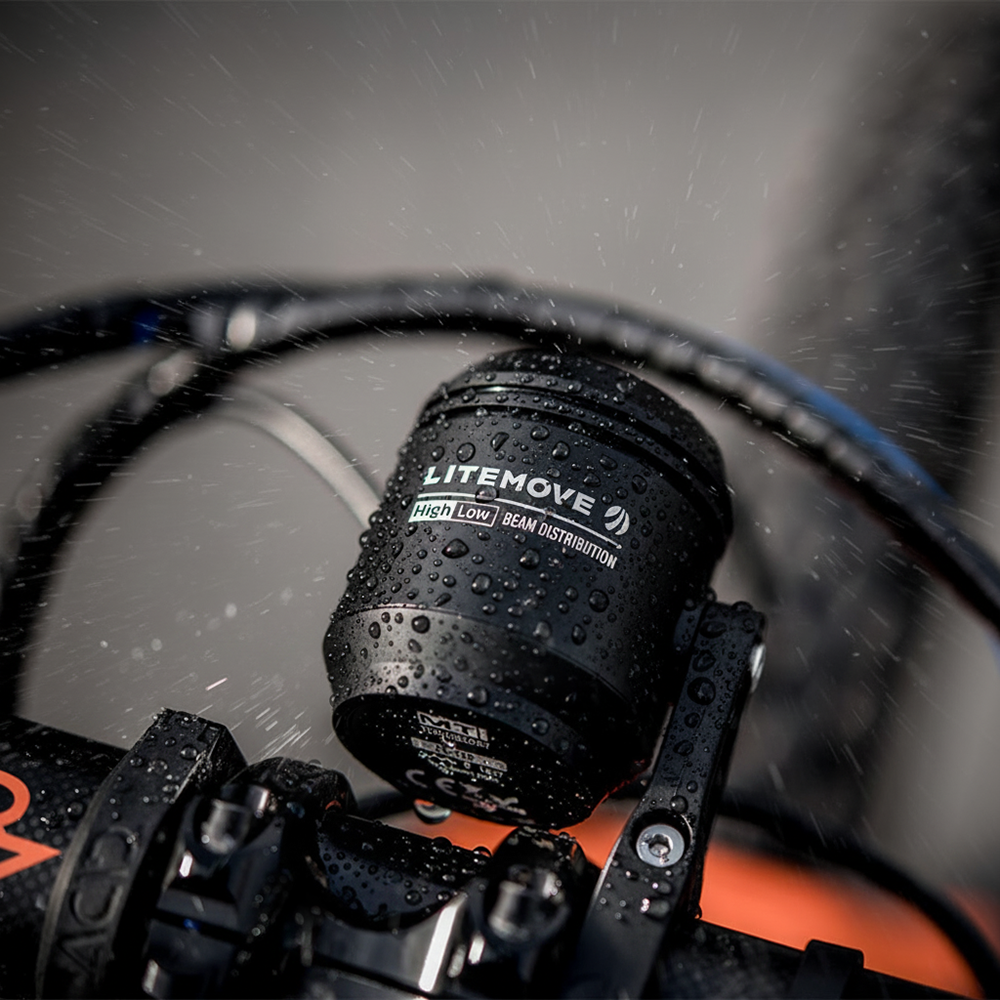

AE 200 IP56

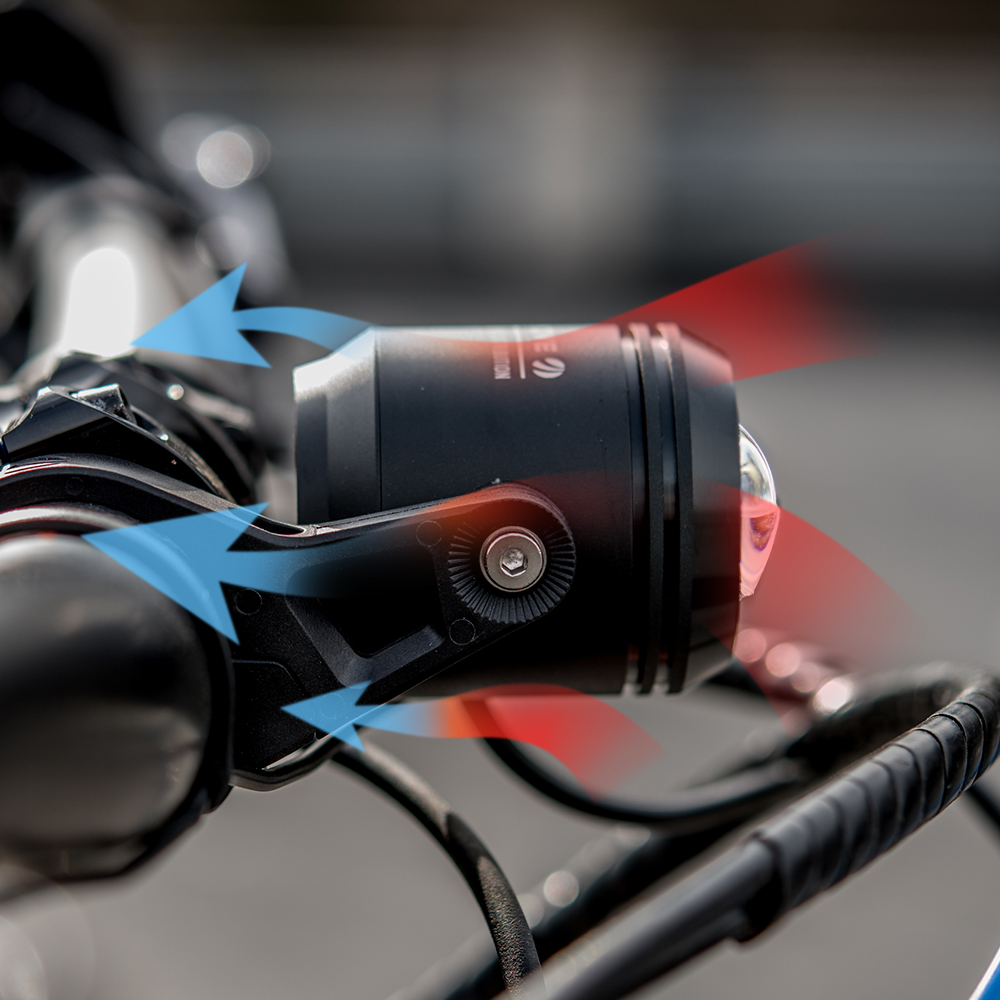

Litemove AE Thermal

Thermal conductive

Advanced thermal management system regulates heat efficiently, preventing overheating and maintaining stable brightness output. Guarantees consistent performance and extended product lifespan under high-power operation.

Litemove AE200 LB
Litemove AE 200 HB
High Beam Low Beam

Compatible with

Weight 0.25 kg
Dimensions 9 × 7.5 × 12 公分
Light Type

Headlights

Power source

E-Bike

Beam Type

High / Low Beam

Mounting

Cockpit, Fork

Max. Light output

501 – 1000 Lumens (Performance)

Riding scenario

City/ Urban Area, Rural Area

Compliance

CE, ECE, ISO-6742, RoHS/ REACH

High Beam Switch Cable

650mm, 300mm

Holder Position

Down, Side

Power Cable

1400mm Open + Self-sealing connector

Power source

E-bike

Mount / Bracket

Universal Fork Mount, Handlebar Bracket / Mount (for ø31.8 & 35mm)

Reflector

K-Reflector (Front), –
