| Model name | ATS-B100 |
| Model no. | ATS-B03 |
| S/N | 0046 |
| Light output | High : 100 lux / 700 lumens Standard : 70 lux / 500 lumens Low : 45 lux / 380 lumens Eco : 20 lux / 210 lumens Auto : 70-20 lux / 500-210 lumens |
| Optical technology | ATIR |
| Light source | LED*3 |
| Power source | Battery (3.7V / 5000mAh) |
| Runtime | High: 1.5 hours Standard: 3 hours Low: 5 hours Eco: 15 hours |
| Charge time | 3.5 hours |
| Charge require | Type C, 5V 2.1 A |
| Power Gauge | 100%-61%: 3 Blue 60%-31%: 2 Blue >30%: 1 Blue |
| Charging indicator | >30%: 1 Blue Flashing 31%-60%: 2 Blue Flashing 61%-99%: 3 Blue Flashing 100% : 3 Blue |
| Auto Light Sensor | YES |
| Memory Mode | YES |
| IP rating | IP56 |
| Operating temperature (°C) | -10 ~ +60 |
| Material | Aluminum |
| Weight (w/o bracket) | 203g |
| Dimension (WXHXL) | 32.5 x 33 x 121 mm |
| Mounting bracket | GoPro / Garmin |
| Compliance | CE / RoHS / REACH |
| Type of approval | StVZO-K / ISO 6742 |
| Approval number | ~ K 2775 |
| Model Name | TB04 |
| Model No. | TB04 |
| S/N | 0045-1 |
| Light Mode Output | High : 5500mcd / 20 lumens Standard : 2500mcd / 10 lumens Standard+Brake light : 2500-40000mcd / 10-90 lumens High+Brake light : 5500-40000mcd / 20-90 lumens |
| Light Source | LED *22 (Red) |
| Input Voltage (DC) | Battery (3.7V/400mAh) |
| Runtime/Power Consumption | High : 5 hours Standard : 10.5 hours |
| Charge Time | 2.5 hours |
| Charge Require | Built-in USB-C, 5V 1A |
| Low Power Indicator | Yes |
| Charge Indicator | Yes |
| IP Rating | IP56 |
| Operating Temperature (°C) | -10 ~ +50 |
| Material | Plastic |
| Weight (w/o bracket) | 27g |
| Dimension (WxHxL) | 20 x 77.7 x 21.7 mm (w/o bracket) |
| Mounting bracket | Universal ø 22.2-35mm |
| Compliance | CE/RoHS/ REACH |
| Type of Approval | StVZO-K/ ISO 6742 |
| Approval Number | ~ K2644 |
Built for safety and trust, our lights carry the K-Mark certification under Germany’s StVZO road regulations. They also meet key international standards, including ISO 6742, CE, RoHS, and REACH compliance, ensuring reliable performance and responsible manufacturing.

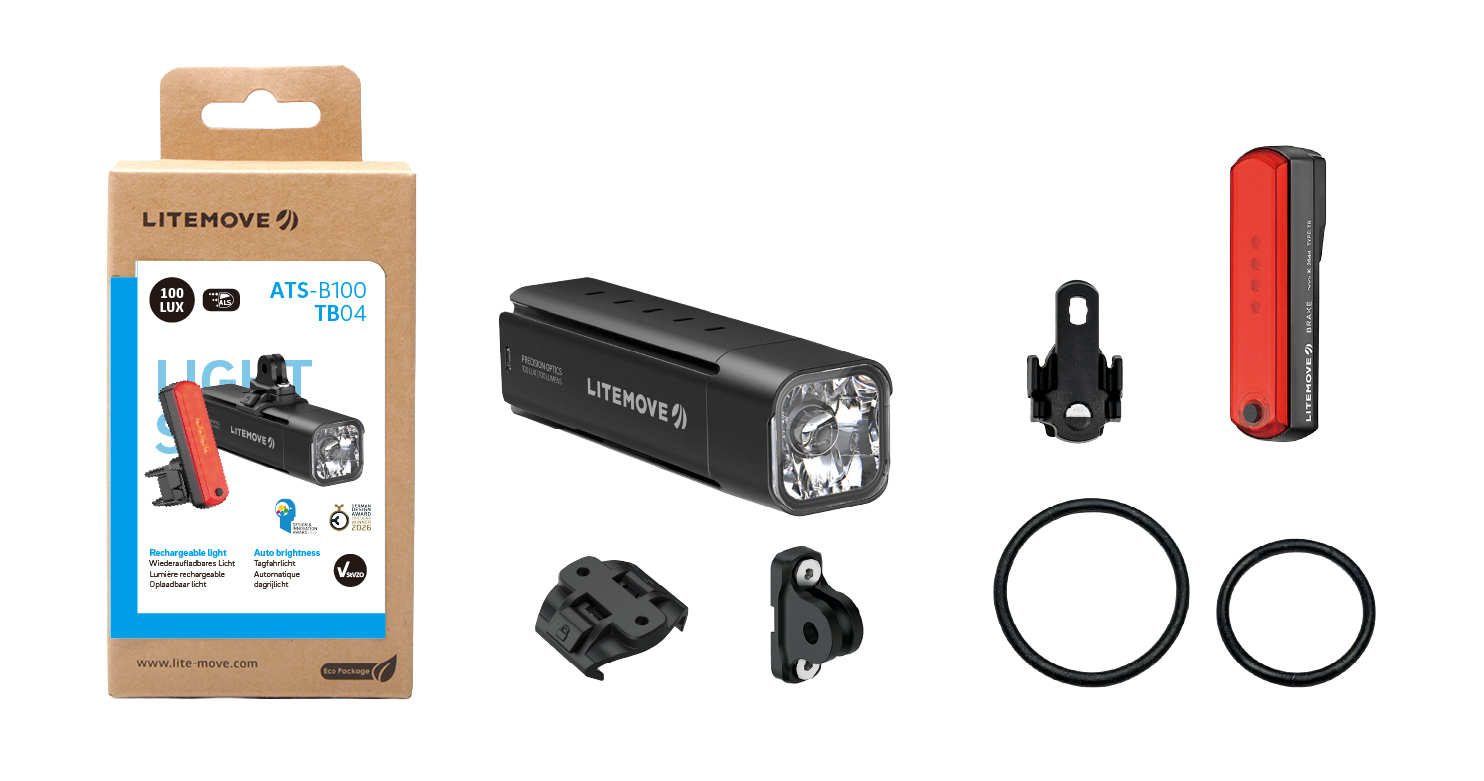

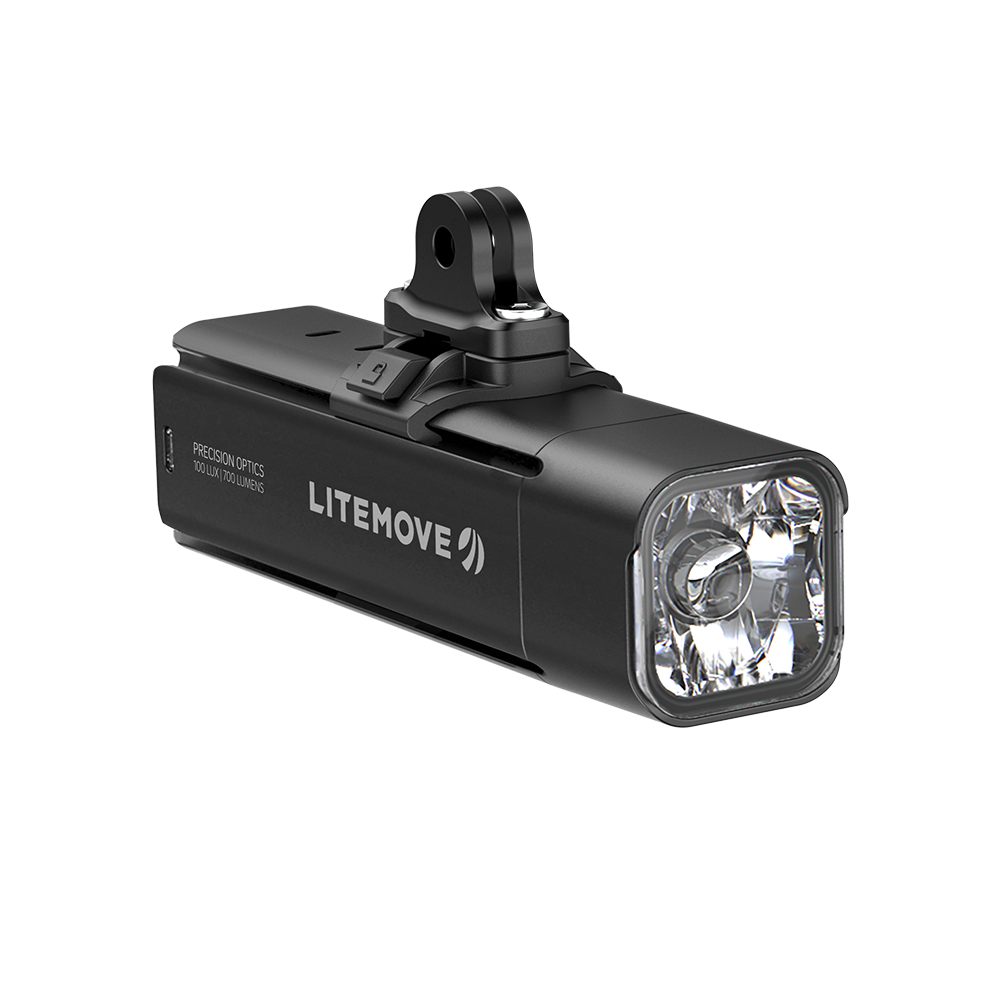

ATS-B100 + GoPro® style mount

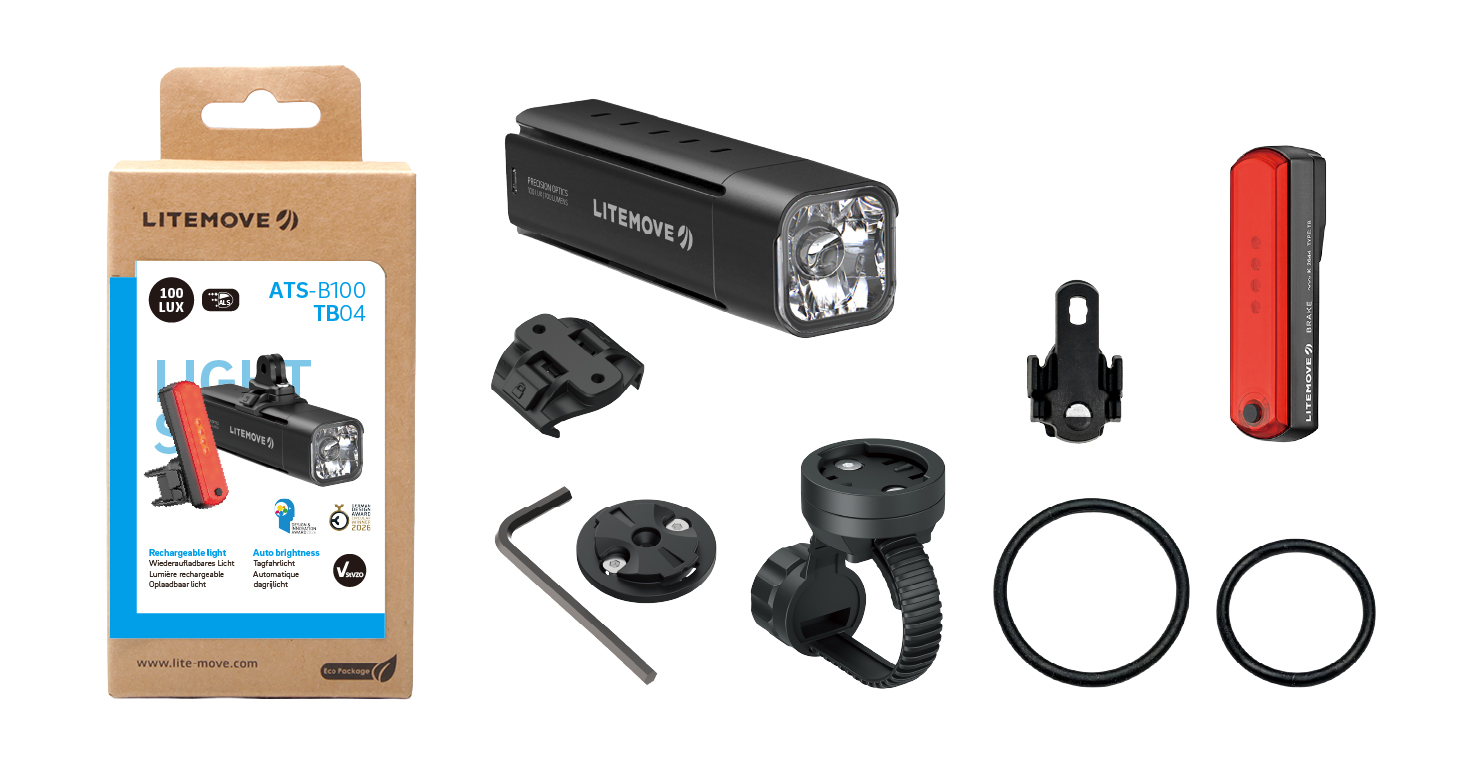

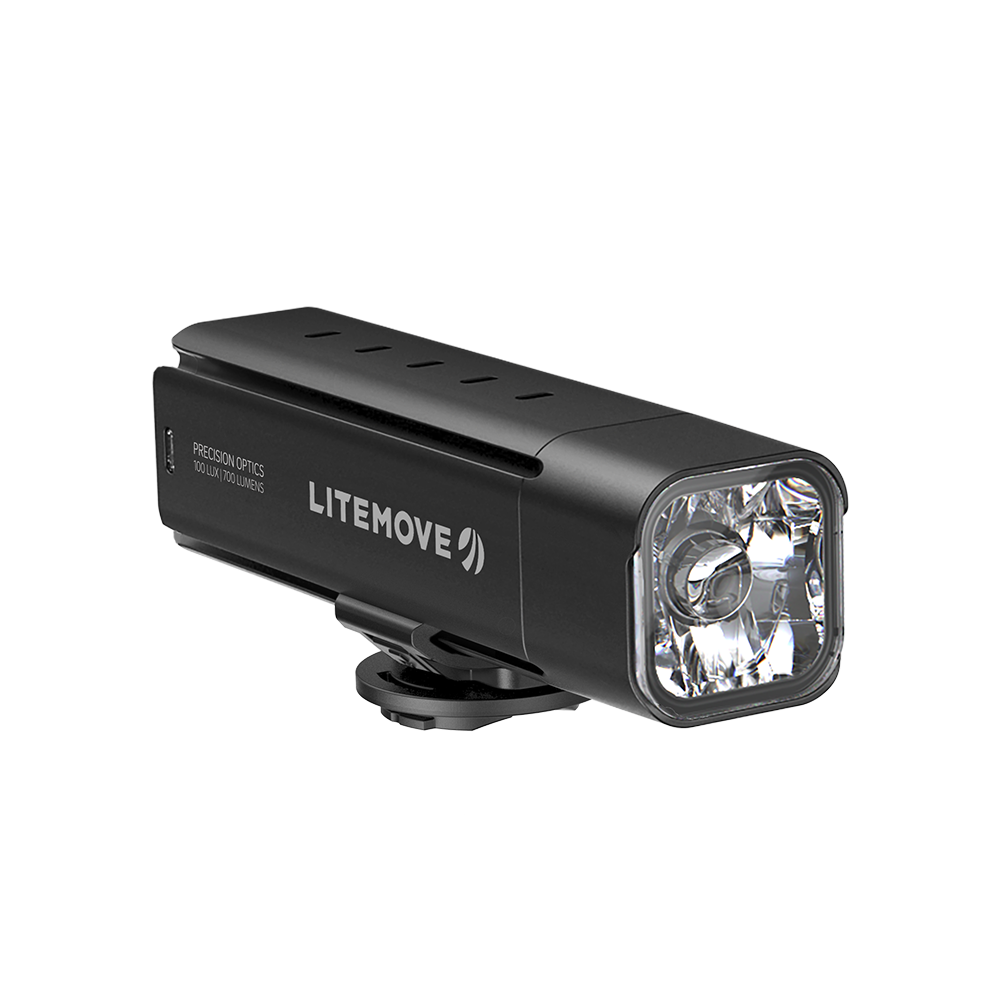

ATS-B100 + Garmin® style mount

User Manual- Download

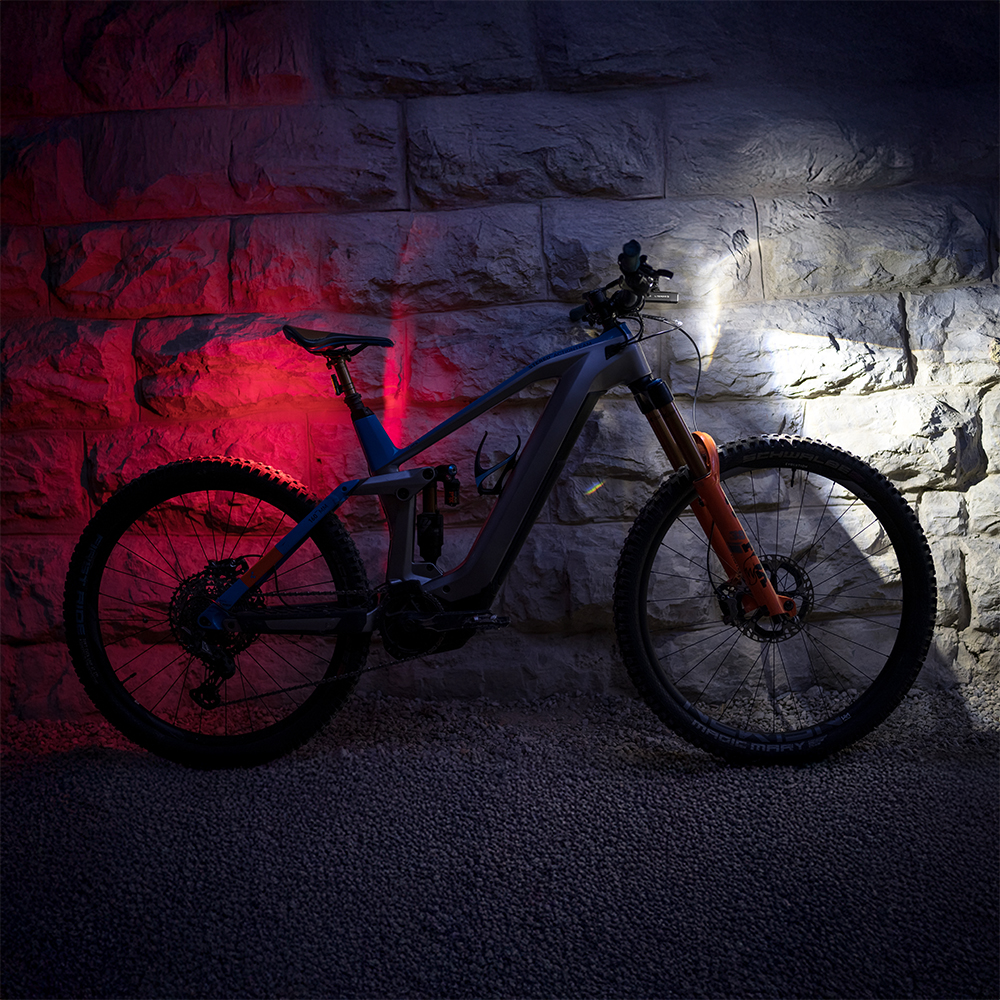

ATS-B03 lights the road ahead with 100 lux precision optics. TB04 keeps you visible from behind with Brake Warning that boosts to 90 lm the moment you slow down—complete visibility, both directions.
ATS-B03’s built-in ambient sensor automatically adjusts output as light conditions change—bright when you need it, reduced in daylight—without touching a button.
TB04 automatically brightens to 90 lm output the moment it detects deceleration—steady and instant, so drivers behind you know you’re slowing down before they need to react.

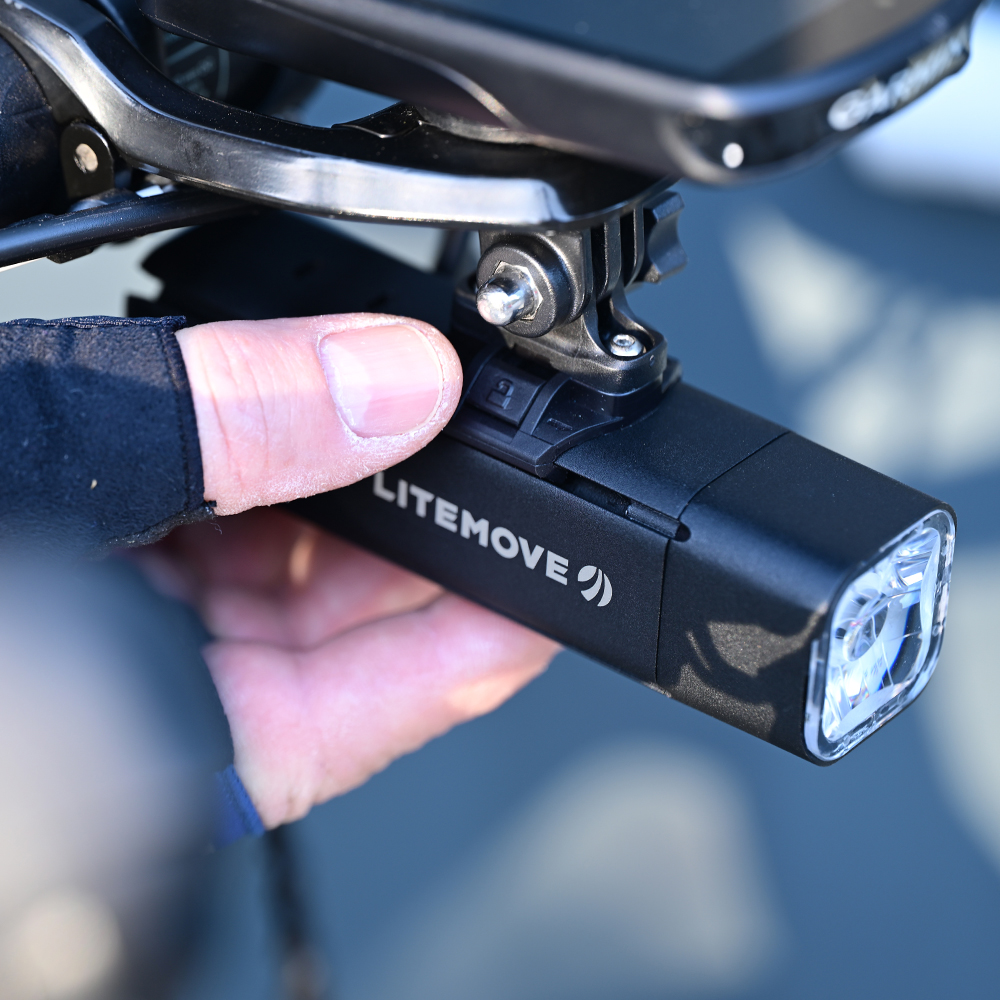

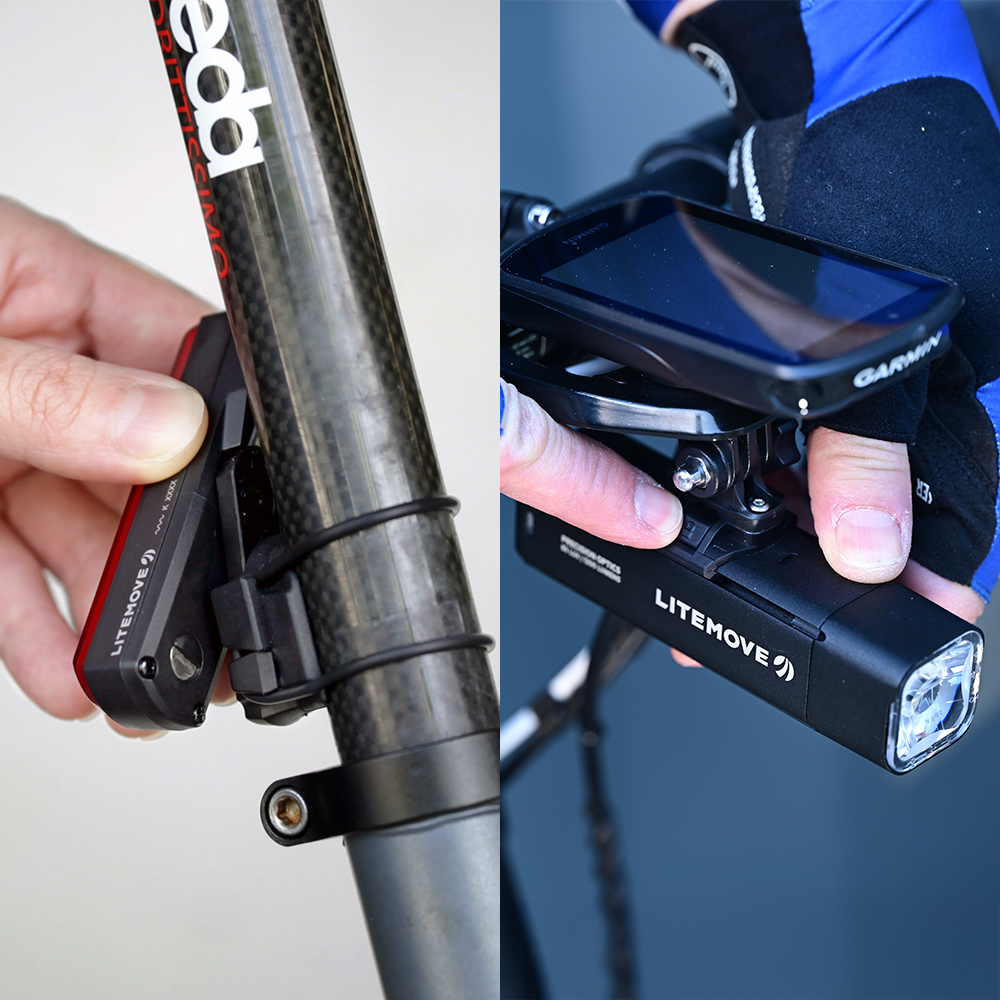

Both lights remove in seconds—ATS-B03 with a tool-free quick-release lock, TB04 with a magnetic snap. Take them off, charge up, snap back on.

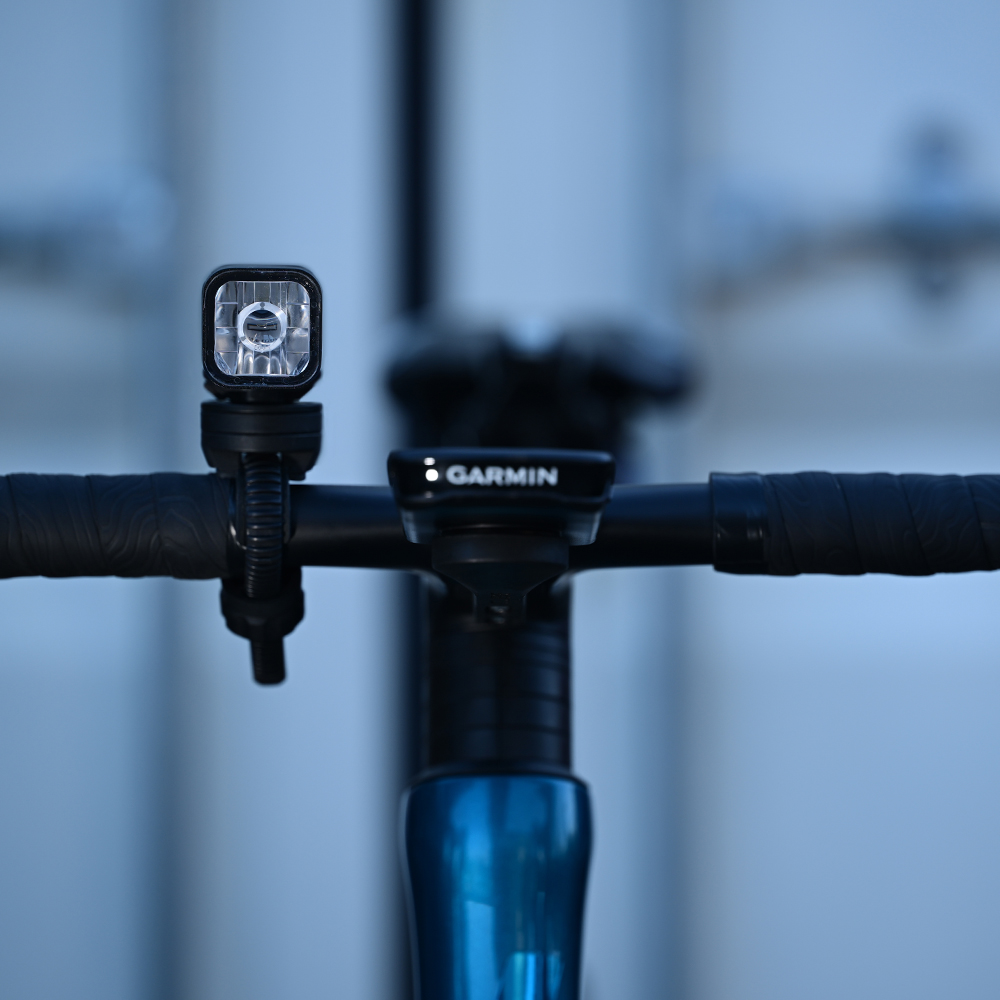

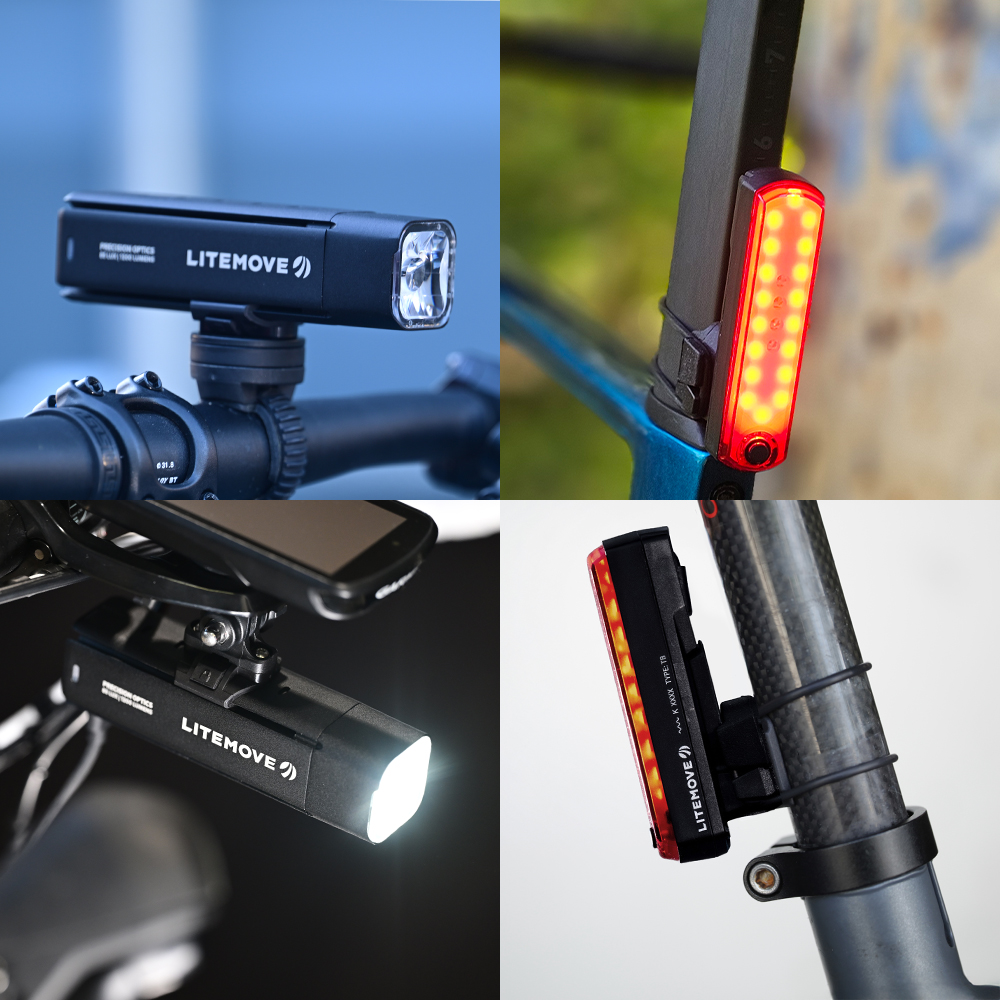

ATS-B03 mounts on GoPro® or Garmin® compatible interfaces, facing up or down to suit your handlebar setup. TB04 fits Ø22.2–35 mm round and aero seat posts. Precision optics maintain a level rearward beam across seat tube angles from 70° to 90°, compatible with most bike models right out of the box.
| Weight | 0.25 kg |
|---|---|
| Dimensions | 7.5 × 5.5 × 13 公分 |
| Mount / Bracket | GoPro adapter, Garmin adapter + Universal handlebar bracket |
| Item Description | Headlight |
