AE-260

An auxiliary headlight with uniform lighting distribution
UNECE-R113 Class-C (E-Mark)
High (driving beam): 680 lumens / Low (passing beam): 650 lumens
12V(11V ~ 16V) with a power consumption up to 17 Watt
For L1e/L2e/L3e/L4e/L5e
Compliant with CE/ ROHS/ REACH

SKU: AE260

Specifications

Model Name	AE-260
Model No.
S/N
Light Output	High beam (Driving beam): 680 lumens Low beam (Passing beam): 650 lumens
Optical Technology	MTi Plus
Light Source	LED *6
Input Voltage (DC)	12V(11V ~ 16V)
Power Consumption	High beam: 17W Low beam: 17W
Cable Diameter	ø4mm
Cable Length	250mm with connector
IP Rating	IP67
Operating Temperature (°C)	-25 ~ +70
Material	Aluminium
Weight (et. cable)	106g
Dimension (WxHxL)	ø43.5 x 51mm
Switch Bracket / Mount	N/A
Reflector (Optional)	N/A
Compliance	CE/ ROSH/ REACH
Type of Approval	UNECE R113 Class-C & ISO 6742
Approval Number

Compliance

UNECE R113 Class-C (E-Mark) and ISO 6742 approval, plus CE/ RoHS/ REACH compliance—road-legal auxiliary headlight spec for L1e–L5e platforms.

What’s in the box

Downloads

System Compatibility- Download

Description
Additional information

Illuminate your path

E‑Mark Compliant High‑Power Light

Designed for light vehicles, it delivers 680 lm on high beam and 650 lm on low beam with an 8.5m-wide spread and 325m reach. Certified to UNECE R113 Class-C and ISO 6742 standards, it ensures glare-free output for weekday commuting and weekend recreation, while maintaining strict legal compliance at higher speeds.

Durability & Protection

Crafted with premium, IP67 water-resistant materials and reinforced construction for reliable protection, durability, and consistent performance in demanding cycling environments.

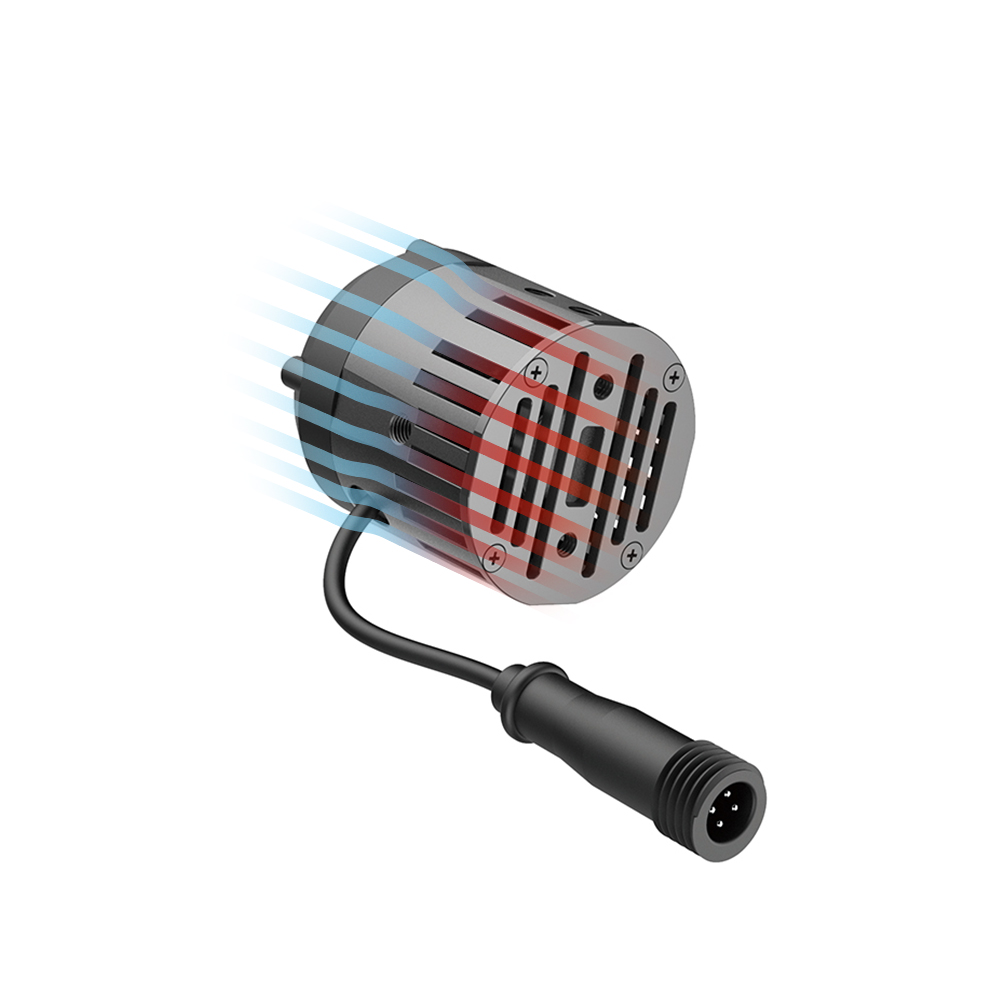

Thermal conductive

Advanced thermal management system regulates heat efficiently, preventing overheating and maintaining stable brightness output. Guarantees consistent performance and extended product lifespan under high-power operation.

Compatible with

Weight	0.25 kg
Item Description	Headlight
